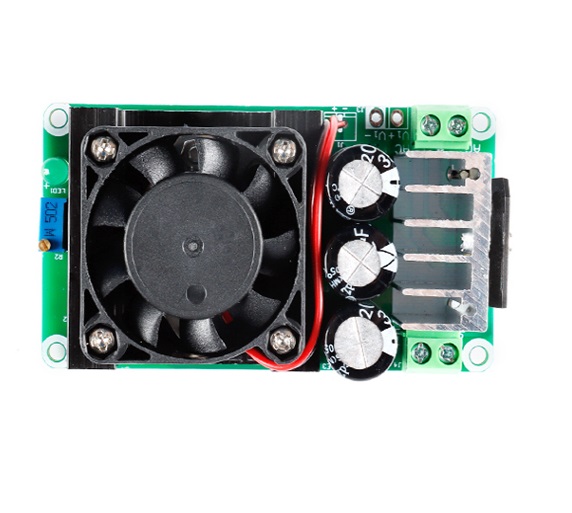

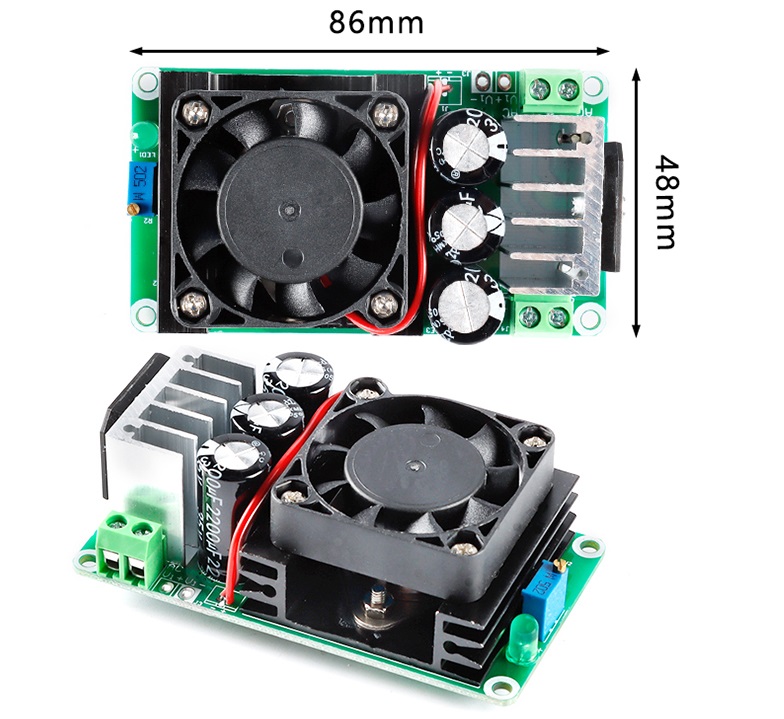

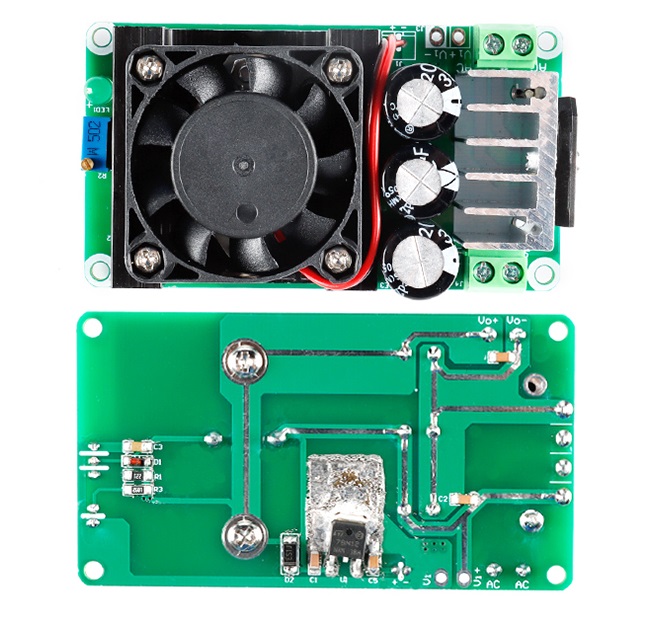

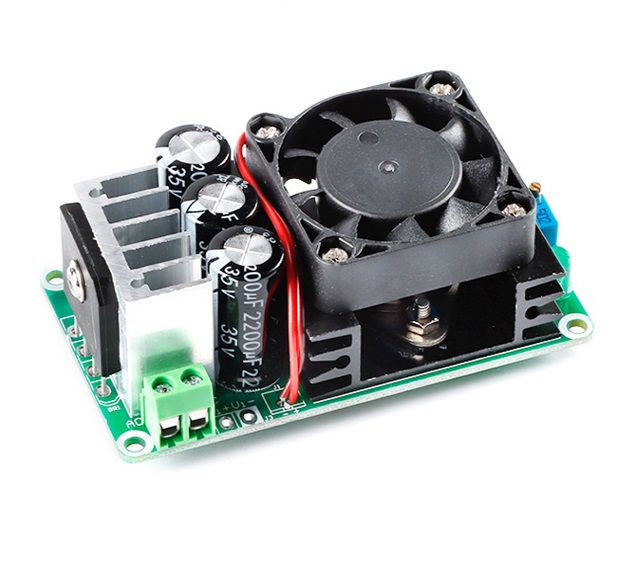

LM338K Rectifier Power Board Adjustable Linear Regulator + Rectifier Filter
Features:


LM338K linear regulator with high stability, high temperature resistance, high linearity, output voltage range up to 1.25V~30V continuously adjustable, maximum operating current over 3A (maximum output current up to 5A requires increased heat sink Or increase active cooling measures). The board has an 8A rectifier bridge (with heat sink) and is equipped with an input filter capacitor of 4400uF and an output filter capacitor of 2200uF, which can effectively reduce output ripple and interference. Applicable to electrical appliances, equipment, audio, digital amplifiers, etc. that supply power below 30V, providing low internal resistance and low ripple power.

Input voltage range: DC5V-35V, AC5V-22V
Output voltage range: DC1.25V-30V (continuously adjustable)
Output current range: maximum continuous working current <3A (input and output DC voltage difference does not exceed 10V), when the input and output DC voltage difference exceeds 10V, please ensure the output current <2A, peak current up to 5A
Operating temperature range: 0°C-100°C

Package Contents
100% Brand New
1 XLM338K adjustable power supply board
