This IR night vision security camera is an economic day and night security camera for indoor and outdoor applications.

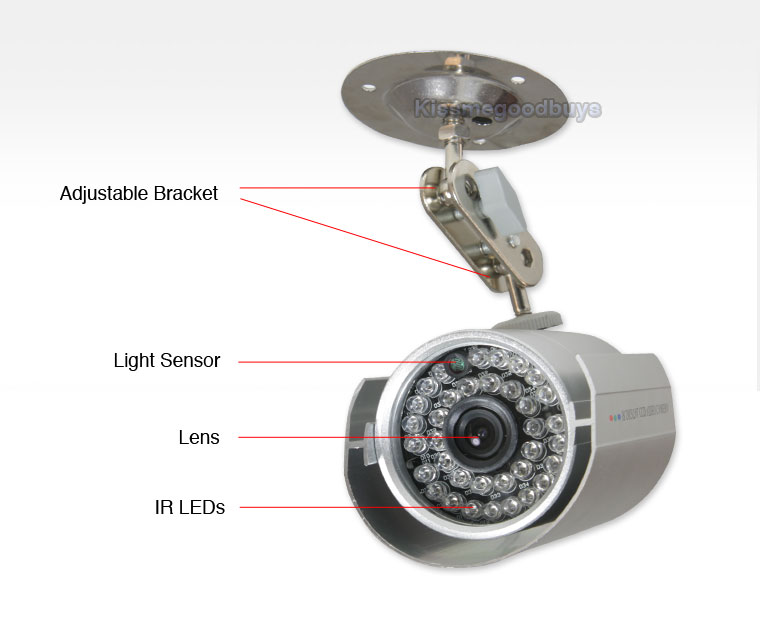

Lens, camera and IR illuminator all in one design with weather resistant housings and swivel mount.
This incredibly flexible camera outputs color image by day and switches to a sensitive black & white mode at night.
At low light the Bullet Camera activates 36 integrated infrared illuminators that allow the camera to capture images in complete darkness !
This camera is compatible with all professional grade video surveillance / security systems.

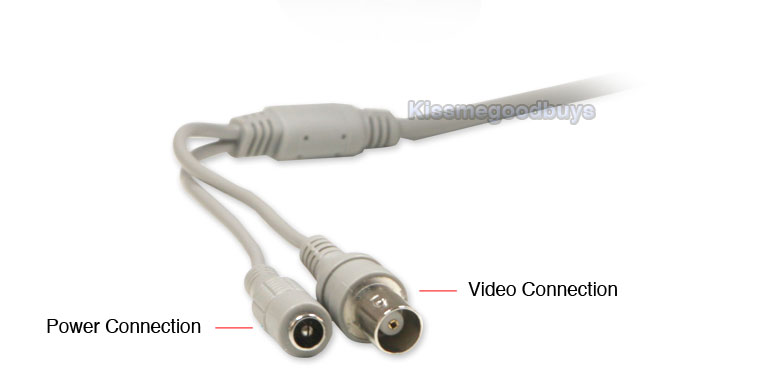

The camera provides a BNC connection for color video.
Specifications:
- 36x IR Night Vision LEDs
- Image sensor: Sony 1/3" color CCD
- 420 TV Lines
- 3.6mm lens with approximately 110° to 120° angle of view
- Weatherproof
- System: PAL / NTSC (Optional)
- Cable Length: approx. 40.5cm
- Color: Silver
- Bracket is included for easy installation
- Crisp, clear state of the art imaging
- Built-in infrared LED, may work under zero degree of illumination environment
- 36 LED IR illuminators view
- Indoor / Outdoor for Day / Night
- Aluminum Alloy Housing
- Back light compensation
Note:
Depending on your region, we will choose the appropriate camera system for you (PAL or NTSC).
Please visit http://en.wikipedia.org/wiki/Pal to check which system you should use.
Should you like the camera in a particular system, please inform us in the PayPal note when you are making your payment.
Technical Information:
Image Sensor |
Sony 1/3" Color CCD |
| Lens |
3.6mm |
Effective Pixels |
- PAL: 512 (H) x 582 (V)
- NTSC: 512 (H) x 492 (V) |
Horizontal Resolution |
420 TV Lines |
LED |
36 Pcs |
| Angle of View (Horizontal) |
110° to 120° |
| Min. Illumination |
0 Lux (IR on) |
S/N Ratio |
＞52db |
Signal System |
NTSC / PAL (Optional) |
| Water Resistance |
IP65 |
Electronic Shutter |
Auto |
Auto Electronic Shutter |
- PAL: 1/50 - 1/100,000Sec
- NTSC: 1/60 - 1/100,000Sec |
White Balance |
Auto |
| Backlight Compensation |
Auto |
| Auto aperture |
Auto |
| Mirror control |
Auto |
| Video Output |
BNC Connect, 1.0Vp-p, 75Ω |
| Power Requirement |
DC 12V |
| Power Consumption |
100mA |
| Working Temperature |
-10℃ ~ 50℃ |

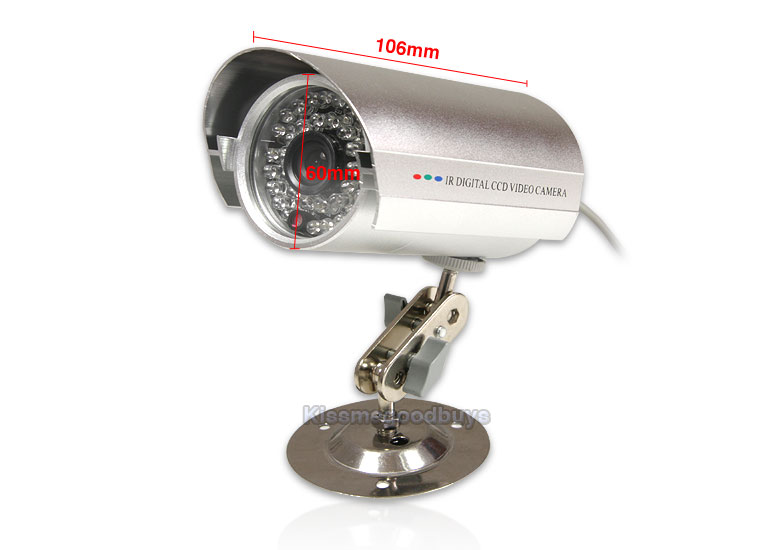

Camera Size (excluding bracket) |
approx. 10.6cm (Height) x 6.0cm (Diameter) |

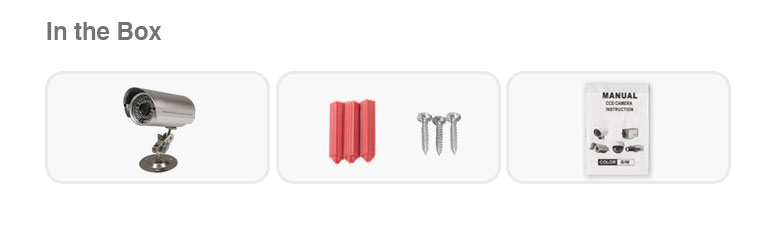

Package includes:
4 x Sony 1/3" CCD 3.6mm Color Security Camera
12 x Screws
4 x User Manual
