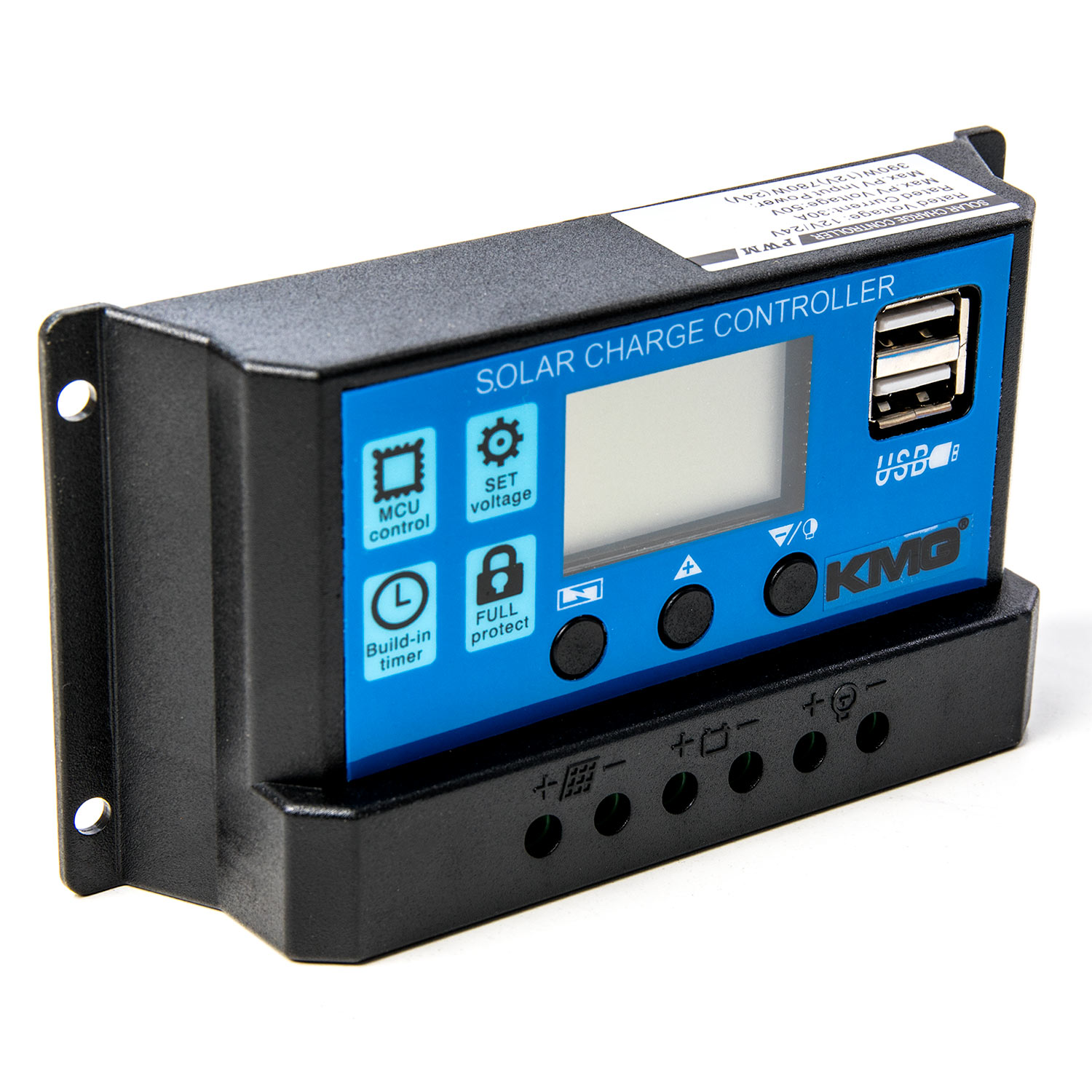

KMG 30 Amp PWM Smart Solar Charge Controller with LCD Display for Solar Panels

The KMG Solar Charge Controller manages the power going into the battery bank from the solar panels. It ensures that the batteries are not overcharged during the day, and that the power doesn’t run backwards to the solar panels overnight and drain the batteries. Solar power provide you with a clean, quiet, and renewable way of providing power for all applications. Solar is the perfect solution for adding power to your off-grid cabins, RV Motorhomes, Marine Boats, Vans, Camping, and Tiny Homes. Use this charge controller in conjunction with solar panels and a battery bank to store the power.

Features:

• KMG Solar Charge Controller is the perfect solution to manage your Off-Grid Applications, RV Motorhomes, Vans, Boats, Camping, or Tiny Home Solar Systems!
• Automatically manage the workings of solar panels and batteries in your solar system
• Improves System Efficiency and Prolongs the Battery Life with the 3-Stage PWM
• Built-in Short-Circuit Protection, Open-Circuit Protection, Reverse Protection, Over-Load Protection

Specifications:

• Charge Current: 30A
• Rated Voltage: 12V / 24V DC Automatic Identification
• USB Output: 2x USB Ports (5V/2.5A)
• Dimensions: 5 1/4" x 2 3/4" x 1 3/8"
• Working Temp: -35° to +60°
• Self-Consume: <10mA
• Floating Charge Voltage: 13.7V (Adjustable)
• Discharge Up to Voltage: 10.7V (Adjustable)
• Discharge Recovery Voltage: 12.6V (Adjustable)
• MAX Solar Panels: 3x 100W Solar Panels
• Brand: KMG
• Condition: 100% Brand New

Instructions:

• 1. Connect the Battery to the Charge Controller - Positive then Negative.
• 2. Connect the Solar Panel to the Charge Controller - Positive then Negative.
• 3. Connect the Load to the Charge Controller - Positive then Negative.

Important Please Read: The reverse order applies when uninstalling. An improper sequence order can damage the controller.

Package Includes:

• 1x Solar Charge Controller
• 1x User Manual
