This Closed-loop Stepper Driver offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective. The system includes a 2-phase stepper motor combined with a fully digital, high performance drive and an internal encoder which is used to close the position, velocity and current loops in real time, just like servo systems. It combines the best of servo and stepper motor technologies, and delivers unique capabilities and enhancements over both, while at a fraction of the cost of a servo system.

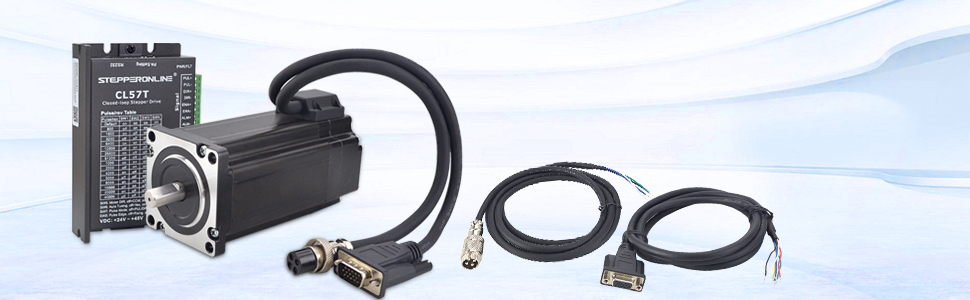

This CNC losed Loop Kit Including:

• 1 x Closed Loop Stepper Driver 0-7.0A 24-50VDC for Nema 17, 23, 24 Stepper Motor CL57T
• 1 x Nema 24 Closed Loop Stepper Motor 4Nm(566.56oz.in) Encoder 1000CPR
• 1 x 1.7m Long Encoder Extension Cable for Closed Loop Stepper Driver
• 1 x RV-4 AWG20 1.7m Long Motor Extension Cable with GX16 Aviation Plug
• 1x driver CL57T User Manual

Motor Specification:

• Part Number: 24HS40-5004D-E1000
  Number of phase: 2
  Holding Torque: 4.0 Nm(566.56oz.in)
  Rated Current/phase: 5.0 A
  Phase Resistance: 0.6 ohms± 10%
  Inductance: 2.6 mH ± 20%(1KHz)
  Frame Size: 60 x 60 mm
  Body Length: 100 mm
  Shaft Diameter: 10 mm
  Shaft Length: 21 mm
  Keyway Shaft Length: 15 mm
  Lead Length: 300 mm
•

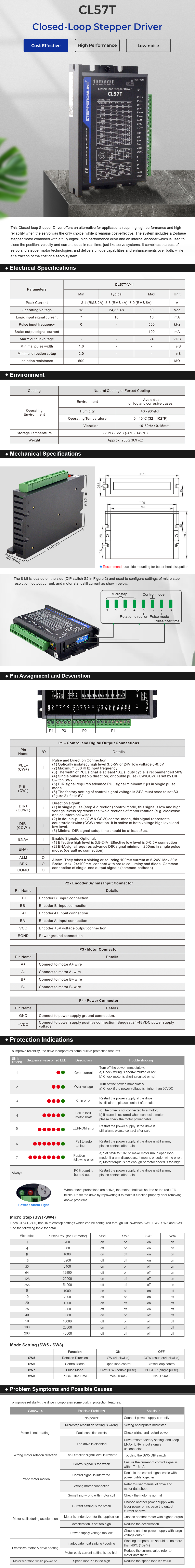

2-Phase Hybrid Stepper Servo Driver CL57T
