Cherry  Also Know As (ZF Electronics) is a global leader in driveline and chassis technology and on May 20, 2015 ZF acquired TRW Automotive. The company is now represented in 230 offices in 40 countries. In 2014 both companies operated independently. Collectively, the group achieved sales exceeding €30 billion euros with approximately 134,000 employees. The Industrial Solutions (IS) product line in the Electronic Systems business unit develops and manufactures electromechanical components, specifically snap switches, panel-mount switches, rocker and sealed rocker switches, a full range of sensor products as well as Energy Harvesting wireless products. Target customers for the Industrial Solutions product line include (but are not limited to) home appliance, HVAC, medical equipment and non-automotive equipment such as agricultural and commercial equipment and power sports vehicle (including marine and RV) OEM’s and distributors.

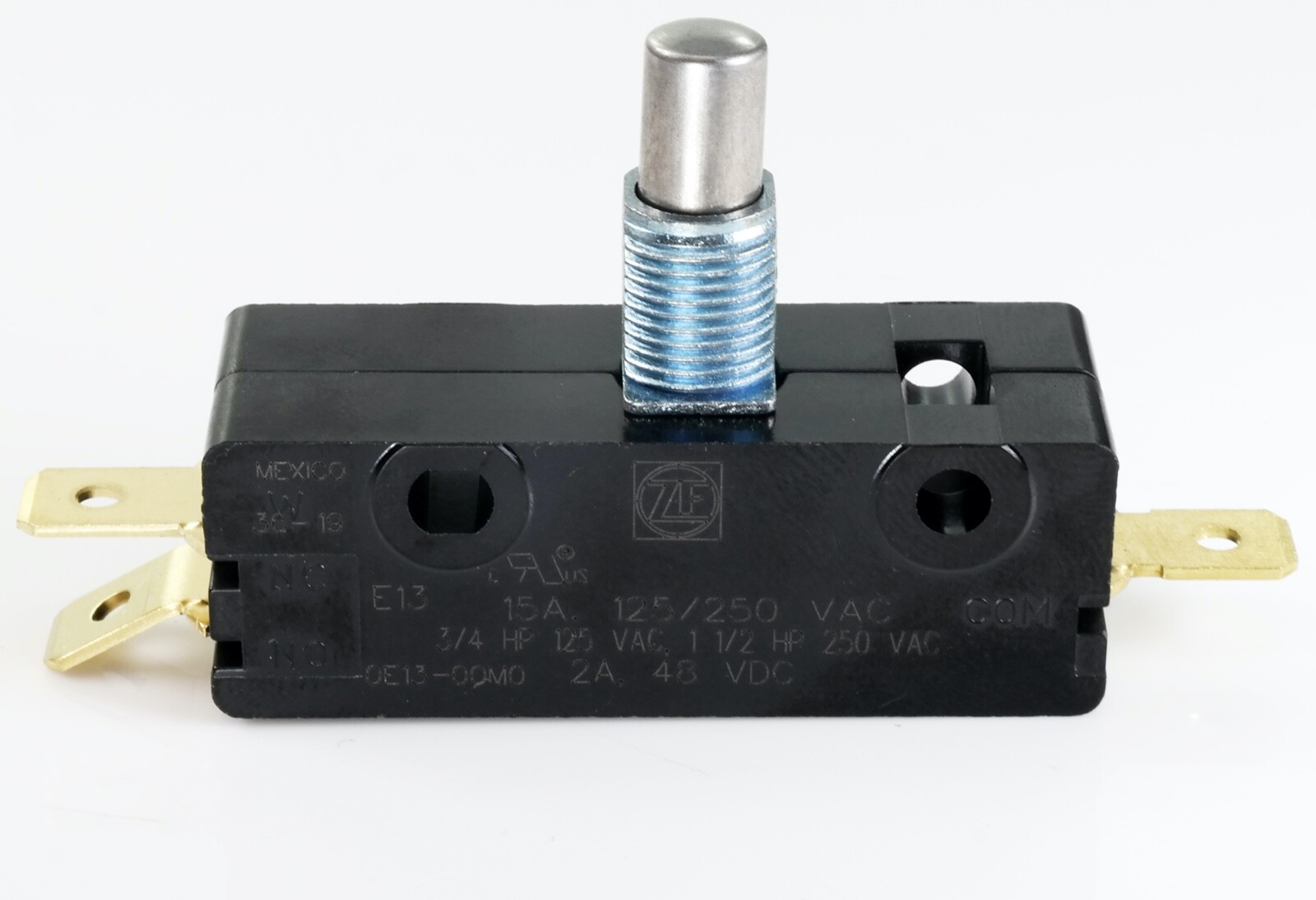

Cherry/ZF Electronics 0E1300M0 SPDT Microswitch 250VAC/15A, 48VDC/2A Golf Cart

Features & Benefits

  • Long life coil spring, snap action mechanism
  • Agency approved extended life versions available
  • RoHS compliant
  • High temperature versions available – contact factory

Specification:
Part StatusActive
CircuitSPDT
Switch FunctionOn-Mom
Current Rating (Amps)15A (AC), 2A (DC)
Voltage Rating - AC125V
Voltage Rating - DC48V
Actuator TypeOvertravel Plunger
Mounting TypePanel Mount
Termination StyleQuick Connect - 0.250" (6.3mm)
Ingress Protection-
Features-
Operating Force425gf
Release Force-
Pretravel0.050" (1.27mm)
Differential Travel0.015" (0.38mm)
Overtravel0.219" (5.6mm)
Operating Temperature-40°C ~ 105°C
Operating Position0.812" (20.6mm)
Electrical Life6,000 Cycles
Mechanical Life-
