Item Description

Please be aware there are inconsistencies with thread lengths on socket range of product, specifications for this listing have been taken from DIN7991 and as such we recommend they should be used as a guide only, we have found variations exist at the point when the thread length on the product is suppose to change from being fully threaded to part thread, part shank. The lengths affected are generally the lengths within the 25 - 50mm long range
Countersunk / CSK / Flat head socket screws, suitable for applications when you require a flush mounted finish
Plain finish with an oil coating = this product is suitable for internal applications, can be used externally if a coating is applied
Photos are for illustrative purposes only and may not be the actual diameter or length
Every effort has been made to ensure all measurements are accurate, they should only be used as a guide
The length of a CSK socket screw is measured overall, from the top of the head to the end of the thread
Our stock is sourced from various manufacturers, therefore differences may exist between batches such as visible stamped head markings and thread lengths
Manufactured to DIN 7991
A Tax Invoice will be included with every order
Need help? message us through eBay
If you are looking for another type, diameter, length, width, material or pack size use the store search box on our store page

Specification

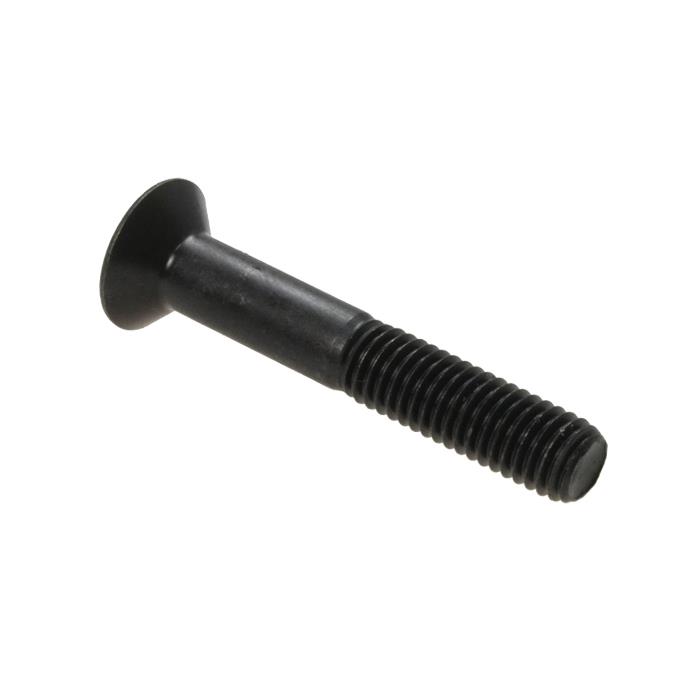

Product	Countersunk Head Socket Screw
Head Type	Countersunk / Flat Head
Screw Size	M10 (10mm)
Thread Pitch	1.50mm
Thread Length	32mm
Length OVERALL	60mm
Head Diameter APPROX	19.50 ~ 22.40mm
Head Height APPROX	6.20mm
Wrench Key Size	6mm
Material	Alloy Steel
Grade	10.9 or 12.9
Finish	Plain - Not Coated
Brand - Our Discretion	Brighton Best / Hobson
This Pack Quantity	20
