Title：

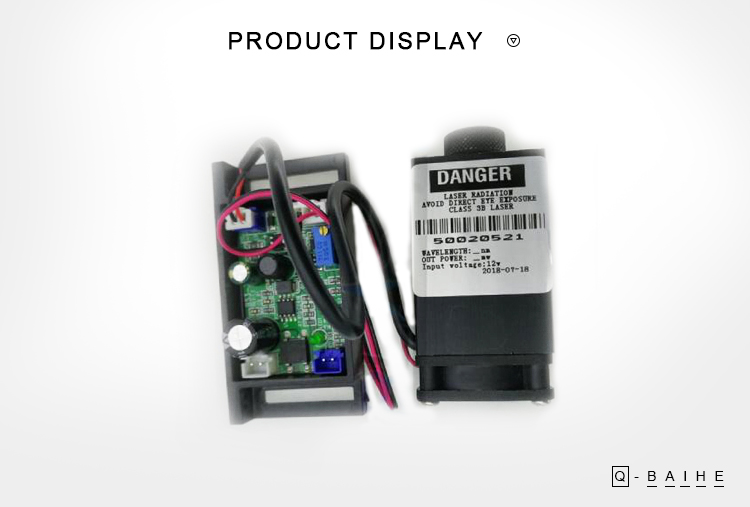

980nm 300mw Infrared Light Laser Module High Power Laser Light Adjustable Focus

Wavelength:

980nm

Output Band:

Infrared Invisible Light

Power:

300 mW

Spot Mode:

Dot (rectangular)

Working Voltage:

9-12VDC

Working Current:

<1A

Modulation Frequency:

TTL

Output Port:

0-5V

Input:

 1HZ-100KHz

Working Temperature:

-10 ° C ~ 32 ° C

Dimensions:

30*30*55/65mm

Storage Temperature:

-20 ° C ~ 85 ° C

Power Supply Size:

72*36*22mm

Service Life:

5000~8000H

Material Color:

Alumina Black

Mode of operation:

continuous laser
Product Description:

1. The lens adopts F40 flat convex
2. Working distance 100mm-3000 meters
3. Can adjust the spot size as needed

Prompt:

When the laser is working for a long time, it needs to add metal heat sink, fan or bracket to make the surface temperature of the module below 35 degrees. If the temperature exceeds this temperature range, the laser will age rapidly. Wear laser safety glasses when using.

Package:

1*980nm 300mw Infrared Light Laser Module
