3M Direct Bury Splice Kit DBR/Y-6(KIT), 18-10 AWG
- Manufacturer:3M
- Part Number:7000058827

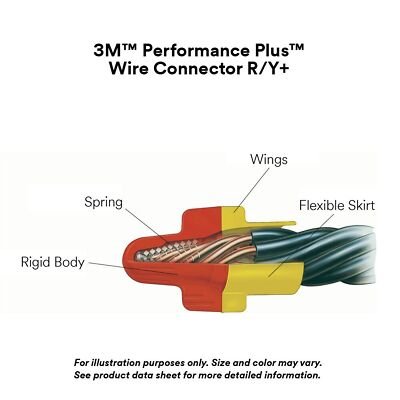

3M Direct Bury Splice Kits combine the quick, reliable connection of a 3M Performance Plus Wire Connector with the moisture resistance of a high impact, UV resistant tube prefilled with moisture resistant grease.Premium splice designed to connect and moisture seal an electrical connection for direct bury applications, rated up to 600V. Moisture resistant grease acts as a barrier for damp environments, reducing exposure to the elements in outdoor boxes and underground connections. Common uses: golf course irrigation, landscape lighting, direct bury.Please allow 2 days for production.
- Twist-on type for quick connection
- Used for appliances and fixtures, automotive and marine, commercial construction, industrial construction and residential construction
- Delivers uniform holding power
- Withstands temperatures up to 221 °F (105 °C)
General Information | |
| Brand | 3M™ |
| Connection Type | Wire |
| Connector Style | Direct Bury |
| Product Type | Connector |
| Wire Connector Type | Direct Bury Splice Kit |
| Country Of Origin | United States |
| Lead Time | 2 days |
Dimensions and Specifications | |
| Application Temperature Range (Celsius) | 0 - 49 Degrees Celsius |
| Application Temperature Range (Fahrenheit) | 32 - 120 Degrees Fahrenheit |
| Closure Length (Imperial) | 3.66 in |
| Closure Length (Metric) | 93 mm |
| Closure Width (Imperial) | 1 in |
| Closure Width (Metric) | 2.54 cm |
| Conductor Sizes (Imperial) | 18 - 10 AWG |
| Maximum Conductor Size (Imperial) | 10 AWG |
| Maximum Conductor Size (Metric) | 6 mm² |
| Maximum Insulation Outer Diameter (Metric) | 3.7 mm |
| Maximum Insulation Outside Diameter | 0.145 in |
| Maximum Operating Temperature (Celsius) | 105 Degree Celsius |
| Maximum Operating Temperature (Fahrenheit) | 221 Degree Fahrenheit |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Voltage Rating | 600 V |
| Minimum Conductor Size (Imperial) | 18 AWG |
| Minimum Conductor Size (Metric) | 1 mm² |
| Operating Temperature (Celsius) | -40 °C to 105 °C |
| Operating Temperature (Fahrenheit) | -40 °F to 221 °F |
| Operating Temperature Range (Celsius) | -40 °C to 105 °C |
| Operating Temperature Range (Fahrenheit) | -40 °F to 221 °F |
| Voltage Rating | 0 NP |
| Conductor Sizes Imperial | 18 - 10 AWG |
| Maximum Conductor Size Imperial | 10 AWG |
| Maximum Conductor Size Metric | 6 |
| Maximum Insulation Outer Diameter Metric | 3.7 |
| Minimum Conductor Size Imperial | 18 AWG |
| Minimum Conductor Size Metric | 1 mm² |
Other Details | |
| Encapsulation Method | Moisture sealed spring connector |
| Flame Retardant | UL-94 V-2 |
| Grease Filling Against Corrosion | Yes |
| Interrupt Free Shifting | No |
| Wire Connector | R/Y+ |
Material and Composition | |
| Insulation Material | Tube is UV Resistant Polypropylene |
Color and Appearance | |
| Product Color | Red |
