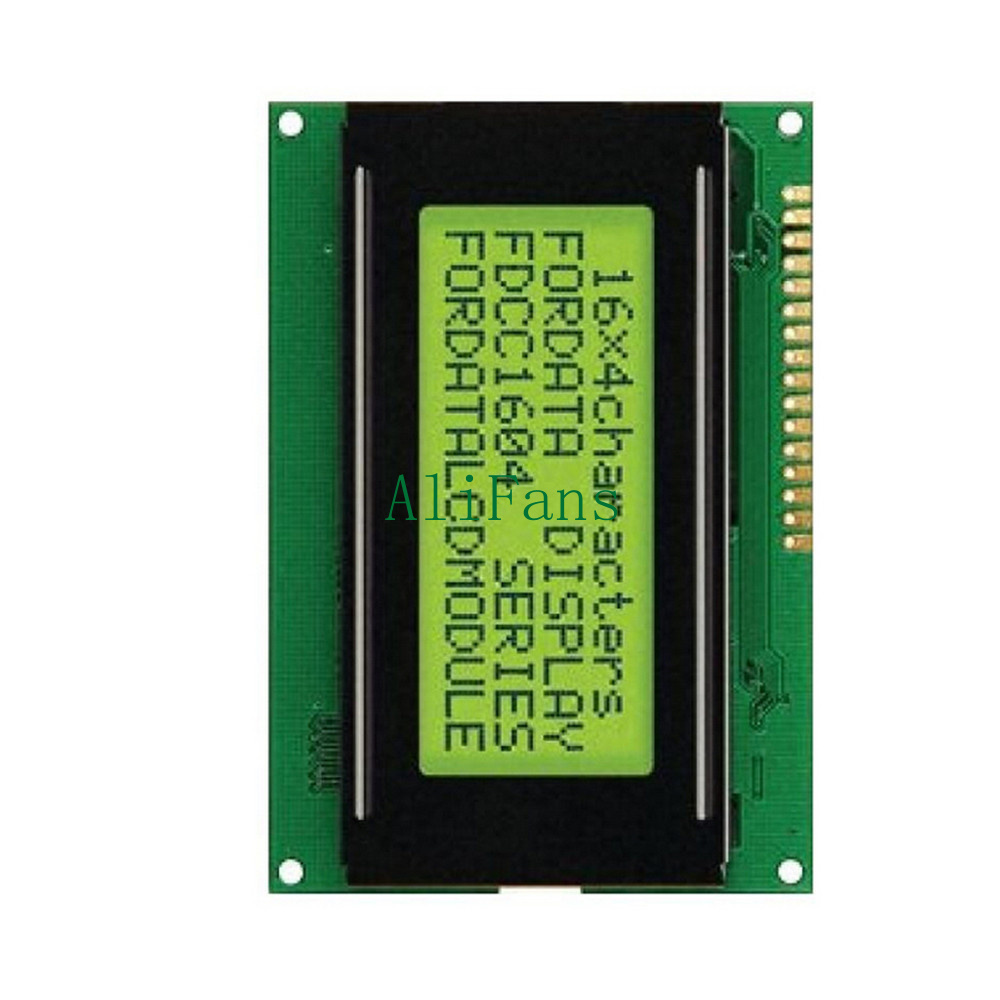

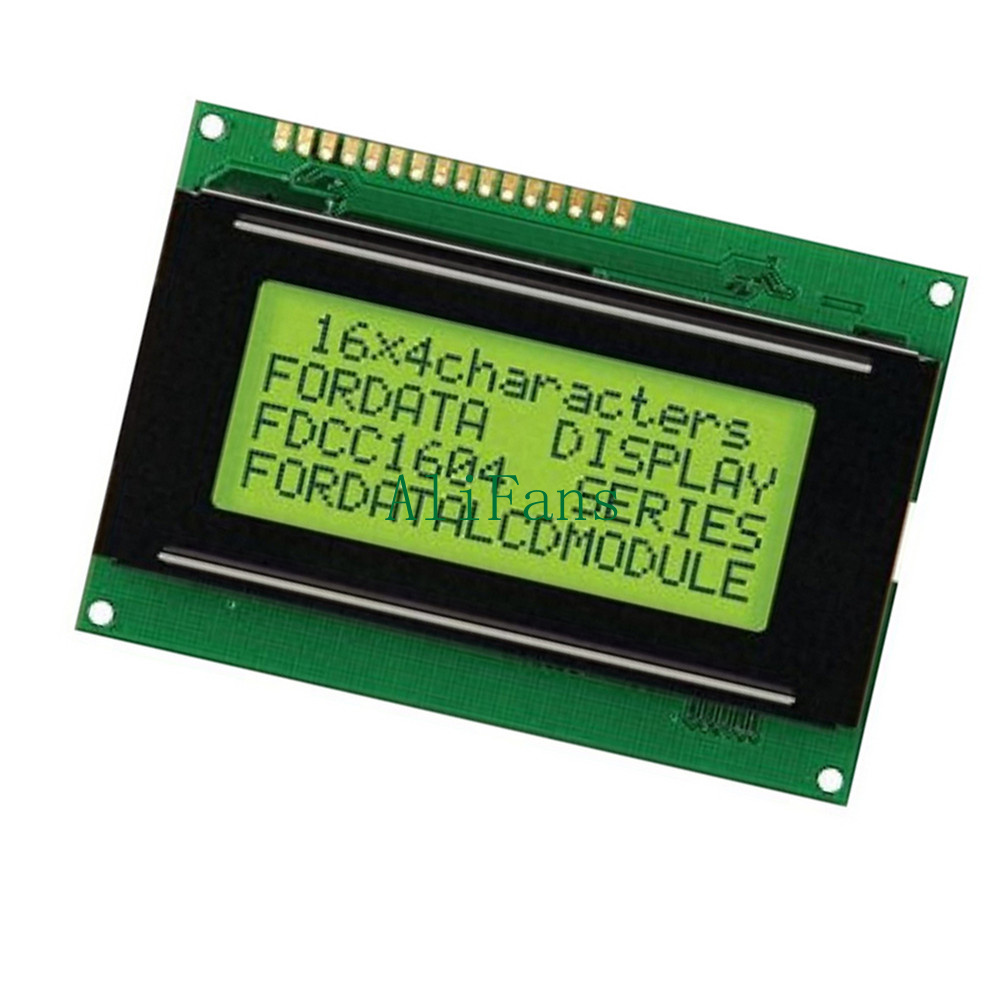

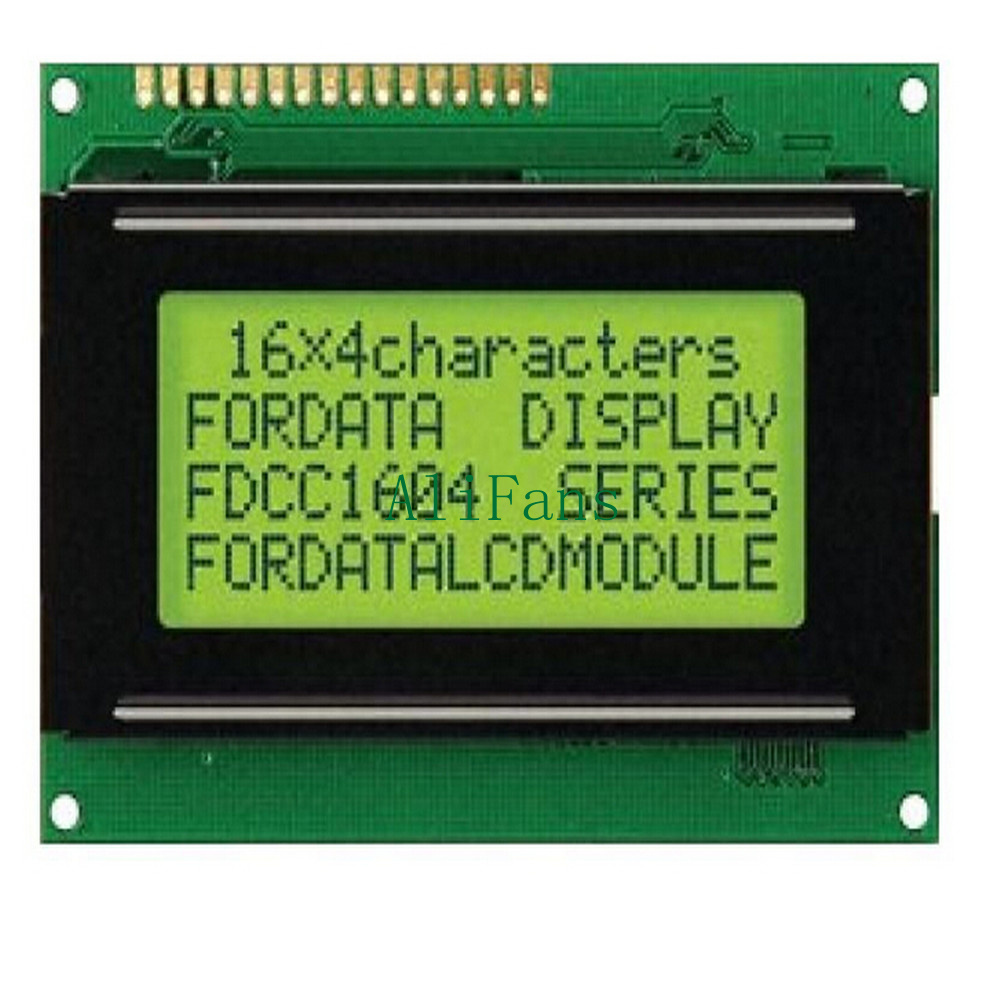

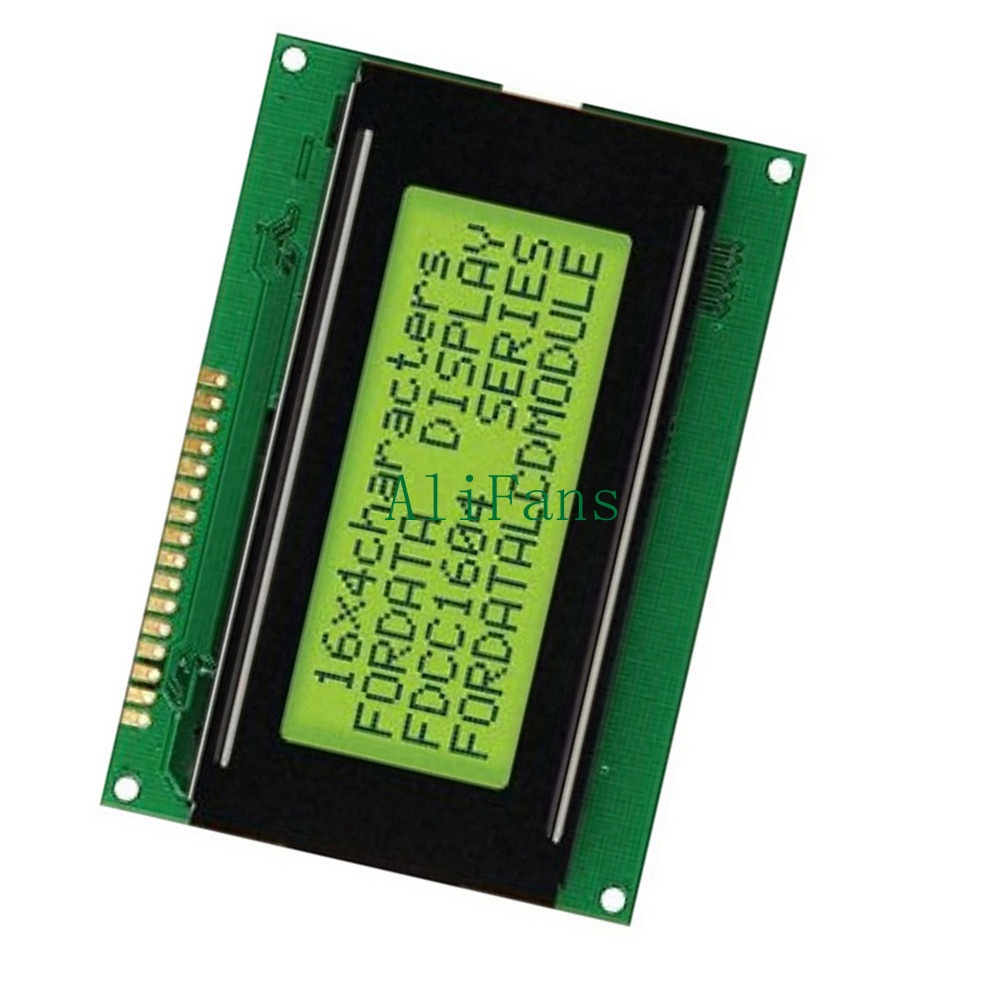

LCD 16x4 1604 Character LCD Display Module LCM Yellow Blacklight 5V Arduino
Description:
Gross Weight (kg) 0.0700
Part Number(Order Number) 1604 LCD
Connection Pin Header
Display Format 16x4 Character
Sunlight Readable No
Touch Panel Optional No
Outline Dimension 87.0(W)x60.0(H)x12.5(T)mm
Visual Area 61.70x25.20mm
Active Area 56.20x20.80mm
Character Size 2.95x4.75mm
Diagonal Size No
Dot (Pixel) Size 0.55x0.55mm
Dot Pitch 0.60x0.60mm
IC Package COB
IC or Equivalent AIP31066 , HD44780, KS0066 , SPLC780 , ST7066
Interface 6800 4-bit Parallel , 6800 8-bit Parallel
Display Type STN-LCD Yellow
Response Time(Typ) No
Contrast Ratio(Typ) No
Colors No
Viewing Direction 6:00
Viewing Angle Range No
Appearance White on Yellow
Brightness(Typ) No
Backlight Color Yellow Color
Backlight Current (Typ) 45mA
Power Supply(Typ) 5.0V
Supply Current for LCM(Max) 1800uA
Operating Temp -20℃~70℃
Storage Temperature -30℃~80℃
Package Included:
1 x LCD 16x4 1604 Character LCD 5V Display Module LCM Yellow Blacklight
Gross Weight (kg) 0.0700
Part Number(Order Number) 1604 LCD
Connection Pin Header
Display Format 16x4 Character
Sunlight Readable No
Touch Panel Optional No
Outline Dimension 87.0(W)x60.0(H)x12.5(T)mm
Visual Area 61.70x25.20mm
Active Area 56.20x20.80mm
Character Size 2.95x4.75mm
Diagonal Size No
Dot (Pixel) Size 0.55x0.55mm
Dot Pitch 0.60x0.60mm
IC Package COB
IC or Equivalent AIP31066 , HD44780, KS0066 , SPLC780 , ST7066
Interface 6800 4-bit Parallel , 6800 8-bit Parallel
Display Type STN-LCD Yellow
Response Time(Typ) No
Contrast Ratio(Typ) No
Colors No
Viewing Direction 6:00
Viewing Angle Range No
Appearance White on Yellow
Brightness(Typ) No
Backlight Color Yellow Color
Backlight Current (Typ) 45mA
Power Supply(Typ) 5.0V
Supply Current for LCM(Max) 1800uA
Operating Temp -20℃~70℃
Storage Temperature -30℃~80℃
Package Included:
1 x LCD 16x4 1604 Character LCD 5V Display Module LCM Yellow Blacklight
