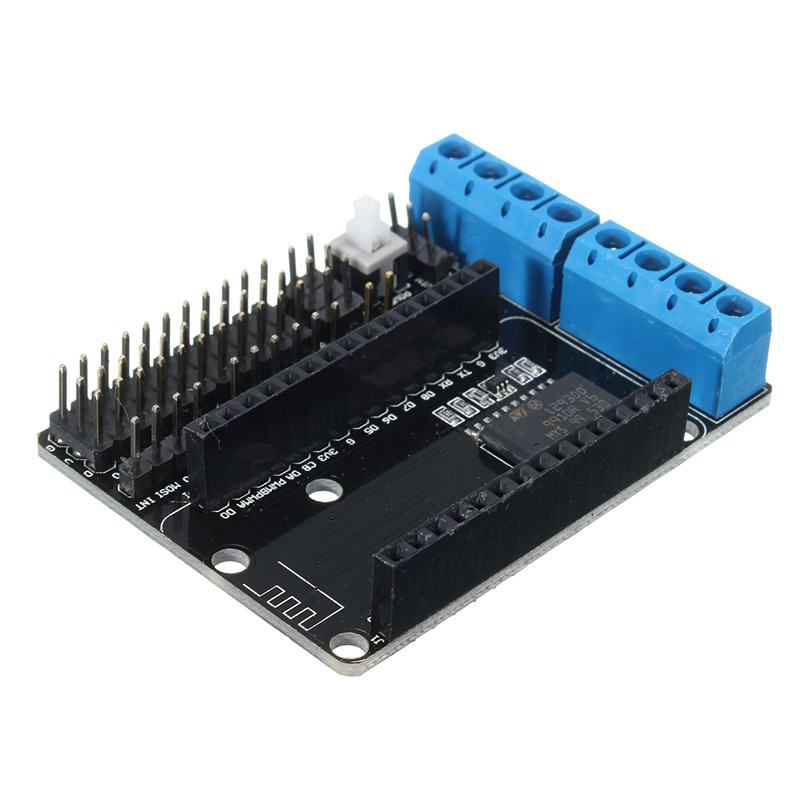

L293D Wifi Motor Drive Shield Module NodeMcu Lua ESP8266 ESP-12E For Arduino
Feature:
Power input:
Motor power supply (VM): 4.5V ~ 36V, can be powered separately
Control power (VIN): 4.5V ~ 9V (10VMAX), can be powered separately
Module provides short-circuit sub (short the VM and VIN), you can easily use one power (must 4.5V ~ 9V) while completing motor drive and control
Logic Operating current Iss: ≤60mA (Vi = L), ≤22mA (Vi = H)
Drive part of the work current Io: ≤1.2A
Maximum power dissipation: 4W (T = 90 ℃)
Control signal input level: High: 2.3V≤VIH≤VIN; Low: -0.3V≤VIL≤1.5V
Working temperature: -25 ℃ ~ + 125 ℃
Drive Type: Dual high-power H-bridge driver
ESP12E Dev Kit Control Port: D1, D3 (A motor); D2, D4 (B motor)
Expand two-way motor-driven, two-way direct drive motor
Onboard power switch
Motor power, control power separation; In the experiment, by short-circuiting block the merger,
the VIN and VM short, while power to the motor and the control board
Notice:
When inserted into the ESP-12E module,
please note the direction consistent with an expansion board antenna
The use of short modules that can simultaneously control board and motor.
The use of short modules that can simultaneously control board and motor.
Package included：
1PCS L293D Wifi Motor Drive Shield Module For Arduino NodeMcu Lua ESP8266 ESP-12E
-
