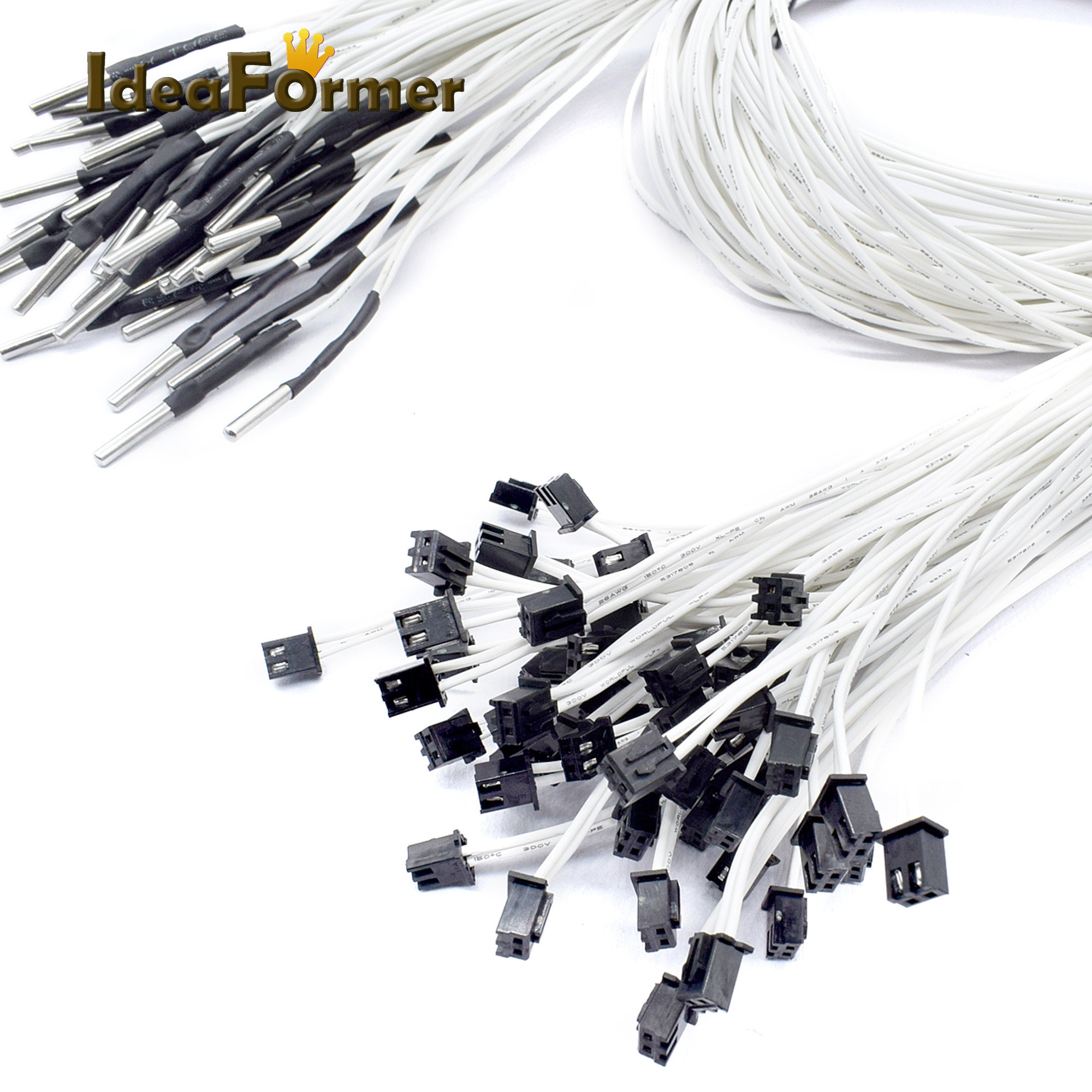

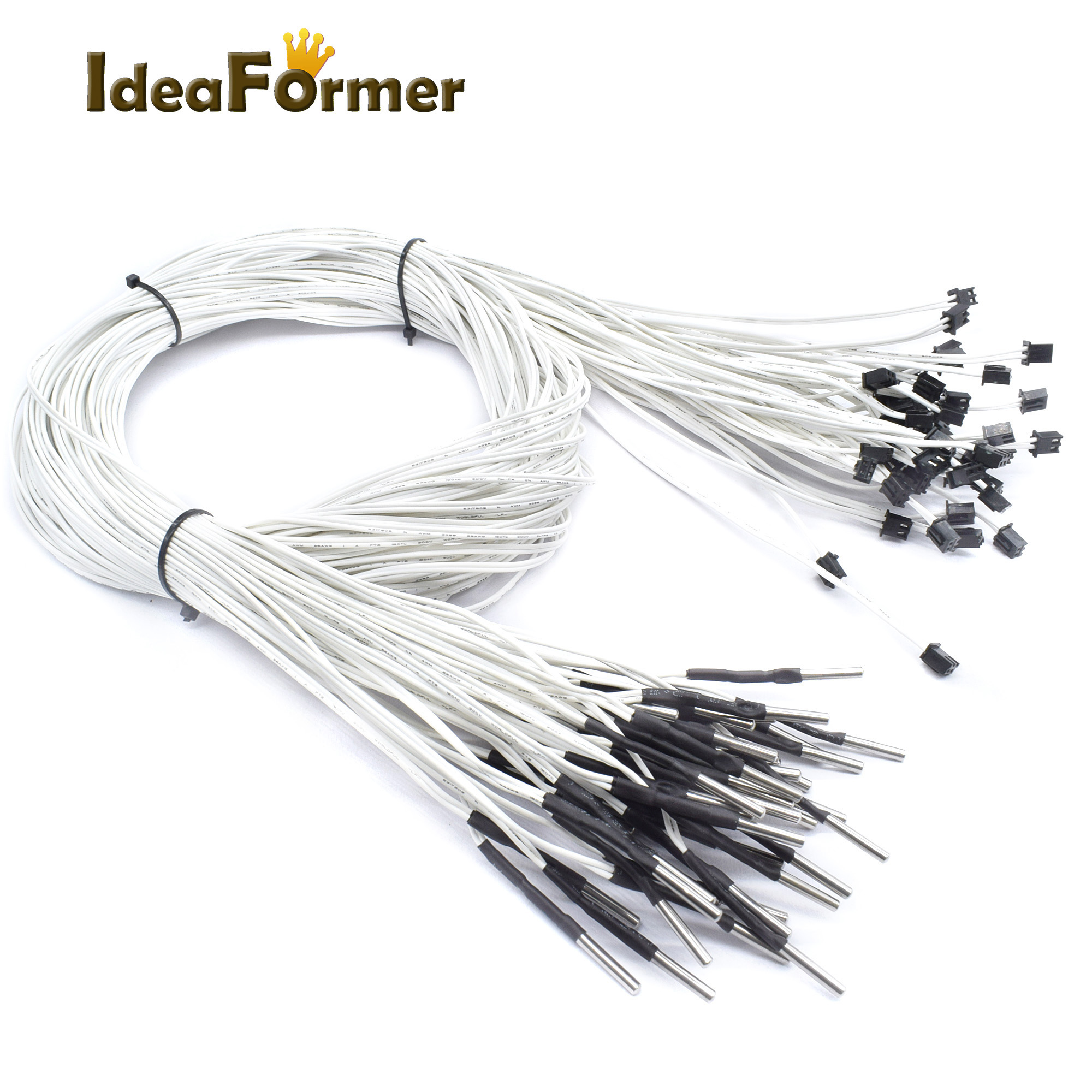

Name: HT-NTC100K Thermistor Sensor With XH2.54 terminal for 350℃ High Temperature Filament.
Specifications: Negative Temperature Coefficient (NTC)
Thermistor Model: B3950
Emperature measuring head size: 3 * 15mm
Cable Length:100cm or 200cm
Improvements compared to other resistance temperatures in the market.
1. Upgrade from the original ordinary temperature probe directly exposed temperature measurement resistance temperature measurement package. Measurement of the cylinder head temperature of 3mm diameter, 15mm length, can be used with the heating block that support the thermocouple.
2. The temperature measurement range is increased from -50 ℃ ~ 250 ℃ to -50 ℃ ~ 350 ℃. It helps a lot for high temperature filament printing, it can replace the original K-type temperature thermocouple. If the need to print high-temperature filament, the HT-NTC100K thermistors are highly recommended.
3. The new version of HT-NTC100K thermistor temperature measurement adopts 304 stainless steel, with the internal package temperature to ensure maximum service life with temperature measurement accuracy.
4. HT-NTC100K thermistor adopts white high temperature cable, which can withstand the highest temperature. And for the convenience of customers, the wires adopt line connection, the customer can snatch the wires depends on their application. The high temperature line is twice as thick compared to others on the market, not easy to break.
5. Supports the customization of different specifications, including the cylinder head temperature, wire length (MOQ is 100 sets).
6. Can be used with the new heater version (the new heater can heat up to 350 degrees).
Package including: 5 pcs HT-NTC100K thermistor temperature sensor with XH2.54 terminal
