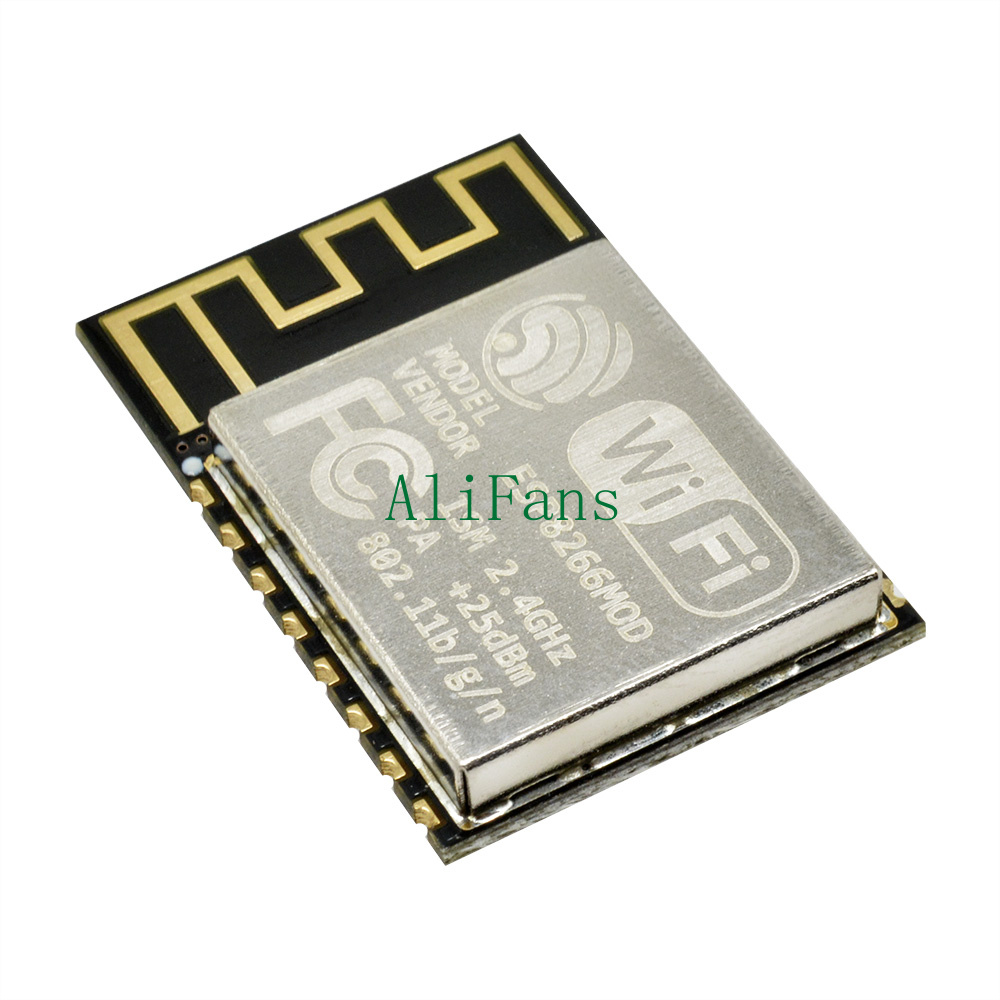

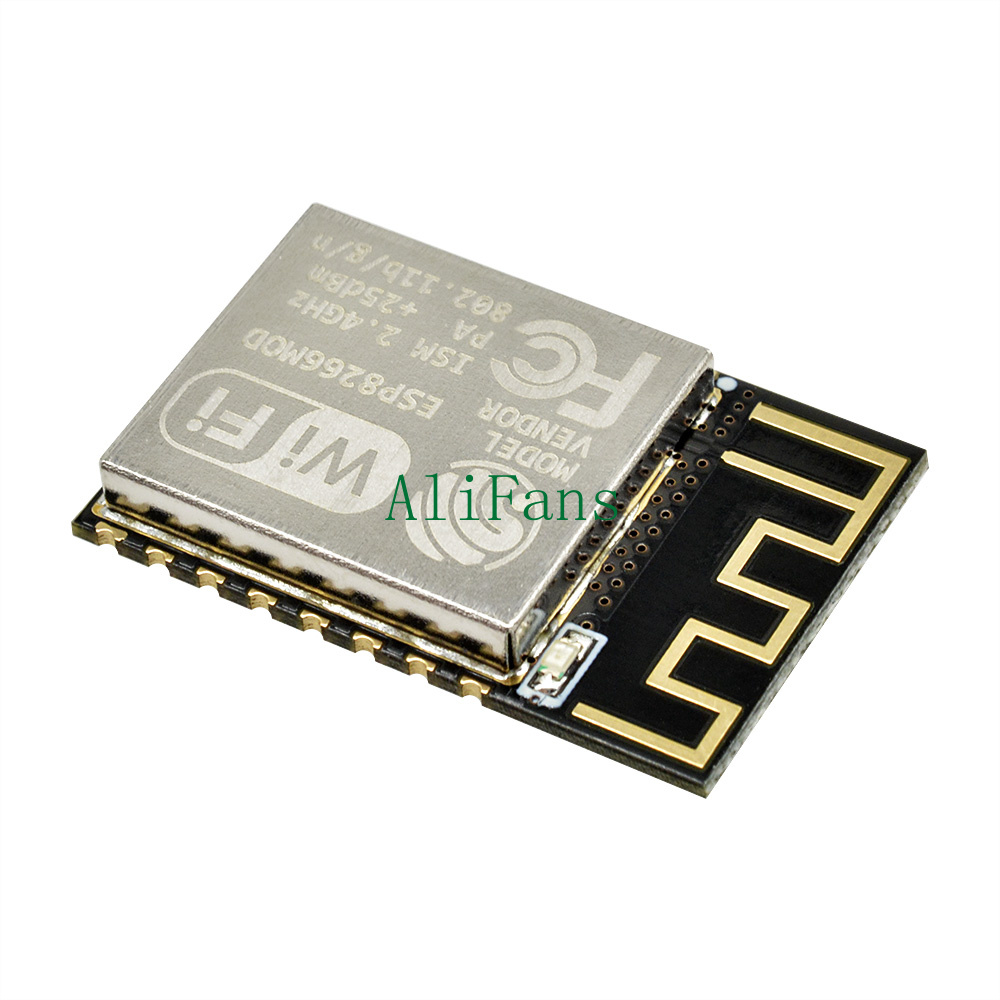

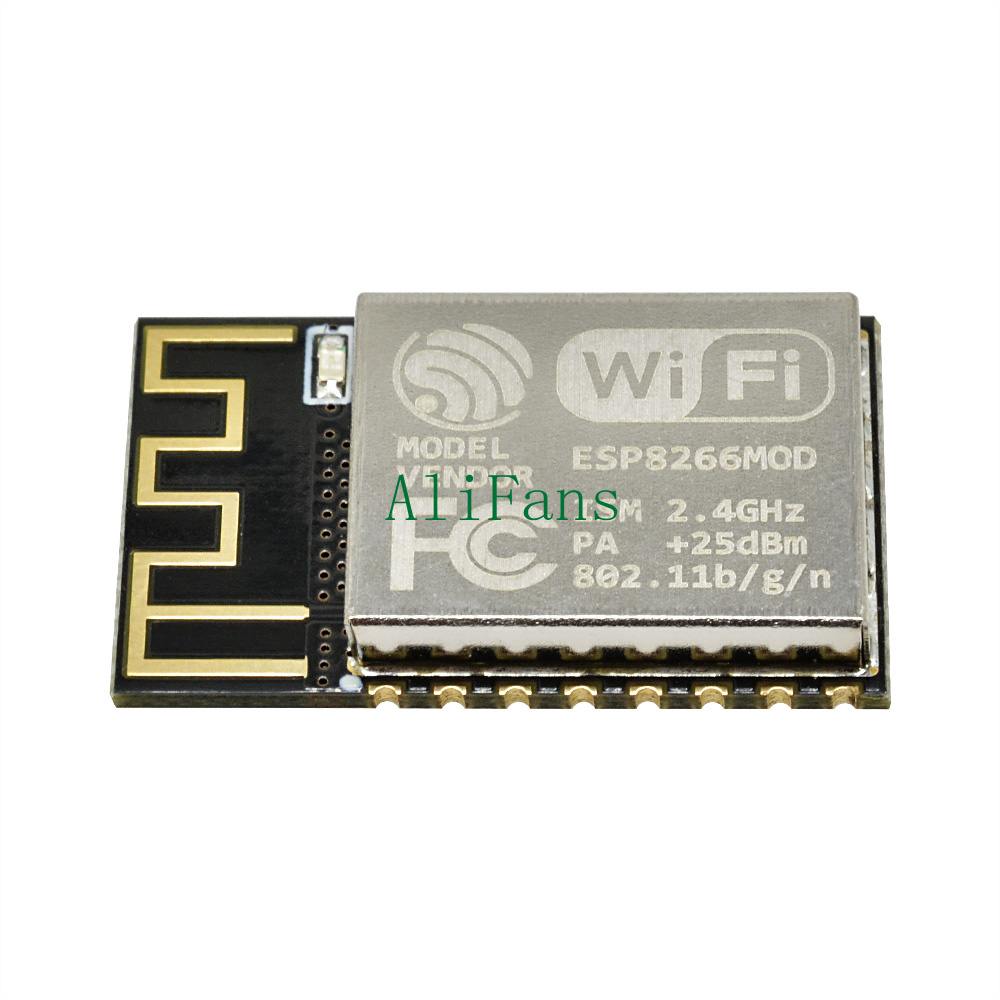

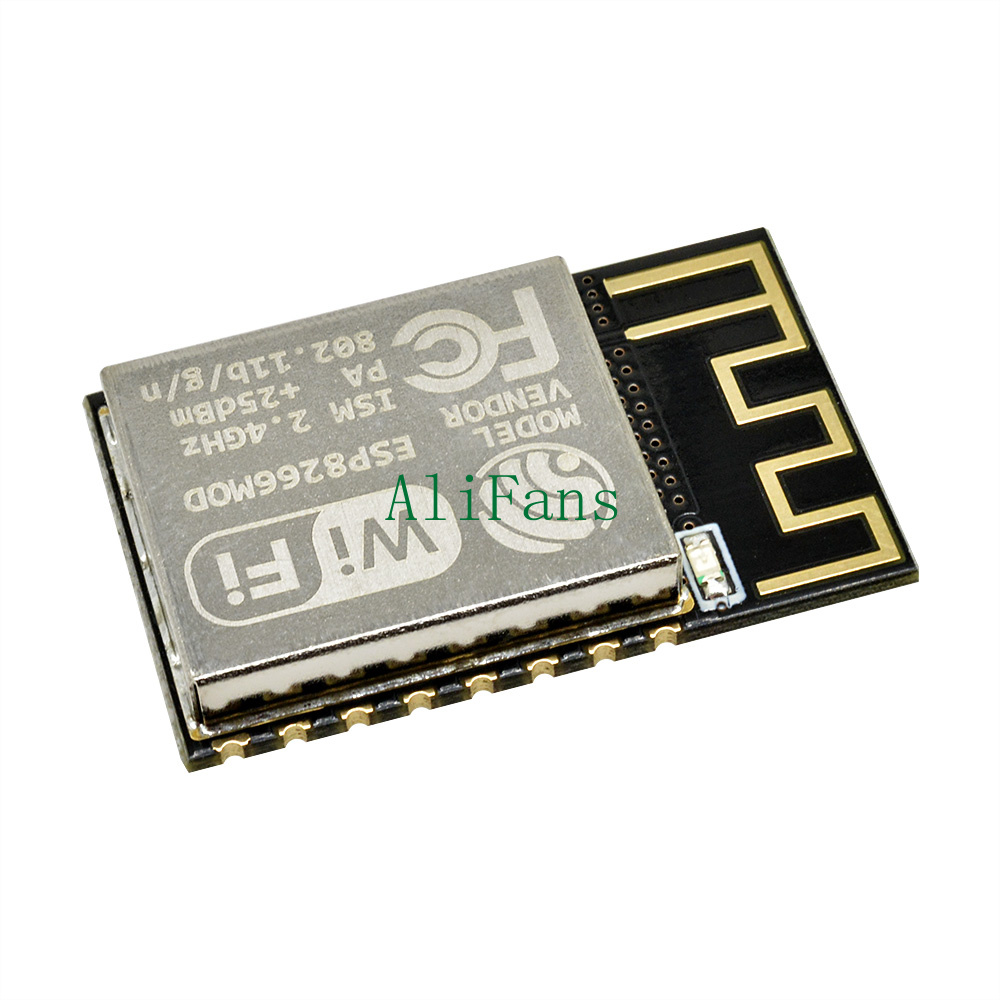

ESP8266 ESP-12S Serial Wireless WIFI Transceiver Sender Receiver LWIP AP+STA
Description
ESP8266 is a highly integrated chip designed for the needs of a new connected world. It offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or to offload all Wi-Fi networking functions from another application processor.
ESP8266 has powerful on-board processing and storage capabilities that allow it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including front-end module, is designed to occupy minimal PCB area.
Fetures:
Model:ESP8266-12S
ISM 2.4GHz
PA +25dBm
802.11b/g/n
Warnings:
1.This module requires a 3.3 volt supply for VCC, and 3.3V logic.
2.It is not 5V tolant,Connect RX or TX on 5V Arduino will destroy this module.
3.You must use a logic level converter, or a 3.3V Arduino
4.The 3.3V supply on the Arduino Uno has inadequate current capabilit to power this
module.
5.You must provide a separate,higher 3.3V supply(about 300mA or better)
ESP8266 is a highly integrated chip designed for the needs of a new connected world. It offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or to offload all Wi-Fi networking functions from another application processor.
ESP8266 has powerful on-board processing and storage capabilities that allow it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including front-end module, is designed to occupy minimal PCB area.
Fetures:
Model:ESP8266-12S
ISM 2.4GHz
PA +25dBm
802.11b/g/n
Warnings:
1.This module requires a 3.3 volt supply for VCC, and 3.3V logic.
2.It is not 5V tolant,Connect RX or TX on 5V Arduino will destroy this module.
3.You must use a logic level converter, or a 3.3V Arduino
4.The 3.3V supply on the Arduino Uno has inadequate current capabilit to power this
module.
5.You must provide a separate,higher 3.3V supply(about 300mA or better)
Package Contents
1PCS ESP8266 ESP-12S Serial WIFI Wireless Transceiver Module Send Receive LWIP AP+STA
1PCS ESP8266 ESP-12S Serial WIFI Wireless Transceiver Module Send Receive LWIP AP+STA
