GeoTextile Membrane Soakaway Fleece Wrapping Silt Barrier Weed Prevent 2.25 x 5m
GeoTextile Membrane Soakaway Fleece Wrapping Silt Barrier Weed Prevent 2.25 x 5m
- Equestrian; Horse Arenas, Paddocks Etc
- Road Construction
- French Drains, Trench Lining
- Preventative Measure Against Weeds
- Soakaway and Attenuation Tank Wrapping
- Driveways
GeoTextile Membrane Soakaway Fleece Wrapping Silt Barrier Weed Prevent 2.25 x 5m
2.25m Wide Roll X 5 METRES LONG
Buy as many linear metres as needed
Let me know if you need assistance. Bigger quantities available.
Biggest single cut 10m long, for larger quantities multiple cuts will be sent.

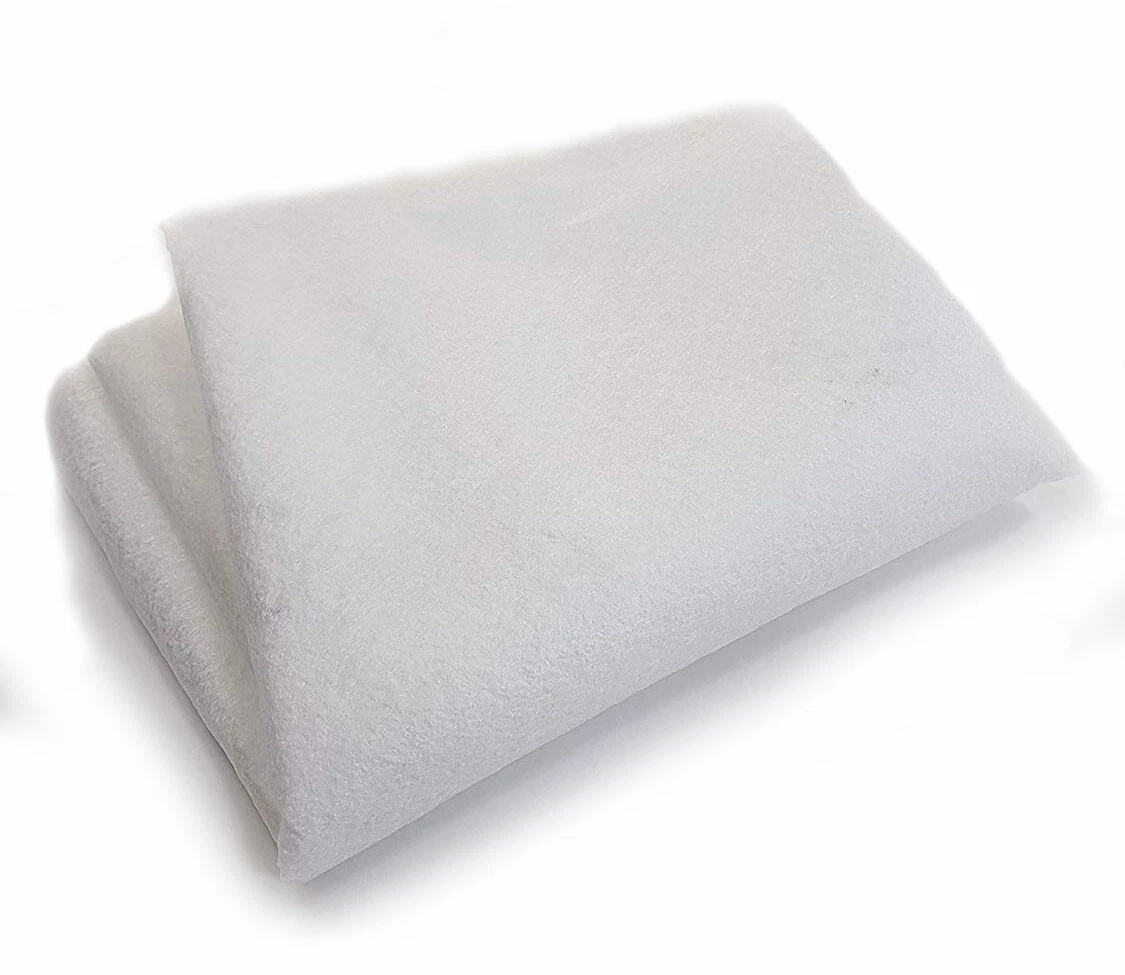

100 gsm Fleece Membrane. Used for:
- soakaway wrapping
- weed prevention
- french drains
- driveway fabric
- ground stabilisation
It's fully permeable
Below is a bit about NW8 membrane -
Commercial grade 100GSM membrane. Tough and versatile membrane not the cheap ones that can be ripped by hand, specs are as follows:
Multitrack NW8 100gsm is the most common of our non-woven geotextile membranes. It is designed for filtration and separation applications, such as:
- equestrian; horse arenas, paddocks etc
- road construction
- french drains, trench lining
- preventative measure against weeds
- soakaway and attenuation tank wrapping
- driveways
All NW products are thermally bonded to provide a durable, tough fabric which has proven to be one of the highest quality general purpose membranes on the market.
As well as the standard 100gsm, we offer up to 1000gsm and every specification in-between, with varying roll sizes and thickness. At EcoGrid our geotextile membranes can be made to order so if you have a certain requirement just let us know.
PLEASE NOTE: This item will be sent boxed and folded; the membrane is cut from a much larger roll.
Mechanical Properties | Test | Unit | Multitrack NW8 |
Tensile Strength – MD | EN ISO 10319 | kN/m | 8.0 |
Tensile Strength – XD | EN ISO 10319 | kN/m | 8.0 |
Elongation at Break – MD | EN ISO 10319 | % | 40 |
Elongation at Break – XD | EN ISO 10319 | % | 45 |
CBR Puncture Resistance | EN ISO 12236 | N | 1400 |
Dynamic Cone Drop | EN 918 | mm | 34.0 |
Protection Efficiency | WI 189066 | N | 65.0 |
|
|
|
|
Hydraulic Properties |
|
|
|
Permeability | EN ISO 11058 | m/s | 110 x 10-3 |
Waterflow Normal to the Plane | EN ISO 11058 | l/m2.s | 110 |
Waterflow in the Plane | EN ISO 12958 | m2/s | 1 x 10-7 |
Characteristic Opening Size | EN ISO 12956 | µm | 130.0 |
|
|
|
|
Physical Properties |
|
|
|
Thickness Under 2kPa | EN 964/1 | mm | 1.00 |
Weight | EN 965 | g/m2 | 110.0 |
Roll Width |
| m | 4.50 |
Roll Length |
| m | 100 |
Roll Diameter (+/-10%) |
| cm | 42 |
