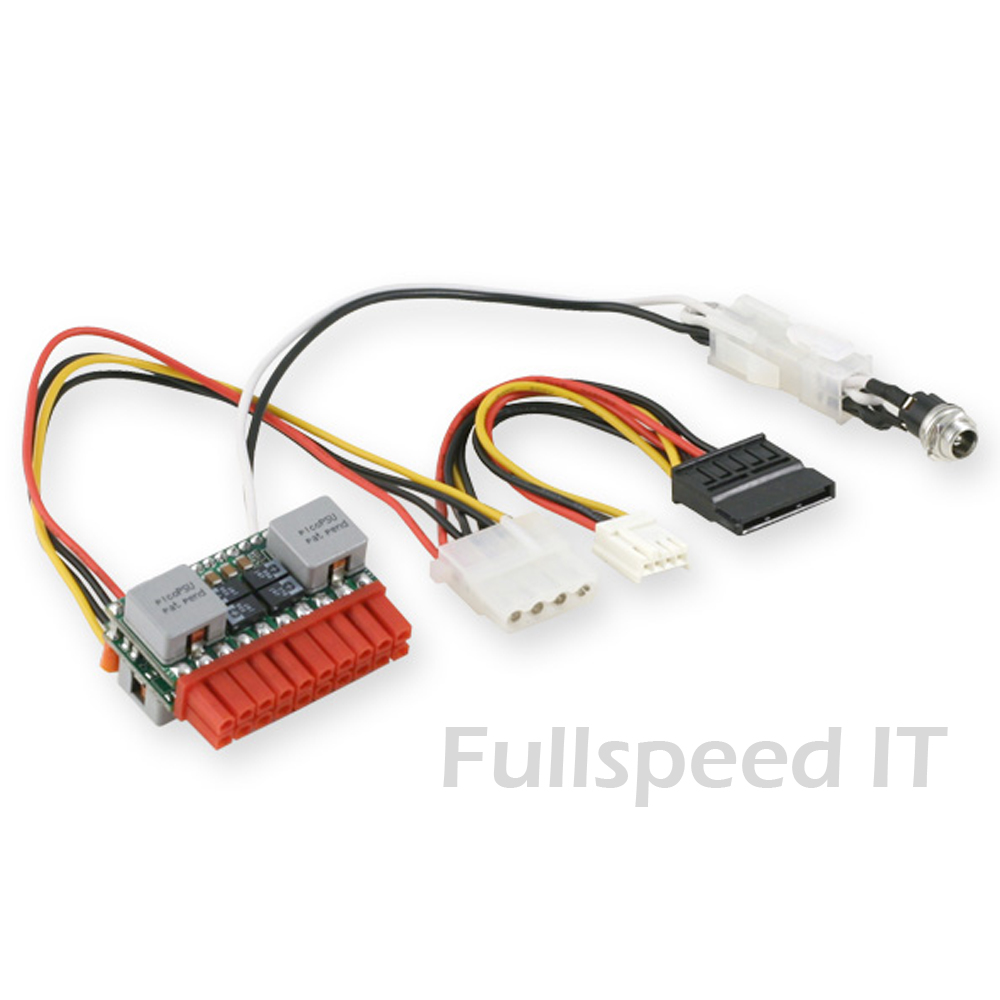

PicoPSU 120w Wide Input Internal PSU

The PicoPSU-120-WI is a tiny snap-in 12 to 25v ATX DC-DC power supply. The PicoPSU-120-WI is compatible with an entire range of mini-itx motherboards as well as many regular boards. The PicoPSU-120-WI provides a cool, silent 120 Watts of power for small PC designs using a single 12 to 25v power source to operate.

Very small, allowing you to build ultra-compact PC enclosures and slim server enclosures
Fits almost any motherboard equipped with a 20 or 24pin ATX connector
100% silent, fanless and highly efficient design. No moving parts - great reliability
Requires a 12V - 25V external power supply (not included). Connection via a 5.5mm x 2.5mm DC barrel chassis socket or (for high power use) a Mini-Fit-JR connector
Plugs directly into the motherboard ATX connector and has a PATA, SATA and floppy power connector for an entire range of peripherals

Cool power. Operating at between 12 and 25v, the PicoPSU-120-WI DC-DC ATX power supply delivers 120 Watts of power. PicoPSU provides plenty of power (via ATX connector and HDD cable harness) for CPU and an entire range of peripherals. Please note that the 120WI does not have the P4 supplementary power connector for use on a P4 board. I have a suitable Molex to P4 adaptor cable available to purchase here.

Maximum power on each rail: 5V @ 6A, 5VSB @ 1.5A, 3.3V @ 6A, 12V @ 6A, -12V @ 0.1A - Total load should not exceed 120w, peak load should not exceed 60 seconds.

At max load, forced air ventilation is required. For fanless operation (or high input voltage) de-rate the combined output of the 3.3V, 5V & 12V rails by ~20-40%.

Power input: is 12-25 volts DC via a 5.5mm x 2.5mm barrel or Mini-Fit-JR plug. Maximum input voltage is 26.5v. Note: above 26.5v the TVS protection diode will clamp and burn out the input fuse. If your system requires 60w of power then you will need a 60w (12V @ 5A / 24V @ 2.5A etc) external PSU to power it. I have suitable 12v regulated power supplies of up to 120w (12 volt, 10 amp) available to purchase elsewhere in my shop.

Authenticity: I am a Mini-Box authorized reseller and this is a guaranteed genuine Mini-Box PicoPSU - not a cheap copy.

Item is new and unused. I am VAT registered so can provide you with a VAT invoice.
