CISBO SB301N-8 EIGHT SENSOR BUZZER ALARM SYSTEM



The Cisbo SB301N-8 is a new high quality system and now comes with

UK based 3 years warranty!

Item will be sent same day from Slough - Berkshire if payment clears by:

4pm Monday to Friday and 10am on Saturday.



This kit is the 8 sensor system for both rear and front coverage (4 front sensors and 4 rear sensors)

The production has CE certification.

Please beware your insurance policy will be void

if any electronic device without 'CE' approval is installed on your vehicle.



This parking sensor system is produced under the same stringent regulations that other car manufacturers follow,

This kit uses a buzzer warning system, but without any display unit. The buzzer (speaker) can be fixed anywhere in the vehicle,

making for a simple and quick installation that will be discrete and professional.

The warning buzzer sounds in different frequencies according to the distance - details are shown in the table below:



Alarm sound

Stage

Distance

Area

Sound

Digital display

Indicate LED color

1

160-200cm

Safe Mode

No sound

1.6-2.0

Green

2

100-150cm

Safe Mode

Bi------Bi--------Bi

1.0-1.5

Green

3

70-90cm

Alarm mode

Bi---Bi---Bi---

0.7-0.9

Orange

4

40-60cm

Danger Mode

Bi-Bi-Bi-

0.4-0.6

Red

5

30cm

Danger Mode

Bi---------

0.0

Red



 The colours shown in the above picture may vary from the real colours,

as each display varies or may have different colour profiles.







 https://www.aandetrading.com/colour/paypalnote.jpg

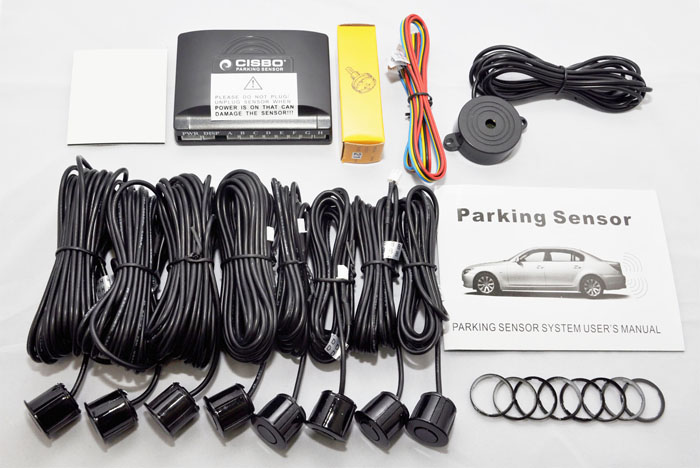

Kit includes:

1. Central control unit with power cable.

2. Four rear sensors with 2.5 meters cable & four front sensors with 5.8 meters cable.

3. Buzzer with 2.5 meters cable to connect control unit.

4.  21mm hole saw, this is the exact size for the sensor.

5. Eight sensor angled spacer rings for vehicles fitted with curved bumpers.

6. Users' manual with installation guide. Click here to see the guide.



Technical:

1.      Rated Voltage: 12V DC

2.      Operating Range: 10.5V  16V DC

3.      Rated Current: 50mA 180mA

4.      Detecting Distance: 0.3 -2.0m

5.      Ultrasonic Frequency: 40KHz

6.      Display Working Temperature: -30 degree - +70 degree



https://www.aandetrading.com/3018/3018700.jpg
