NPT Tapered Female Socket Tee
Ayrtec | Part number range NTF-NTF-NTF | Select your size from the dropdown
Three NPT tapered female ports. The American pipe-thread socket tee, for joining three male fittings on a US-built machine.
Brand: Ayrtec - mild steel body with a plated finish, manufactured to the standards listed below.
Dimensions & thread sizes - every size in this range
| Part code | S1 | Material | Finish |
|---|---|---|---|
| NTF-NTF-NTF-020202 | 14.3mm | Mild steel | Plated finish |
| NTF-NTF-NTF-040404 | 19.1mm | Mild steel | Plated finish |
| NTF-NTF-NTF-060606 | 22.2mm | Mild steel | Plated finish |
| NTF-NTF-NTF-080808 | 27.0mm | Mild steel | Plated finish |
| NTF-NTF-NTF-121212 | 33.3mm | Mild steel | Plated finish |
| NTF-NTF-NTF-161616 | 41.3mm | Mild steel | Plated finish |
| NTF-NTF-NTF-202020 | 47.6mm | Mild steel | Plated finish |
| NTF-NTF-NTF-242424 | 65.0mm | Mild steel | Plated finish |
| NTF-NTF-NTF-323232 | 71.0mm | Mild steel | Plated finish |

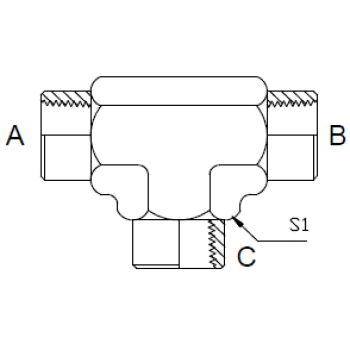

Key: S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal - check critical clearances against the part.
Thread Standards
- NPT Tapered Female - ANSI/ASME B1.20.1 tapered pipe thread. It seals on the thread and needs tape or sealant every time.
How to Choose
- All three ports are the same size and thread, so it does not matter which way the tee goes in.
- All three joints seal on the thread of the male going in and all three need sealant.
- NPT and BSPT start into each other and then chew out, so identify every male before you fit it.
Technicians Advice
Three tapered joints means three chances to over-tighten and split the socket. Hand tight plus two or three turns at each, and keep the tape back off the first two threads on every male.
Where You’ll Find It
- NPT Tapered Female - Female side of American pipework, adaptor blocks and gauge manifolds.
Cross-Reference
- NPT Tapered Female - ANSI/ASME B1.20.1 tapered pipe thread.
Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.
Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.
What you receive
One Ayrtec fitting in the size selected from the dropdown. Each size is its own part number, quoted in the dimension table. Images are representative of the range.
