AN8 -8AN AN-8 Fitting Oil Fuel Hose Line Kit

Description
--Hose End Features:
-Manufactured using aluminium alloys that meet or exceed minimum requirements for aerospace hose fittings.
-Each component is precision-machined to exact tolerances for trouble-free performance.
-Aluminium retention pins allow 360 degrees of adjustment after installation.
-The unique taper design revolutionised hose assembly by not cutting into the inner hose liner, yet providing a positive grip on the hose to eliminate leakage or separation.

--Hose End Specifications:

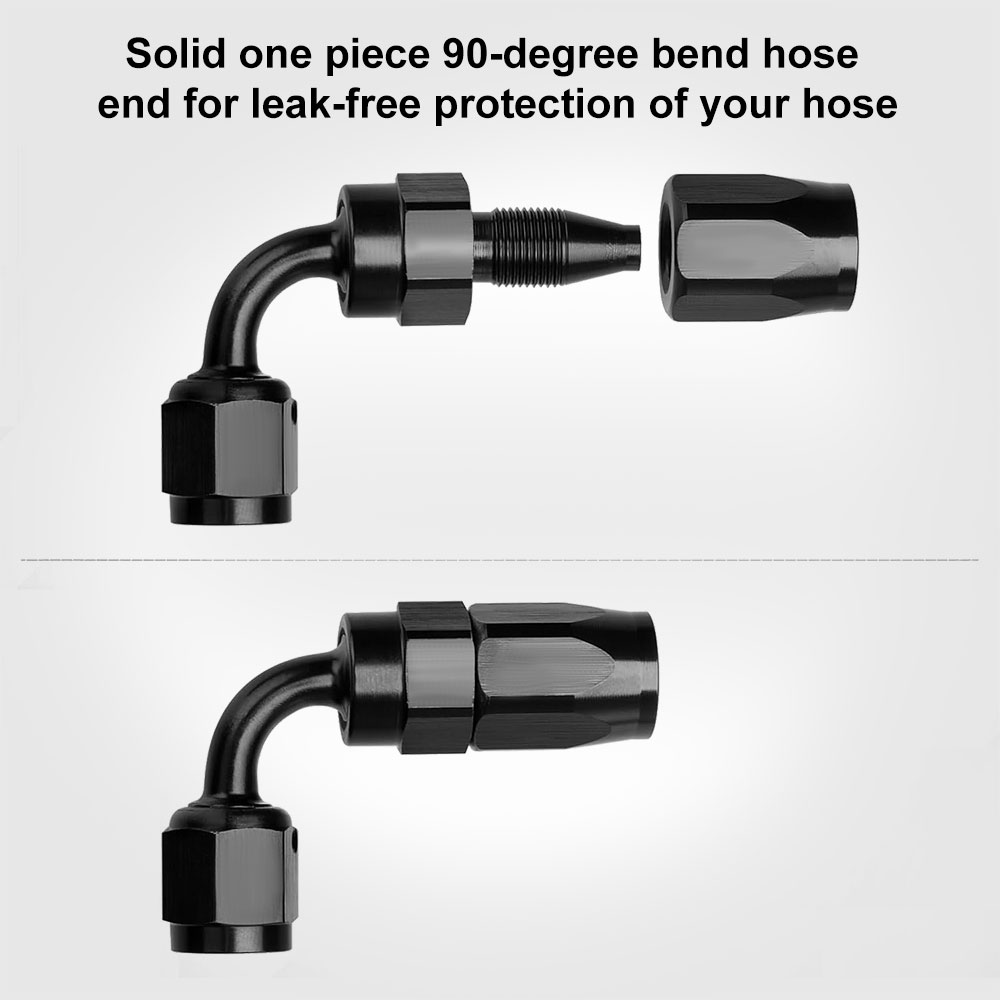

-Fitting Style: Fast Flow Reusable Swivel
-Adapter Attachment: Female threads
-Fitting Material: Aluminum
-Fitting Finish: Black anodized
-Hose End Size: -8 AN
-Adapter Size: -8 AN

--Nylon Braided Hose Features:

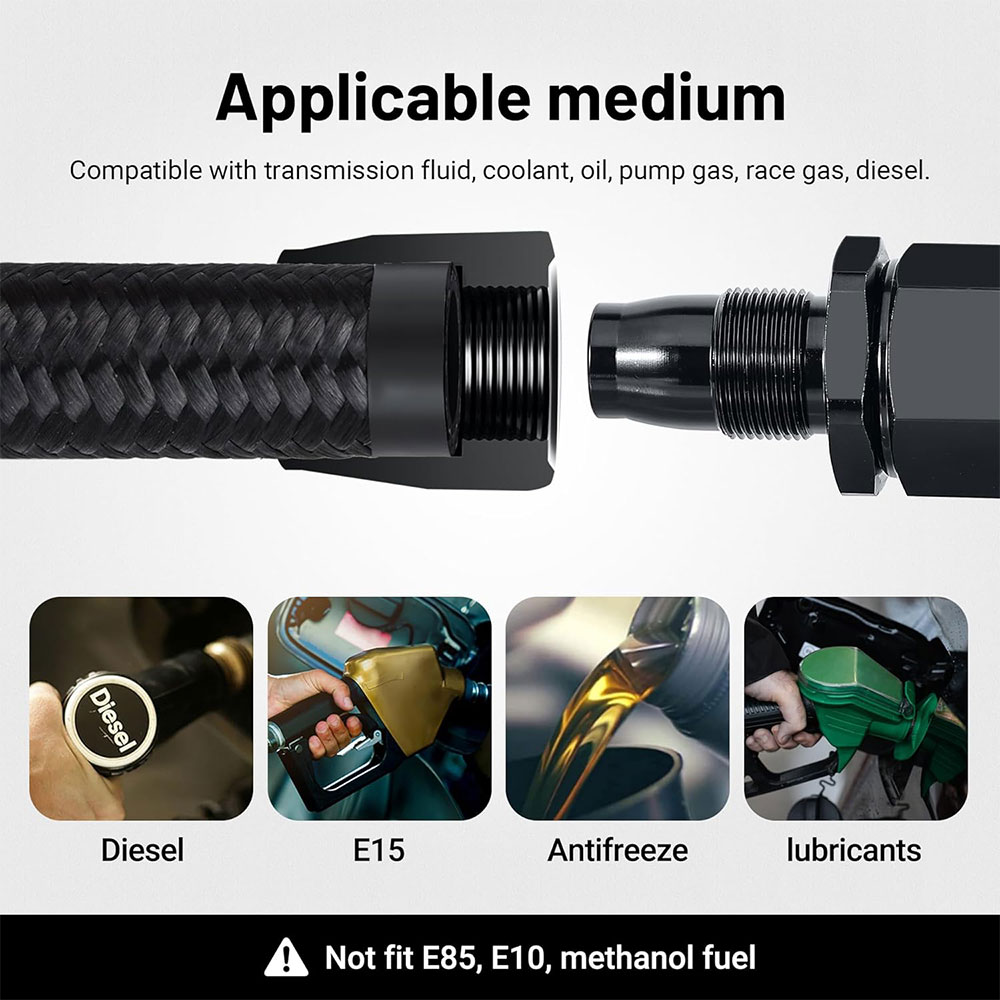

-This nylon braided hose consists of a synthetic-nitrile inner tube with a partial stainless steel reinforcement inner braid. On top of that, there is a heat resistant nylon sheathing (up to 150 degrees celcius). The nylon braided hose is significantly lighter and more flexible than the stainless steel braided version. Even better, the hose is designed to handle any fuel (including ethanol and nitromethane), oil, or coolant. These features, combined with its ease of assembly, make it the fastest growing choice of hose products for racing and performance enthusiasts.

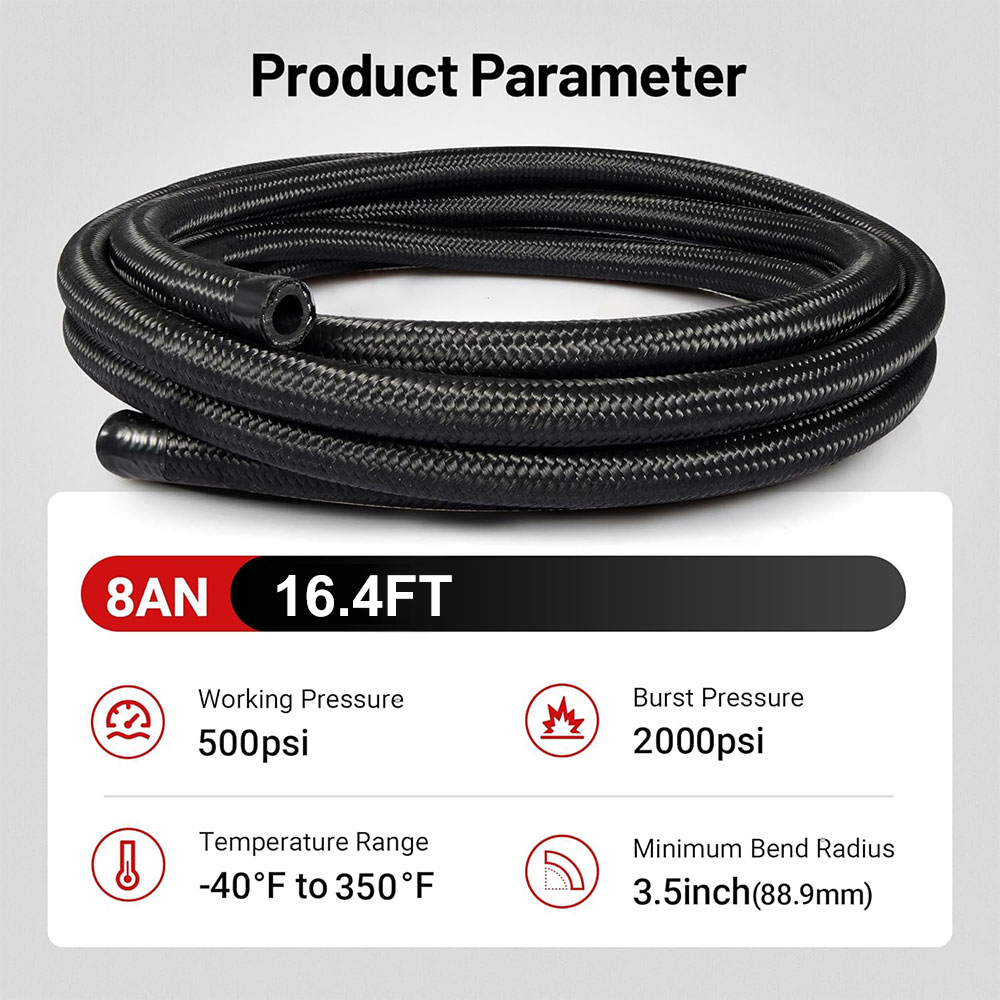

--Nylon Braided Hose Specifications:

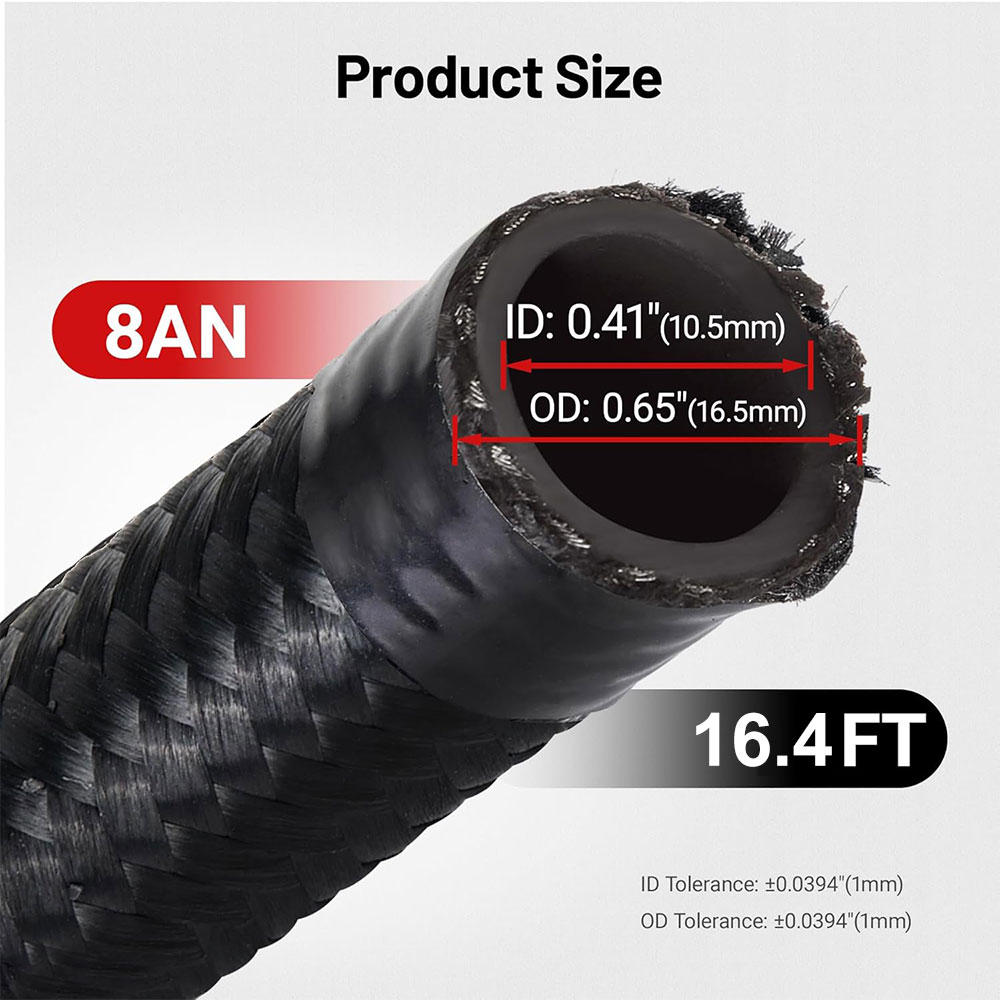

-Hose Size: -8 AN
-Equivalent Tube Size(Nominal OD): 1⁄2"
-Hose Inner diameter: 0.41" / 10.5mm
-Hose Outside diameter: 0.65" /16.5 mm
-Maximum Operating Pressure: 500 PSI
-Burst Pressure Min: 2000 PSI
-Working Temperature: -40 ℉ to +350 ℉

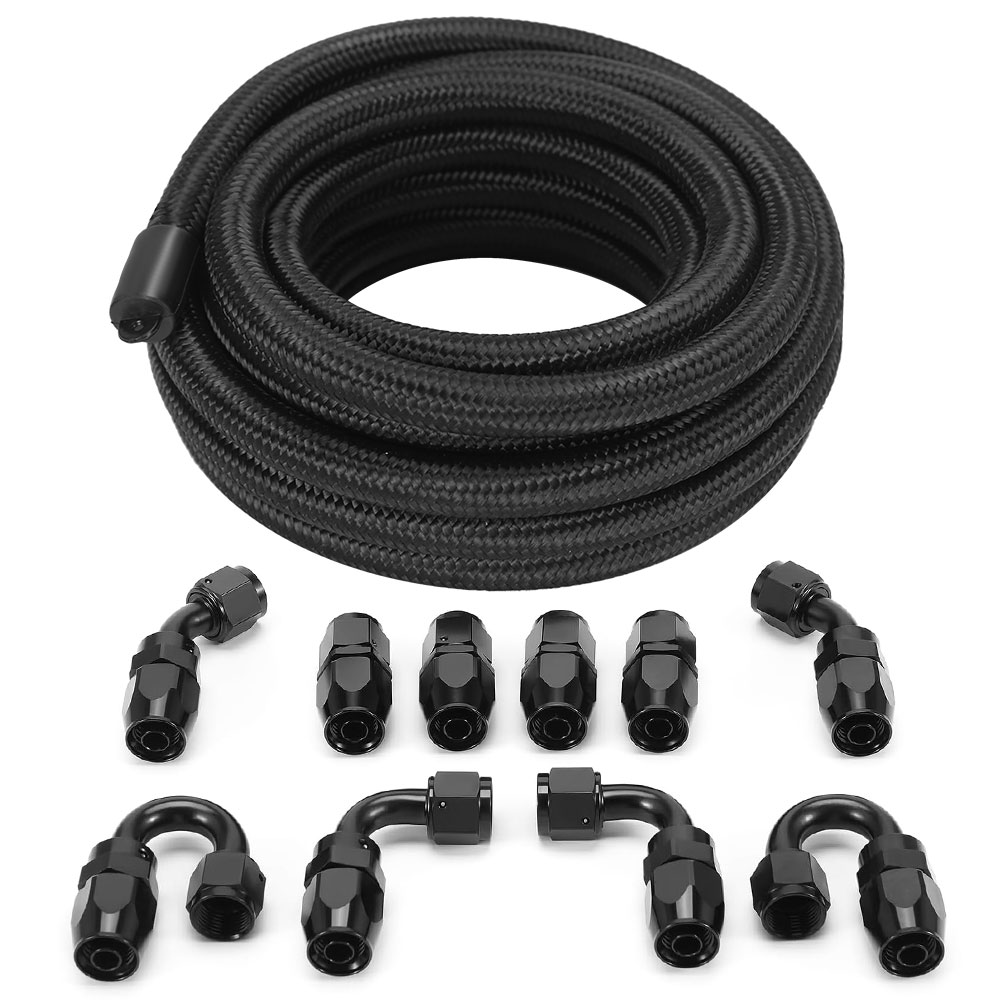

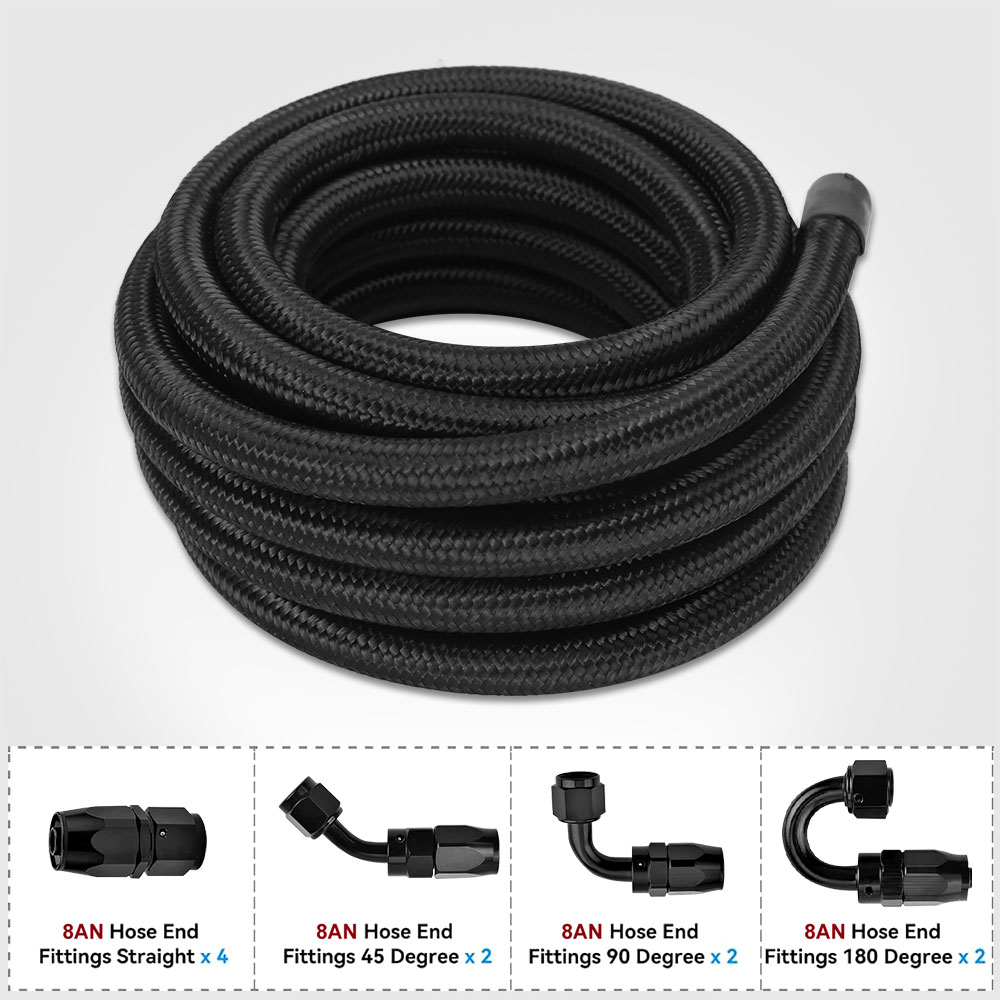

--Package includes:
4 PCS AN-8 Straight Reusable Swivel Hose End
2 PCS AN-8 45 Degree Reusable Swivel Hose End
2 PCS AN-8 90 Degree Reusable Swivel Hose End
2 PCS AN-8 180 Degree Reusable Swivel Hose End

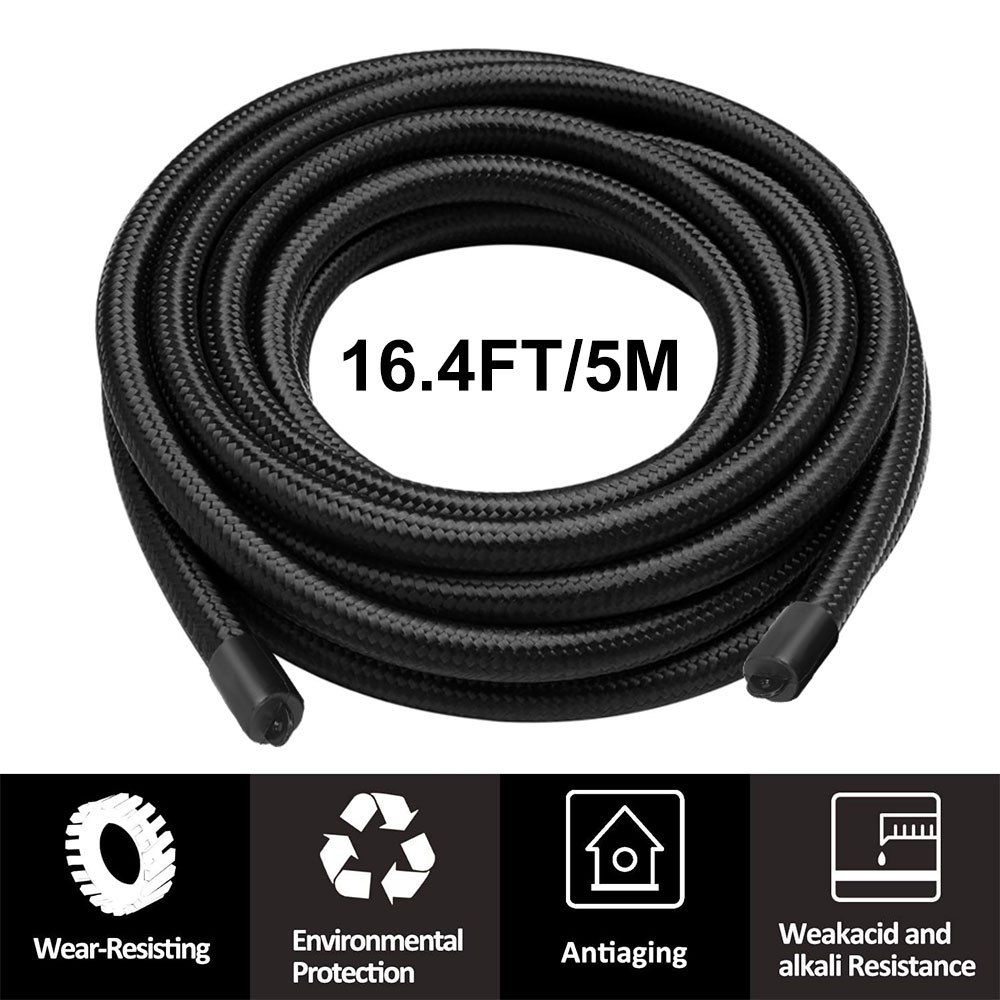

5 Meters / 16.4 Feet AN-8 Nylon Braided Hose
