Feature:

1. The UT116C is designed for measurement of resistance, capacitance, diode, battery voltage; and can also do on or off circuit and zener diode polarity/LED testing.
2. With practical features, such as auto-range, data hold, low battery indicator, LCD display with 6000 counts，and auto-power off.

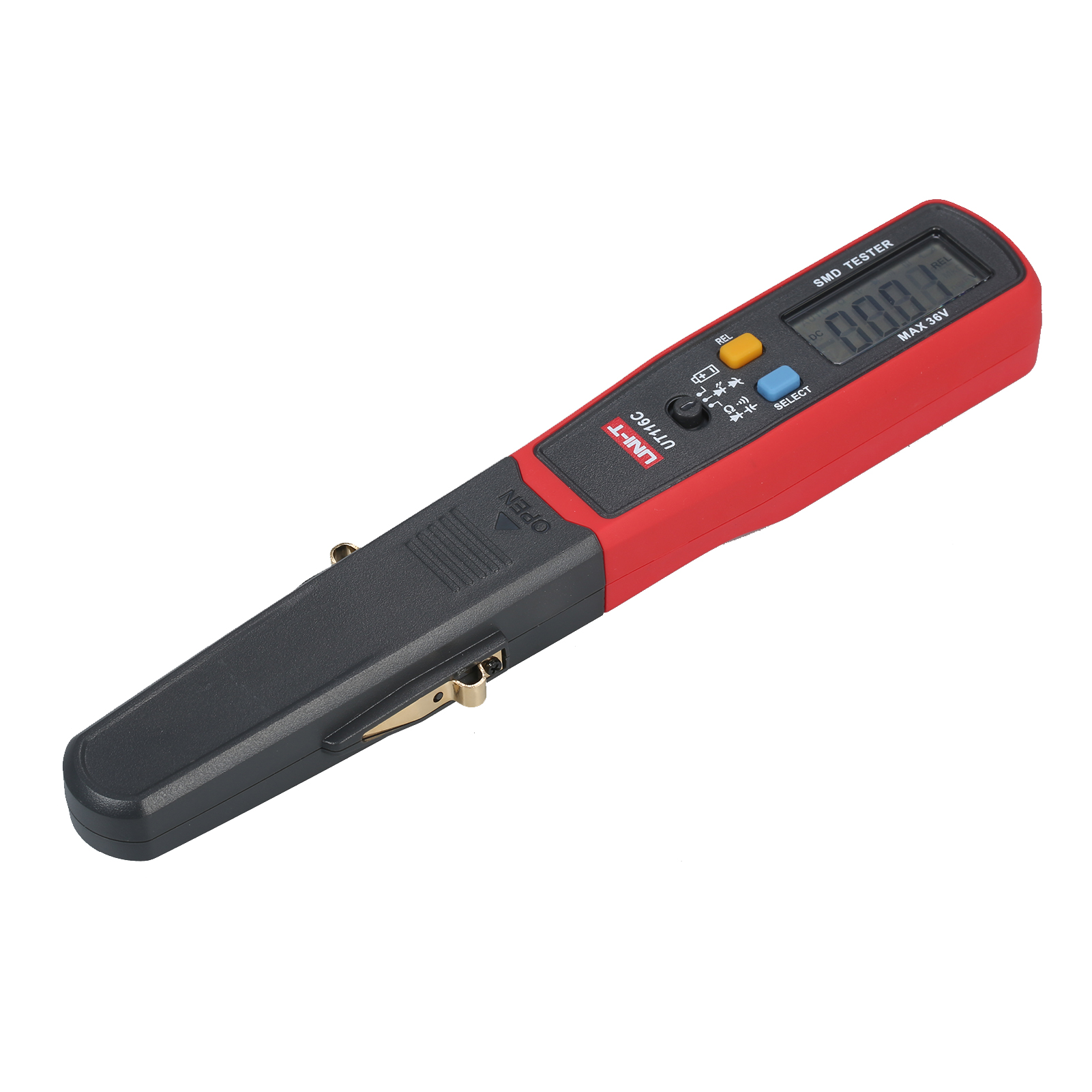

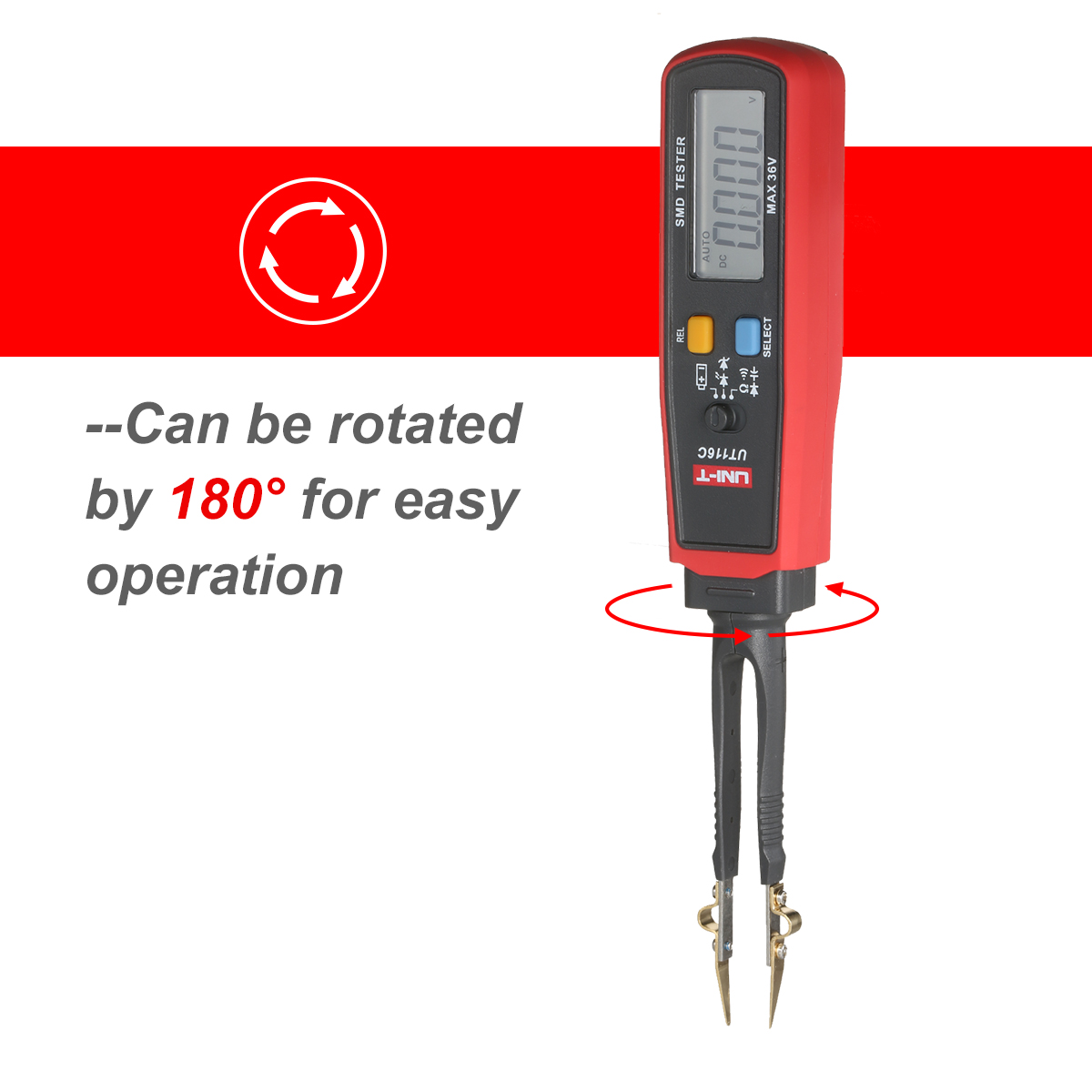

3. Compact and portable, the pen can be rotated by 180°for easy reading and operation.

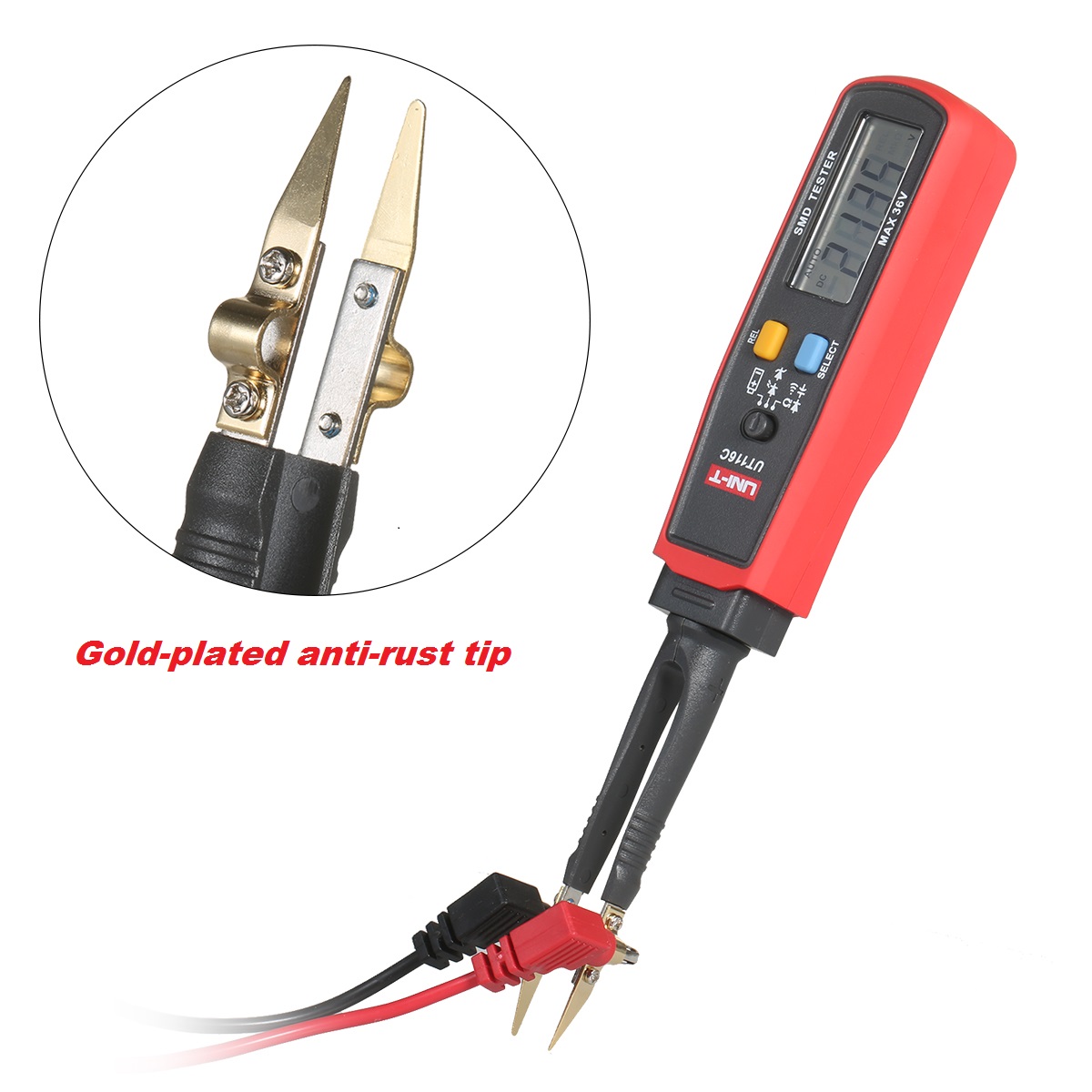

4. Constructed with High quality ABS housing and gold-plated tip to prevent rust.
5. Ideal tool for electronic engineers, repairman or professionals who engaged in SMD testing.

Specification:

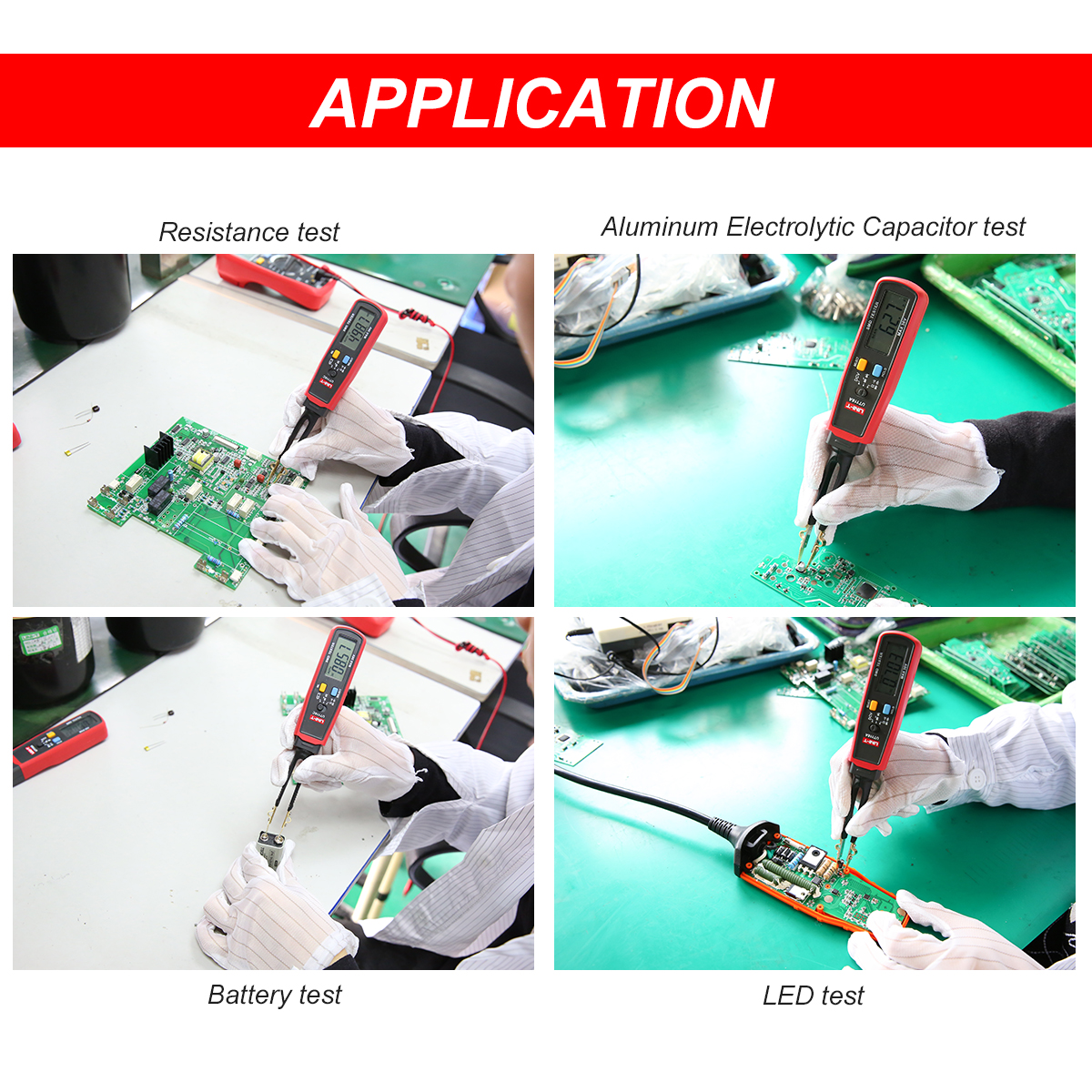

This product is a miniaturized, integrative, brand new instrument for measurements of SMD resistance, capacitance, diode (RCD) parameters and battery voltage. In addition, it can also be used for LED, zener diode and on/off circuit testing. This tester is a great tool for electronic factories and electronic devices maintenance.

Features:
The UT116C is designed for measurement of resistance, capacitance, diode, battery voltage; and can also do on or off circuit and zener diode polarity/LED testing.
With practical features, such as auto-range, data hold, low battery indicator, LCD display with 6000 counts，and auto-power off.
Compact and portable, the pen can be rotated by 180°for easy reading and operation.
Constructed with High quality ABS housing and gold-plated tip to prevent rust.
Ideal tool for electronic engineers, repairman or professionals who engaged in SMD testing.

Specifications:

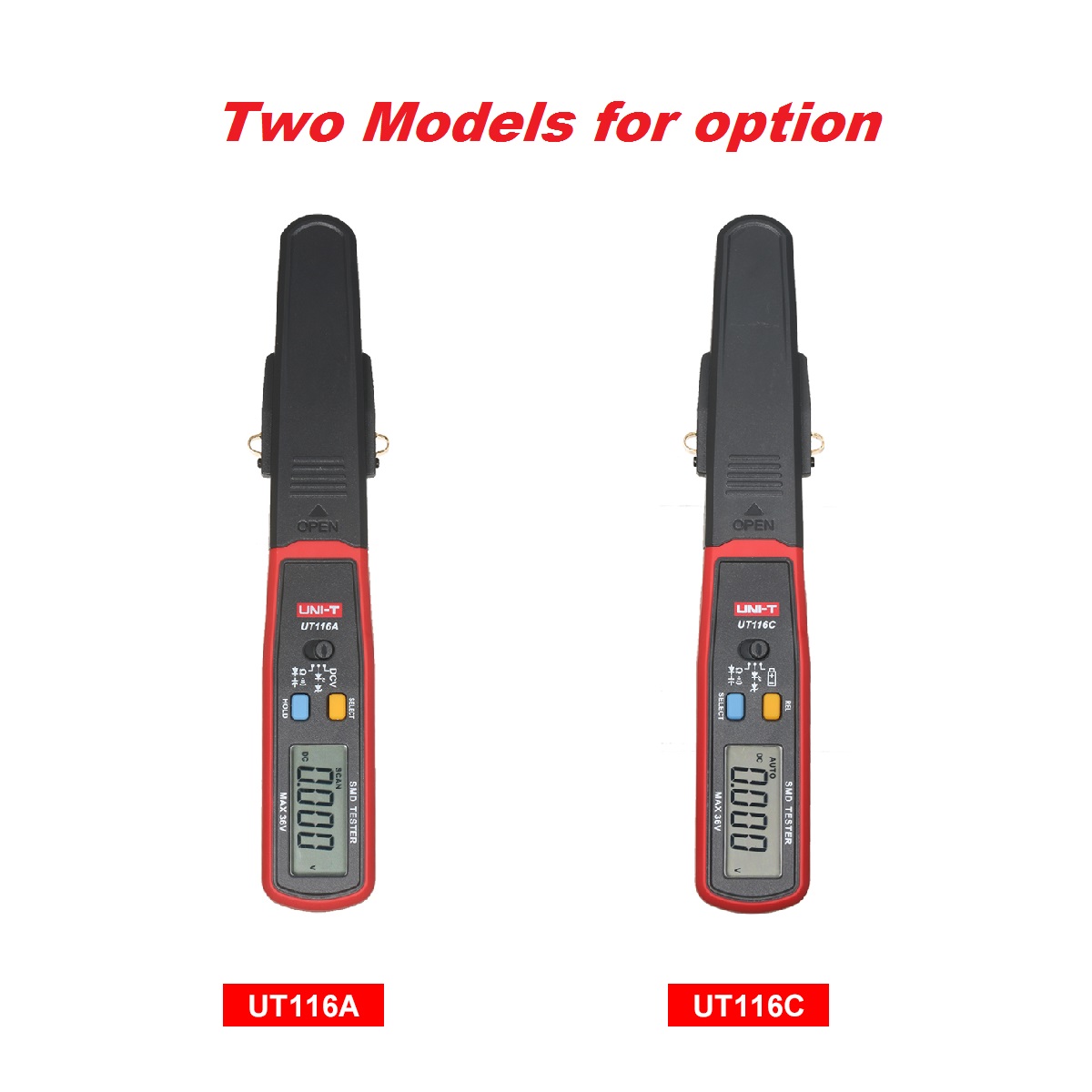

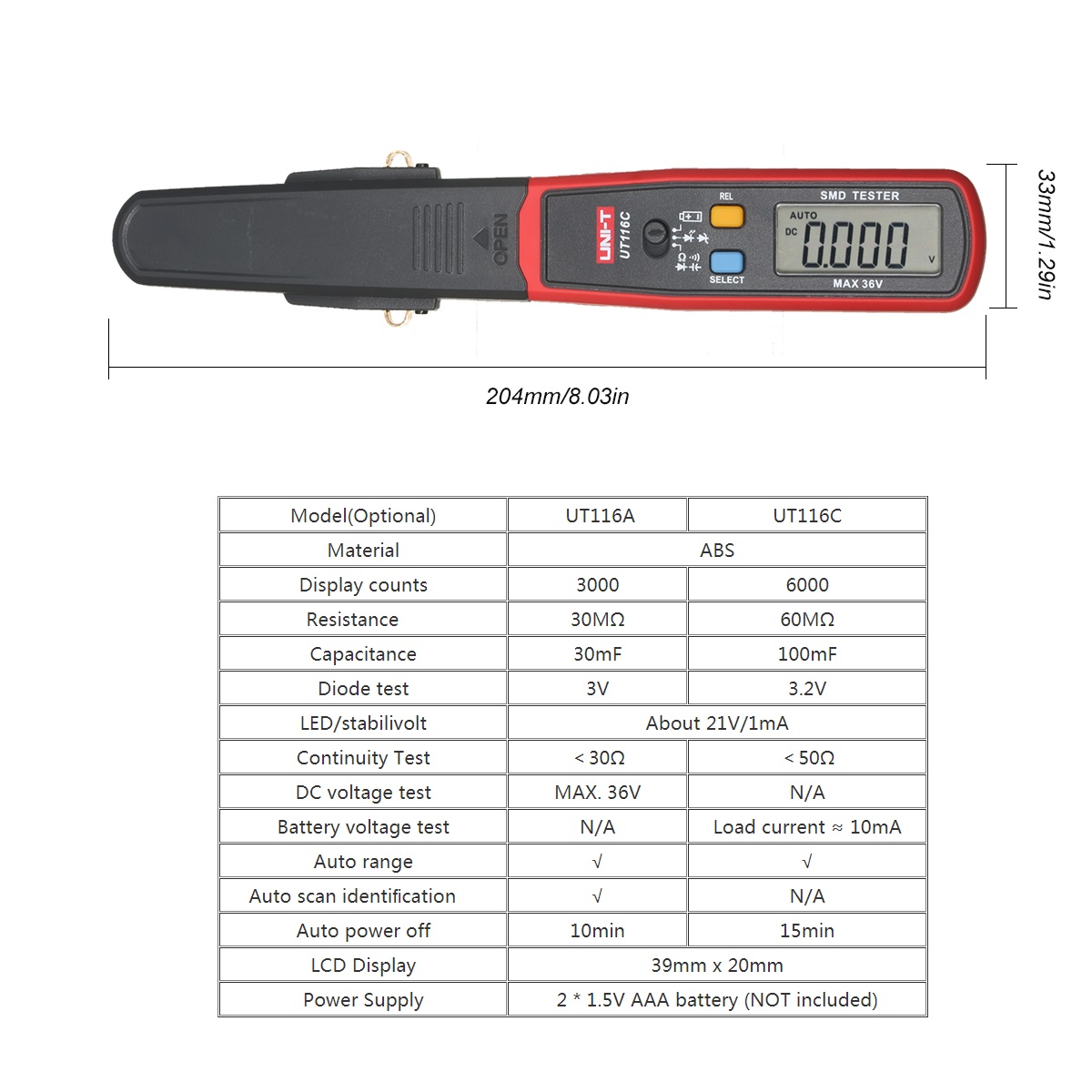

Model(Optional)	UT116A	UT116C
Material	ABS
Display counts	3000	6000
Resistance	30MΩ	60MΩ
Capacitance	30mF	100mF
Diode test	3V	3.2V
LED/stabilivolt	About 21V/1mA
Continuity Test	＜30Ω	＜50Ω
DC voltage test	. 36V	N/A
Battery voltage test	N/A	Load current ≈ 10mA
Auto range	√	√
Auto scan identification	√	N/A
Auto power off	10min	15min
LCD Display	39mm x 20mm

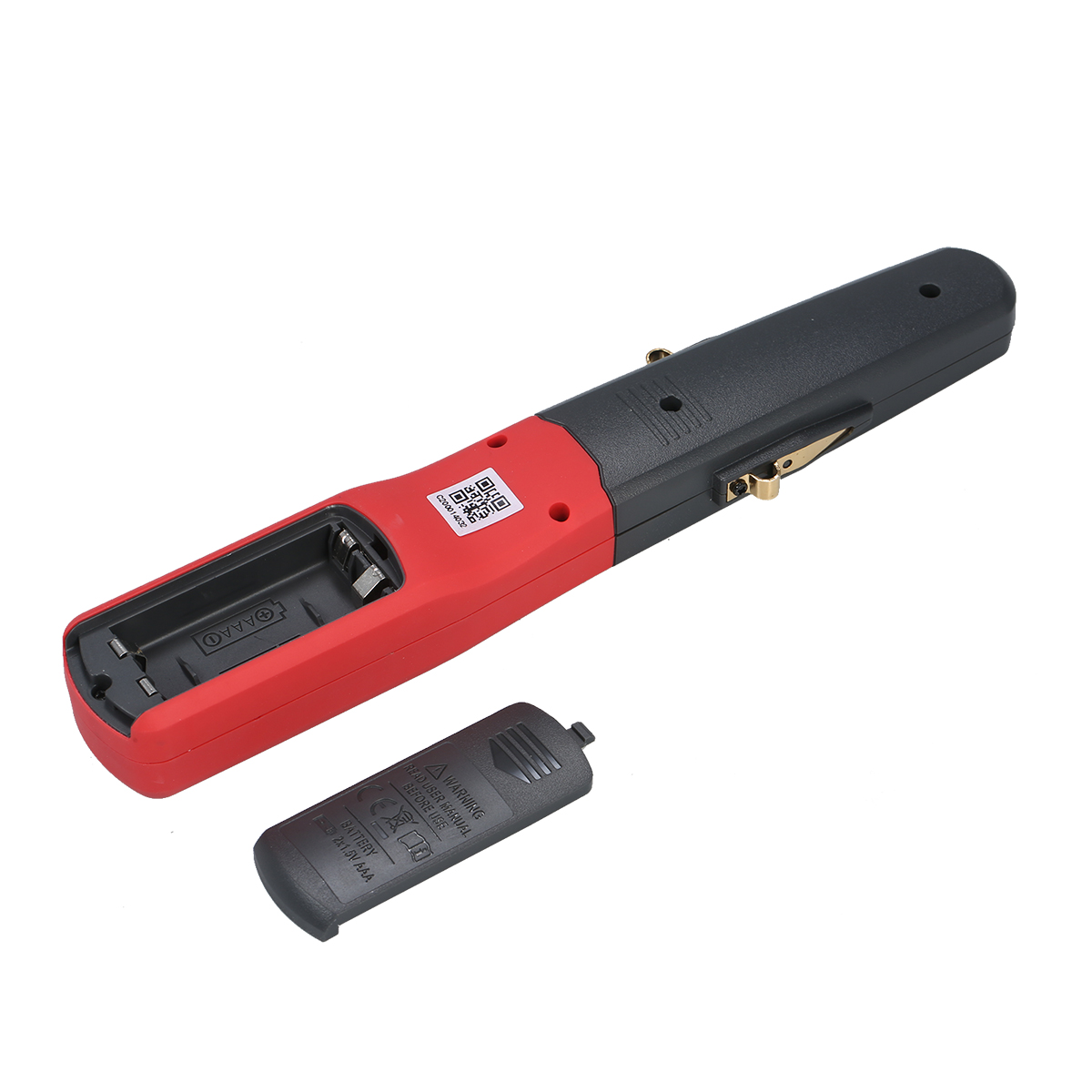

Power Supply	2 * 1.5V AAA battery (NOT included)

Item Size: 204 * 33 * 25mm / 8.03 * 1.29 * 0.98in
Item Weight: 80g / 2.82oz
Package Weight: 167g / 5.89oz
Package Size: 21.5 * 6.6 * 4.6cm / 8.46 * 2.59 * 1.81in

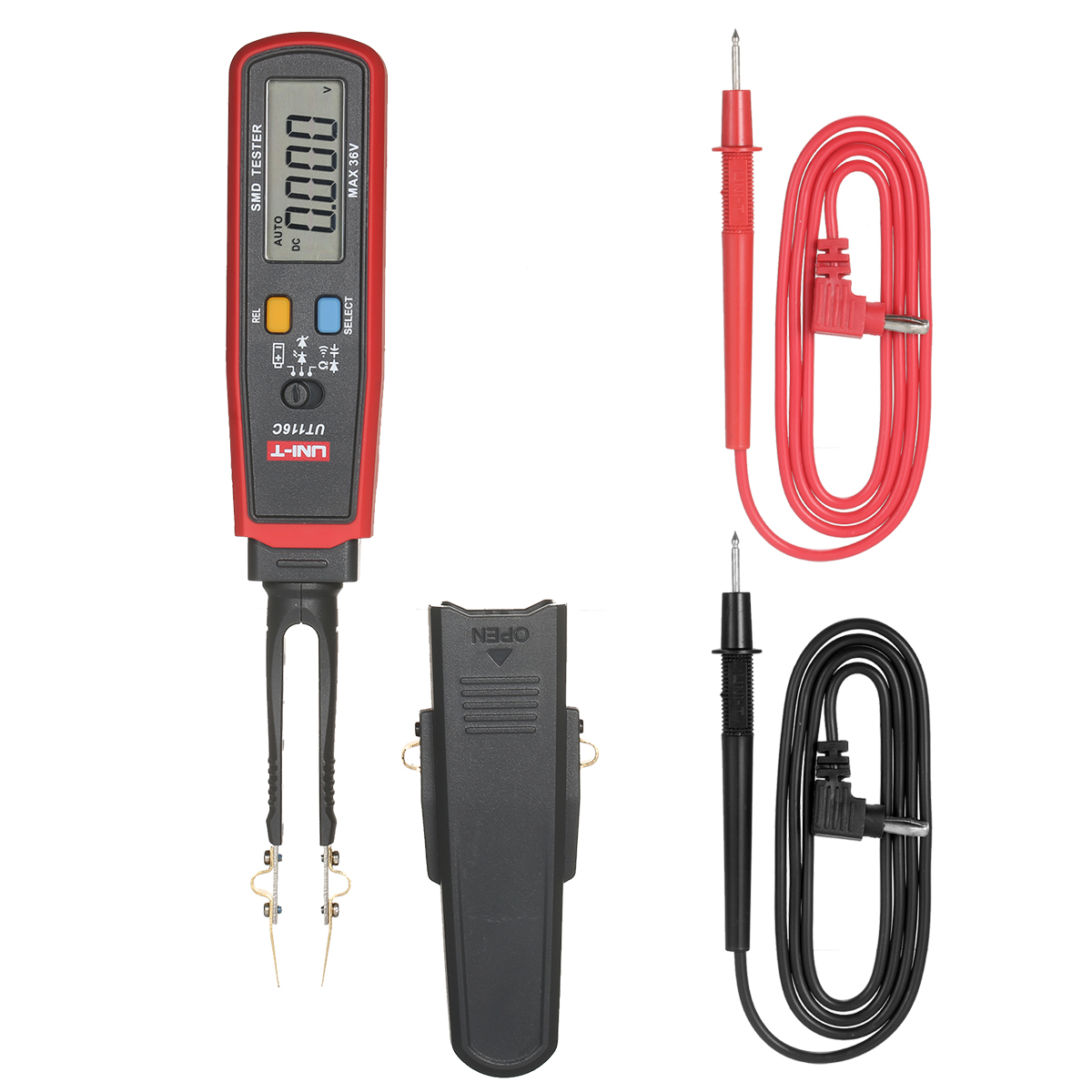

Packing List:
1 * SMD Tester
2 * Spare test clamps

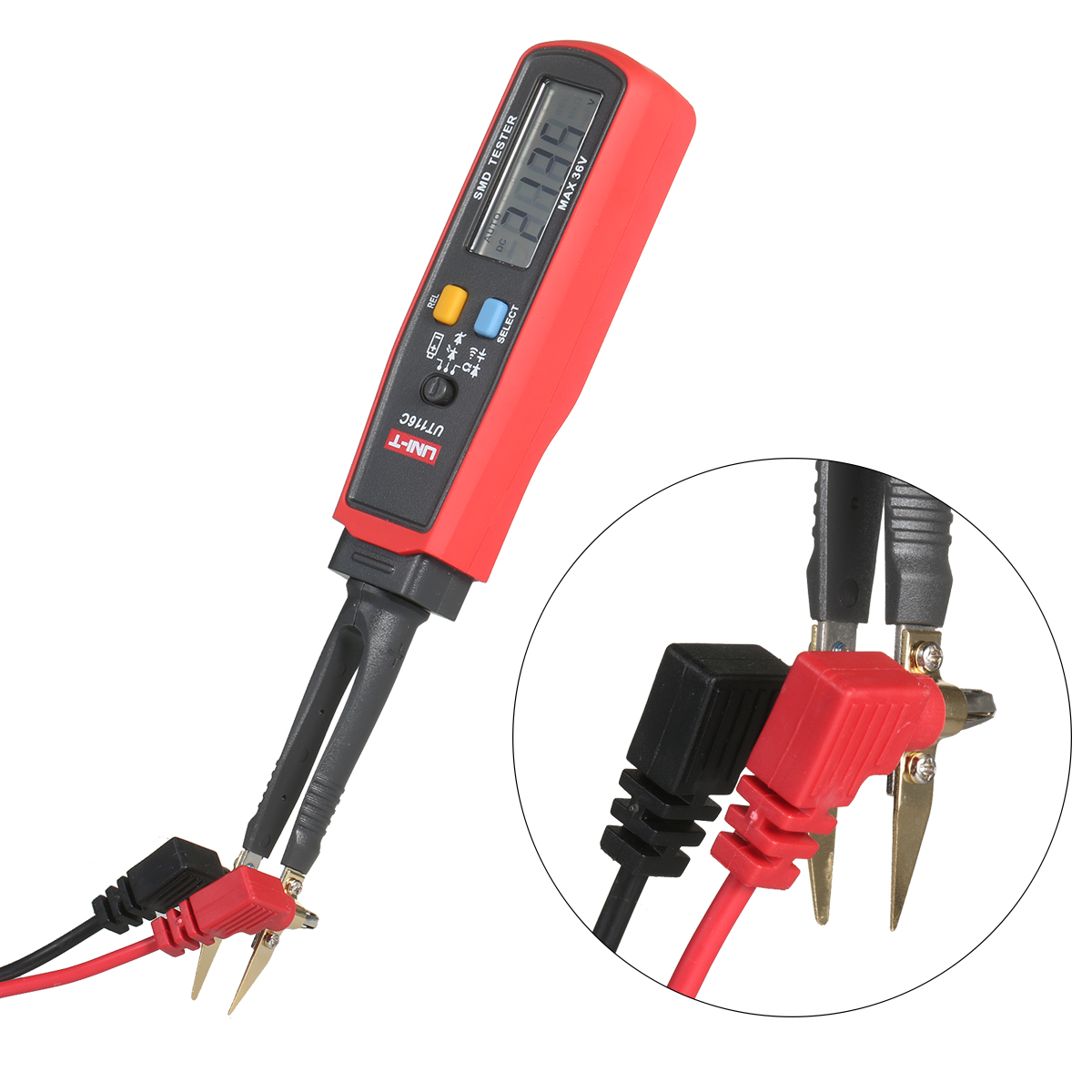

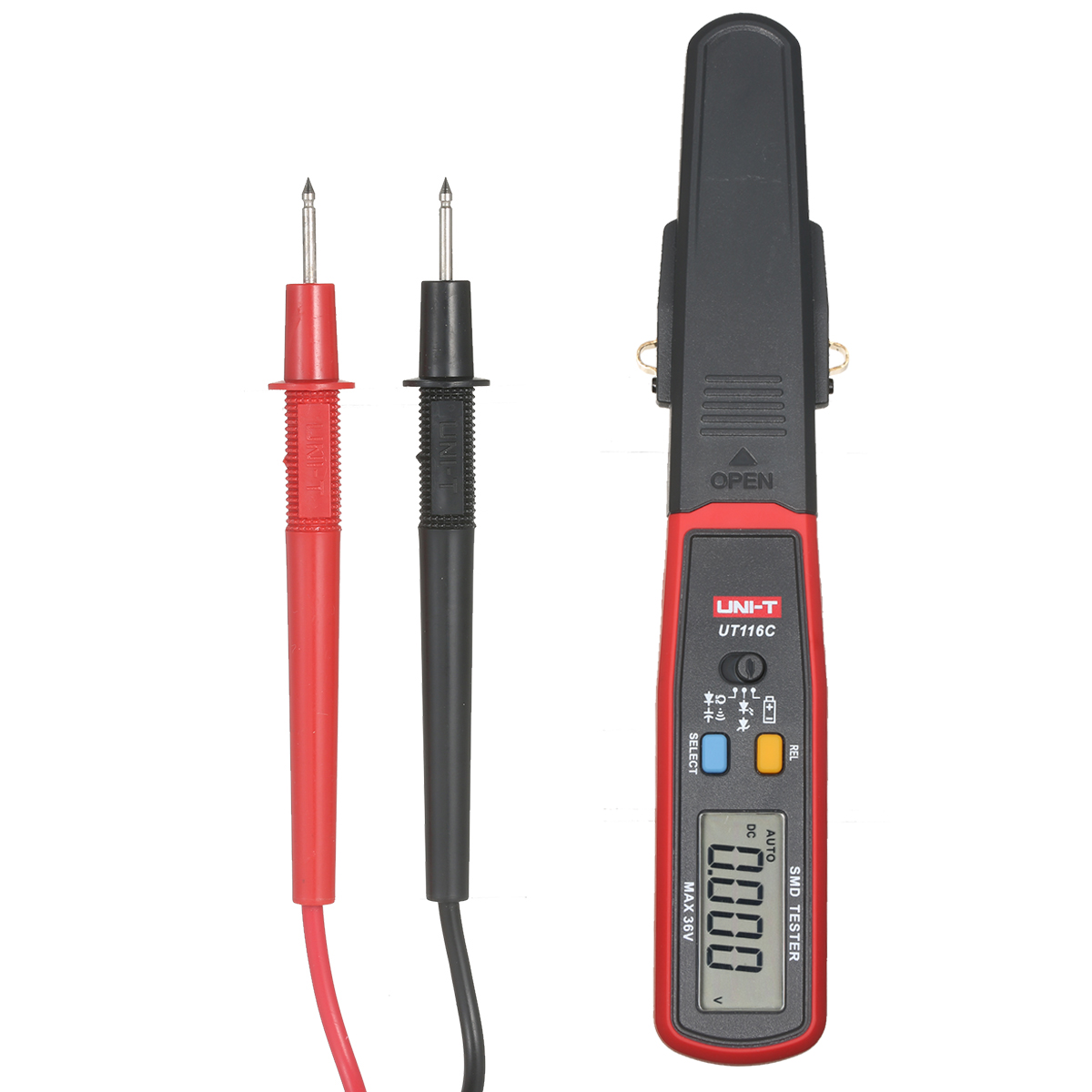

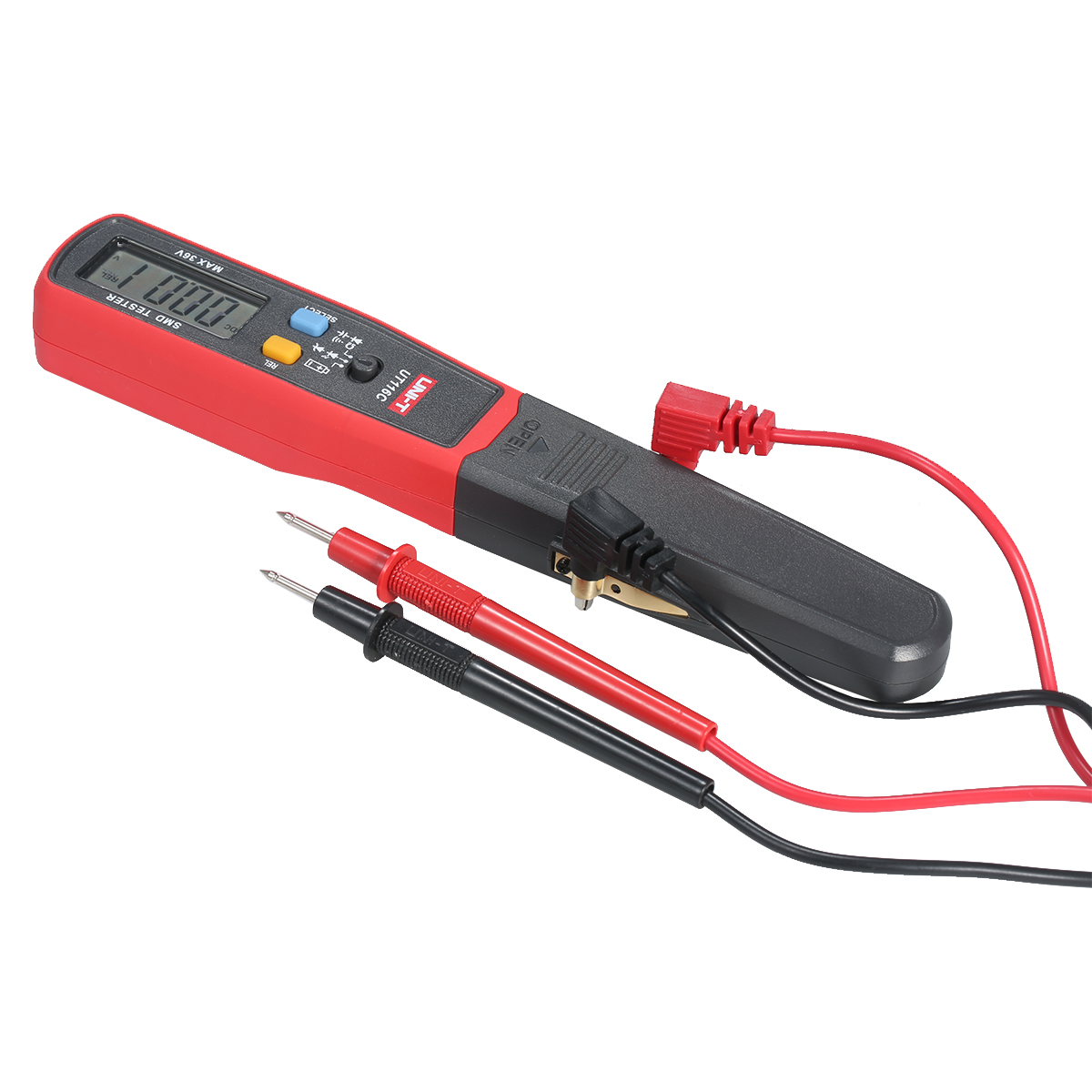

1 * Pair of dedicated test leads
1 * User Manual (English)

Package List:

1 * SMD Tester
2 * Spare test clamps
1 * Pair of dedicated test leads
1 * User Manual (English)
