Feature:

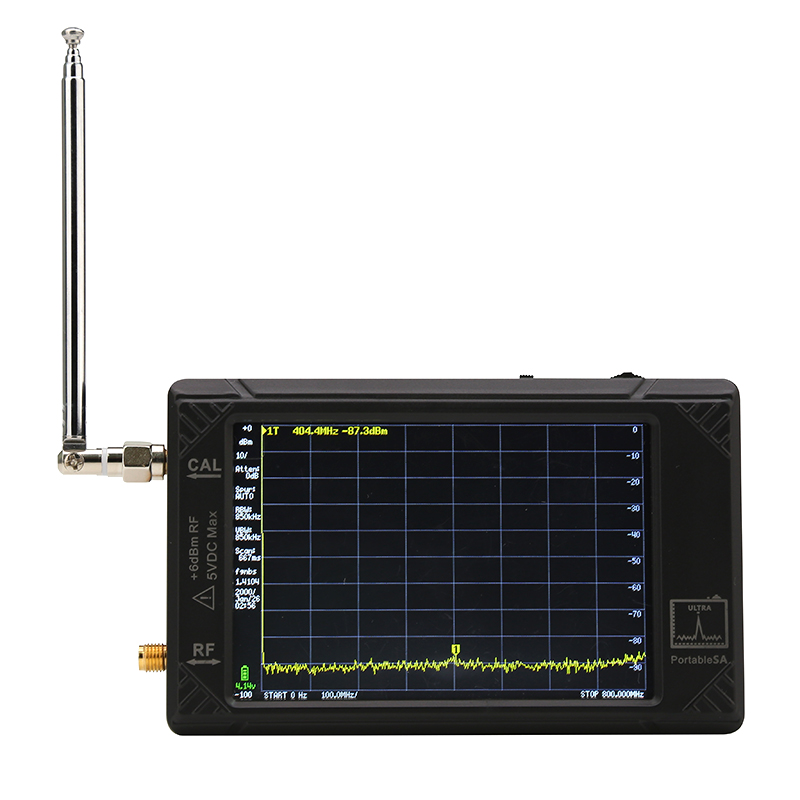

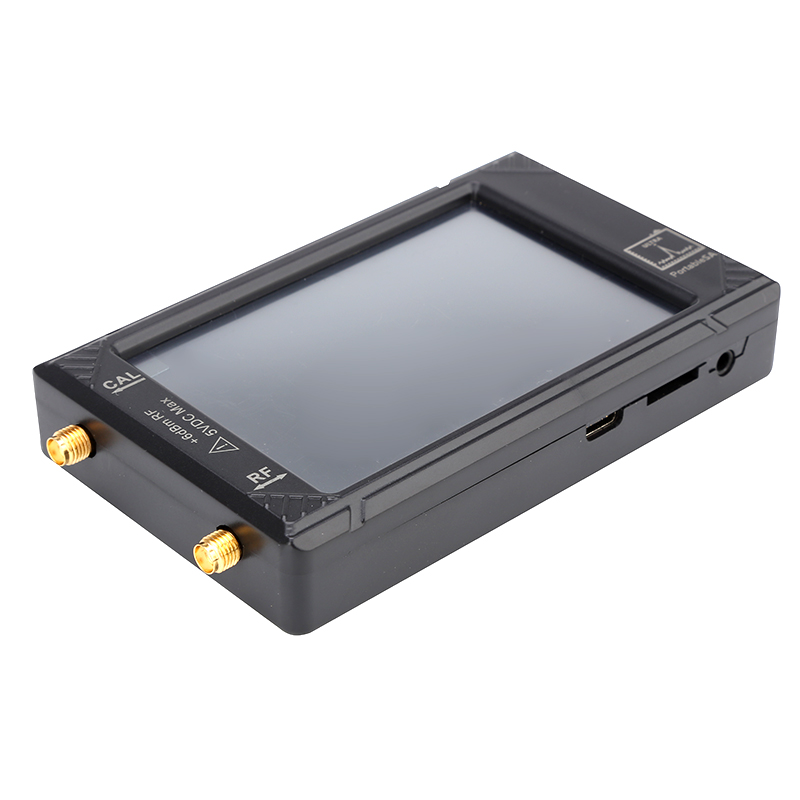

1: This Spectrum Analyzer is Made of fine quality material, with 4.0 inch 480 x 320 large touchscreen display, 100kHz to 5.3GHz widely measure range.

2: The product has a higher anti-static level and a longer service life, and built-in 32Gb micro SD card, can directly record data to the card ,which is convenient for your data sharing and storage.

3: Spectrum analyzer for 0.1-800MHz, with Ultra mode up to 0.1MHz-6GHz. Switchable resolution band pass filters for both ranges between 200Hz to 850kHz.

4: Color display showing 450 scan points covering up to the full low or high frequency range. Faster and more accurate measurement performance, you can easily cope with measurement testes in various fields.

5: When not used as Spectrum Analyzer it can be used as Signal Generator,with sine wave output between 0.1-800MHz or square wave or dual tone output up to 4.4GHz. Built-in calibration signal generator that is used for automatic self test and low input calibration.

6: Connected to a PC via USB it becomes a PC controlled Spectrum Analyzer or Signal Generator. Tinysa-APP transfers data directly to the computer. The USB interface implements CDC protocol and there is a large set of commands that can be invoked over the serial interface.

These command can be used to perform measurements or update internal settings. The driver for Windows will install automatically after connecting to a Windows PC. The driver for Linux is built into the kernel.

7: Built-in 3000m-ah rechargeable battery,with type-C charging cable and LED charging indicator,it can be fully charged within 3 hours,no need to charge frequently.

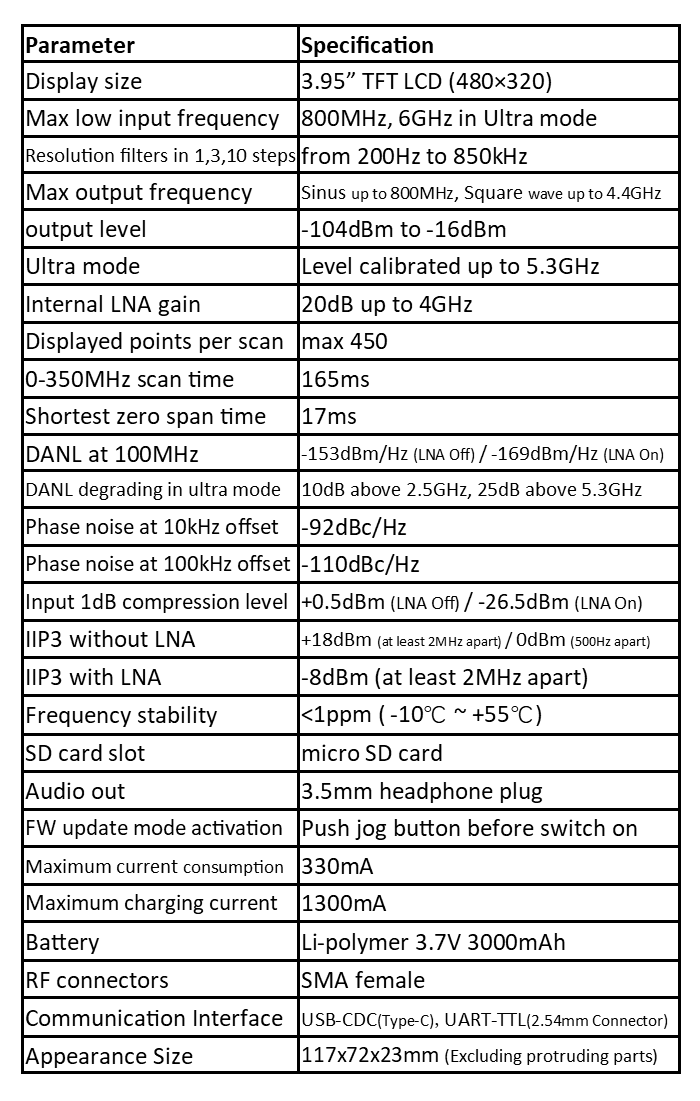

Parameters:

Condition: 100% Brand New

Display size: 4” TFT LCD (480×320)

Max low input frequency: 800MHz, 6GHz in Ultra mode

Resolution filters in 1,3,10 steps: from 200Hz to 850kHz

Max output frequency: Sinus up to 800MHz, Square wave up to 4.4GHz

output level: -104dBm to -16dBm

Ultra mode: Level calibrated up to 5.3GHz

Internal LNA gain: 20dB up to 4GHz

Displayed points per scan: max 450

0-350MHz scan time: 165ms

Shortest zero span time: 17ms

DANL at 100MHz: -153dBm/Hz (LNA Off) / -169dBm/Hz (LNA On)

DANL degrading in ultra mode: 10dB above 2.5GHz, 25dB above 5.3GHz

Phase noise at 10kHz offset: -92dBc/Hz

Phase noise at 100kHz offset: -110dBc/Hz

Input 1dB compression level: +0.5dBm (LNA Off) / -26.5dBm (LNA On)

IIP3 without LNA: +18dBm (at least 2MHz apart) / 0dBm (500Hz apart)

IIP3 with LNA: -8dBm (at least 2MHz apart)

Frequency stability: <1ppm ( -10℃ ~ +55℃)

SD card slot: micro SD card

Audio out: 3.5mm headphone plug

FW update mode activation: Push jog button before switch on

Maximum current consumption: 330mA

Maximum charging current: 1300mA

Battery: Li-polymer 3.7V 3000mAh

RF connectors: SMA female

Communication Interface: USB-CDC(Type-C)，UART-TTL(2.54mm Connector)

Appearance Size: 117x72x23mm (Excluding protruding parts)

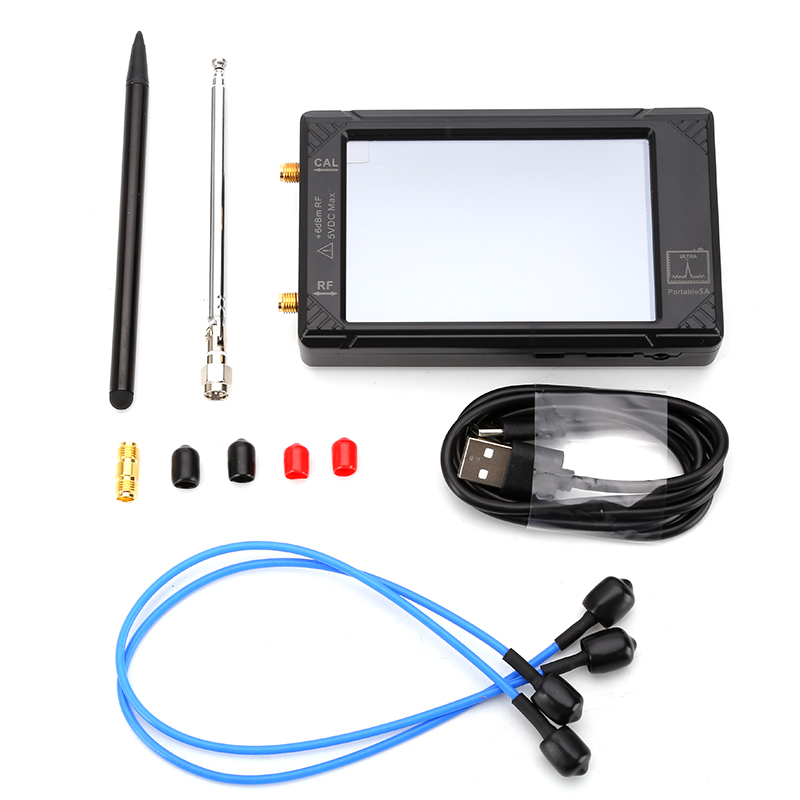

Package Included:

1x Host (with 3000mAh battery, 4"display)

1x USB Type-C data cable

2x 30cm ALSR100 SMA cables

1x SMA-SMA barrel connector

1x Antenna with SMA connector

1x Lanyard and touch plectrum

1x 32GB MicroSD card(plugged in the host)
