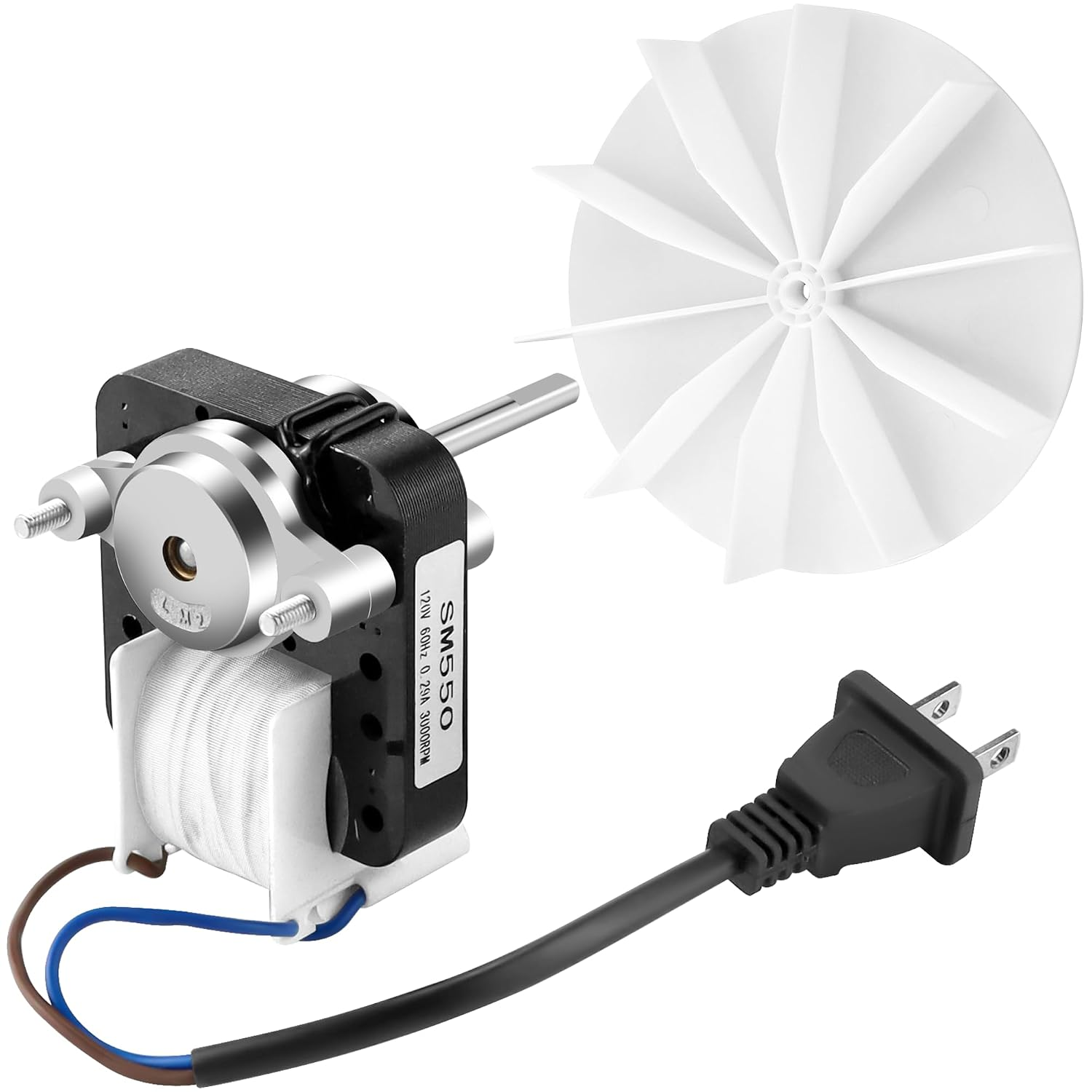

PART MODEL:SM550 Bathroom fan motor(120 V, 60Hz, 0.29A, 50CFM, 3000 RPM)
SPECIFICATION:The fan blade is 4 1/2" in diameter and 1" tall. approx Shaft = 3/16" x 1 3/4", Wire Length =6" with 2-prong plug. Mounting studs 1 7/8" on center,5/8 Coil stack
REPLACES PART:SM550,C01575, EM550, EM750, YJF6158, 65100, C65878, VFM100, E498-1, 82423K, K111,if your Range is not listed above, please send us a message so we may help you obtain the correct part
COMPATIBILITY:This bathroom exhaust fan kit compatible with Nutone Broan, Uppco,Ventorola E498-1, VFM100 aC-65878Bay Motors, Sears 569. This motor is reversible CCW & CW Rotation
EASY TO INSTALL:Before installation, please cut off the power supply, and wear gloves to protect your hands

Model Name	EM550
Model	C01575
Warranty Description	1 year warranty
Included Components	Universal Bathroom Vent Fan Motor Kit SM550
Part Number	SM550
Speed	3000 rpm
Voltage	120 volts
Horsepower	0.04 hp
Item Dimensions W x H	2.5"W x 3"H
Item Weight	0.27 g
Material Type	Stainless Steel

2.5 inches x 3.0 inches. Weight: 0.27 grams
