Product Description

    • AD9850 chip function introduction:

    • 125 MHz Clock Rate
      On-Chip High Performance DAC and High Speed
      Comparator
      DAC SFDR > 50 dB @ 40 MHz A OUT
      32-Bit Frequency Tuning Word
      Simplified Control Interface: Parallel Byte or Serial
      Loading Format
      Phase Modulation Capability
      +3.3 V or +5 V Single Supply Operation
      Low Power: 380 mW @ 125 MHz (+5 V)
      Low Power: 155 mW @ 110 MHz (+3.3 V)

      • 50Hz 1v



      1Mhz 1v

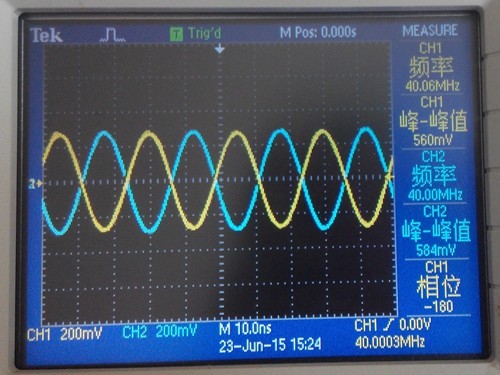

       40Mhz 500mv

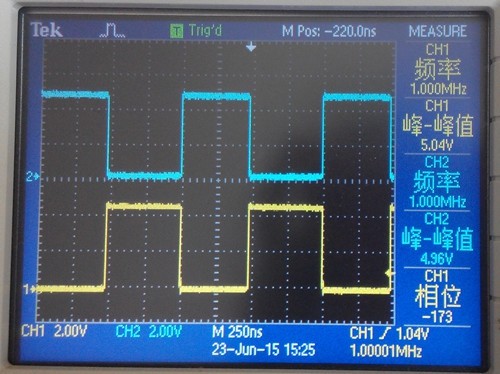

      1Mhz 5v

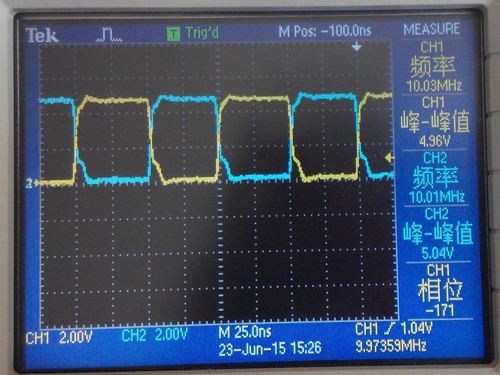

      10Mhz 5v




      Module application

    • Frequency/Phase–Agile Sine-Wave Synthesis
      Clock Recovery and Locking Circuitry for Digital
      Communications
      Digitally Controlled ADC Encode Generator
      Agile Local Oscillator Applications

      • Module performance parameters:

    • The Development board supplied by USB port;
    • Output frequency 0---40M, resolution 1HZ;
    • The output range 0 - 1VPP (1M high resistance), the amplitude will decrease with the frequency, and the resolution of the magnitude is 512.
    • Phase resolution: 11.25 degree.
    • Duty Cycle resolution: 1024

  • Package include:

  • 1 x New 40MHz LCD AD9850 DDS Signal Generator Ramp FSK STM32F103 Controller Board
