| s | Vehicle Diagnostic Function | Ignition | Primary Ignition (Voltage) |
| Primary Ignition（current） |
| Primary Ignition（Voltage& Current） |
| Primary Ignition (Crankshaft Senser) |
| Primary Ignition&SecondaryIgnition |
| Secondary | Secondary Ignition Distributor Type (Plug Lead) |
| Secondary Ignition Distributor Type (King Lead) |
| Secondary DIS (Positive-fired) |
| Secondary DIS or CPC (Negative-fired)） |
| Secondary Coil Output Diagnosis |
| Secondary Ignition&Primary Ignition |
| Sensors | Air Flow Meter | Air Flow Meter (Hot Wire) |
| Air Flow Meter (Air Vane) |
| Air FlowSensor (BOSCH Diesel) |
| Air Intake PressureSensor (BOSCH Diesel) |
| Camshaft | Camshaft (Inductive) |
| Camshaft (AC Excited) |
| Camshaft (Hall Effect) |
| Camshaft (BOSCH Common Rail Diesel) |
| Crankshaft | Crankshaft Inductive Running |
| Crankshaft Inductive Cranking |
| Crankshaft Hall Effect |
| Crankshaft Sensor &Primary Ignition |
| Distributor | Distributor Pick-up (Hall Effect) |
| Distributor Inductive Pick-up Cranking |
| Distributor Inductive Pick-up Running |
| Lambda Sensors | Lambda Sensor Titania |
| Lambda Sensor Zirconia |
| Lambda Sensor Zirconia Pre & Post cat |
| Throttle Position | Throttle Position Potentiometer |
| Throttle Position Switch |
| Throttle Pedal Switch (Bosch Diesel) |
| ABS Digital Speed Sensor |
| ABS Analog Speed Sensor |
| Coolant Temperature (5V) |
| Coolant Temperature (GM/Vauxhall Simtec |
| Crash Sensor |
| MAP Analog |
| MAP Digital |
| Hall Effect Road Speed Sensor |
| Accelerator Pedal (Bosch Diesel) |
| Bus Diagnosis | CAN Bus | CAN Bus Data View |
| CAN Bus Signal Integrity |
| CAN Bus LH Long Capture |
| LIN Bus | LIN Bus |
| Engine | Petrol | Single-point Injector (Voltage) |
| Single-point Injector (Current) |
| Multi-point Injector (Voltage) |
| Multi-point Injector (Current) |
| Injector Voltage & Current |
| Injector Current & Primary Ignition |
| Diesel | Common Rail Diesel (Current) |
| Injector Bosch CDi 3 (Current) |
| Injector Bosch Diesel (Idling) |
| Injector Bosch Diesel (Accelerating) |
| Diesel Glow Plugs |
| Electronic Fuel Pump |
| Carbon Canister Solenoid Valve |
| ERG Recirculation Solenoid Valve |
| Stepper Motor Example 1 |
| Stepper Motor Example 2 |
| Idle Speed Control Valve (Rotary) |
| Idle Speed Control Valve (Electromagmetic) |
| Throttle Servomotor (Idling) |
| Throttle Servomotor (Accelerating) |
| Bosch CDi3 Quantity Control Valve |
| Bosch CDi3 Pressure Regulator Valve |
| Variable-Speed Cooling Fan On |
| Variable-Speed Cooling Fan Off |
| Variable Camshaft Valve Timing |
| Startup & Charge | Charging Circuits | Charging Circuits Current/Voltage |
| Charging Circuits Current/Voltage Starting 24V |
| Charging Circuits Current/Voltage Idling 24V |
| Charging Circuits Alternator AC Ripple/Diode Diagnosis |
| Relative Compression Petrol |
| Relative Compression Diesel |
| Starting Voltage Drop |

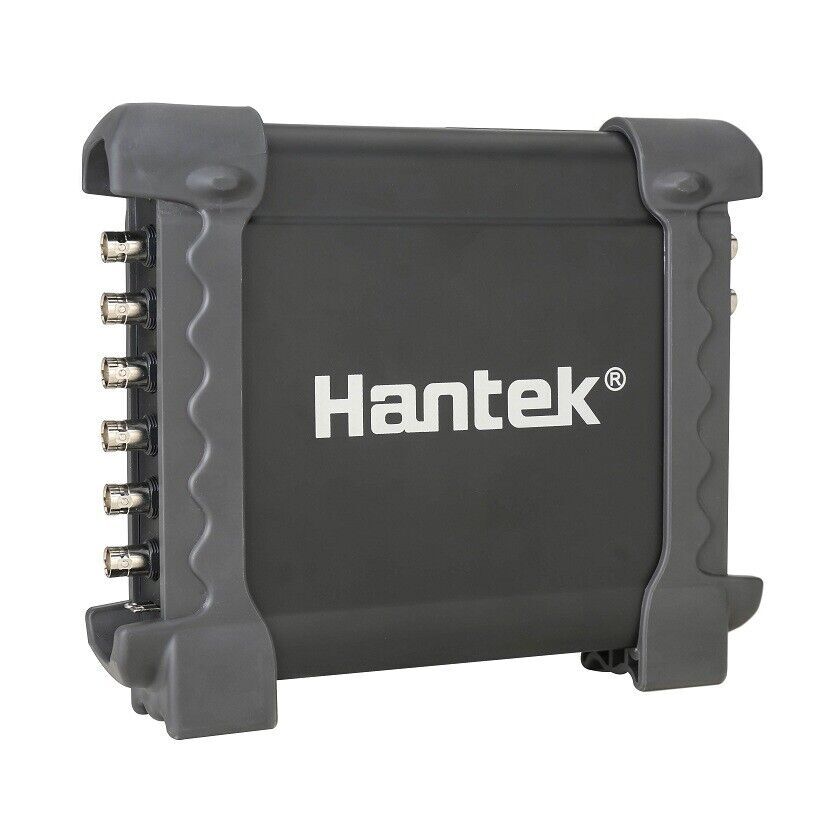

| General Oscilloscope | Model | Hantek1008C |
| Analog Channel | 8 |
| Input Impedance | Resistance: 1MΩ |
| Input Sensitivity | 10mV/div to 5V/div |
| Input Coupling | DC |
| Resolution | 12 bits |
| Memory Depth | 4K |
| Max. Input | 400V (DC+AC Peak) |
| Real-Time Sampling Rate | 2.4MSa/s |
| Time BaseRange | 1ns/div to 20000s/div(1-2-5sequences) |
| Time Base Precision | ±50ppm |
| Trigger Source | CH1, CH2,CH3,CH4, CH5, CH6,CH7,CH8 |
| Trigger Mode | Edge |
| X-Axis Input | CH1 |
| Y-Axis Input | CH2 |
| Voltage Measurement | Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase,Vavg, Vrms, Vcrms, Preshoot, Overshoot |
| Time Measurement | Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
| Cursors Measurement | Horizontal ,Vertical, Track, Auto Measure Modes |
| Waveform Signal Process | +,- , x,÷, FFT, Invert |
| Voltage Range | 10mV to 5V/div @ x 1 probe |
| 100mV to 50V/div @ x 10 probe |
| 10V to 5000V/div @ x 1000 probe |
| 100V to 50000V/div @ x 10000 probe |
| 200mV to 100V/div @ 20:1 |
| Current Range | 100mA to50.0A/div @ CC65(20A) |
| 1000mA to500.0A/div @ CC65(65A) |
| 1A to100.0A/div @ CC650(60A) |
| 1A to200.0A/div @CC1100(100A) |
| 10A to2000.0A/div @CC1100(1100A) |
| FFT | Rectangular, Hanning, Hamming, Blackman Window |
| Math | Addition, subtraction, multiplication, division |
| Interface | USB 2.0(Full Speed) |
| Power | No need extra power supply |
| Size | 190 x 167 x 35 (mm) |
| Weight | 0.63kg |
| High pressure ignition probe | 1 |
| Programmablesignal generator | Channel | 8CH |
| Output Level | LVTTL |
| Frequency Range | 0-250kHz |
