Description

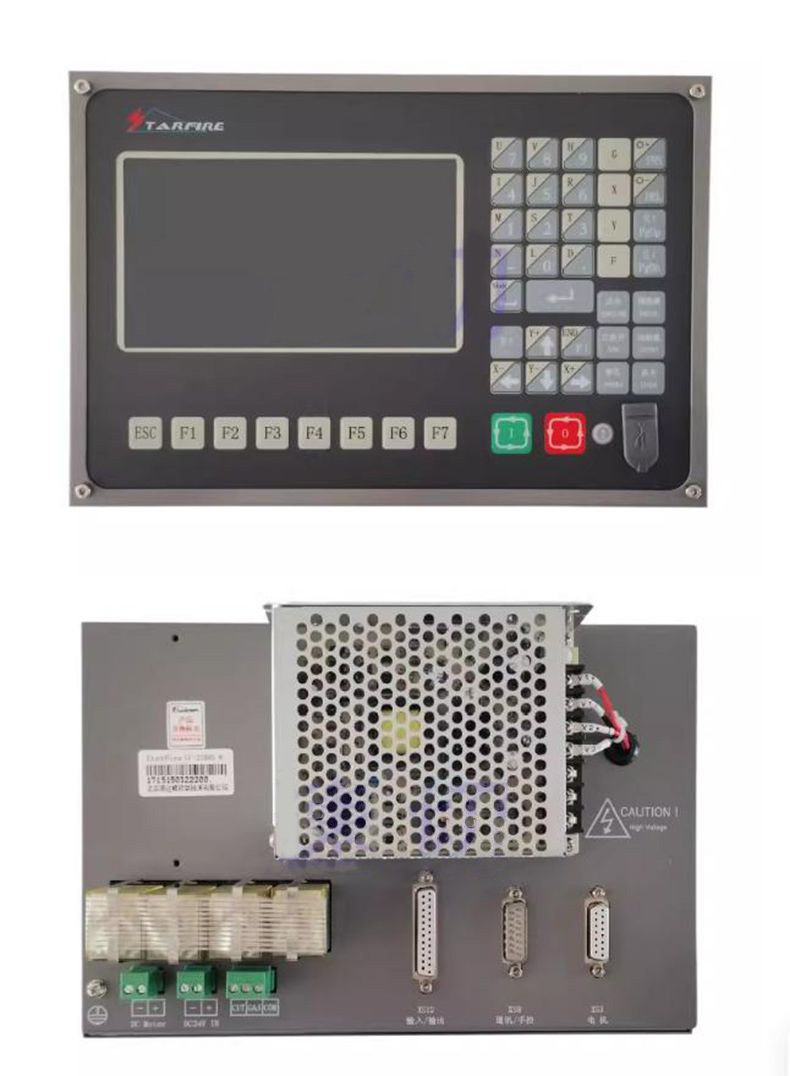

SF-2100S Industrial CNC Flame Plasma Controller 2-Axis CNC Cutting Machine with 7-inch LCD
Hardware:
- Adopting industrial advanced performance ARM CPU with a main frequency of 400MHz.
- Running memory of 64M, capable of processing extremely large machining programs (2100S system memory 4GB).
- Adopting a 7-inch true color LCD screen with a resolution of 800x480.
- Oversized physical buttons with good tactile feel and long lifespan.
- The pulse output frequency shall not be less than 500KHz, and the maximum output frequency of single axis pulse shall reach 1MHz.
- Number of linkage axes: 2 axes, expandable to 3 axes.
- The user program storage space reaches 4G and can be expanded to 32GB.
System Characteristics:
- Adopting industrial grade ARM chips, low power consumption, low heat generation, no need for forced heat dissipation, good three proof performance, suitable for complex working conditions.
- High hardware integration, mature and stable design, with the ability to prevent strong plasma interference, lightning strikes, surges, etc. The product has passed EMC testing.
- Equipped with two operating interfaces in Chinese and English, dynamic graphic display, simulated machining trajectory, real-time display of cutting status and input/output status.
- The software has rich functions, including practical flame/plasma cutting process settings, cutting seam compensation, break-point recovery, original trajectory rollback processing, starting any program segment, adjusting and selecting any position of the cutting gun, pre cutting contour, part rotation, mirroring, array, scaling and other processing methods.
- Equipped with 50 types of picture libraries and simple material layout function, convenient for users to use.
- Fully compatible with StartCAM, FASTCAM and other CAD/CAM nesting software; Adopting USB flash drive to read programs and upgrade software.
Specification:
- Number of linkage axes: 2 axes, can be expanded to 4 axes
- Maximum speed: 30m/min
- Programming unit: 0.001mm
- I/O control: 16 inputs, 8 outputs (relay outputs)
- User space: 4G large program storage capacity, supports external storage
- Programming method: standard ISO-G code, supports manual programming
- Display: 7 inches, 32 true colors

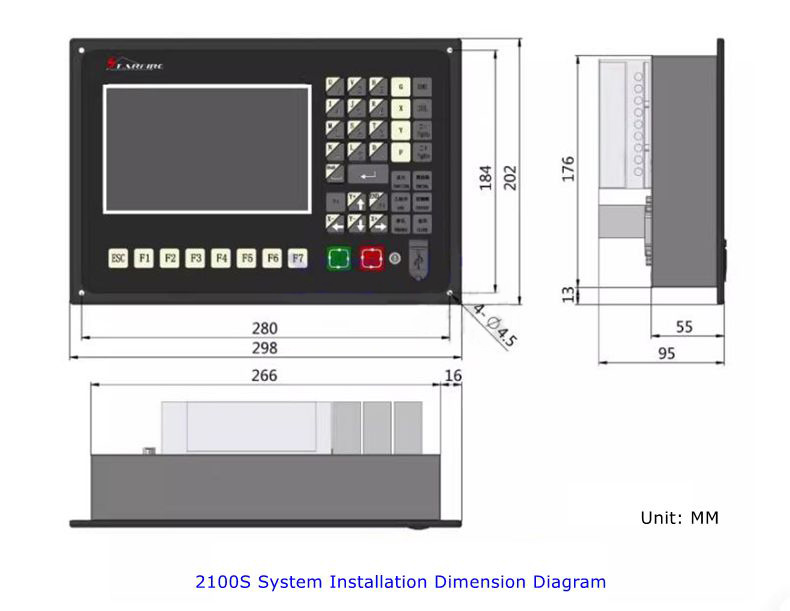

- Chassis size: (300 x 204 x 93) mm
- Working temperature: 0℃ ~ 55℃
Package Included:
- 1 x CNC Controller
Hardware:
- Adopting industrial advanced performance ARM CPU with a main frequency of 400MHz.
- Running memory of 64M, capable of processing extremely large machining programs (2100S system memory 4GB).
- Adopting a 7-inch true color LCD screen with a resolution of 800x480.
- Oversized physical buttons with good tactile feel and long lifespan.
- The pulse output frequency shall not be less than 500KHz, and the maximum output frequency of single axis pulse shall reach 1MHz.
- Number of linkage axes: 2 axes, expandable to 3 axes.
- The user program storage space reaches 4G and can be expanded to 32GB.
System Characteristics:
- Adopting industrial grade ARM chips, low power consumption, low heat generation, no need for forced heat dissipation, good three proof performance, suitable for complex working conditions.
- High hardware integration, mature and stable design, with the ability to prevent strong plasma interference, lightning strikes, surges, etc. The product has passed EMC testing.
- Equipped with two operating interfaces in Chinese and English, dynamic graphic display, simulated machining trajectory, real-time display of cutting status and input/output status.
- The software has rich functions, including practical flame/plasma cutting process settings, cutting seam compensation, break-point recovery, original trajectory rollback processing, starting any program segment, adjusting and selecting any position of the cutting gun, pre cutting contour, part rotation, mirroring, array, scaling and other processing methods.
- Equipped with 50 types of picture libraries and simple material layout function, convenient for users to use.
- Fully compatible with StartCAM, FASTCAM and other CAD/CAM nesting software; Adopting USB flash drive to read programs and upgrade software.
Specification:
- Number of linkage axes: 2 axes, can be expanded to 4 axes
- Maximum speed: 30m/min
- Programming unit: 0.001mm
- I/O control: 16 inputs, 8 outputs (relay outputs)
- User space: 4G large program storage capacity, supports external storage
- Programming method: standard ISO-G code, supports manual programming
- Display: 7 inches, 32 true colors
- Chassis size: (300 x 204 x 93) mm
- Working temperature: 0℃ ~ 55℃
Package Included:
- 1 x CNC Controller
