Size: 26/27.5/29 Inch(wheel size)
Steering column type: straight tube/cone tube

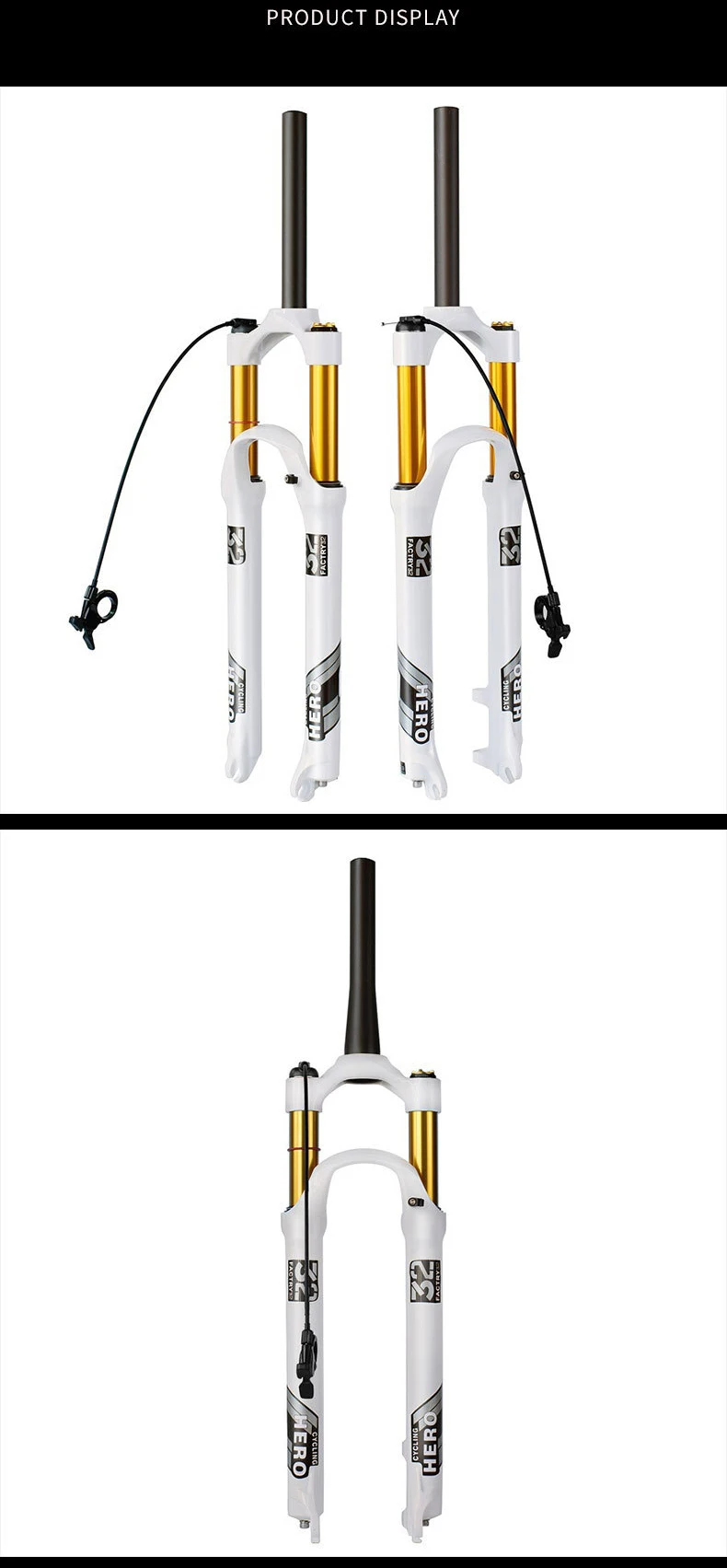

Lock mode: Manual lock Remote lock
Travel :120 mm
Upper tube :220 mm
Lower tube shaft type :9x100mm QR shaft quick release metal bushing sponge ring
Material: Magnesium alloy
Steering column diameter: 28.6mm (without thread)
Steering column length :6061 aluminum alloy 220 mm
Shoulder cover material: Aluminum alloy center distance 130MM
Pillar tube diameter: 32mm hard anodized surface
Weight:
26inch 1690g 27.5inch 1740g 29inch 1790g
1, mountain bike air fork bicycle suspension fork 9x100mm QR shaft can lock 120MM travel metal bushing sponge ring

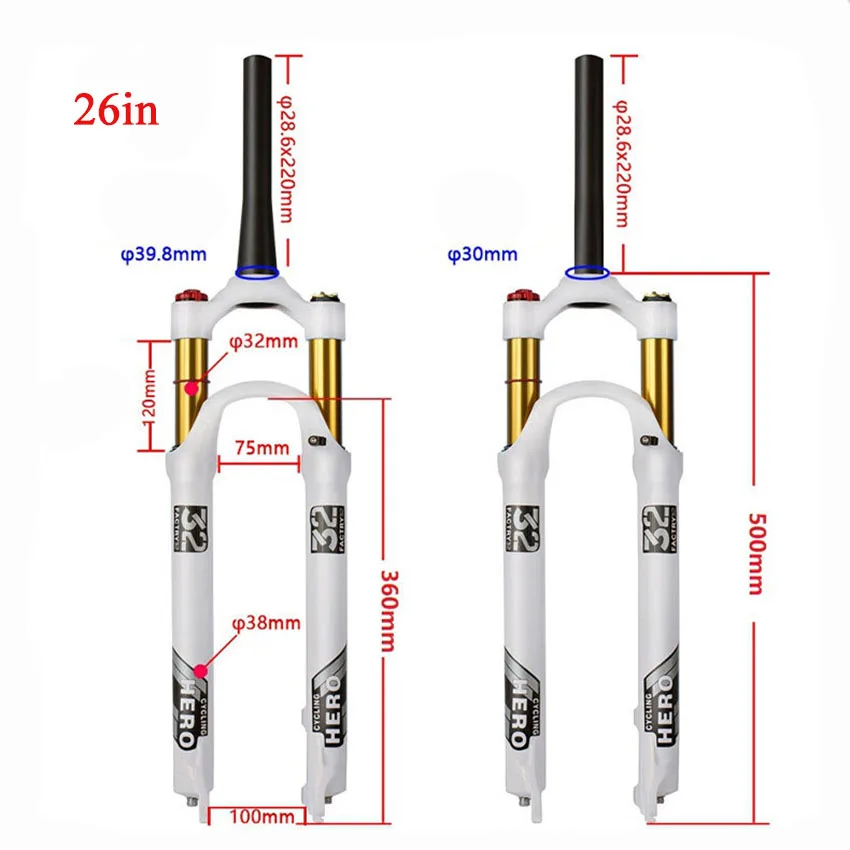

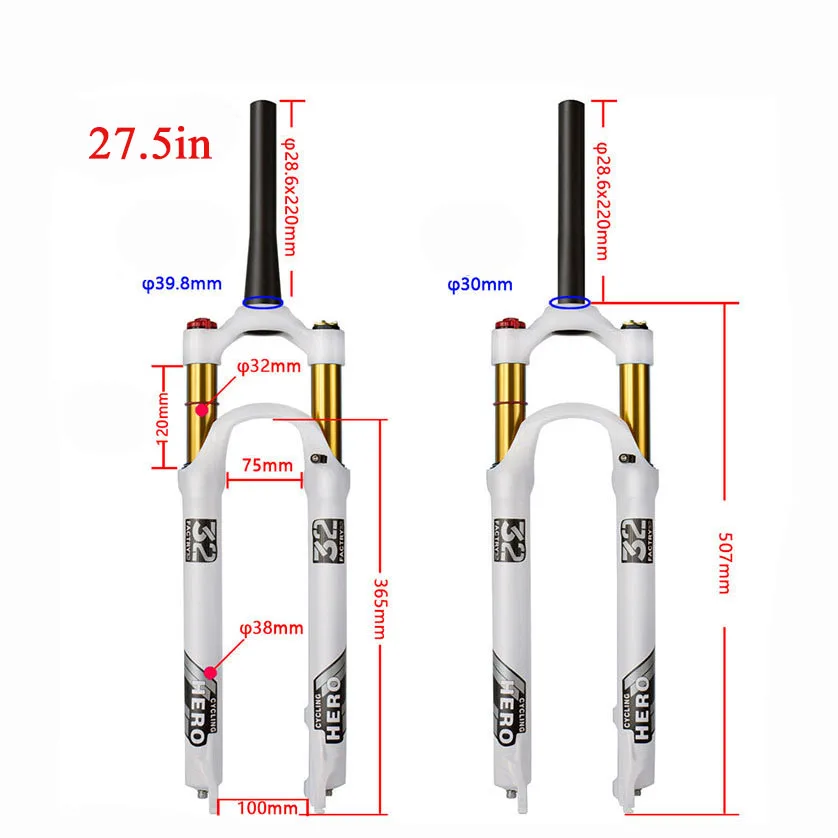

2, [fork size] MTB fork 26/27.5/29.5 Inch, air fork pillar tube diameter 32mm steering column diameter 28.6mm straight tube steering bearing base 30mm cone tube steering bearing base diameter 39.8mm 120 mm travel,9*100 mm QR shaft quick release Disc brake center distance 74MM
3, [Excellent performance and material] CYCLING HERO mountain bike air fork using magnesium alloy production fork leg parts, so lighter and better strength, the internal use of metal bushing, the advantage is to strengthen the robustness of the fork and more lubrication, metal bushing is also known as no lubricating oil bearings, which will better protect the pillar pipe and will not wear, The fork will not be loose because of long use time, which is a very good experience, the strut tube uses the sponge ring oil lubrication treatment to protect the lubrication of the strut tube and oil seal, will not cause wear and fade, but also make the fork more sensitive.
4 [Light weight and advantages] The weight of the air fork is about 1690-1780 grams (remote control lock +80 grams), which can minimize the weight of the bike, and directly improve the acceleration and starting speed. I think this must be what you want, our idea is to make the fork well, durable, not easy to fail, easy to use and easy to maintain, the metal bushing is not lubricating oil work, you only need to use half a year to supplement the smooth oil for the sponge ring, the rest do not need maintenance. Usually do a good job of cleaning the pillar tube is very good!
