Product description

1 BLOW BACK PILOT ARC 2 CUTTING THICKNESS 3 MESH CUTS 4 CUTTING SURFACE DISPLAY 1 NON-HF 2 BLOW BACK PILOT ARC 1 PA/PT 2 2T/4T FUNCTION 3 PRE-INSTALL AIR REGULATOR 1 ACCESSORIES 2 DIGITAL SCREEN DISPLAY 3 PANEL INTRODUCTION 4 SAFE FIRST

MODEL COMPARISON CHART

Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.2 out of 5 stars 55 4.2 out of 5 stars 115 4.2 out of 5 stars 40 4.3 out of 5 stars 150 4.6 out of 5 stars 32 4.4 out of 5 stars 217 4.4 out of 5 stars 217 Price $171.46$171.46 — $99.99$99.99 — $219.98$219.98 $145.34$145.34 $139.99$139.99 Current 55Amps 35Amps 45Amps 55Amps 60Amps 50Amps 50Amps Voltage 110/220V 110V 110/220V 110/220V 110/220V 110/220V Dual Volt 110/220V Dual Volt Arc Start Type Blowback Pilot Arc Contact Start Contact Start Pilot Arc Blowback Pilot Arc Pilot Arc Pilot Arc HF or Non-HF Non-HF HF HF HF Non-HF HF HF Duty Cycle 60% 50% 50% 50% 60% 60% 60% Clean Cut 110V 1/2" 12mm, 220V 5/8" 16mm 110V 1/4" 6mm 110V 5/16" 8mm, 220V 1/2" 12mm 110V 3/8" 10mm, 220V 5/8" 16mm 110V 1/2" 12mm, 220V 5/8" 16mm 110V 1/2" 12mm, 220V 5/8" 16mm 110V 1/2" 12mm, 220V 5/8" 16mm Max Cut 110V 9/16" 14mm,220V 4/5" 20mm 110V 1/2" 12mm 110V 1/2" 12mm, 220V 5/8" 16mm 110V 1/2" 12mm, 220V 3/4" 18mm 110V 9/16" 14mm,220V 4/5" 20mm 110V 5/8" 16mm, 220V 3/4" 18mm 110V 5/8" 16mm, 220V 3/4" 18mm Digital Screen ✔ ✘ ✔ ✔ ✔ ✔ ✔ 2T/4T ✔ ✔ ✔ ✔ ✔ ✔ ✔ Post Time ✔ ✔ ✔ ✔ ✔ ✔ ✔ Mesh Cut ✔ ✘ ✘ ✔ ✔ ✔ ✔ Pre-installed Regulator ✔ ✔ ✔ ✔ ✔ ✔ ✔

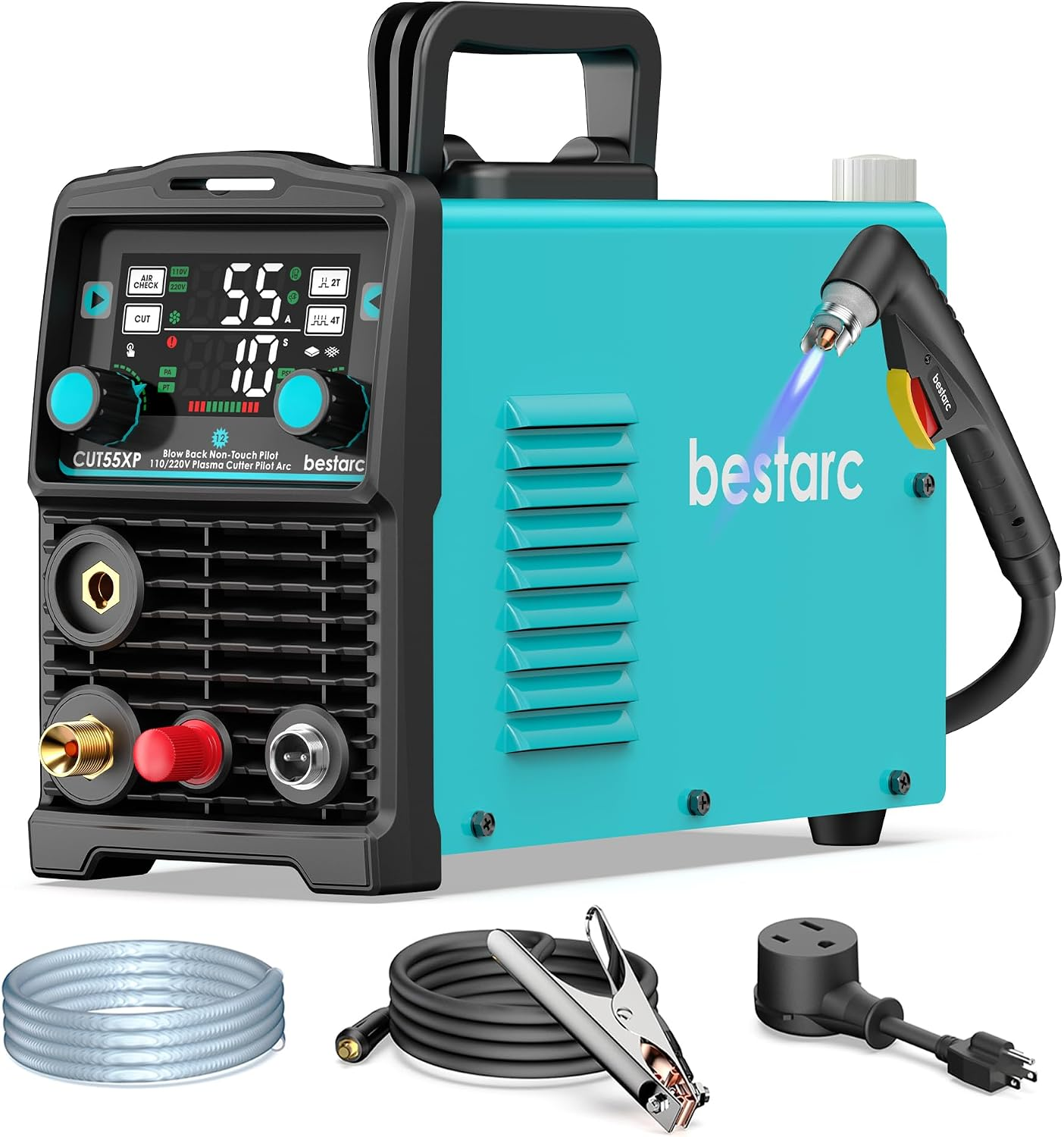

• [Powerful Cutting Ability] Dual voltage 110/220V good for home, workshop and hardware shop use. Professional performance 1/2” clean cuts on Iron, Steel aluminum and copper with Inverter IGBT technology. Very powerful for DIY and heavy duty project. The Maximum cutting thickness is recommended to 9/16” (14mm)@35A 110V 50PSI; 4/5” (20mm)@55A 220V 65PSI. Dry and compressed air is required. Power breaker up to 40A@110V 35A; Up to 30A@220V 55A.
• [Blow Back Pilot Arc]: Bestarc plasma cutter features a blow back technology, Non-high-frequency pilot arc prevents hf signal interference and improves cutting stability. Blow-back pilot arc technology initiates the arc without touching the metal, while low-frequency arc maintenance reduces electrode burn during non-cutting, extending electrode and nozzle life.
• [Air Sensor Technology]: The air sensor built into the machine displays the air pressure on the front panel of the machine. Users can adjust the air pressure manually through the air regulator (air pressure cannot be automatically adjusted). An air filter is installed at the back of the machine, equipped with a quick-connect 1/4 NPT air connector, ready for use right out of the box. Once connected to an air compressor, the recommended air pressure should be within 70 PSI, with a flow rate of 250 liters per minute.
• [LED Screen Display]: The screen centrally displays parameters such as air pressure, voltage, and current, allowing users to understand the equipment status in real-time and adjust operations in a timely manner, improving operational efficiency. If the plasma cutter cannot work, the screen comes with an error code, making it easy to find out the problems.
• [2T/4T/PA/PT Function]: Post time adjustable from 3-15s to cool the torch. Adjust the cooling time of the torch head to extend the service life of consumables. We recommend a cooling time of 4-8 seconds. The PA function allows pilot arc timing adjustment up to 15s; longer times are ideal for mesh cutting, shorter times help extend consumable life. 2T/4T automatic cutting release your finger.2T is a semi-automatic cutting control, and 4T is an automatic cutting control.
