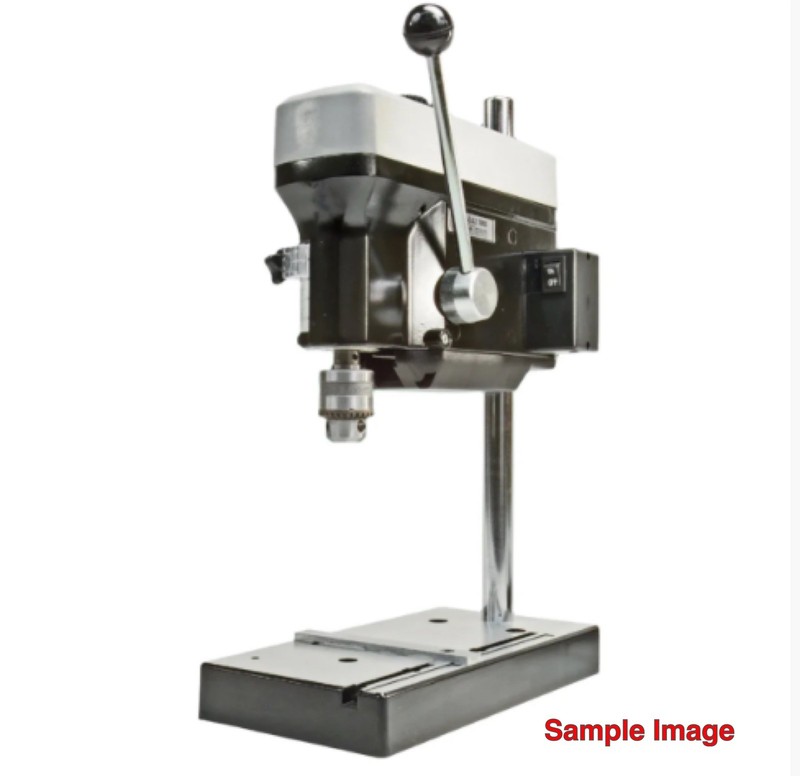

MicroLux® Drill Presses have all the quality features of drill presses costing much more. When you own a MicroLux® drill press, you'll never have to worry again about having the right tool when precise and accurate drilling is vital to your project. Here is an affordable drill press designed and sized for small precision work. No more working with cumbersome, oversized drill presses...and no more mistakes from using inaccurate, hand-held drills. Plus, you can select the right speed for the job in seconds. Prevent jagged holes in wood from a speed too slow. Protect against overheated plastic from a speed too fast. And drilling in steel, brass or any metal is a breeze. The high torque motor will drill a 1/4 inch hole through 1/4 inch brass quickly and easily...and even deeper holes in wood, plastic and other soft materials.
Just the Right Size and Just the Right Features for All Small Drilling Projects!
Specifications:
- Changeable speeds accommodate various materials
- Rugged cast metal housing
- No-flex solid steel column
- Precision 3-jaw chuck and key
- Ball bearing spindle assures low vibration, high accuracy and long life
- Calibrated depth control with positive stop
- High-torque motor plugs into standard 120v AC outlet
- Quick release handles let you adjust chuck-to-base distance instantly
- Cast metal base with machined surface keeps your work square and true and takes up minimal workbench space
- Sliding gauge for drilling in-line holes
- Spindle travel: 1-1/4 inches
- Chuck to base distance: 7 inches
- Center of chuck to front of column: 5-1/2 inches
- Column diameter: .787 inch
- Chuck capacity: 1/64 inch to 1/4 inch
- Drive system: 3-step pulley with 90 watt constant speed motor
- Spindle speeds: 2100, 4500 and 6500 rpm
- Spindle: 3/8-24 male
- Base size: 5 inches x 9 inches
- Headstock and base construction: Cast aluminum

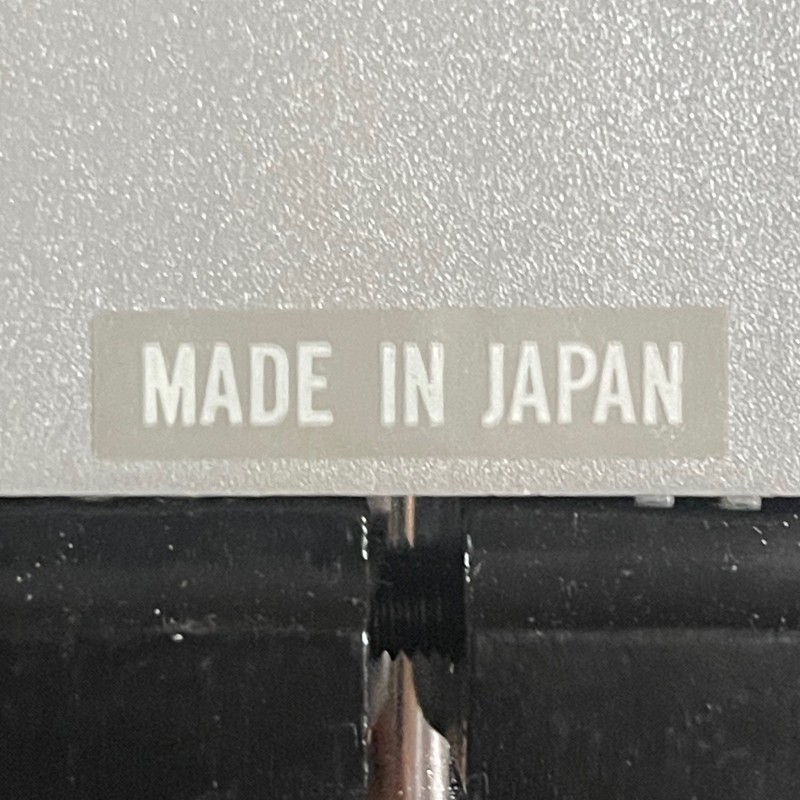

- High quality: made in Japan
- Weight: 8 lbs.
- Height: 14 inches
Note:

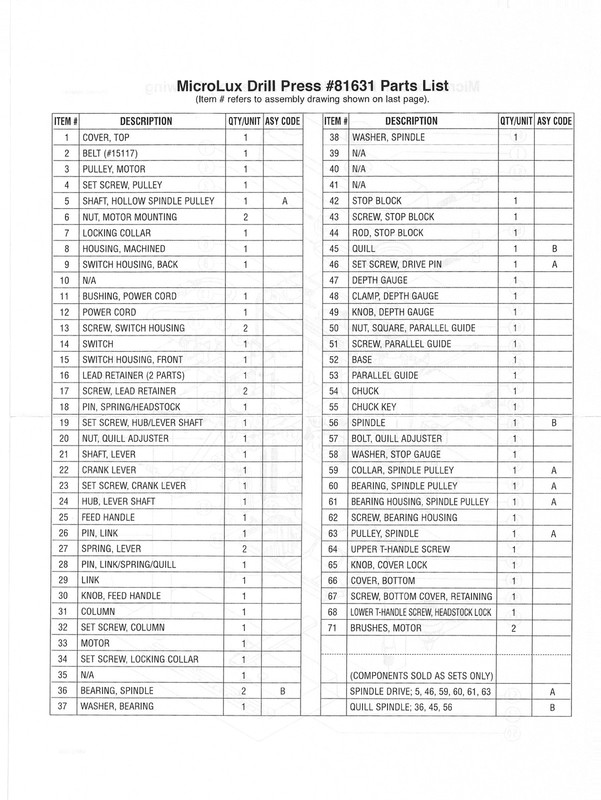

This drill was purchased new and never used. Still in original box. Because of the age of this unit, I would suggest purchasing several replacement belts (part #15117) from micromark.

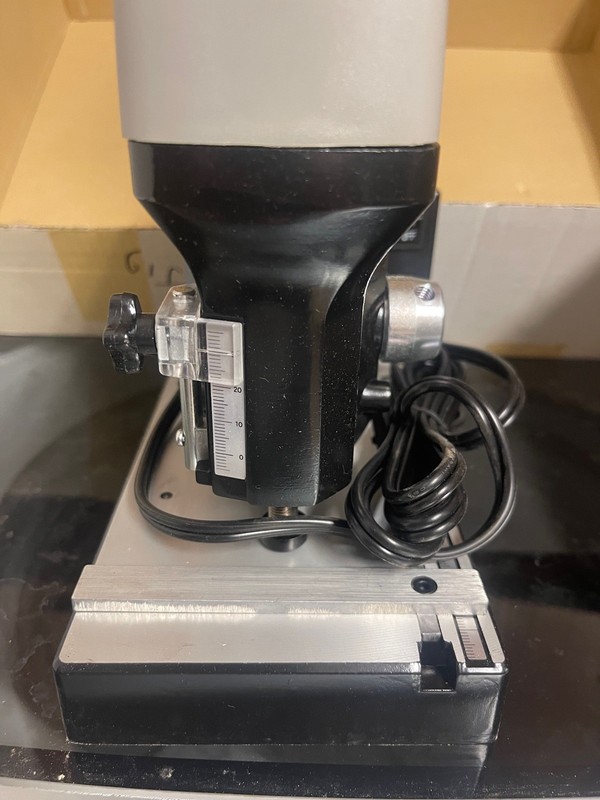

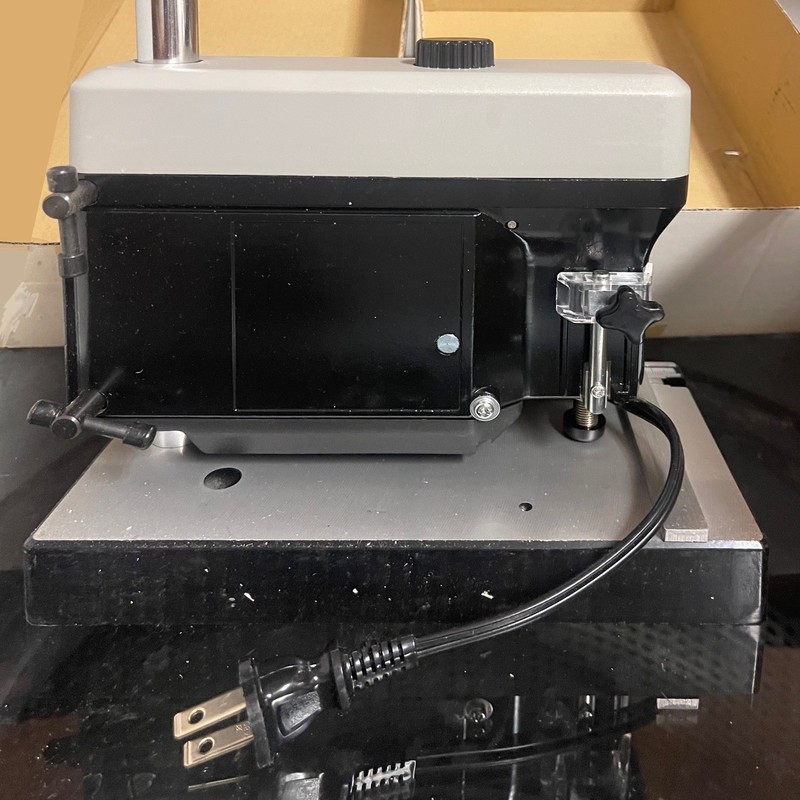

You will receive the exact items shown in the photos.The package was opened to photograph the unit.
Combined shipping: I am happy to combine shipping with multiple winning bids. Your item will be packaged carefully and shipped within 3 business days from payment approval.
Please Note: These are vintage items. There may be some small age-related marks, dents and spots. I make every effort to describe each item in accurate detail. Please see all pictures and ask all questions prior to purchasing this item to ensure you will be happy with your purchase. From a smoke and pet free home
