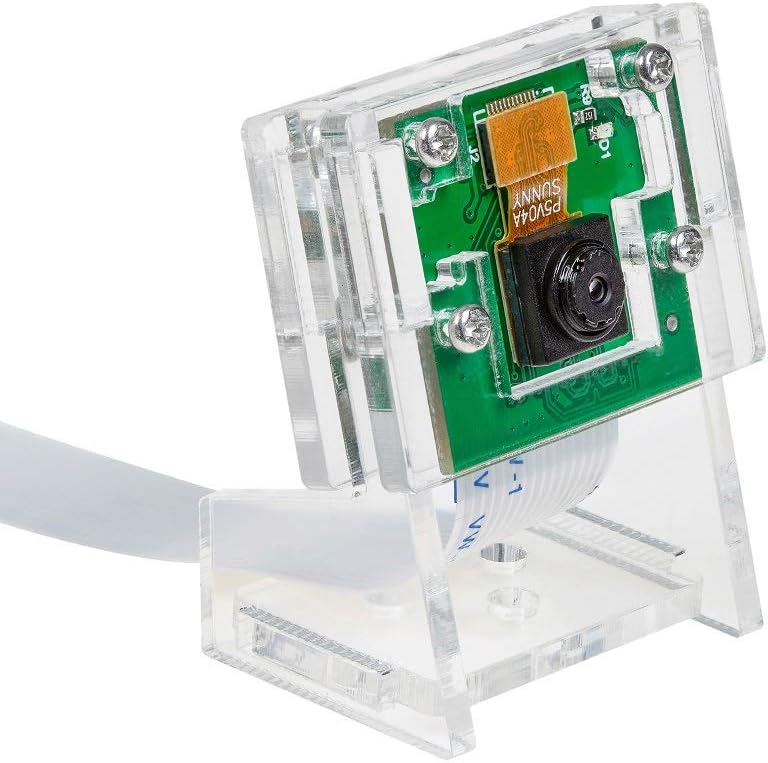

5MP OV5647 Camera Module Kit for Raspberry Pi 5, 4B, 3B+, 3B, 2, Model A/B - High Definition Video Camera Board with 15cm Ribbon Cable & Protective Clear Acrylic Stand Mount Case
Key Product Features ⭐
- ✔Native Official Raspberry Pi Compatibility: 100% plug-and-play compatible with Raspberry Pi 5, 4B, 3B+, 3B, 2, and Model A/B/B+ mainboards via standard 15-pin MIPI CSI interface. 📷⚡
- ✔5MP OV5647 Sensor & 30fps HD Video: Captures high-definition 1080p video at 30fps with a $54^\circ \times 41^\circ$ angle of view and $35\text{ mm}$ SLR lens equivalent field of vision. 🎥✨
- ✔Clear Acrylic Mounting Stand Included: Features a custom-cut protective acrylic enclosure that acts as a stable tabletop stand or surface mount bracket to hold the camera steady. 🛡️📐
- ✔Software & Script Integration: Works seamlessly with standard `raspicam` command line tools, Python scripts, OctoPi (3D printer monitoring), MotionEye security, and Raspbian OS. 🖥️🐍
- ✔Complete DIY Starter Kit: Includes 1x 5MP OV5647 Mini Camera Board, 1x $15\text{ cm}$ 15-pin FPC Flat Ribbon Cable, and 1x Clear Acrylic Housing Case Set. 📦⚙️
Product Specifications & Optical Overview
Technical Parameter Breakdown:
- Product Design Type: CSI Interface Camera Module with Enclosure Case
- Sensor Chipset: OmniVision OV5647 5-Megapixel Sensor
- Interface Connector: 15-Pin MIPI Camera Serial Interface (CSI)
- Ribbon Cable Included: $15.0\text{ cm}$ Flexible Flat Ribbon Cable (15-Pin)
- Optical Field of View: $54^\circ \times 41^\circ$ ($2.0 \times 1.33\text{ m}$ at $2.0\text{ m}$)
- Focus Distance: Fixed Focus ($1.0\text{ m}$ to Infinity)
- Maximum Frame Rate: 1080p at 30fps
- Peak Operating Current: $300\text{ mA}$
- Primary Applications: 3D printer OctoPrint monitoring, DIY surveillance, robotics, facial recognition, and timelapse projects
⚙️ Board Compatibility & Software Matrix:
| Hardware / OS | Connection Method | Project Application |
|---|---|---|
| Raspberry Pi 4B / 3B+ / 3B | Standard 15-Pin CSI Port | Direct plug via included 15cm ribbon cable. |
| OctoPi / OctoPrint OS | Native Driver Auto-Detect | Real-time 3D print monitoring & timelapses. |
| MotionEye Security OS | MMAL / V4L2 Drivers | Motion detection home surveillance camera. 😊 |
💡 Pi Camera Installation Pro-Tip:
Important Assembly Advice: Peel off the clear protective transport film from both sides of the acrylic case pieces and the camera lens before assembly! Ensure the blue side of the FPC ribbon cable faces away from the latch mechanism when inserting into the CSI port! 😊📷
🔧 Simple 3-Step Camera Connection Guide:
- Connect Ribbon Cable: Gently lift the CSI port plastic clip on your Pi, insert the $15\text{ cm}$ ribbon cable, and push the clip down to lock.
- Assemble Case: Secure the camera board inside the clear acrylic stand pieces using the included nylon screws.
- Enable in OS: Boot up your Pi, open configuration setting (`sudo raspi-config`), enable camera interface, and test with `libcamera-still` or `raspistill`! 🎉
