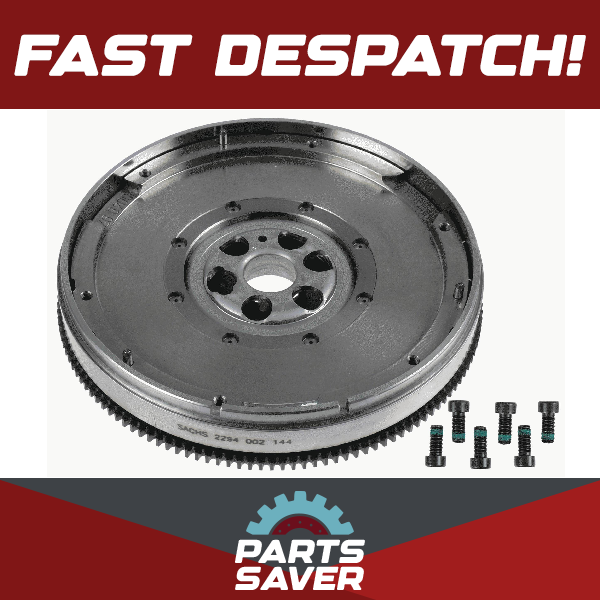

Sachs Dual Mass Flywheel DMF 2294002144 [PM341190]
Dual Mass Flywheel DMF fits AUDI A6 C5 2.0 01 to 05 ALT Sachs 06B105266A

For any queries please contact using the contact seller link provided.
Description

Dual Mass Flywheel DMF fits AUDI A6 C5 2.0 01 to 05 ALT Sachs 06B105266A

BrandSACHS
Additional Informationwith flywheel screws
Outer diameter228 mm
NoteObserve service information
Warranty3 years warranty
Extra DescriptionDual-mass flywheel
TypeFlywheel

Documents / Graphics

When replacing the flywheel, it is often more economical in the long run to replace the clutch kit at the same time.

The clutch will need removing anyway, and it will have worn at the same rate as the flywheel.
If you would like a price for the clutch kit, or to check this flywheel is compatible with your vehicle (advisable), please contact us with your UK registration number, VIN/Chassis number or vehicle details.


Cross references

HAVAMAV0021
SACHS04 2294 000 104, 04 2294 000 339, 04 2294 000 677, 04 2294 002 107, 04 2294 002 114, 04 2294 002 122, 04 2294 002 127, 04 2294 002 128, 04 2294 002 131, 04 2294 002 144, DMF91115
Schaeffler LuK415 0030 10, 415 0092 10, 415 0127 10, 415 0139 10
VALEO836027

Compatible with the following OEM references

AUDI058105266, 058105266C, 058105266F, 058105266G, 058105266H, 058105266K, 06B105266A, 06B105266C, 06B105266D, 06B105266E, 06B105266F
SEAT058105266H, 06B105266A
SKODA058105266H
VW058105266, 058105266F, 058105266G, 058105266H, 058105266K, 06B105266A, 06B105266C, 06B105266D, 06B105266E, 06B105266F
VW (SVW)058105266H

Passenger/LCV Vehicles

VehicleBodyFuelFromToDriveValvesBHPKW
AUDI A4 B5 (8D2) 1.6SaloonPetrol11/199410/2000FWD810074
Engine no. from: 060001; Engine Code: AHL.; Also fits:- ;Engine Code: ADP; Engine no. from: 170001.; Also fits:- ;Engine Code: ARM; Engine Code: ANA
AUDI A4 B5 (8D2) 1.6SaloonPetrol07/200011/2000FWD810275
AUDI A4 B5 (8D2) 1.8SaloonPetrol11/199411/2000FWD2012592
AUDI A4 B5 (8D2) 1.8SaloonPetrol04/199511/2000FWD2011585
AUDI A4 B5 (8D2) 1.8 quattroSaloonPetrol01/199511/2000AWD2012592
AUDI A4 B5 (8D2) 1.8 quattroSaloonPetrol07/199511/2000AWD2011585
AUDI A4 B5 (8D2) 1.8 TSaloonPetrol01/199511/2000FWD20150110
AUDI A4 B5 (8D2) 1.8 T quattroSaloonPetrol01/199511/2000AWD20150110
AUDI A4 B5 Avant (8D5) 1.6EstatePetrol11/199409/2001FWD810074
Engine no. from: 060001; Engine Code: AHL.; Also fits:- ;Engine Code: ARM; Engine Code: ANA.; Also fits:- ;Engine Code: ADP; Engine no. from: 170001
AUDI A4 B5 Avant (8D5) 1.6EstatePetrol07/200009/2001FWD810275
AUDI A4 B5 Avant (8D5) 1.8EstatePetrol02/199609/2001FWD2012592
AUDI A4 B5 Avant (8D5) 1.8EstatePetrol07/199509/2001FWD2011585
AUDI A4 B5 Avant (8D5) 1.8 quattroEstatePetrol01/199609/2001AWD2012592
AUDI A4 B5 Avant (8D5) 1.8 quattroEstatePetrol07/199509/2001AWD2011585
AUDI A4 B5 Avant (8D5) 1.8 TEstatePetrol03/199609/2001FWD20150110
AUDI A4 B5 Avant (8D5) 1.8 T quattroEstatePetrol01/199609/2001AWD20150110
AUDI A4 B6 (8E2) 1.6SaloonPetrol11/200012/2004FWD810275
AUDI A4 B6 (8E2) 1.8 TSaloonPetrol11/200007/2002FWD20150110
AUDI A4 B6 (8E2) 1.8 TSaloonPetrol07/200212/2004FWD20163120
AUDI A4 B6 (8E2) 1.8 T quattroSaloonPetrol11/200007/2002AWD20150110
AUDI A4 B6 (8E2) 1.8 T quattroSaloonPetrol07/200212/2004AWD20163120
AUDI A4 B6 (8E2) 2.0SaloonPetrol11/200012/2004FWD2013096
AUDI A4 B6 (8E2) 2.0 FSISaloonPetrol07/200212/2004FWD16150110
AUDI A4 B6 Avant (8E5) 1.6EstatePetrol09/200112/2004FWD810275
AUDI A4 B6 Avant (8E5) 1.8 TEstatePetrol09/200107/2002FWD20150110
AUDI A4 B6 Avant (8E5) 1.8 TEstatePetrol07/200212/2004FWD20163120
AUDI A4 B6 Avant (8E5) 1.8 T quattroEstatePetrol09/200107/2002AWD20150110
AUDI A4 B6 Avant (8E5) 1.8 T quattroEstatePetrol07/200212/2004AWD20163120
AUDI A4 B6 Avant (8E5) 2.0EstatePetrol09/200112/2004FWD2013096
AUDI A4 B6 Avant (8E5) 2.0 FSIEstatePetrol07/200212/2004FWD16150110
AUDI A4 B6 Convertible (8H7) 1.8 TConvertiblePetrol07/200212/2005FWD20163120
AUDI A4 B6 Convertible (8H7) 1.8 T quattroConvertiblePetrol05/200312/2005AWD20163120
AUDI A4 B6 Convertible (8H7) 2.0ConvertiblePetrol09/200412/2005FWD2013096
AUDI A4 B7 (8EC) 1.6SaloonPetrol11/200406/2008FWD810275
AUDI A4 B7 (8EC) 1.8 TSaloonPetrol11/200406/2008FWD20163120
AUDI A4 B7 (8EC) 1.8 T quattroSaloonPetrol11/200406/2008AWD20163120
AUDI A4 B7 (8EC) 2.0SaloonPetrol11/200406/2008FWD2013096
AUDI A4 B7 Avant (8ED) 1.6EstatePetrol11/200406/2008FWD810275
AUDI A4 B7 Avant (8ED) 1.8 TEstatePetrol11/200406/2008FWD20163120
AUDI A4 B7 Avant (8ED) 1.8 T quattroEstatePetrol11/200406/2008AWD20163120
AUDI A4 B7 Avant (8ED) 2.0EstatePetrol11/200406/2008FWD2013096
AUDI A6 C5 (4B2, 4B4) 1.8SaloonPetrol07/199701/2005FWD2012592
Engine Code: AJP; Engine Code: AQE; Engine Code: ARH
AUDI A6 C5 (4B2, 4B4) 1.8SaloonPetrol05/199701/2005FWD2011685
AUDI A6 C5 (4B2, 4B4) 1.8 TSaloonPetrol01/199701/2005FWD20150110
AUDI A6 C5 (4B2, 4B4) 1.8 T quattroSaloonPetrol02/199701/2005AWD20150110
AUDI A6 C5 (4B2, 4B4) 2.0SaloonPetrol08/200101/2005FWD2013096
AUDI A6 C5 Avant (4B5, 4B6) 1.8EstatePetrol12/199701/2005FWD2012592
AUDI A6 C5 Avant (4B5, 4B6) 1.8EstatePetrol02/199801/2005FWD2011685
AUDI A6 C5 Avant (4B5, 4B6) 1.8 TEstatePetrol12/199701/2005FWD20150110
AUDI A6 C5 Avant (4B5, 4B6) 1.8 T quattroEstatePetrol12/199701/2005AWD20150110
AUDI A6 C5 Avant (4B5, 4B6) 2.0EstatePetrol08/200101/2005FWD2013096
SEAT EXEO (3R2) 1.6SaloonPetrol03/200909/2010FWD810275
SEAT EXEO (3R2) 1.8 TSaloonPetrol12/200805/2010FWD20150110
SEAT EXEO ST (3R5) 1.6EstatePetrol06/200909/2010FWD810275
SEAT EXEO ST (3R5) 1.8 TEstatePetrol06/200905/2010FWD20150110
SKODA SUPERB I (3U4) 1.8 TSaloonPetrol12/200103/2008FWD20150110
SKODA SUPERB I (3U4) 2.0SaloonPetrol12/200103/2008FWD811585
VW PASSAT B5 (3B2) 1.6SaloonPetrol10/199611/2000FWD810174
Vehicle Identification Number (VIN) from: 3B-WP-022521; Vehicle Identification Number (VIN) from: 3B-WE-062701; Engine Code: AHL; Engine Code: ADP.; Also fits:- ;Engine Code: ANA; Engine Code: ARM
VW PASSAT B5 (3B2) 1.8SaloonPetrol10/199611/2000FWD2012592
VW PASSAT B5 (3B2) 1.8SaloonPetrol01/199711/2000FWD2011585
VW PASSAT B5 (3B2) 1.8 Syncro/4motionSaloonPetrol12/199608/2000AWD2012592
VW PASSAT B5 (3B2) 1.8 TSaloonPetrol10/199611/2000FWD20150110
VW PASSAT B5 Estate (3B5) 1.6EstatePetrol06/199711/2000FWD810174
Vehicle Identification Number (VIN) from: 3B-WP-022521; Vehicle Identification Number (VIN) from: 3B-WE-062701; Engine Code: AHL; Engine Code: ADP.; Also fits:- ;Engine Code: ANA; Engine Code: ARM
VW PASSAT B5 Estate (3B5) 1.8EstatePetrol06/199711/2000FWD2012592
VW PASSAT B5 Estate (3B5) 1.8EstatePetrol06/199711/2000FWD2011585
VW PASSAT B5 Estate (3B5) 1.8 Syncro/4motionEstatePetrol06/199711/2000AWD2012592
VW PASSAT B5 Estate (3B5) 1.8 TEstatePetrol05/199711/2000FWD20150110
VW PASSAT B5.5 (3B3) 1.6SaloonPetrol11/200005/2005FWD810275
VW PASSAT B5.5 (3B3) 1.8 T 20VSaloonPetrol11/200005/2005FWD20150110
Engine Code: AWT
VW PASSAT B5.5 (3B3) 2.0SaloonPetrol11/200005/2005FWD811585
Engine Code: AZM
VW PASSAT B5.5 (3B3) 2.0SaloonPetrol11/200105/2005FWD2013096
VW PASSAT B5.5 (3B3) 2.0 4motionSaloonPetrol11/200005/2005AWD811585
VW PASSAT B5.5 Estate (3B6) 1.6EstatePetrol11/200005/2005FWD810275
VW PASSAT B5.5 Estate (3B6) 1.8 T 20VEstatePetrol11/200005/2005FWD20150110
VW PASSAT B5.5 Estate (3B6) 2.0EstatePetrol11/200005/2005FWD811585
VW PASSAT B5.5 Estate (3B6) 2.0EstatePetrol11/200105/2005FWD2013096
VW PASSAT B5.5 Estate (3B6) 2.0 4motionEstatePetrol11/200005/2005AWD811585

Numerous renowned automotive manufacturers rely on SACHS quality. Every year, more than 10 million new vehicles equipped with SACHS products roll off the assembly line. SACHS spare parts offer the same quality as parts used for volume production. In the event of replacement, they ensure the same comfort and safety as in a new vehicle.
