Parameter：
|
model |

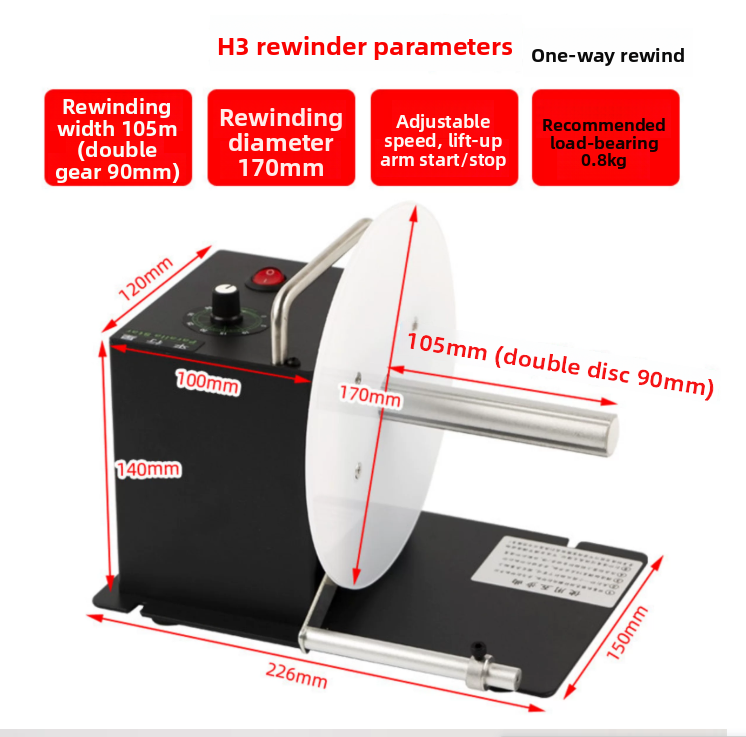

H3 |

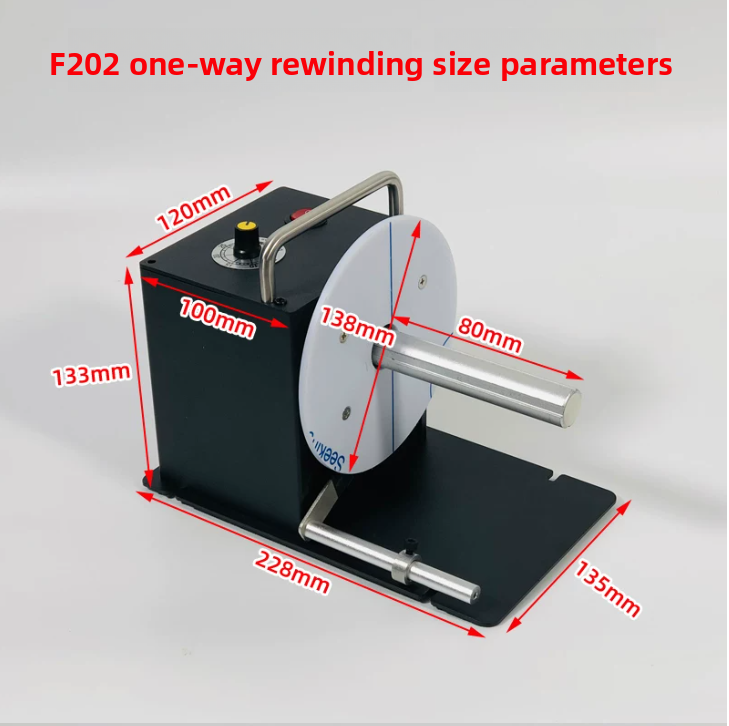

F202 |
DS802 |
DS803 |
|
Roll back method |
Unidirectional rewinding |
Unidirectional rewinding |
Unidirectional rewinding |
Bidirectional rewinding |
|
Voltage |
110v/220v |
|||
|
Maximum label rewinding width |
105mm（Dual Baffle Plates 90mm） |
80mm |
120mm |
120mm |
|
Maximum label rewinding diameter |
170mm |
138mm |
200mm |
200mm |
|
size |
27.5 × 19.5 × 24 cm |
27.5 × 19.5 × 24 cm |
30.5 × 24.5 × 29 cm |
30.5 × 24.5 × 29 cm |
|
weight |
3 kg |
3 kg |
4.5 kg |
4.5 kg |
|
Standard Configuration |
|
Adaptive-speed Lifting Bar with Label Limit Fittings Built-in Inner Baffle Plate. Align the single-side baffle properly to achieve neat rewinding. Tube-free Rewinding Fitting with magnetic design, enabling quick assembly and disassembly. Paper tube adapters with inner diameters of 25 mm and 40 mm. |
||
|
|
Automatically adapt to printing speed without dragging the printer. This speed-controlled lifting bar allows labels to pass through during printing and rewinding. Rewinding pauses when the lifting bar rises and resumes when it lowers.
The shaft is magnetic. Attach the included iron bar accessory via magnetic force to clamp labels for rewinding. Once rewinding is finished, pull out the iron bar to create clearance for easy label removal.
Compatible materials: Coated paper, thermal paper, PET and other self-adhesive labels, clothing care labels, hang tags and other printed materials for rewinding.
The outer baffle plate is not a mandatory rewinding component. When using only the single-side baffle plate, coordinate it with the label limiter on the lifting bar and adjust the position properly to achieve neat rewinding. If you are concerned about frequent position adjustments, the outer baffle plate is recommended as an optional accessory for flexible use.
