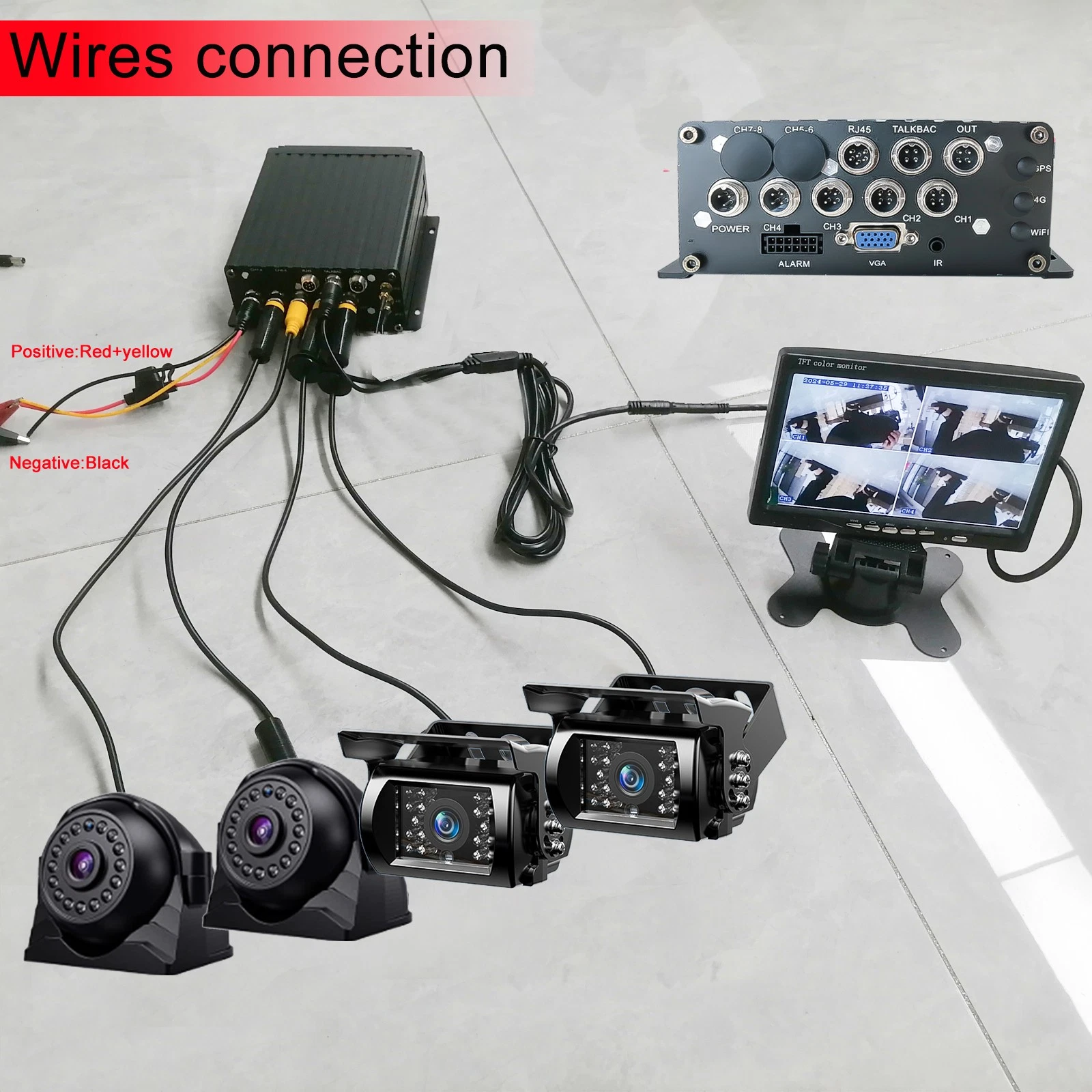

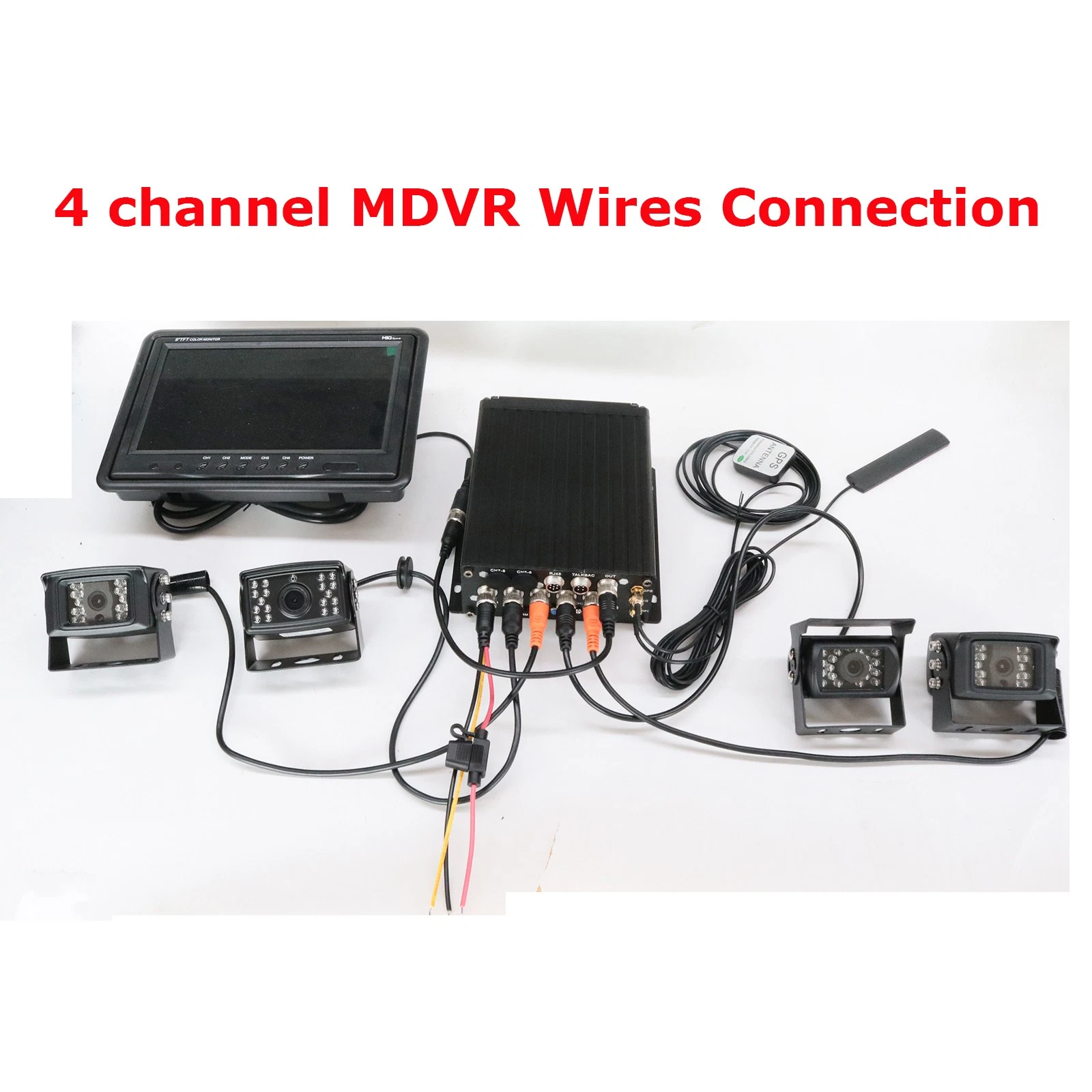

Designed for heavy‑duty vehicles such as trucks, buses, vans, trailers, campers, motorhomes, and caravans, this integrated system combines a professional mobile DVR, four 1080P AHD night‑vision cameras (front, left, right, and rear), and a 7‑inch IPS VGA monitor. It is ready for immediate installation and provides full‑coverage video recording, real‑time viewing, remote monitoring, and GPS tracking.
Core Highlights
High‑Definition Recording & Compression – Uses H.264 video encoding. Supports 4‑channel 1080P AHD real‑time recording, with selectable resolutions (1080N/720P/960H/D1/CIF). Each channel records at up to 30 fps for smooth, clear footage.
Generous Storage Options – Accommodates one SD card up to 256 GB and one 2.5‑inch HDD up to 2 TB (both not included). The dual‑storage design allows flexible combinations for extended recording periods.
Integrated GPS & 4G Connectivity – Built‑in GPS records vehicle speed and travel routes. The built‑in 4G module enables remote live viewing, playback, and configuration via mobile phone or PC – ideal for fleet management.
Wide Voltage Input & Auxiliary Power Output – Accepts 12–36 V DC, making it compatible with all kinds of heavy vehicles. Also provides a 12 V / 3 A output to power external accessories.
Comprehensive Alarm I/O – Offers 4 alarm inputs (for triggers like door open/close, braking, reverse gear, motion detection) and 1 independent alarm output (5 V or 12 V selectable). Customisable high/low level thresholds ensure prompt response to abnormal events.
Power‑Loss Protection & Delayed Recording – Equipped with a super‑capacitor that safeguards the current recording in case of sudden power cut. Supports delayed recording after ignition off (programmable up to 24 hours) for parking surveillance.
Functional Details
User Interface & Control – OSD menu, remote control, and mouse operation. Real‑time and playback viewing on the built‑in 7‑inch monitor or via external VGA/RCA outputs.
Audio Support – 4 audio inputs for synchronised sound recording, plus 1 RCA audio output. Video and audio are recorded together for complete evidence.
Smart File Management – Search recordings by specific time periods; adjustable file packing duration. On‑screen overlay includes date, time, and vehicle plate number for easy identification.
Firmware & Expansion – Upgrade firmware via SD card or USB port. Includes 1 RS232 and 2 RS485 serial interfaces for connecting additional sensors or external devices.

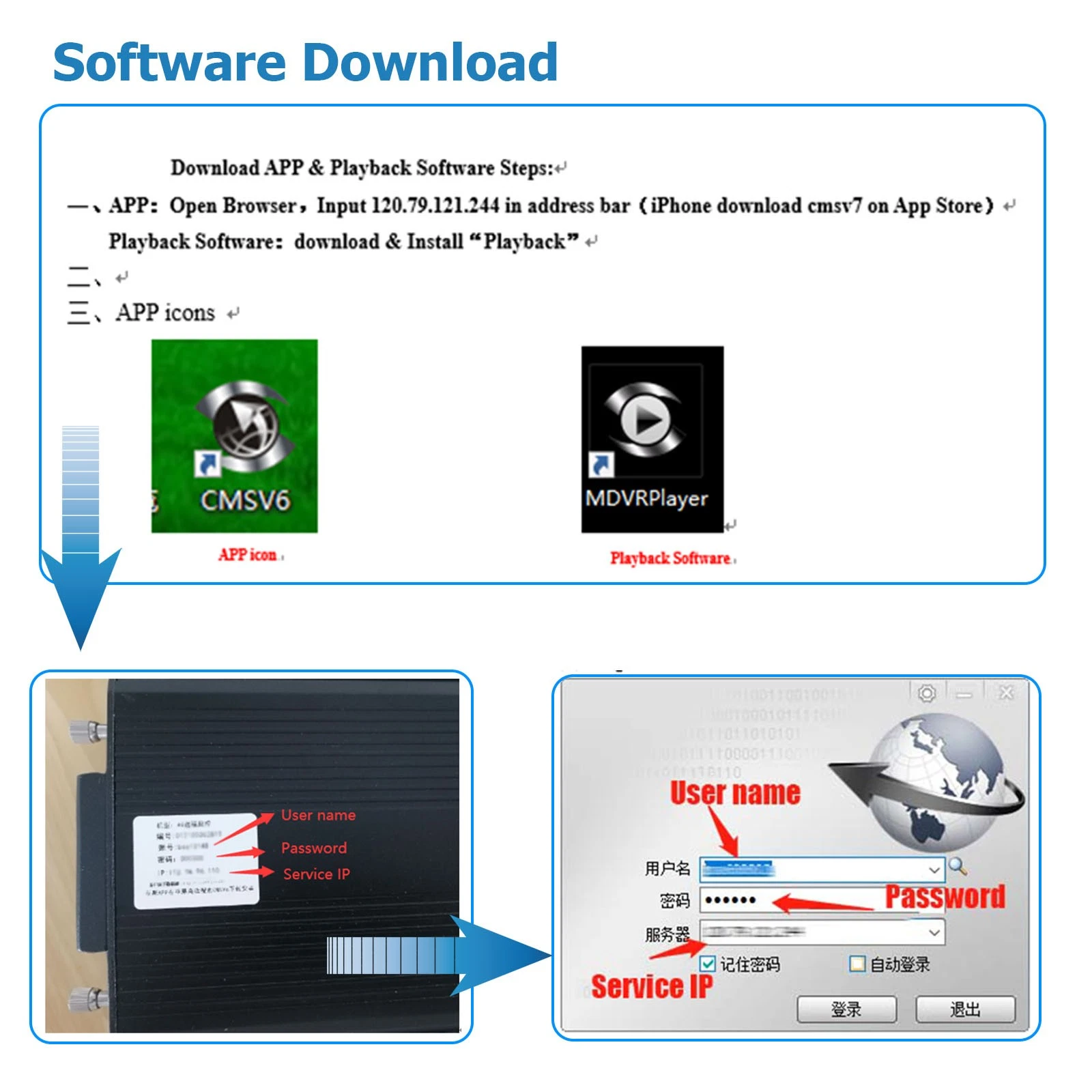

Playback & Analysis – PC playback software allows reviewing video alongside vehicle speed and GPS track data.
Technical Specifications (At a Glance)
System Language: English
Operating System: OSD menu

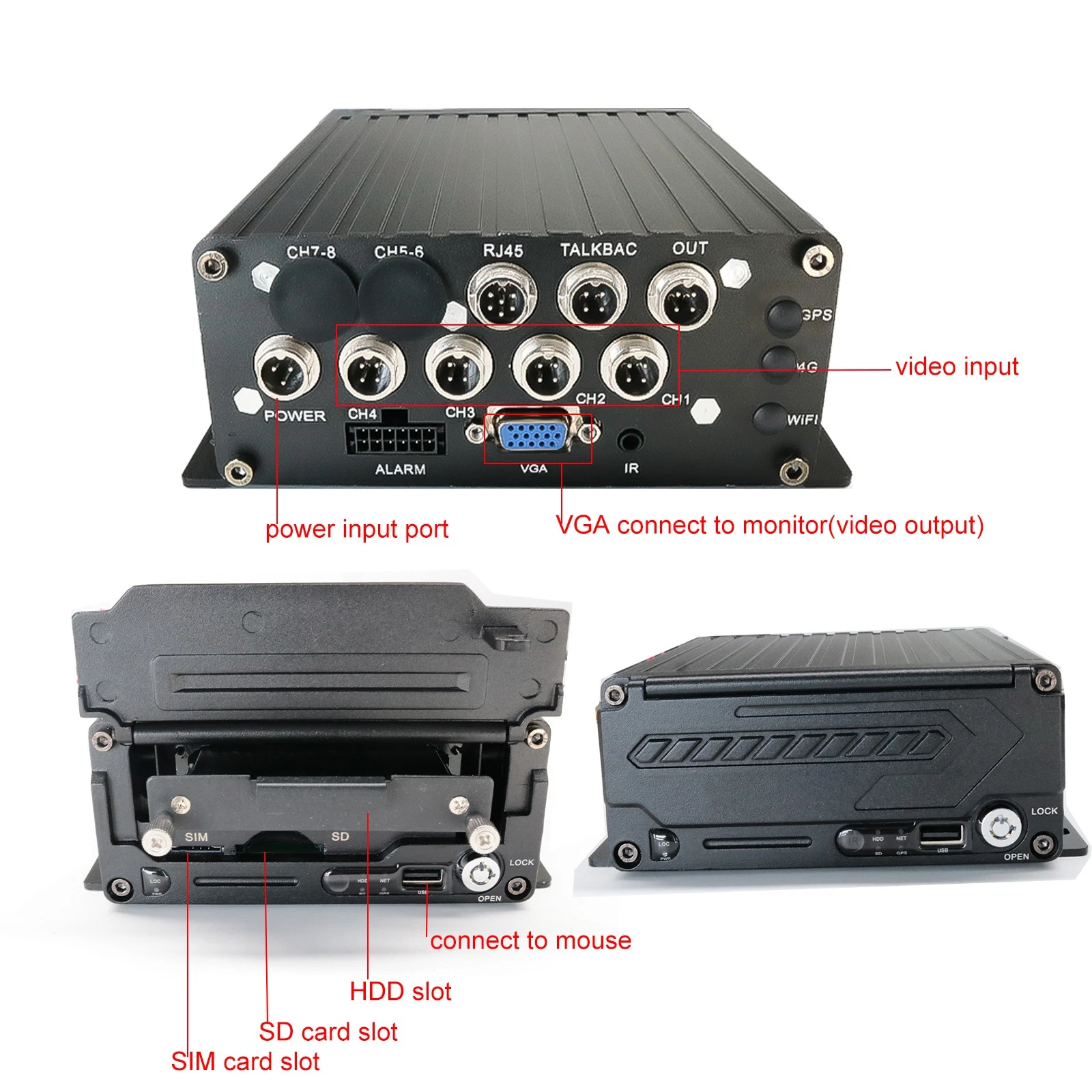

Video Input/Output: 4‑channel 4‑pin video input (1.0 Vp‑p, 75Ω); 1 RCA and 1 VGA output; supports single or 4‑split display
Compression: H.264 Main Profile; PAL/NTSC compatible
Storage: 1×SD slot (max 256 GB) + 1×SATA port for 2.5‑inch HDD (max 2 TB) – media not included
Alarm I/O: 4 inputs (low level <4 V, high level >4 V); 1 output (5 V / 12 V selectable)
Serial Interfaces: 1×RS232, 2×RS485
4G Remote View: Supports phone and PC
Power Input: DC 12–36 V
Power Output: DC 12 V / 3 A
Power Consumption: Approx. 20 W
Operating Temperature: –25 °C to +65 °C
Dimensions: 280 × 230 × 70 mm
Weight: 2.6 kg
Package Contents – Everything Included

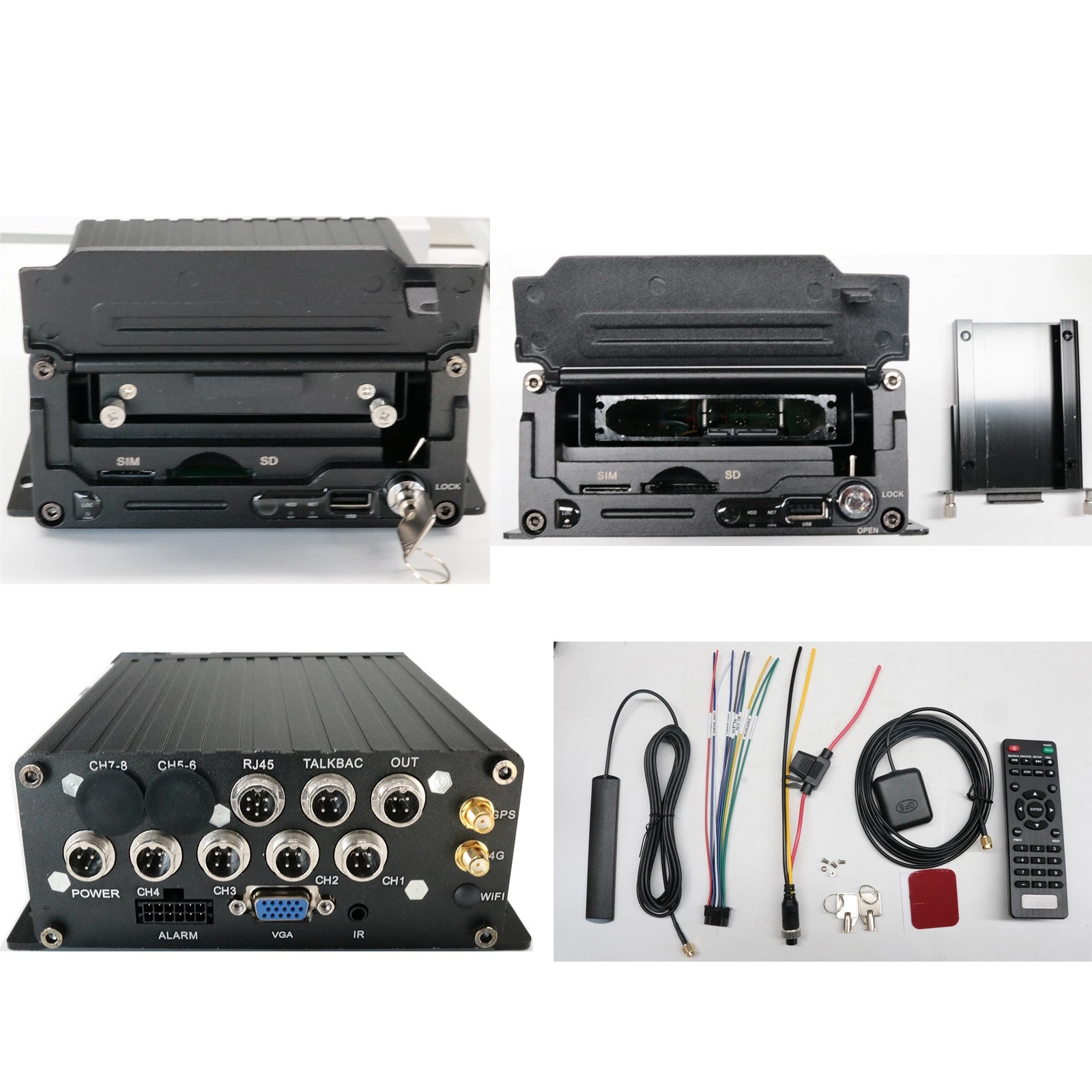

1 × 4‑channel 1080P AHD mobile DVR (with GPS and 4G)
4 × 1080P AHD night‑vision cameras (front, left side, right side, rear)
4 x 20m 4‑pin extension cables
1 × 7‑inch IPS VGA car monitor
1 × accessory kit for the DVR (mounting hardware and wiring)
1 × user manual
Please note: SD card and HDD are not included. Contact us if you need them as optional extras.
This rugged system is built for demanding vehicle environments and delivers reliable performance, making it an ideal partner for safety, driver assistance, and remote fleet oversight.
