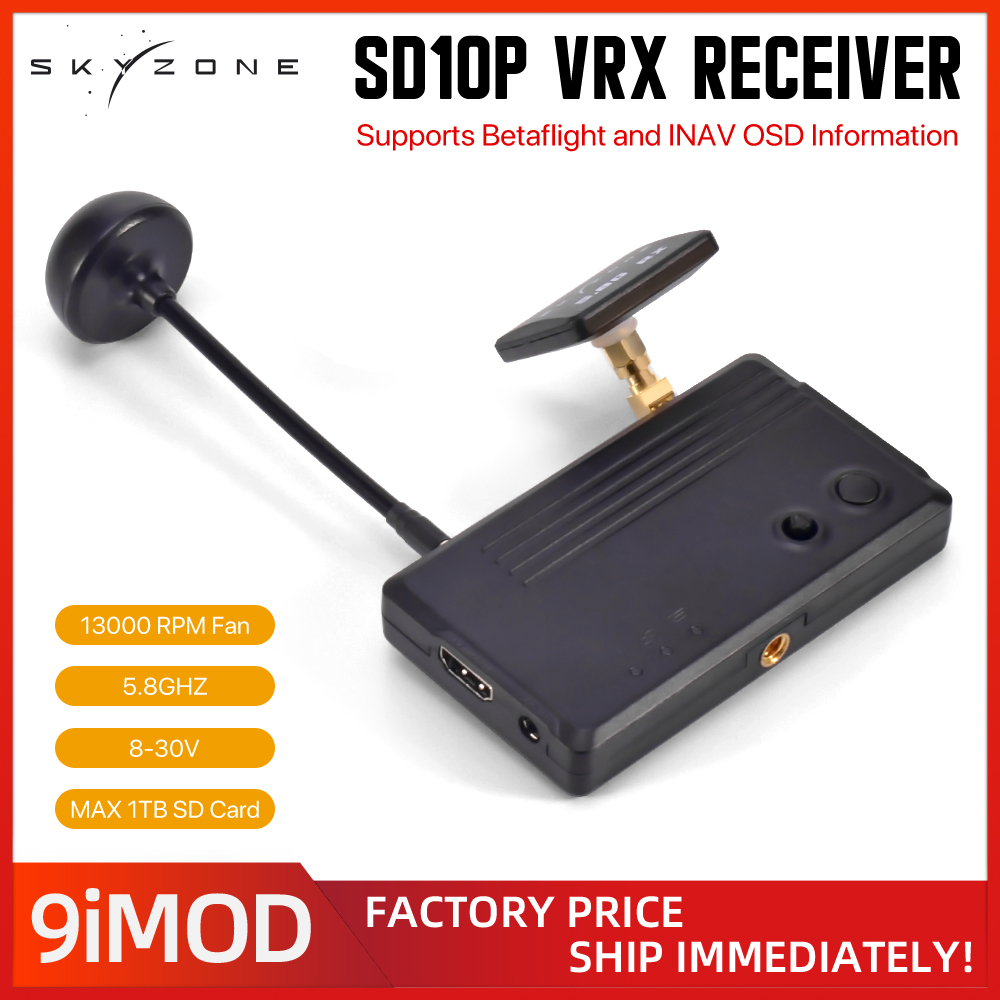

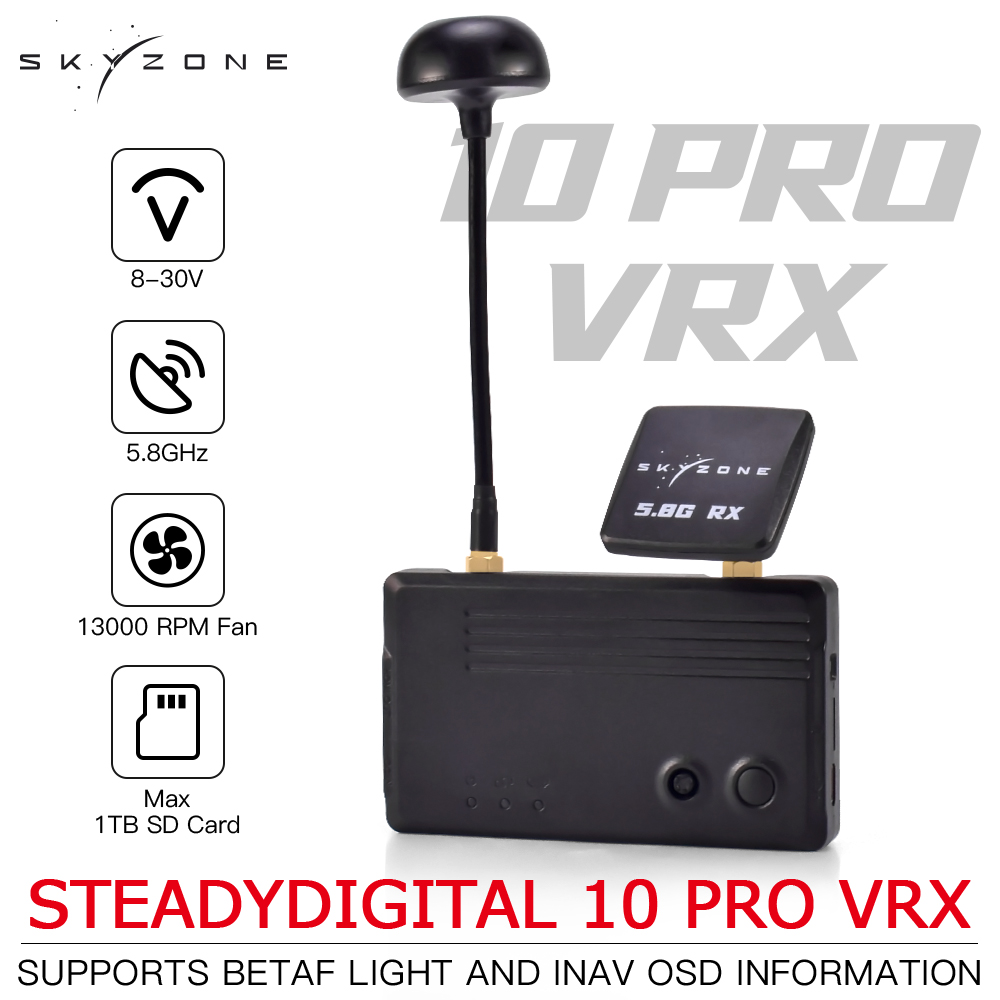

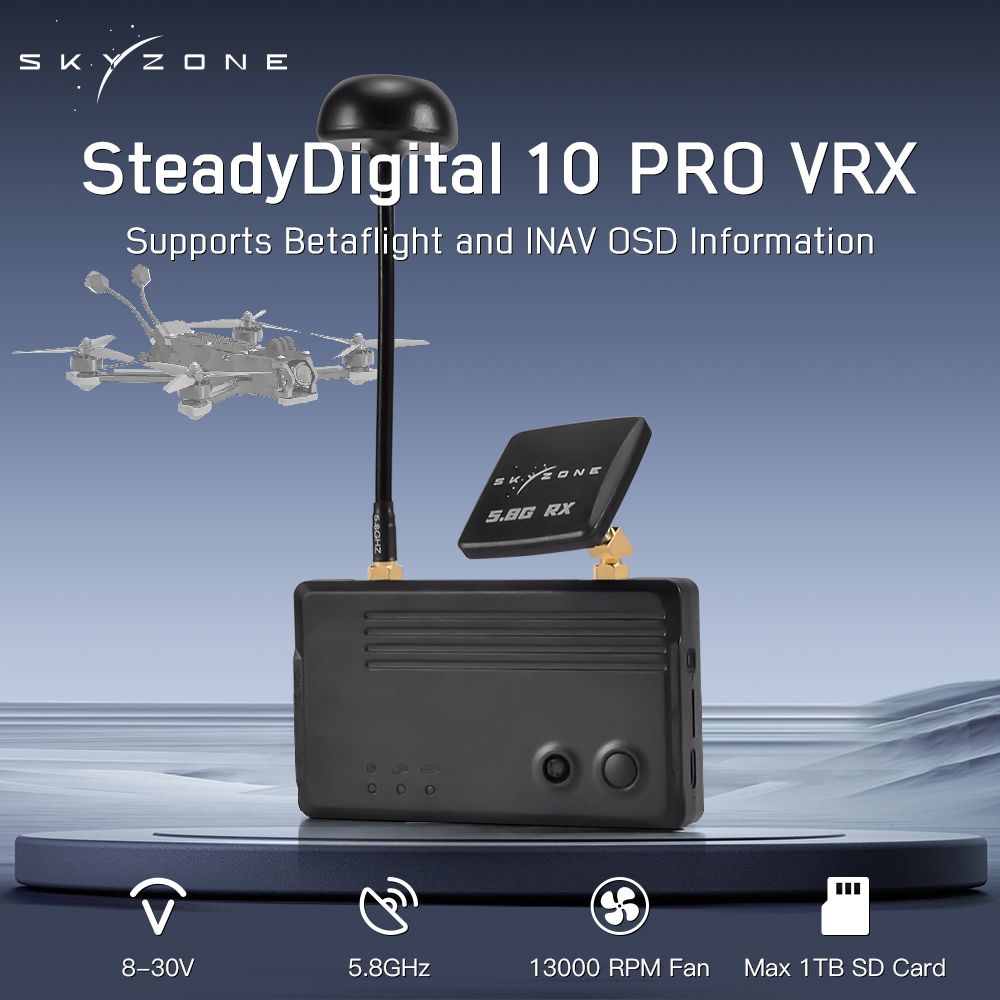

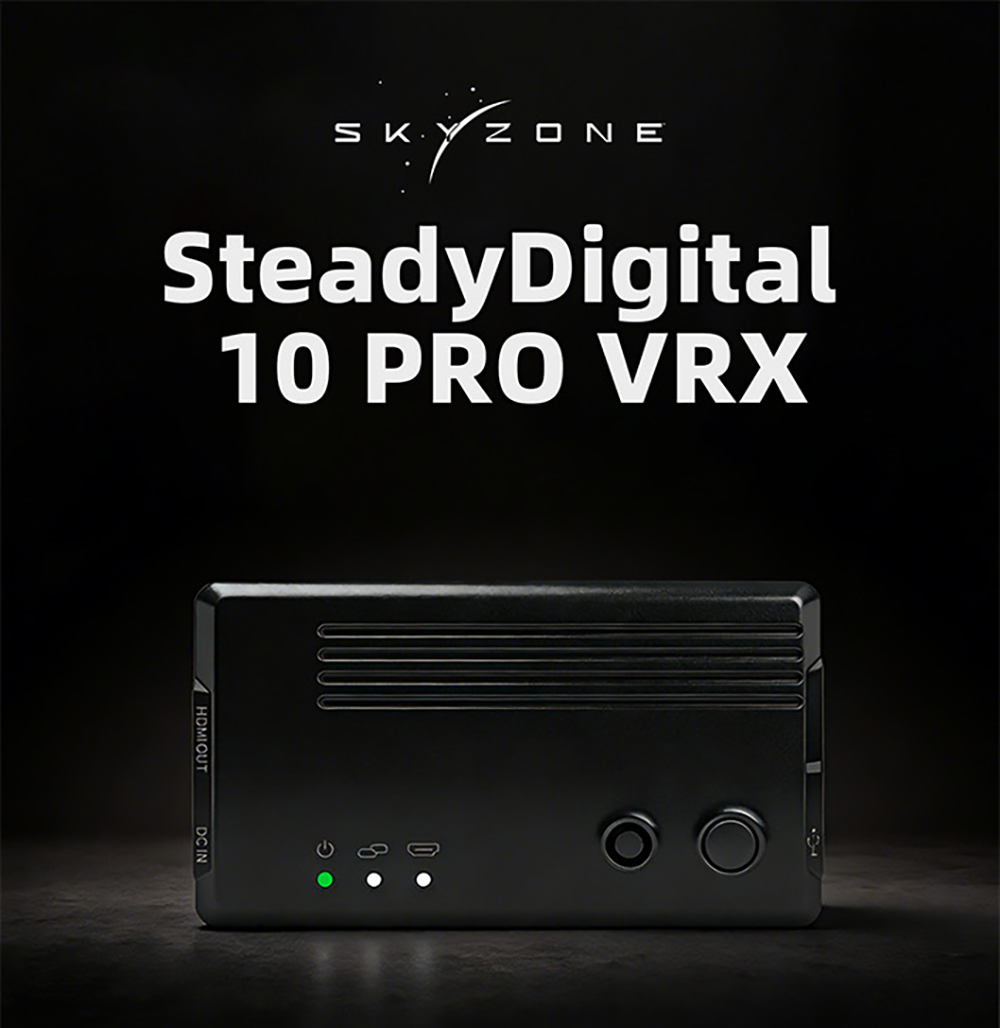

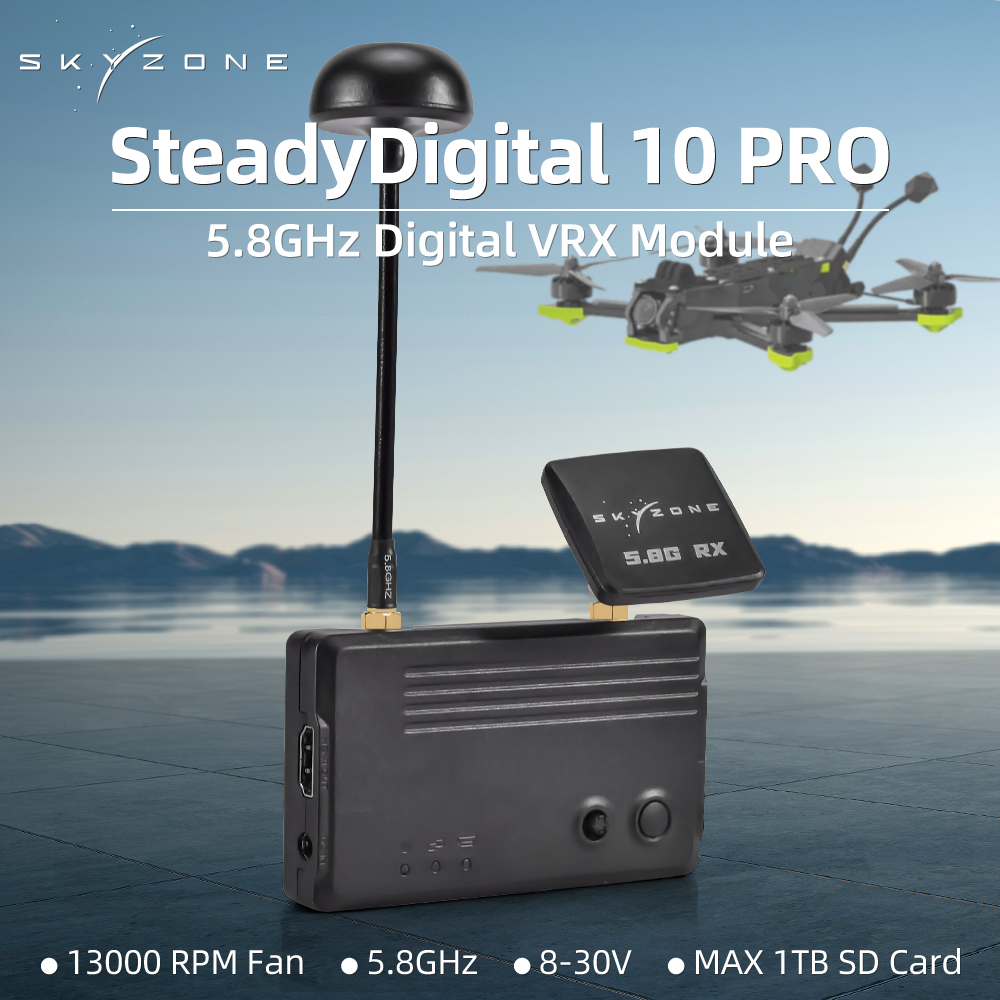

SKYZONE SteadyDigital 10 PRO VRX Digitalempfänger INAV RC-FPV-Drohnen
SKYZONE SteadyDigital 10 PRO VRX Digitalempfänger INAV RC-FPV-Drohnen

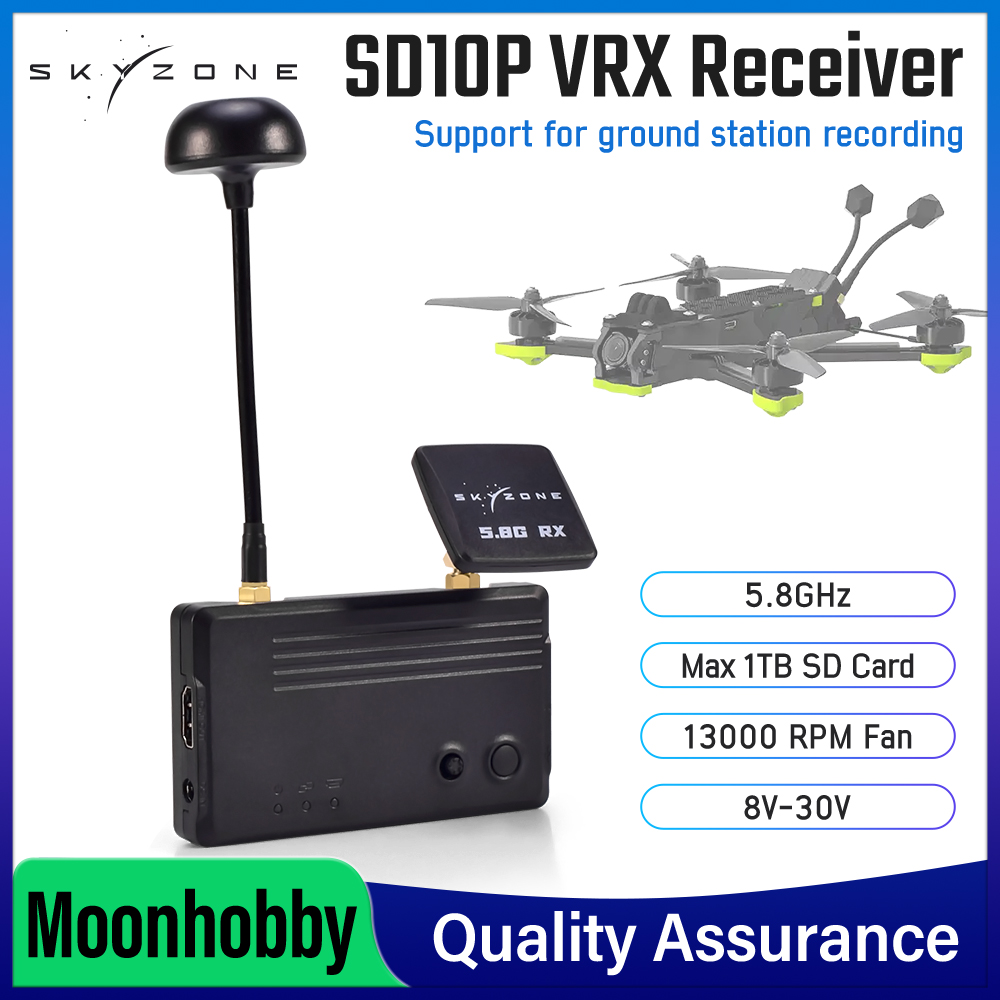

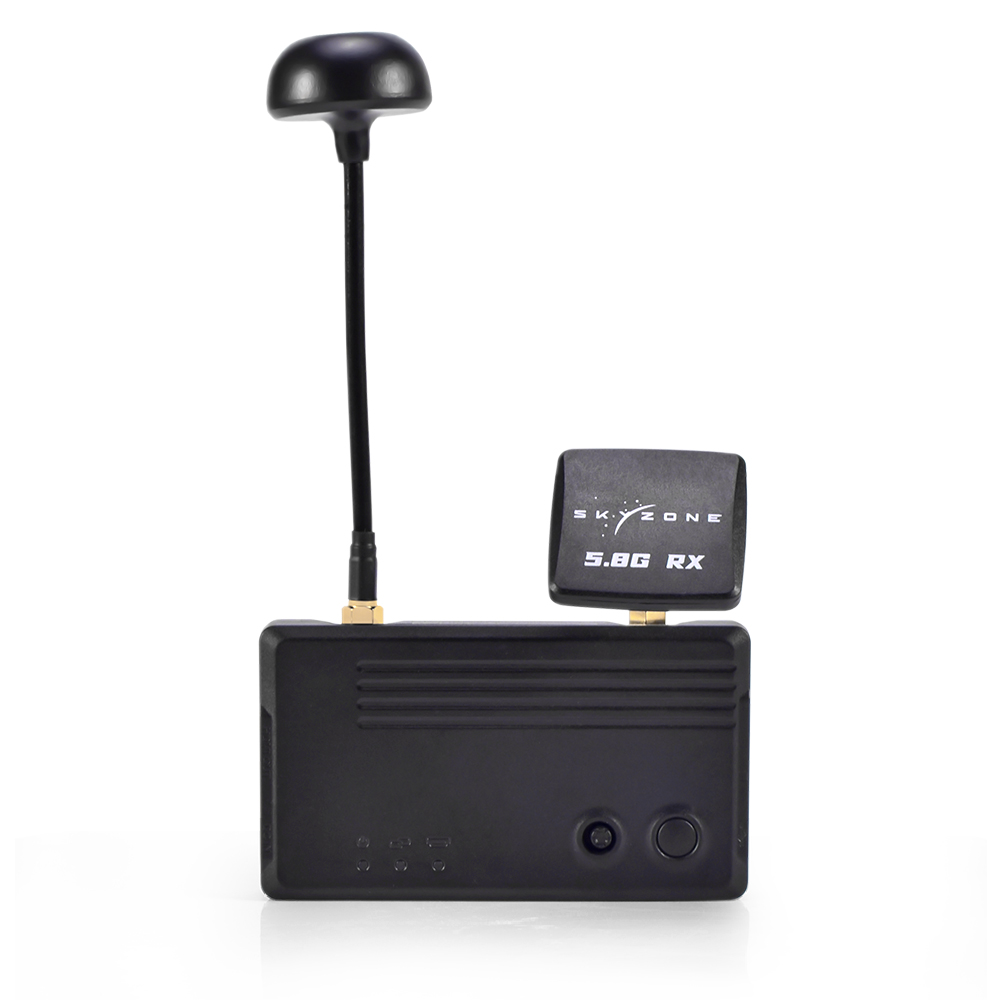

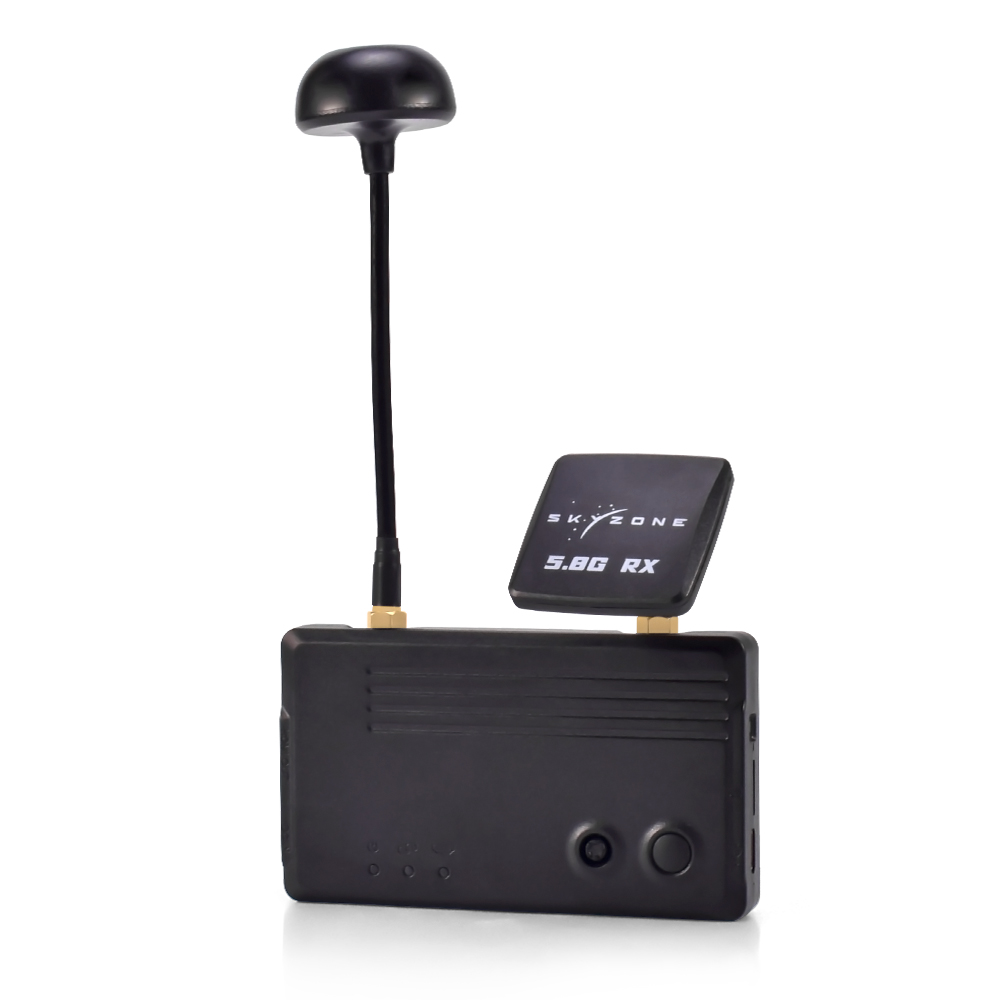

SKYZONE S1OP VRX Digital Video Receiver 1080P 60fps HD HDMI Output with Dual Antenna Support Betaflight INAV OSD for FPV Drone

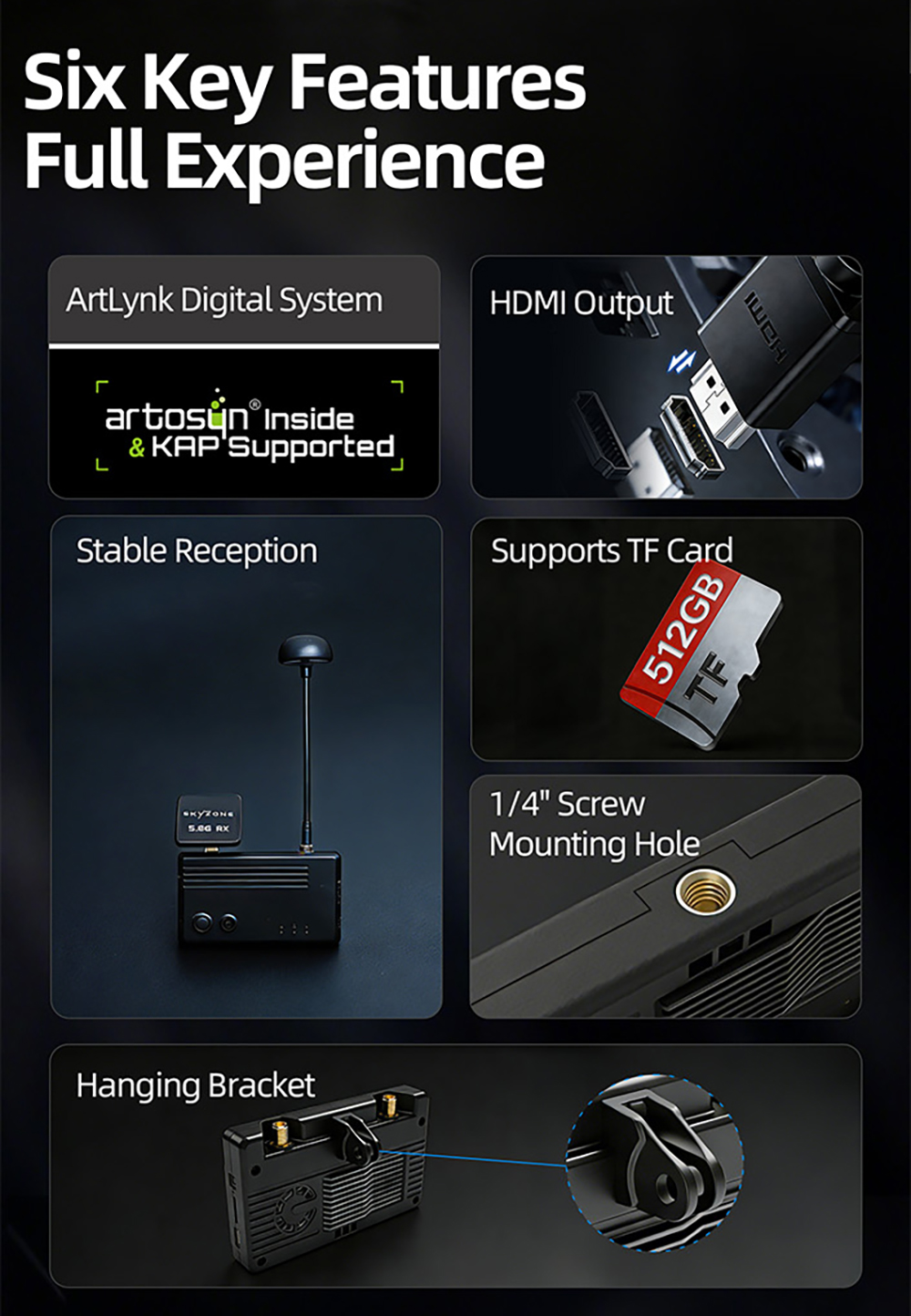

Receiver Features:
1. HD Quality 1080p 60fps,Immersive Visual Experience.
2. S1OP VRX Digital Video Transmission Receiver delivers stable signals and high-definition imaging.

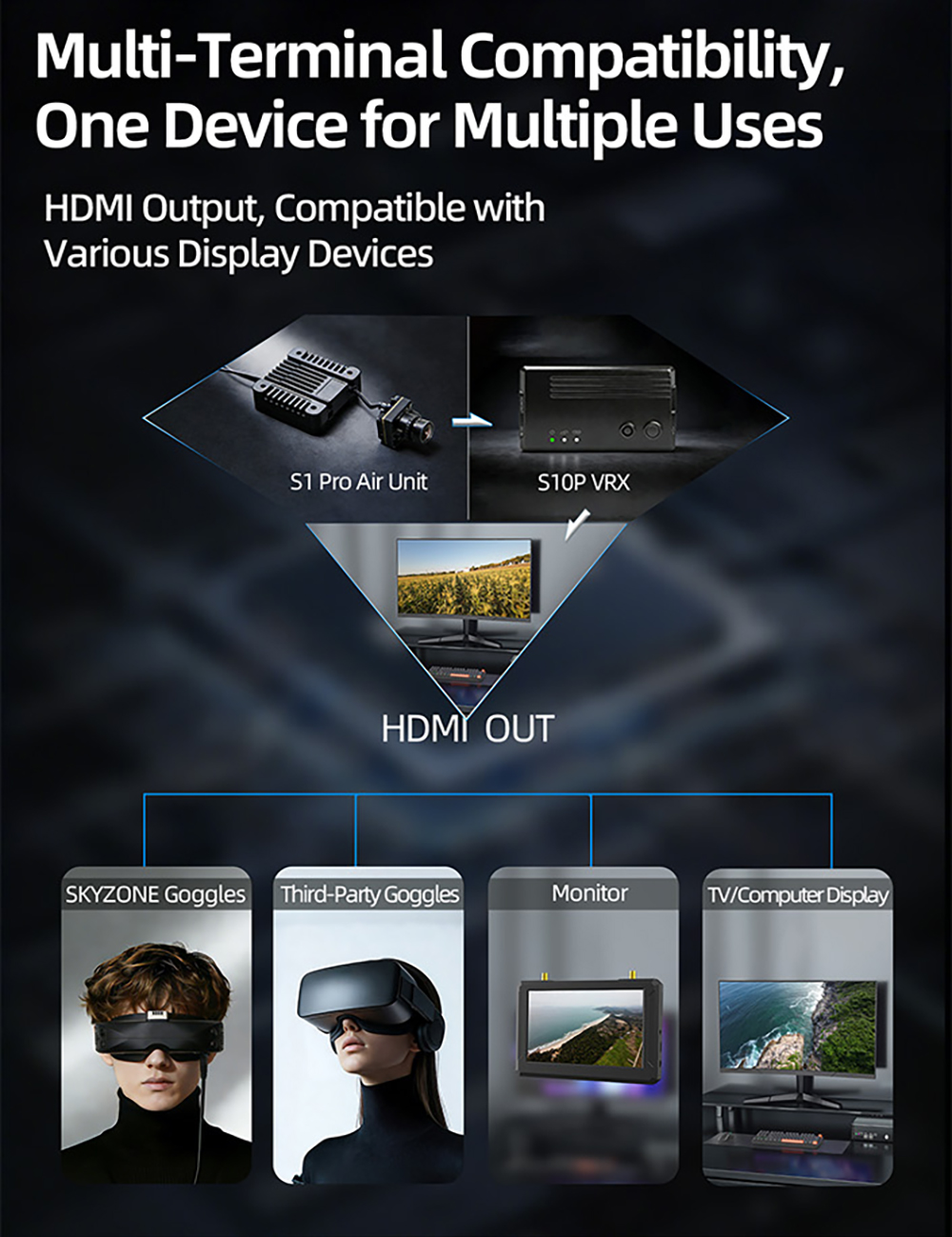

3. Multi-Terminal Compatibility,One Device for Multiple Uses HDMI Output, Compatible with Various Display Devices.

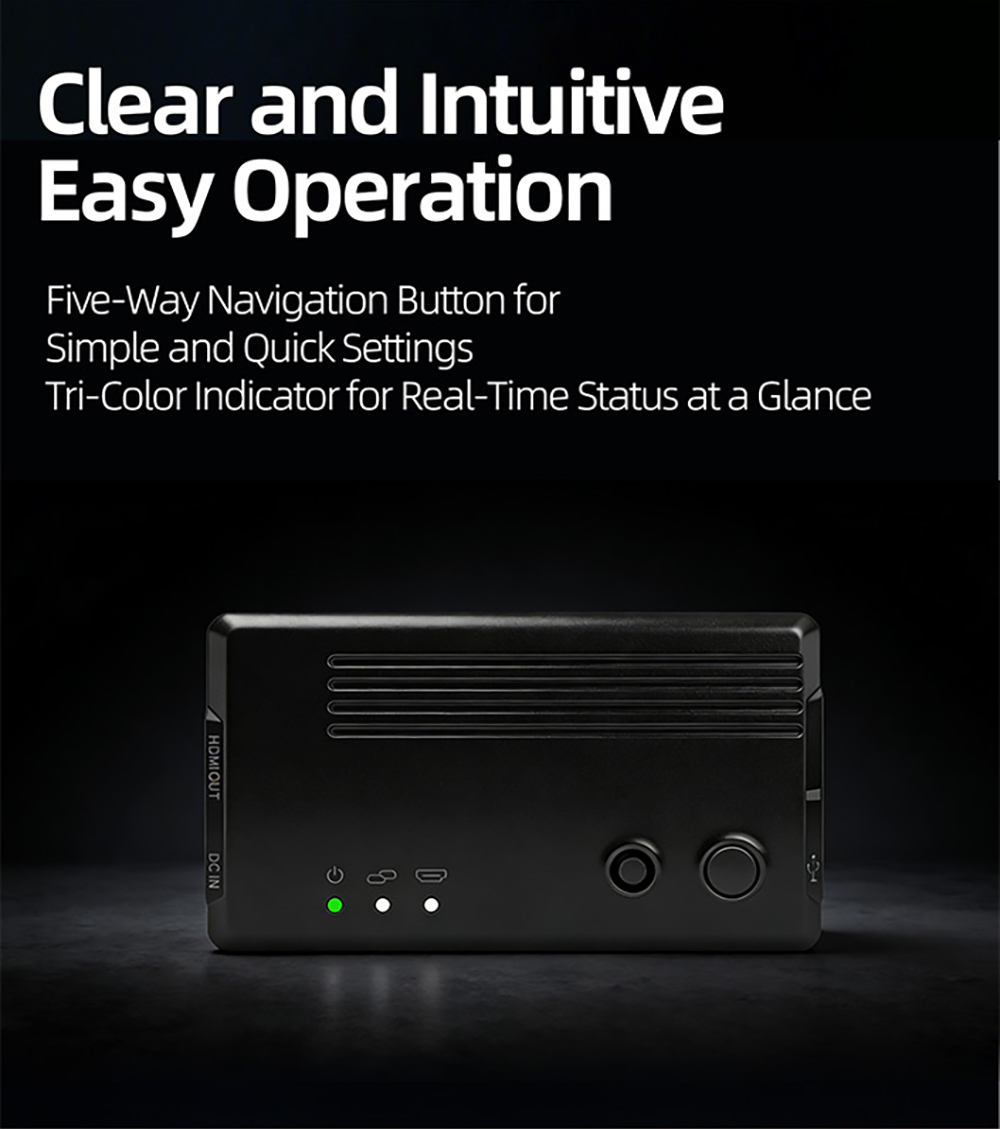

4. Five-Way Navigation Button for Simple and Quick Settings,Tri-Color Indicator for Real-Time Status at a Glance.

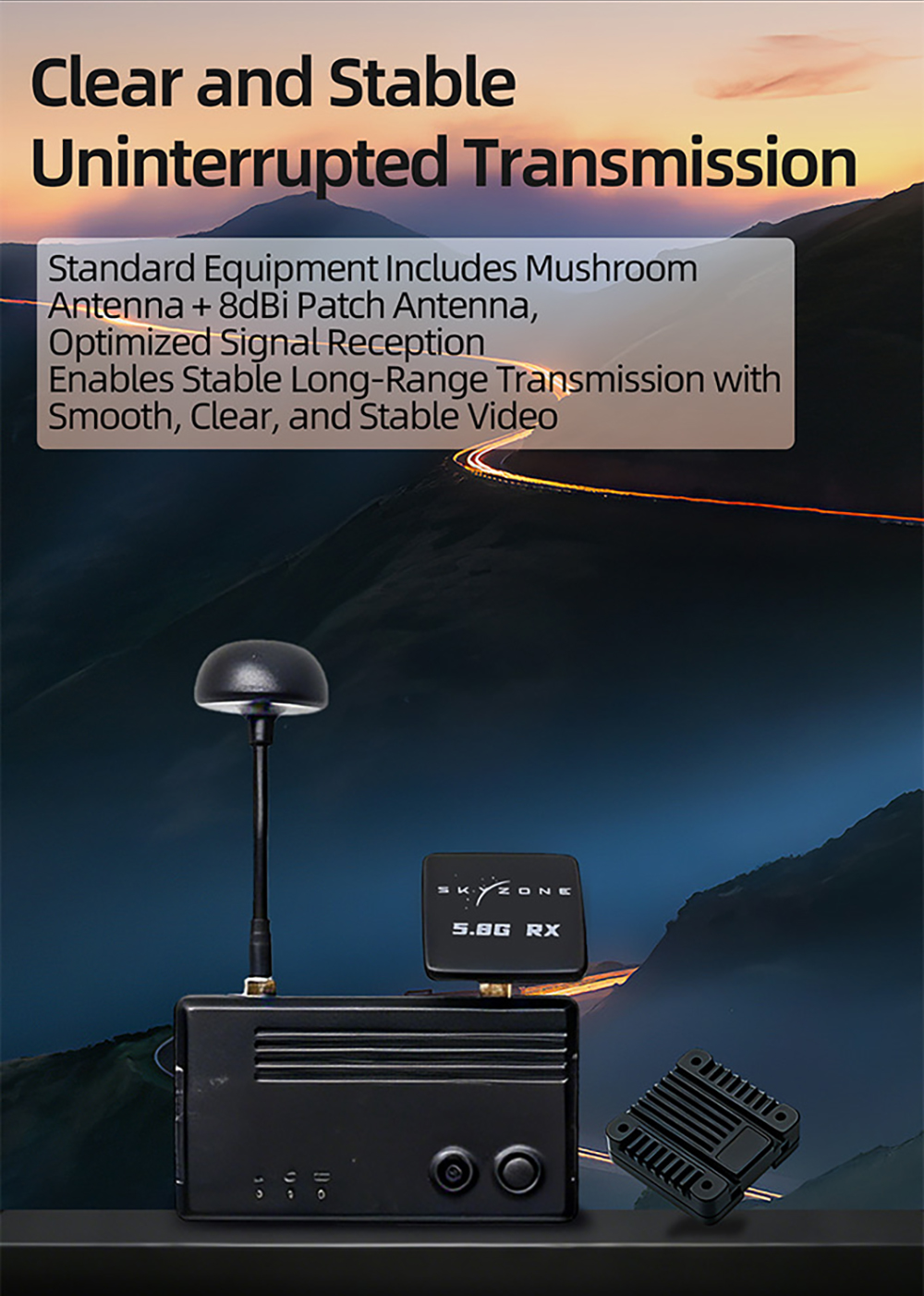

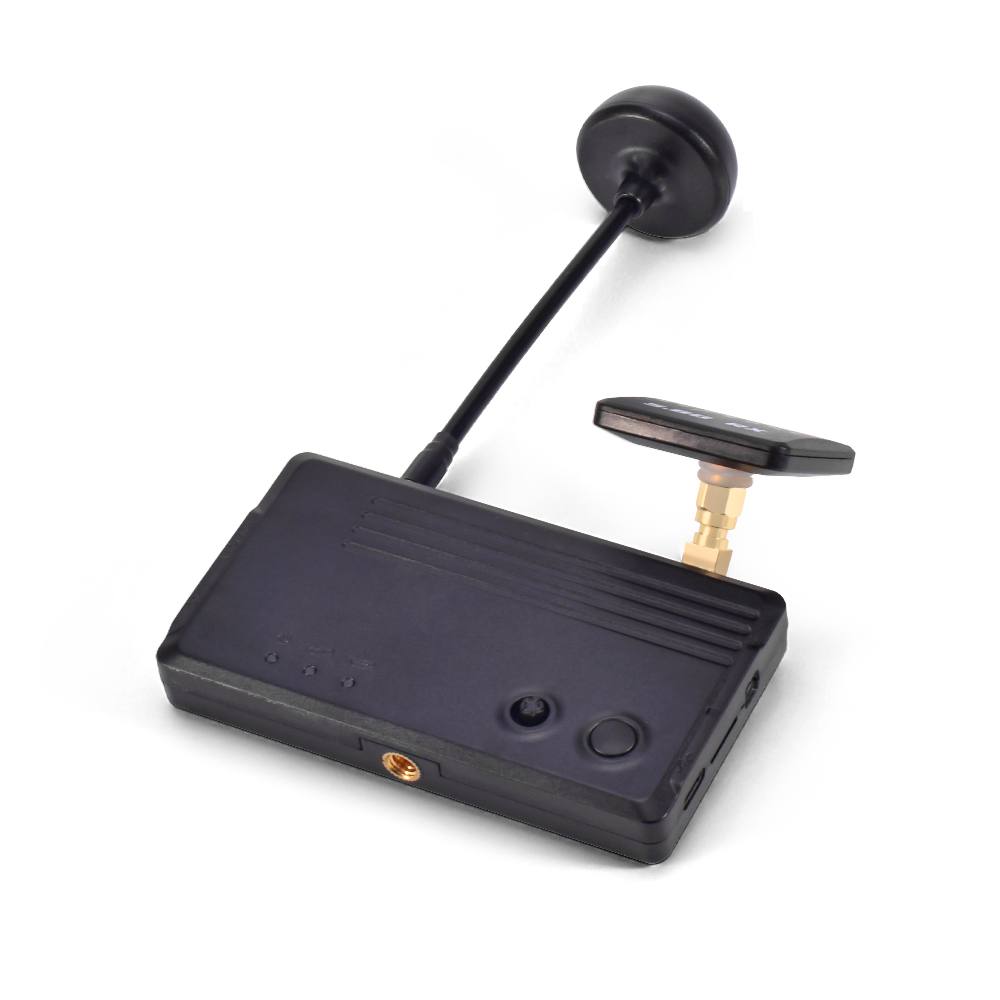

5. Standard Equipment Includes Mushroom Antenna +8dBi Patch Antenna,Optimized Signal Reception,Enables Stable Long-Range Transmission with Smooth, Clear, and Stable Video.

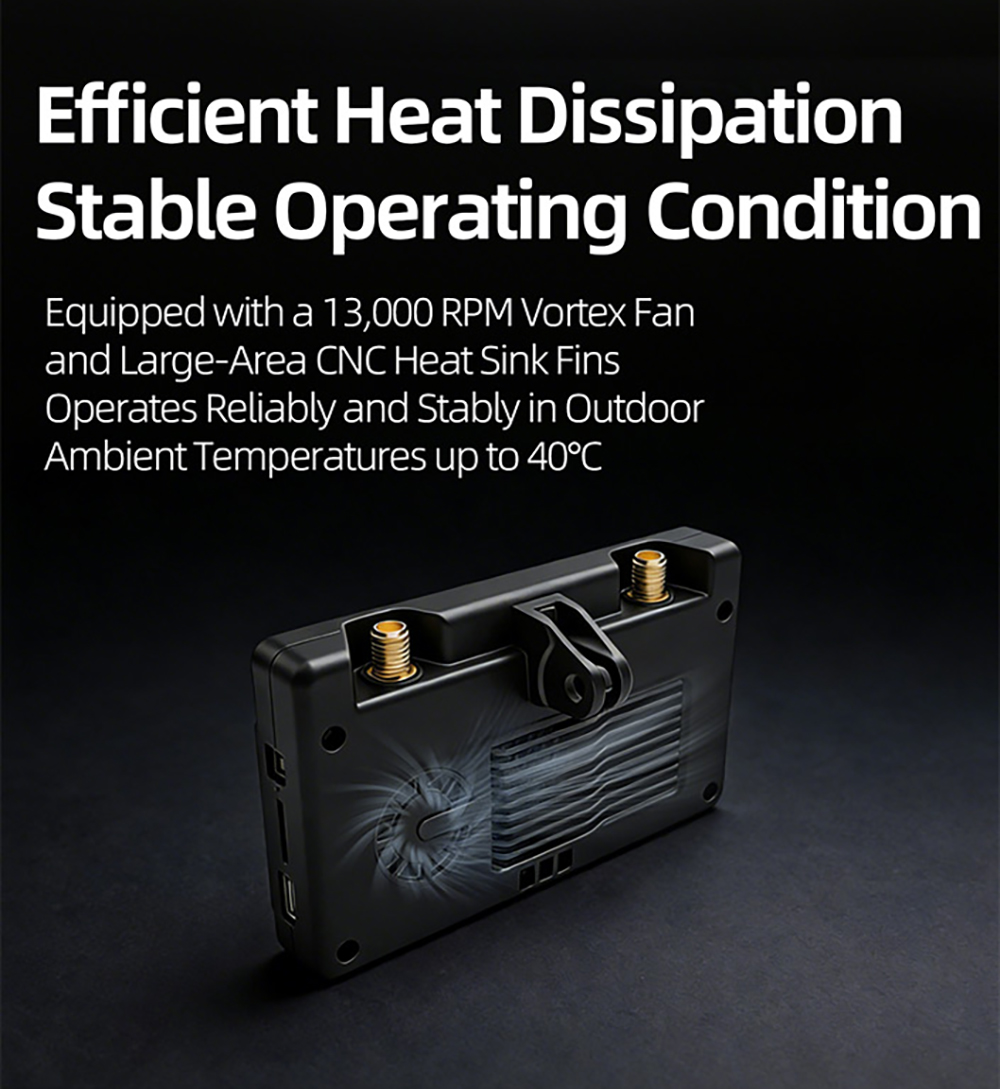

6. Equipped with a 13,000 RPM Vortex Fan and Large-Area CNC Heat Sink Fins Operates Reliably and Stably in Outdoor Ambient Temperatures up to 40℃.
7. Supports Betaflight and INAV OSD Information,Real-Time Flight Data Display for ContinuousSituational Awareness.
S1 PRO Air Unit Features:
1. S1 PRO is the first digital transmission product launched by SKYZONE in collaboration with the ArtLynk HD digitalecosystem.
2. HD Vision, All in Sight,HD Quality 1080p 60fps An Immersive Visual Feast
3.
Details Clearly Visible,Equipped with a 1/1.8inch 1/2.9inch camera
sensor, Maintains a certain level of visibility even in low-light
environments
4.
Ultra-Strong Signal,Uninterrupted Transmission,Equipped with dual
high-gain antennas for optimized reception,Adaptively adjusts
transmission power<33dBm(FCC)
5.
Efficient Heat Dissipation,Stable Operating Condition,Equipped with a
CNC aluminum housing,Operates reliably and stably in ambient
temperatures up to 60℃
6. Full Data Visibility and Control,Supports Betaflight and INAV OSD information,Real-time display of flight data and flight status
Description:

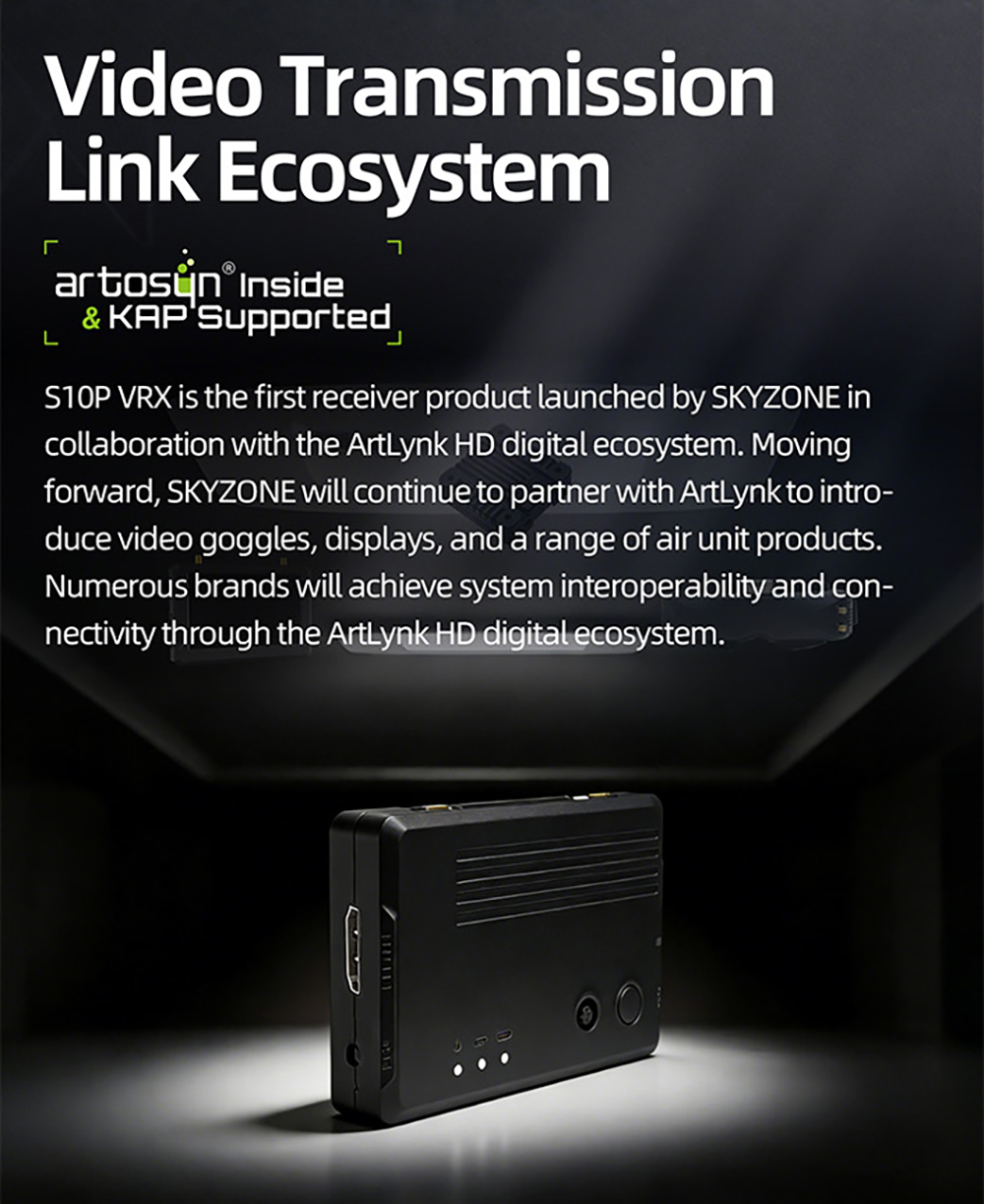

S10P VRX is the first receiver product launched bySKYZONE in collaboration with the ArtLynk HD digital ecosystem. Moving forward, SKYZONE will continue to partner with ArtLynk to introduce video goggles, displays, and a range of air unit products. Numerous brands will achieve system interoperability and con-nectivity through the ArtLynk HD digital ecosystem.

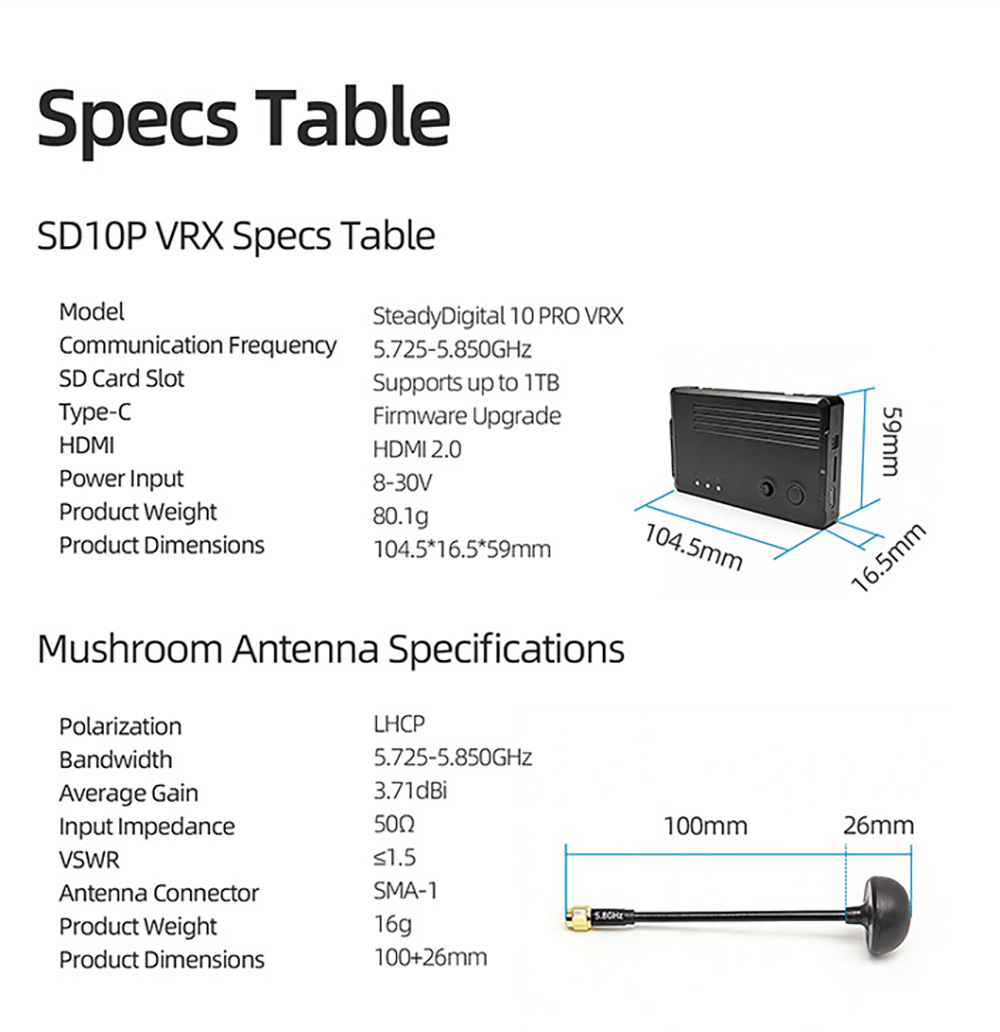

SD10P VRX Specs Table Specifications:
Model: SteadyDigital 10 PRO VRX
Communication Frequency: 5.725-5.850GHz
SD Card Slot: Supports up to 1TB
Type-C: Firmware Upgrade
HDMI: HDMI2.0
Power Input: 8-30V
Weight: 80.1g
Product Dimensions: 104.5*16.5*59mm
Mushroom Antenna Specifications
Polarization: LHCP
Bandwidth: 5.725-5.850GHz
Average Gain: 3.71dBi
Input Impedance: 50Ω
VSWR: ≤1.5
Antenna Connector: SMA-1
Product Weight: 16g
Product Dimensions: 100+26mm

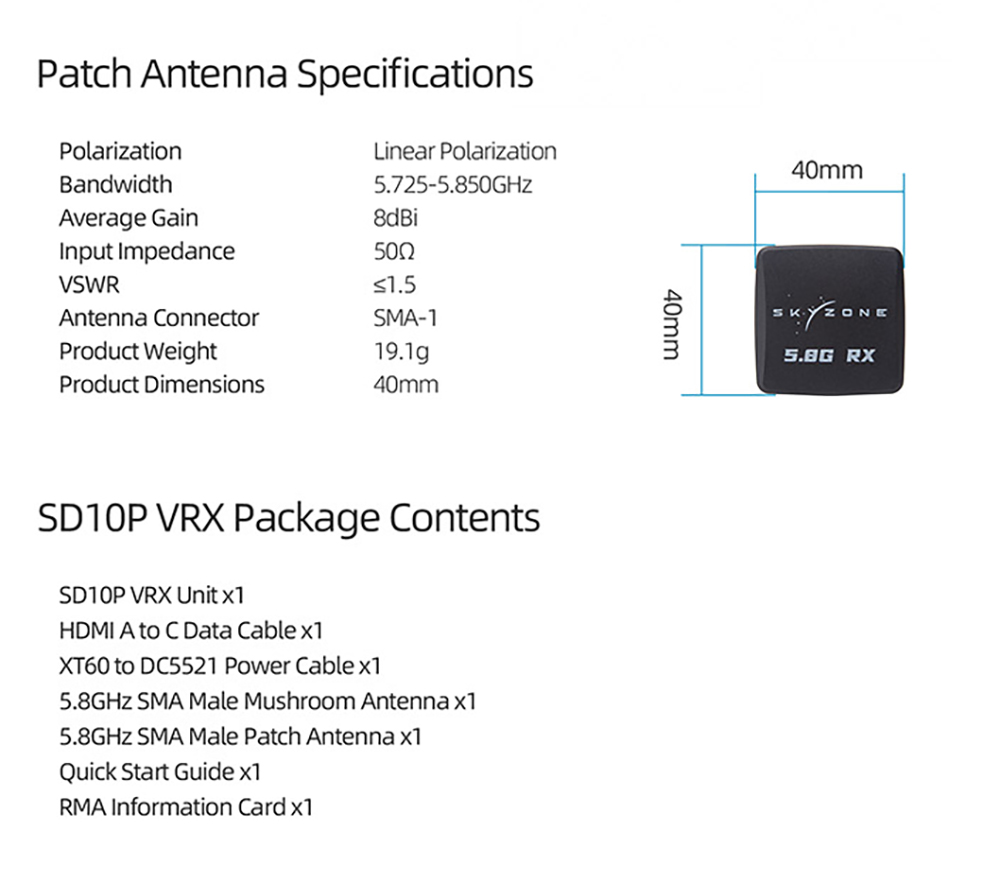

Patch Antenna Specifications
Polarization: Linear Polarization
Bandwidth: 5.725-5.850GHz
Average Gain: 8dBi
Input Impedance: 50Ω
VSWR: ≤1.5
Antenna Connector: SMA-1
Product Weight: 19.1g
Product Dimensions: 40mm
Model: S1 PRO Air Unit
Communication Frequency: 5.725-5.850GHz
Transmission Power(EIRP): FCC:<33dBm; CE:<14dBm; SRRC:<20dBm;MIC:<25dBm
Mounting Hole Spacing: 25.5x25.5mm
Video Resolution: 1080p/60fps
Operating Temperature: -20-60℃
Number of Channels: 19
Power Input: 8-30V
FC Support: Betaflight/INAV
OSD: Canvas Mode
Antenna: IPEX-1x2
Weight: 21.8g
Dimensions: 31.8x31.8x11.3mm
Basalt 19mm Camera
Sensor: 1/1.8inch
Resolution: 1080p/60fps
Aspect Ratio: 16:9/4:3
FOV: 150°
Aperture: F1.8
Shutter Type: Rolling Shutter
Coaxial Cable Length: 145mm
Weight: 13.5g
Dimensions: 19x19x30mm
Suitable for: comprehensive performance standard
Dune 19mm Camera
Sensor: 1/1.8inch
Resolution: 1080p/60fps
Aspect Ratio: 16:9/4:3
FOV: 160°
Aperture: F2.2
Shutter Type: Rolling Shutter
Coaxial Cable Length: 145mm
Weight: 13.5g
Dimensions: 19x19x27mm
Suitable for: Low light cameras with better nighttime effects
Alps 14mm Camera
Sensor: 1/2.9inch
Resolution: 1080p/60fps
Aspect Ratio: 16:9/4:3
FOV: 160°
Aperture: F2.2
Shutter Type: Rolling Shutter
Coaxial Cable Length: 55/170mm
Weight: 13.5g
Dimensions: 14x14x15mm
Suitable for: 2-3 inch small aircraft
Mushroom Antenna
Polarization: LHCP
Bandwidth: 5.725-5.850GHz
Average Gain: 2dBi
Input Impedance: 50Ω
VSWR: ≤1.5
Connector: IPEX-1
Dimensions: 180mm
Weight: 8g
Package contents:
1* SD10P VRX Unit
1* HDMI Ato C Data Cable
1* XT60 to DC5521 Power Cable
1* 5.8GHz SMA Male Mushroom Antenna
1* 5.8GHz SMA Male Patch Antenna
1* Quick Start Guide
1* RMA Information Card
Note:
Only the above package content, other products are not included.
