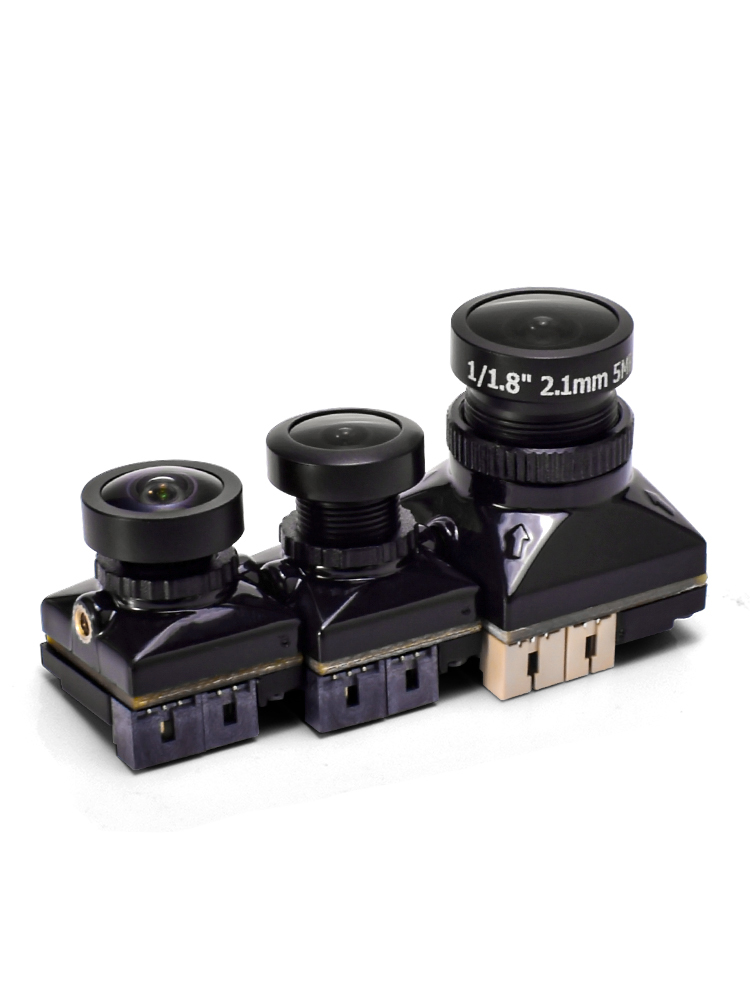

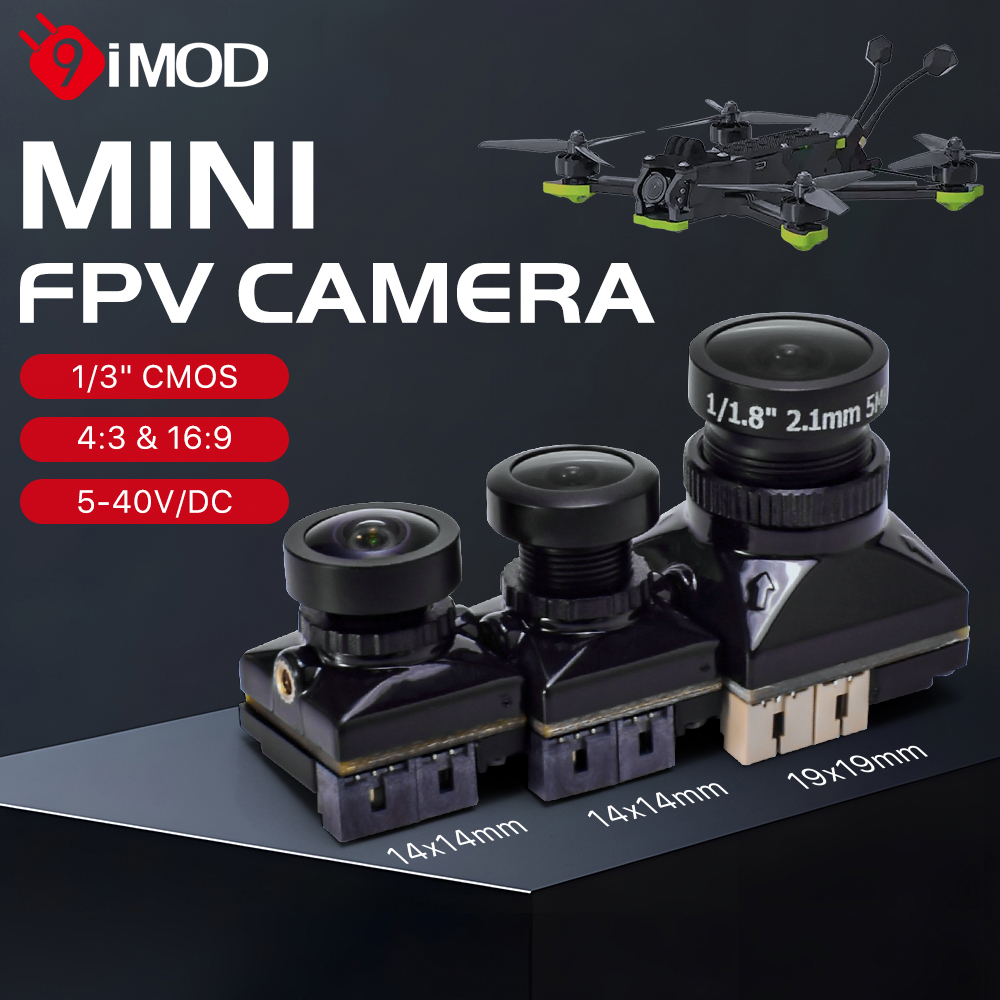

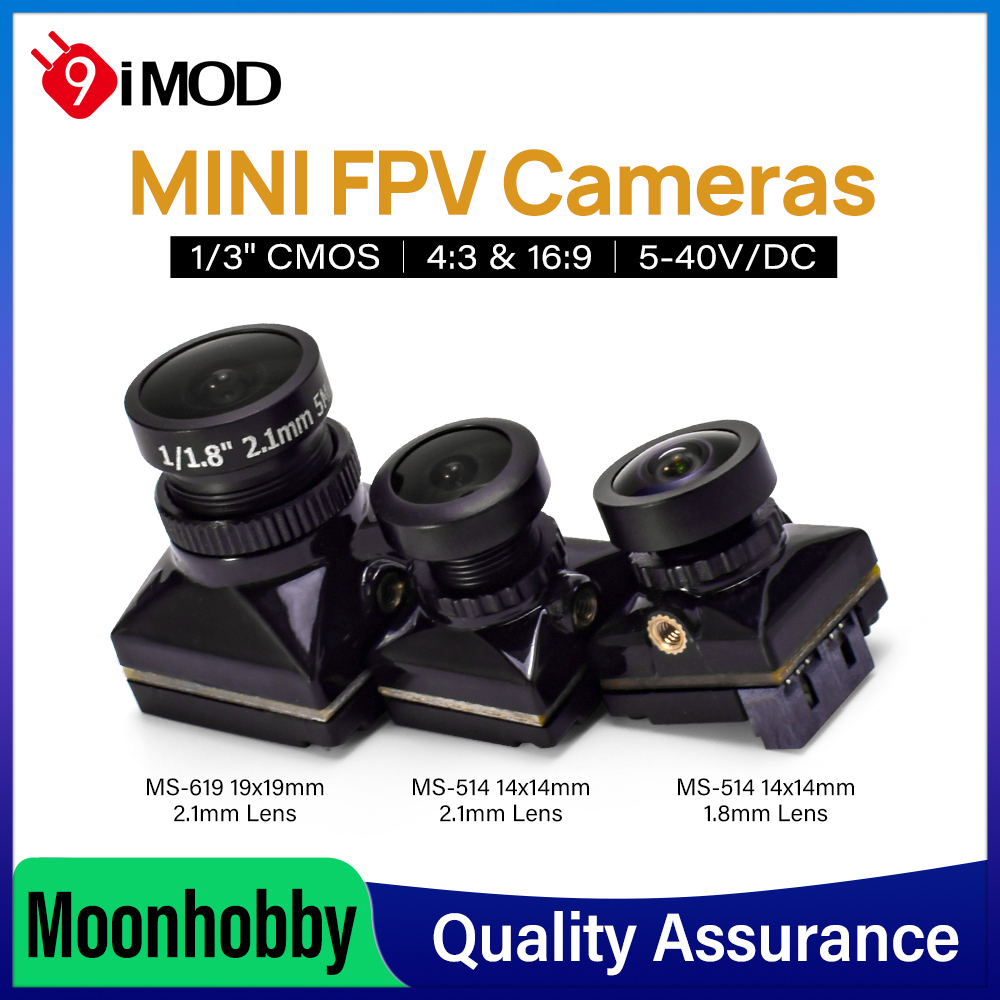

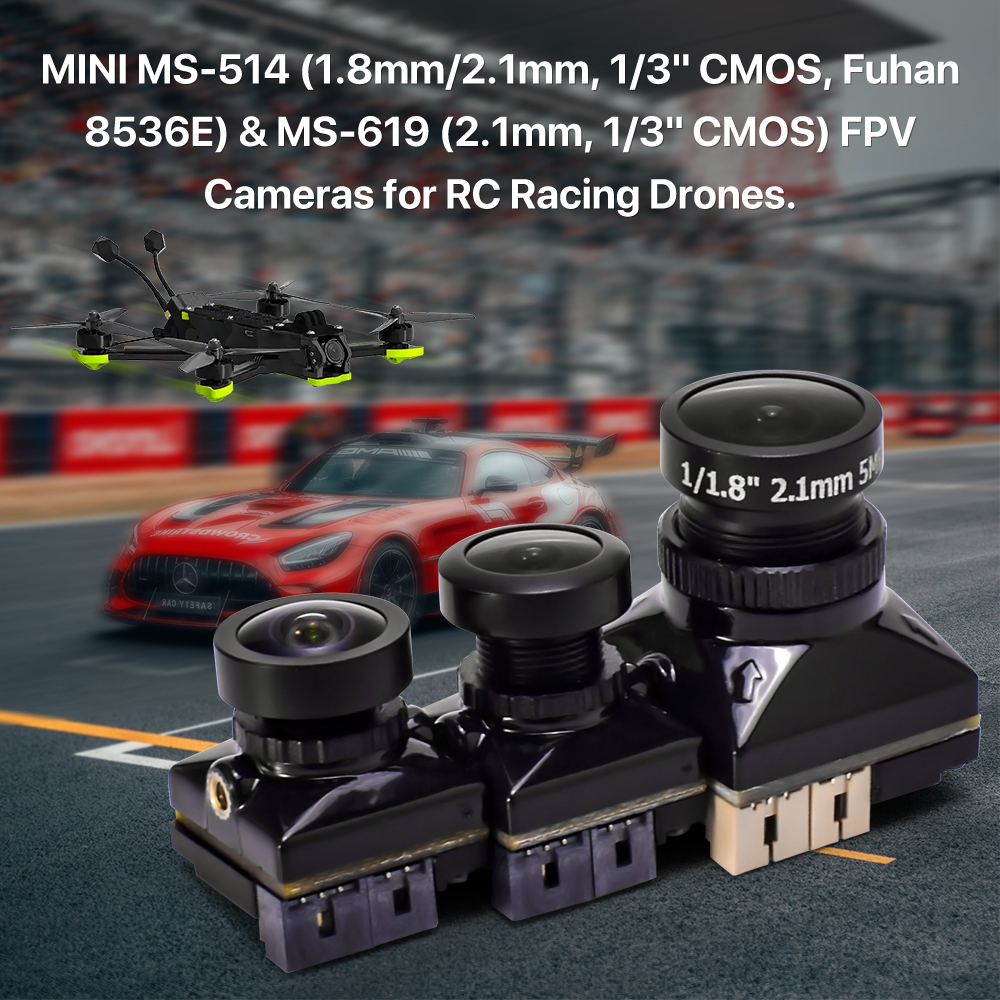

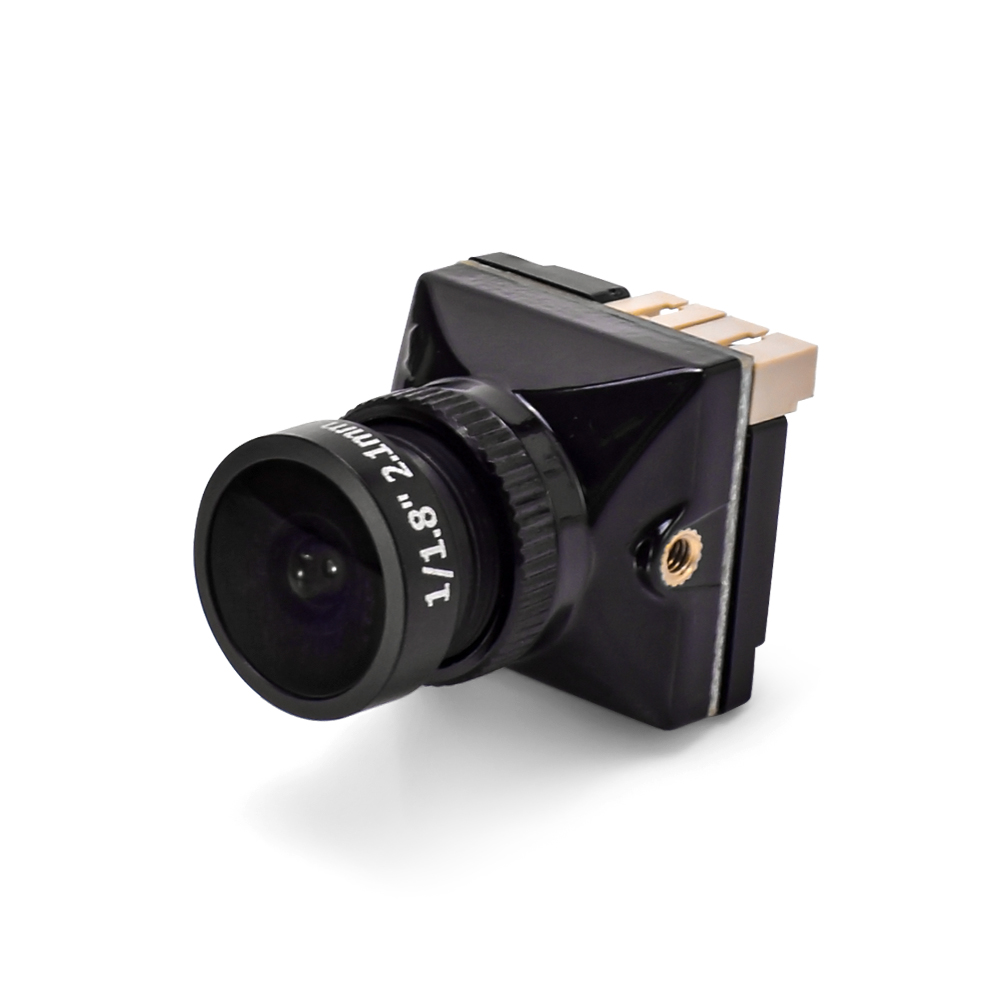

9IMOD Mini-FPV-Kamera 1,8/2,1mm Super-3DNR CVBS FPV-Renn-Drohnen
9IMOD Mini-FPV-Kamera 1,8/2,1mm Super-3DNR CVBS FPV-Renn-Drohnen
Features:

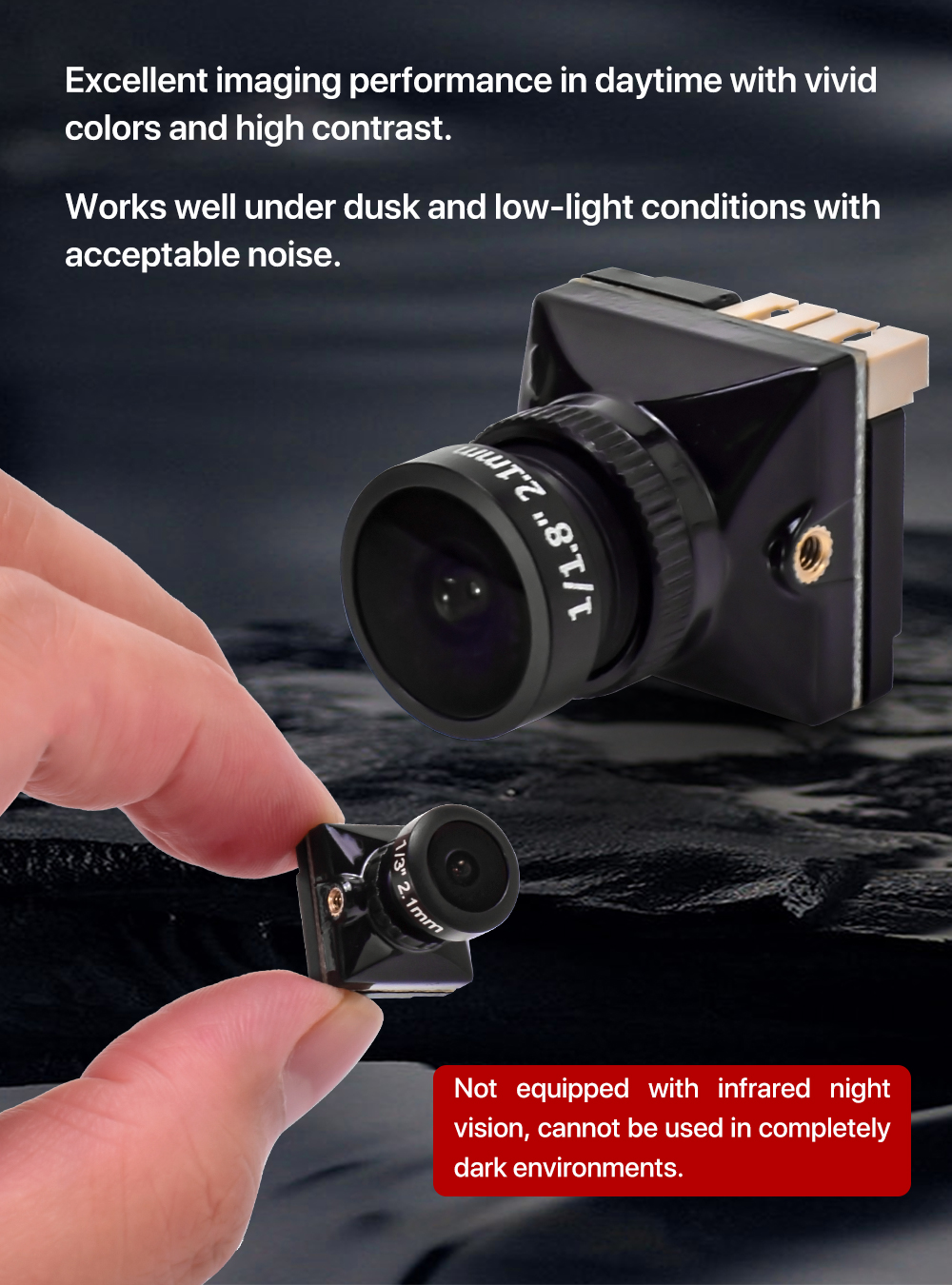

1. 1500/1800TVL high horizontal resolution, Super WDR + 3D digital noise reduction, 0.001Lux ultra-low illumination, maintain sharp picture in dusk, tunnel and dim environment.
2. MS-514 1.8mm 165° panoramic lens for freestyle flight; 2.1mm 135mm standard lens for stable racing, eliminate blind area during high-speed maneuver.
3. Freely toggle NTSC/PAL, color/black-white day-night mode, electronic shutter up to 1/100000s; multi-language OSD menu for easy parameter tuning.
4. 5-40V wide voltage compatibility, no need extra voltage regulator; works stably in -20℃ to 60℃ cold/hot outdoor flight condition.

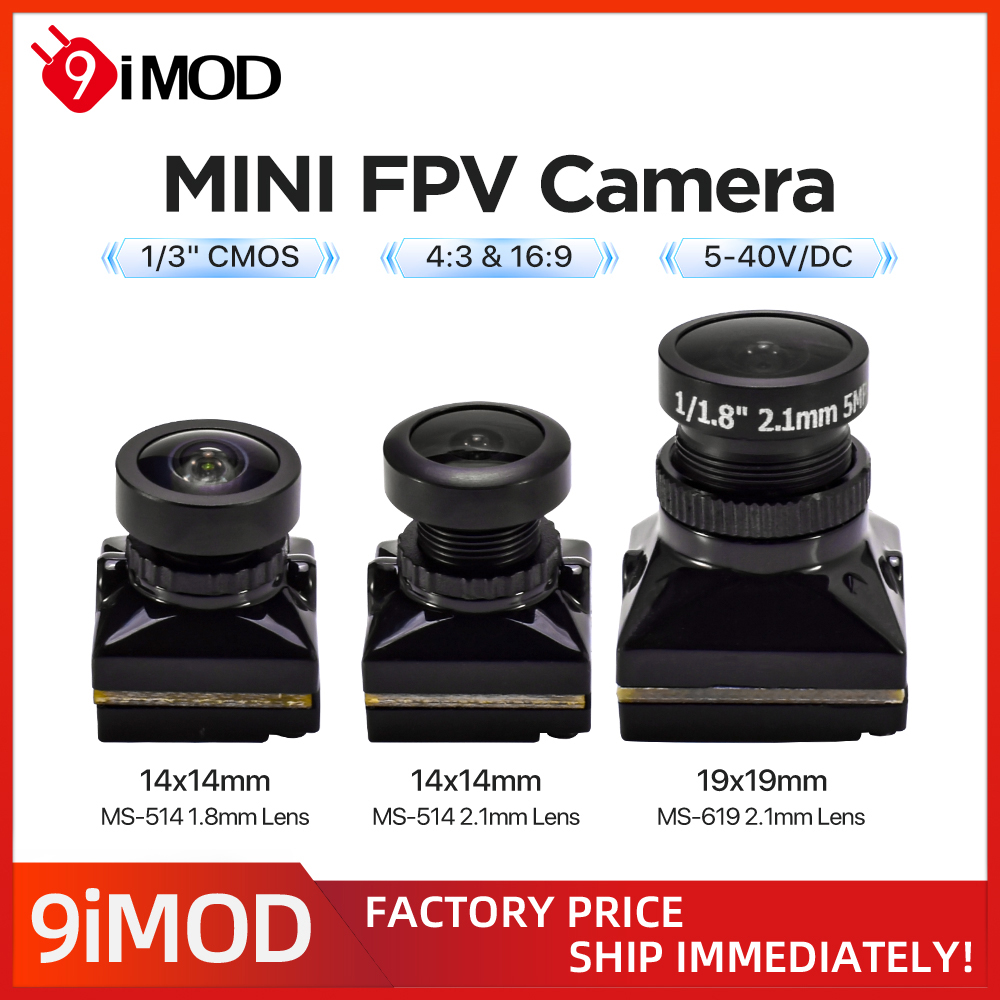

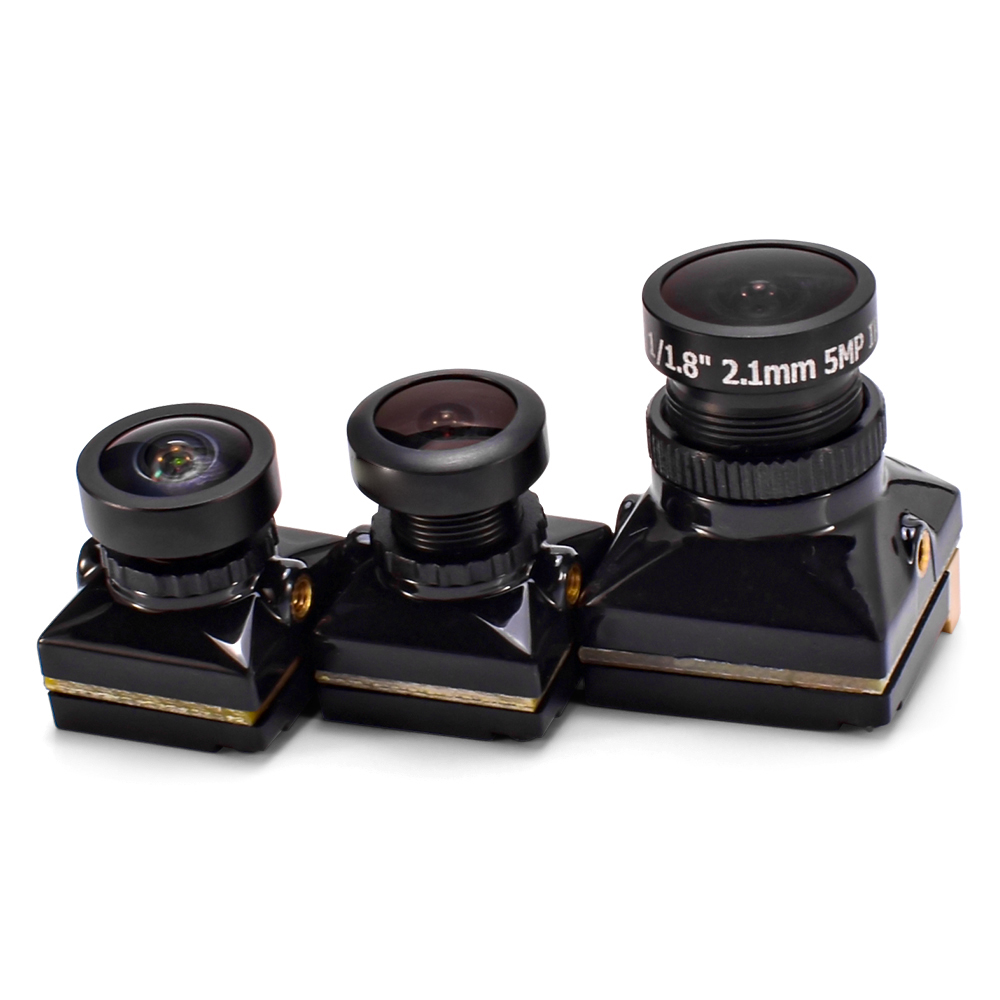

5. Lightweight design, cube miniature structure, two dimension specs available, ultra-light load, no extra drag for micro racing drones.
Description:
Compact 14/19mm cube FPV drone camera with optional 1.8mm/2.1mm lens, featuring Super WDR, 3D noise reduction, 0.001Lux ultra-low light performance and multi-language OSD, ideal for tiny whoop and racing drones.

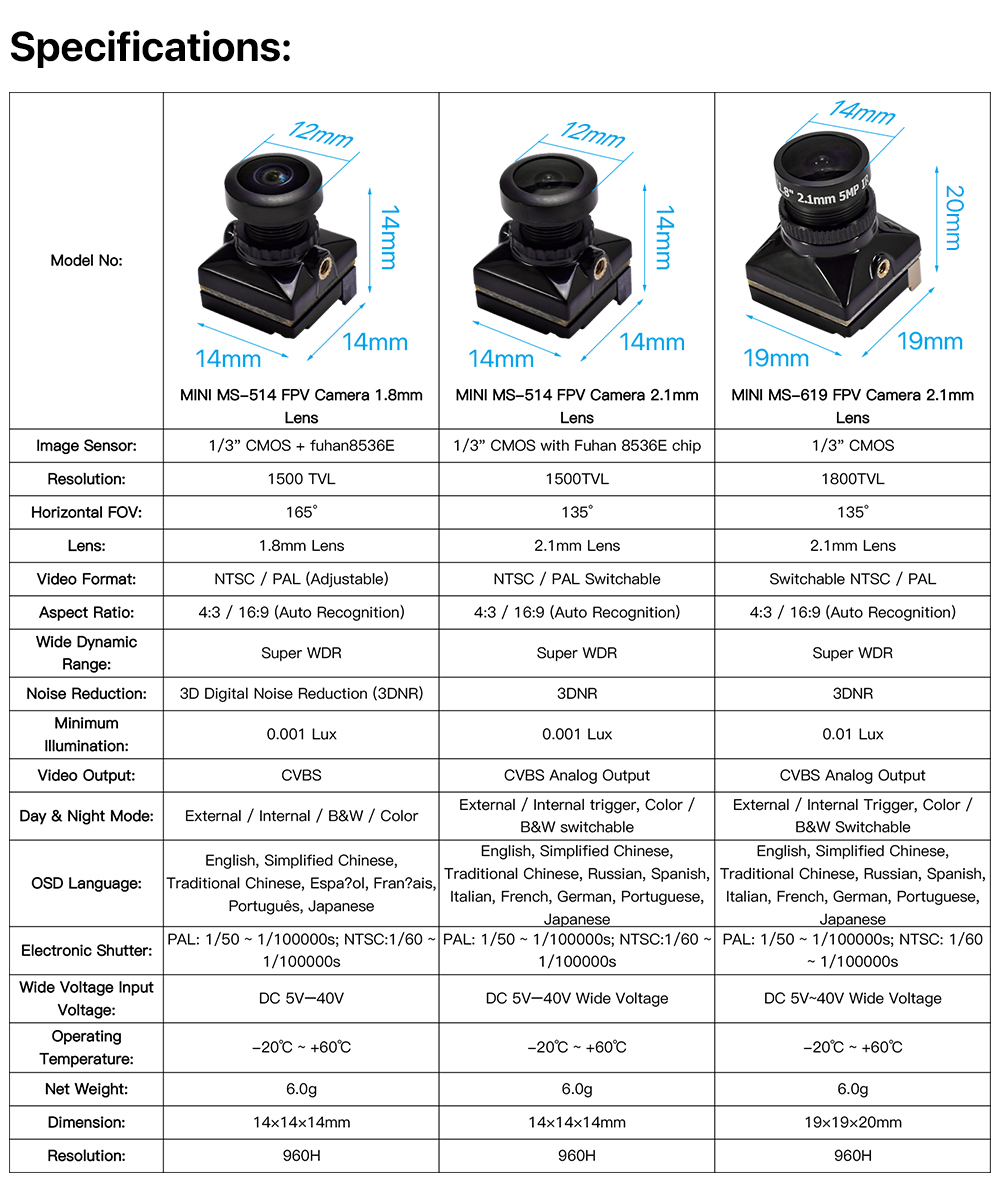

Specifications:

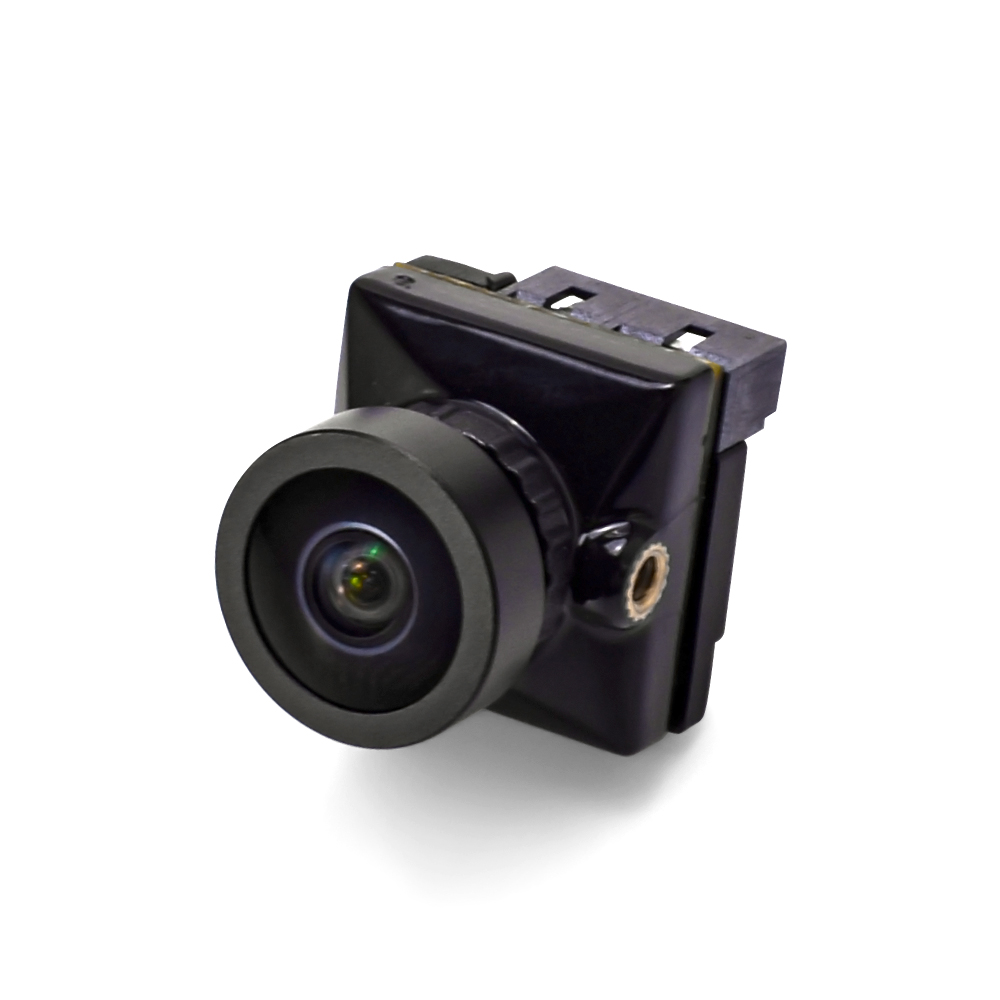

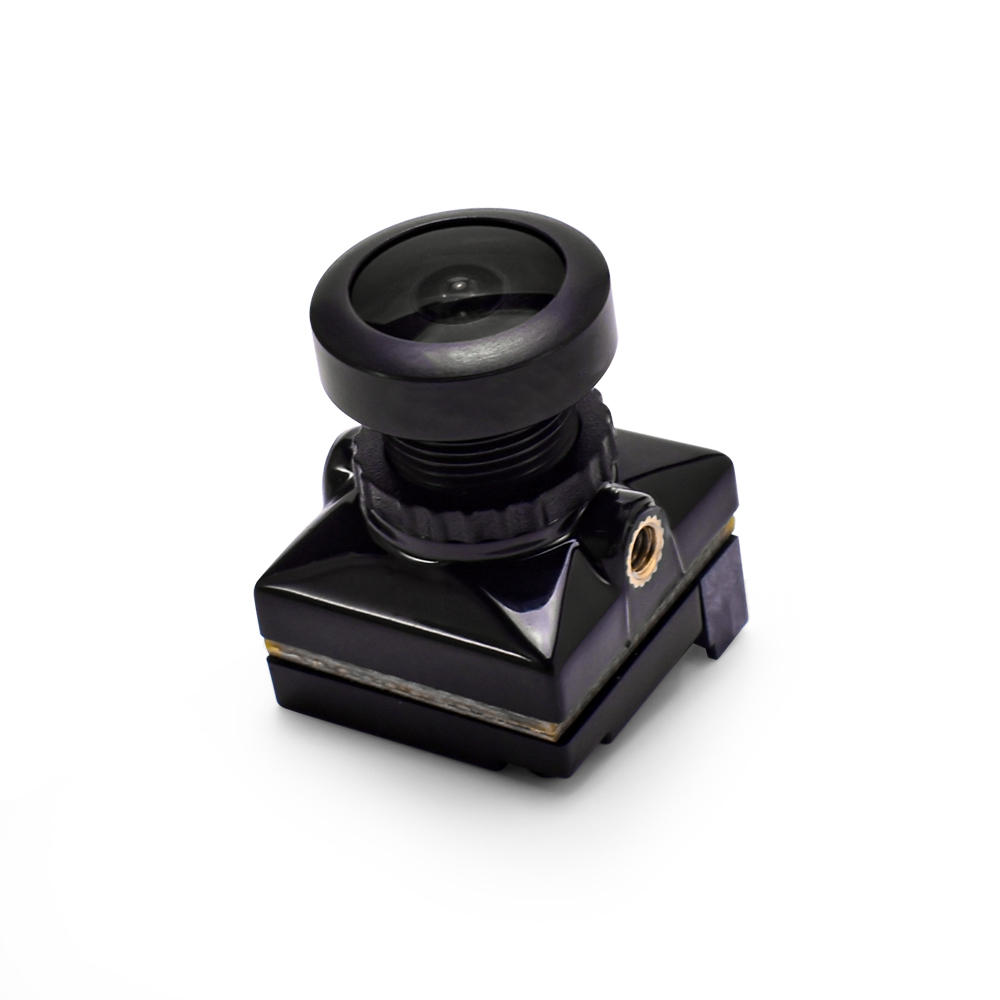

MINI MS-514 FPV Camera 1.8mm Lens
Image Sensor: 1/3" CMOS + fuhan8536E
Resolution: 1500 TVL
Horizontal FOV: 165°
Lens: 1.8mm Lens
Video Format: NTSC / PAL (Adjustable)
Aspect Ratio: 4:3 / 16:9 (Auto Recognition)
Wide Dynamic Range: Super WDR
Noise Reduction: 3D Digital Noise Reduction (3DNR)
Minimum Illumination: 0.001 Lux
Video Output: CVBS
Day & Night Mode: External / Internal / B&W / Color
OSD Language: English, Simplified Chinese, Traditional Chinese, Espa?ol, Fran?ais, Português, Japanese
Electronic Shutter: PAL:1/50 ~ 1/100000s; NTSC:1/60 ~ 1/100000s
Wide Voltage Input Voltage: DC 5V–40V
Operating Temperature: -20℃ ~ +60℃
Net Weight: 6.0g
Dimension: 14×14×14mm
Resolution: 960H
MINI MS-514 FPV Camera 2.1mm Lens
Image Sensor: 1/3" CMOS with Fuhan 8536E chip
Horizontal Resolution: 1500TVL
Horizontal FOV: 135°
Lens: 2.1mm Lens
Video System: NTSC / PAL Switchable
Aspect Ratio: 4:3 / 16:9 (Auto Recognition)
WDR: Super WDR
Noise Reduction: 3DNR
Min. Illumination: 0.001 Lux
Video Output: CVBS Analog Output
Day/Night Mode: External / Internal trigger, Color / B&W switchable
OSD Languages: English, Simplified Chinese, Traditional Chinese, Russian, Spanish, Italian, French, German, Portuguese, Japanese
Electronic Shutter: PAL:1/50 ~ 1/100000s; NTSC:1/60 ~ 1/100000s
Input Voltage: DC 5V–40V Wide Voltage
Operating Temperature: -20℃ ~ +60℃
Net Weight: 6.0g
Dimension: 14×14×14mm
Resolution: 960H

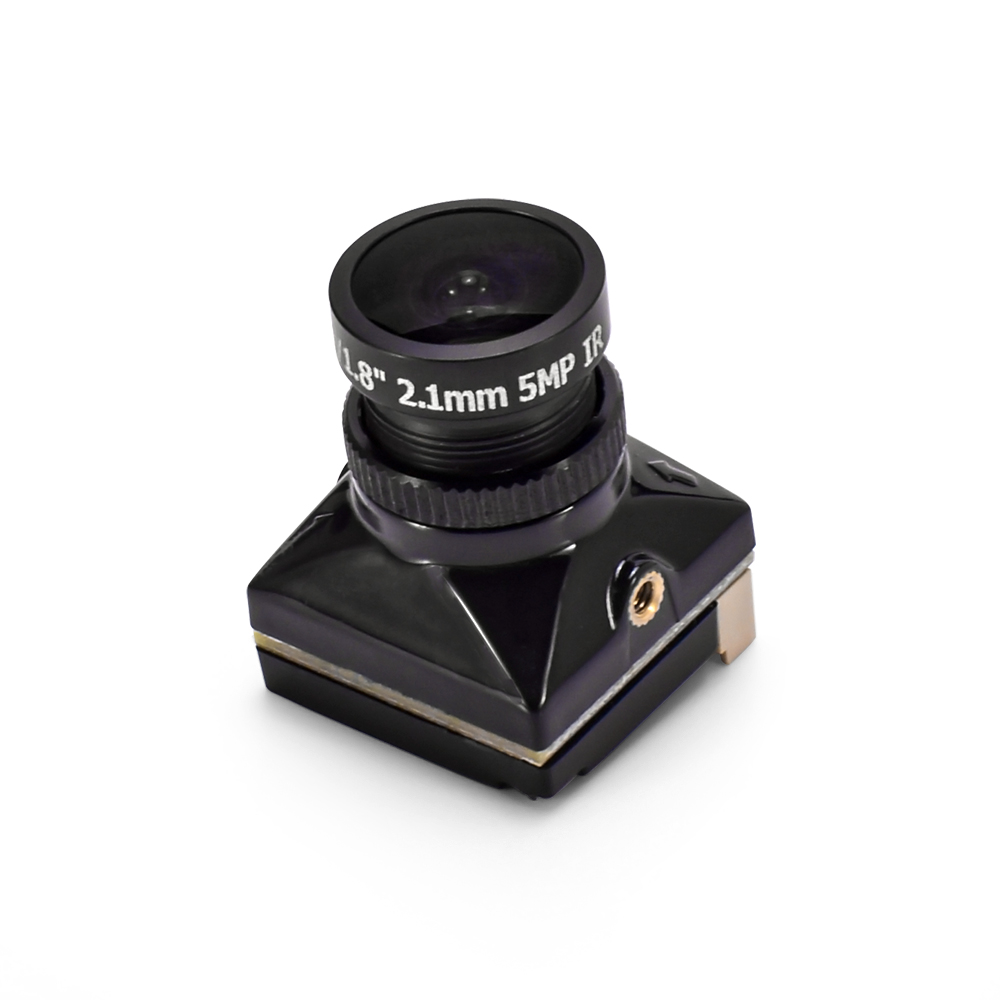

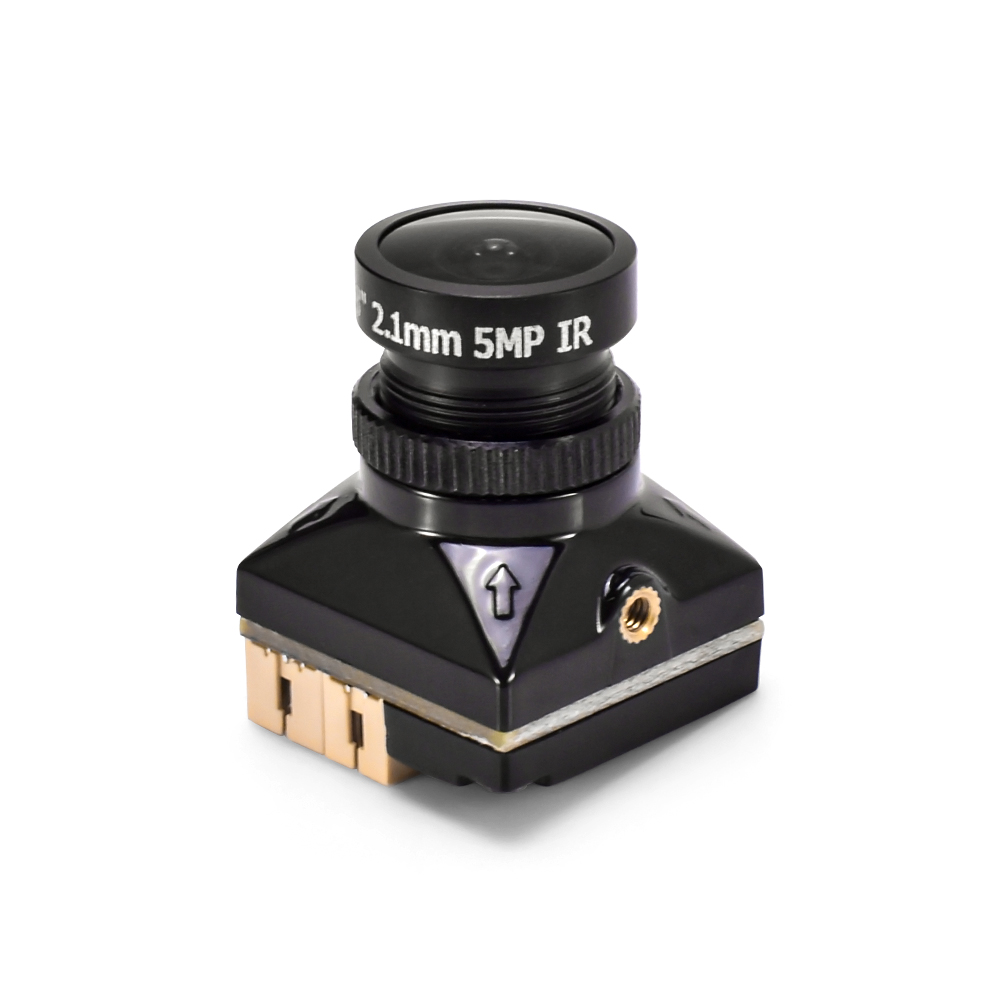

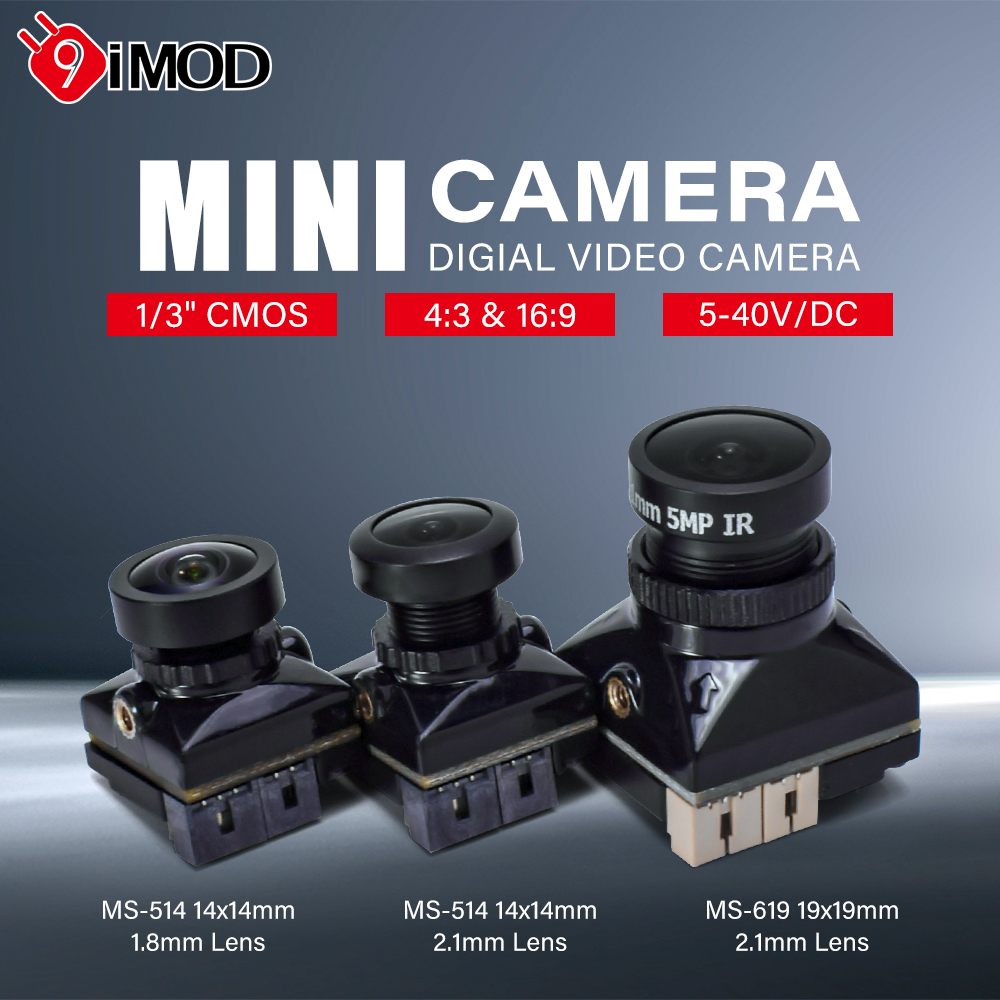

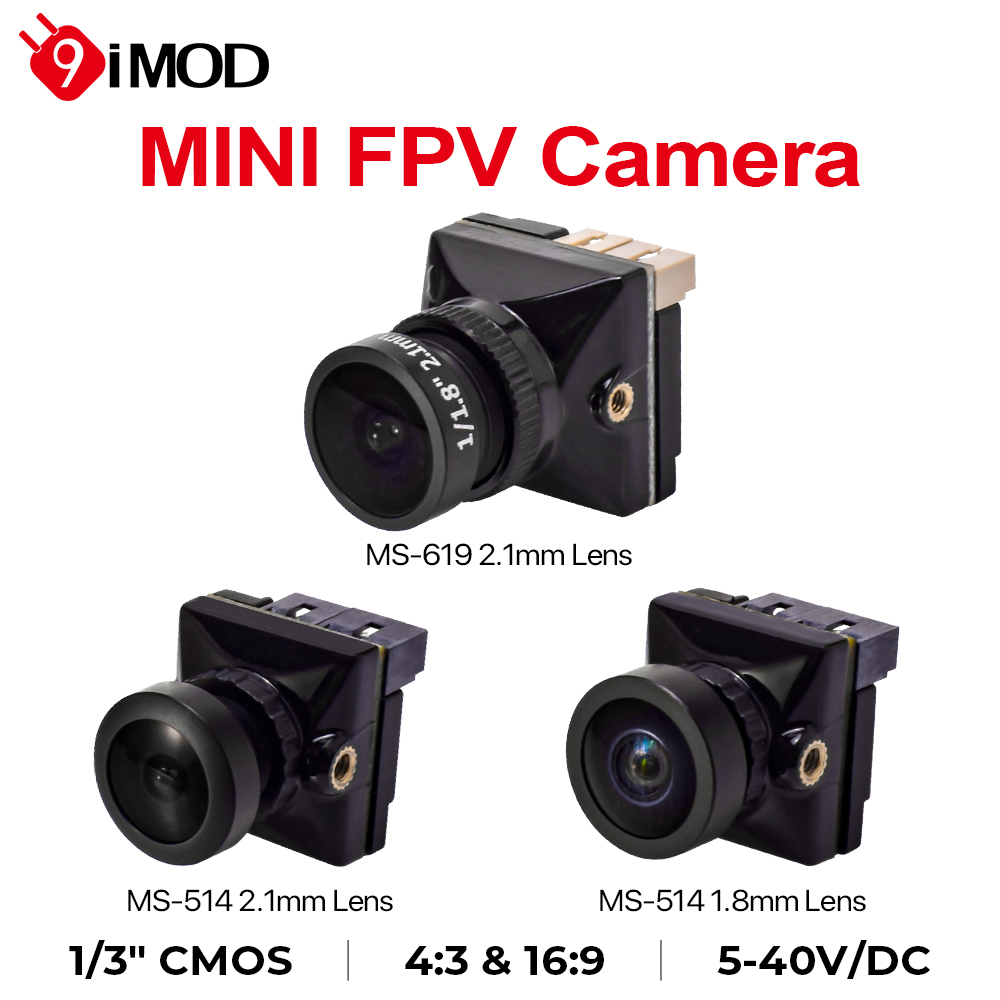

MINI MS-619 FPV Camera 2.1mm Lens
Image Sensor：1/3" CMOS
Horizontal Resolution：1800TVL
FOV：135°
Lens：2.1mm Lens
Video Format：Switchable NTSC / PAL
Aspect Ratio：4:3 / 16:9 (Auto Recognition)
WDR：Super WDR
Noise Reduction：3DNR
Minimum Illumination：0.01 Lux
Video Output：CVBS Analog Output
Day/Night Mode：External/Internal Trigger, Color/B&W Switchable
OSD Languages：English, Simplified Chinese, Traditional Chinese, Russian, Spanish, Italian, French, German, Portuguese, Japanese
Electronic Shutter：PAL: 1/50 ~ 1/100000s；NTSC: 1/60 ~ 1/100000s
Input Voltage：DC 5V~40V Wide Voltage
Operating Temperature：-20℃ ~ +60℃
Net Weight：6.0g
Dimensions：19×19×20mm
Resolution：960H

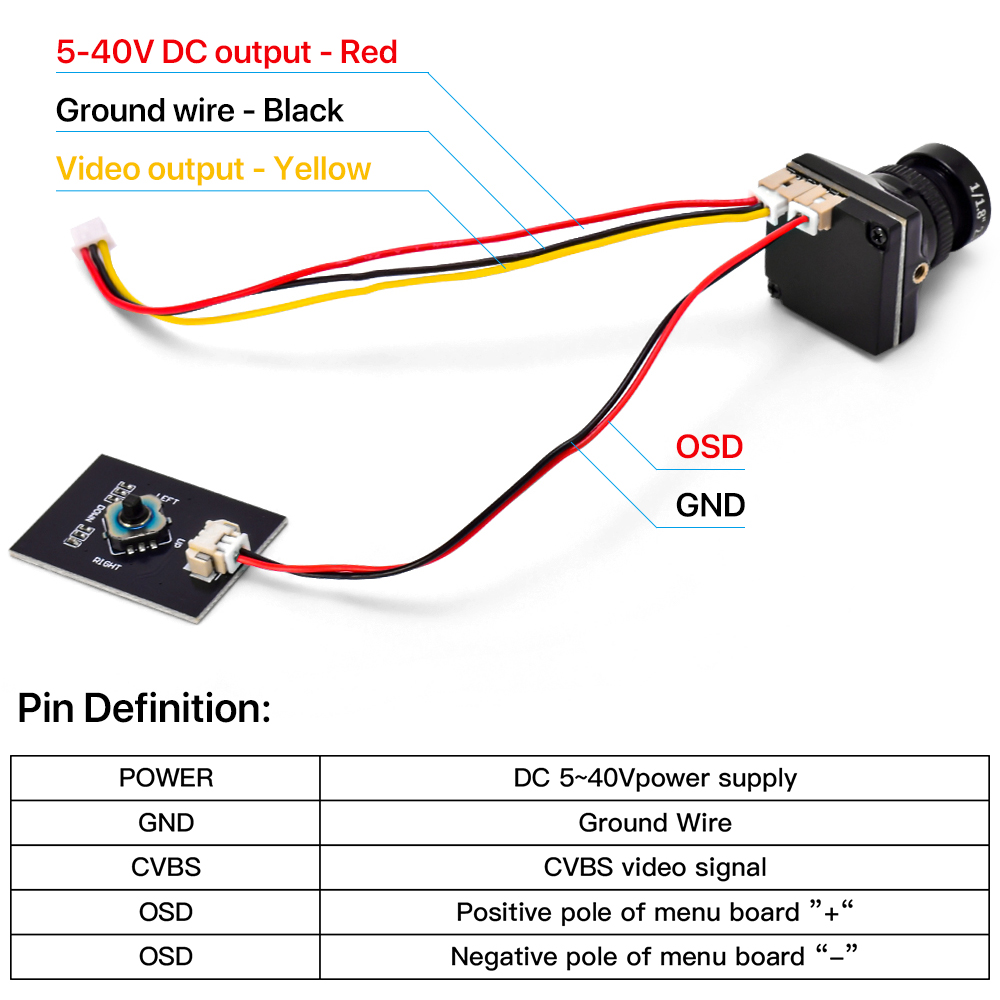

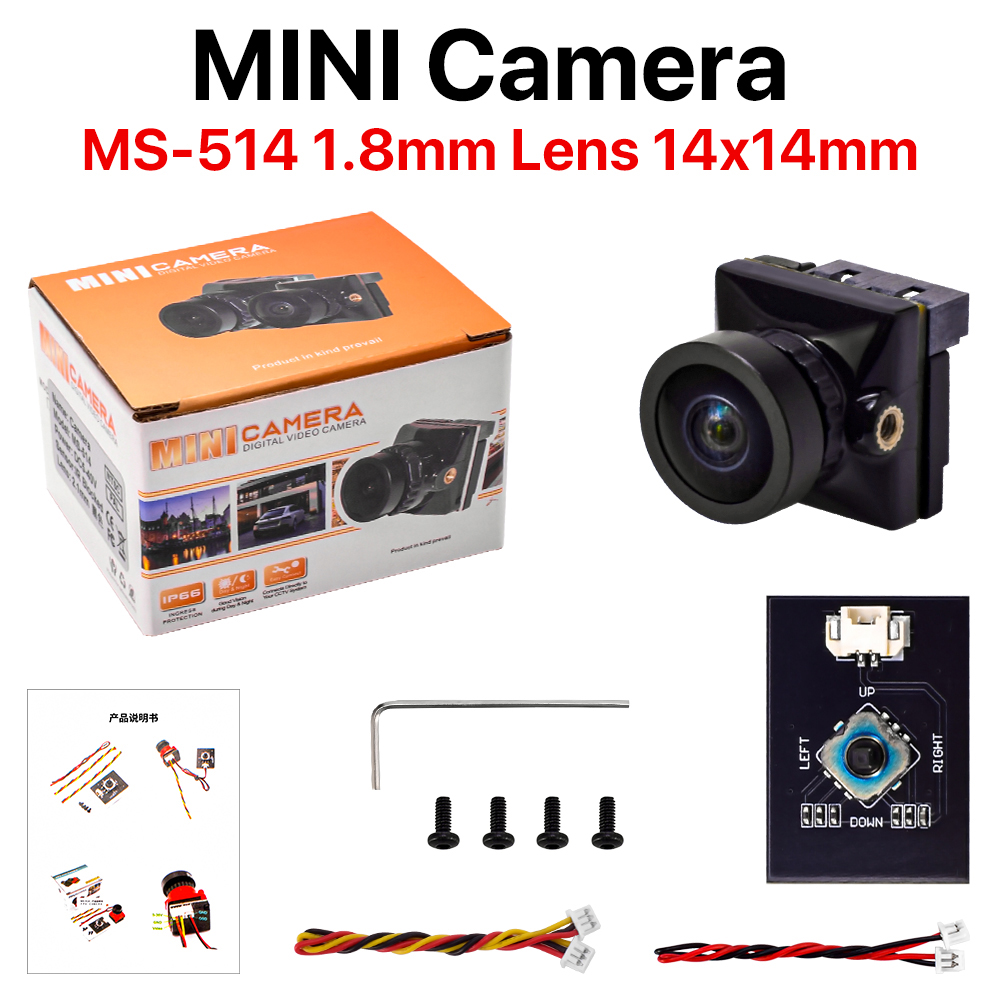

Package contents:
1 * Mini FPV Camera
1 * Control board
1 * Wrench
4 * Screws
1 * Instruction manual
2 * Connection cable
Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
