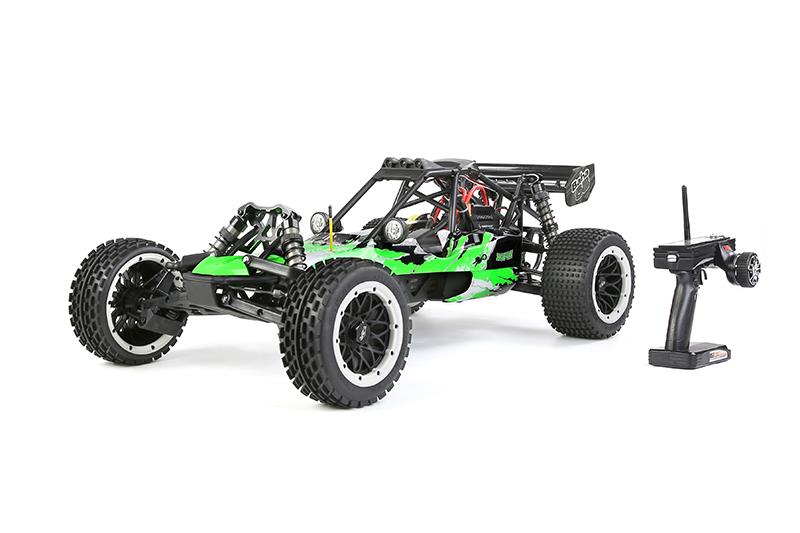

Rofun E‑Baja MAX5 (2026) – 1/5 Scale 8S‑Compatible Electric RC Car
The Rofun E‑Baja MAX5 (2026) is a 1/5 scale electric off‑road platform built around a high‑power 8S brushless system. Featuring the Hobbywing EZRUN 56118SD G2 800KV sensored motor and MAX5 HV G2 ESC (now supplied with QS8 connectors as standard), the model delivers smooth, consistent power suitable for large‑scale off‑road use.
Upgraded suspension components, reinforced shock mounts and thickened off‑road tyres contribute to durability and predictable handling. The new symmetrical steering system and second‑generation suspension layout further improve control across rough terrain.
Key Features
- Hobbywing EZRUN 56118SD G2 800KV sensored brushless motor
- Hobbywing EZRUN MAX5 HV G2 waterproof ESC with QS8 connectors
- 75kg metal‑gear steering servo
- Metal differential case and 9mm semi‑axle dogbones
- 8mm metal shock absorbers (black)
- Thickened off‑road tyres with webbed rims and white nylon beadlocks
- Closed‑type black wheel nuts
- New symmetrical steering system
- Second‑generation front and rear suspension
- CNC front shock support bracket (black with white edges)
- CNC rear shock mount crossbar (black with white edges)
- Roof panel with integrated downlights
- FS GT3B 2.4GHz radio system
- Body dimensions: 817 × 480 × 255mm
- Wheelbase: 570mm (395mm front / 400mm rear geometry)
- Net weight: 10kg / Gross weight: 14kg
What's Included
- Rofun E‑Baja MAX5 (2026) 1/5 Scale Electric RC Car
- Hobbywing EZRUN 56118SD G2 800KV Motor (installed)
- Hobbywing EZRUN MAX5 HV G2 ESC with QS8 connectors (installed)
- FS GT3B 2.4GHz Radio System
- 75kg Metal‑Gear Steering Servo (installed)
- Pre‑mounted off‑road tyres and wheels
- Factory‑installed electronics and drivetrain
What You Will Need
- 8S LiPo Battery Setup with QS8 Connectors
- Compatible LiPo charger
- AA batteries for transmitter
- Threadlock for maintenance
Product Breakdown
Hobbywing EZRUN 56118SD G2 800KV Motor
A sensored 4‑pole 800KV brushless motor designed for large‑scale electric platforms. Provides smooth low‑speed control and strong torque delivery suitable for 8–12S operation.
- KV Rating: 800KV
- Voltage: 8–12S LiPo
- No‑load Current: 6.9A
- Outer Diameter: 56mm
- Length: 119.2mm
- Shaft Diameter: 8mm
- Connectors: 8.0mm male bullets
- Weight: 1277g
- Front Bearing: D22 × D8 × T7
- Rear Bearing: D19 × D8 × T6
Hobbywing EZRUN MAX5 HV G2 ESC (QS8 Connectors)
A waterproof, high‑voltage ESC supporting 8S LiPo setups. This 2026 revision includes QS8 connectors as standard for improved current handling and connection security.
- Continuous / Peak Current: 250A / 1600A
- Input Voltage: 6–12S LiPo
- BEC Output: 6V / 7.4V / 8.4V adjustable, 8A continuous
- Input Wires: 8AWG, 200mm
- Cooling Fan: 45 × 45 × 10mm (5–8.4V)
- Programming: LED Box, LCD G2, LCD PRO, OTA Programmer (Programming box sold seperately)
- Data Logging: Extreme value + real‑time data
- Dimensions: 94.5 × 59.4 × 50.9mm
- Weight: 428.5g (with wires)
Drivetrain & Suspension
Metal differential case, 9mm driveshafts and reinforced suspension components provide durability under high load. CNC shock mounts improve rigidity and support the 8mm metal shock absorbers.
Tyres & Wheels
Thickened off‑road tyres with webbed rims and high‑strength nylon beadlocks offer reliable grip. Closed‑type black wheel nuts ensure secure wheel retention.
Steering System
Upgrade symmetrical steering system as standard paired with a 75kg metal‑gear servo provides consistent and predictable steering response.
NOTICE
Before first use, check the vehicle for loose screws, bolts and fittings, and apply threadlock where required. Ensure suspension components are correctly tightened and drivetrain parts are lubricated as needed. Damage caused by insufficient maintenance is not covered under warranty.
Refer to the Starter Guide on our website for setup and running information.
