Description

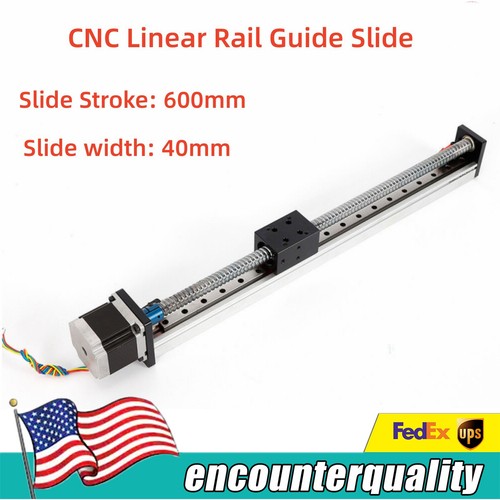

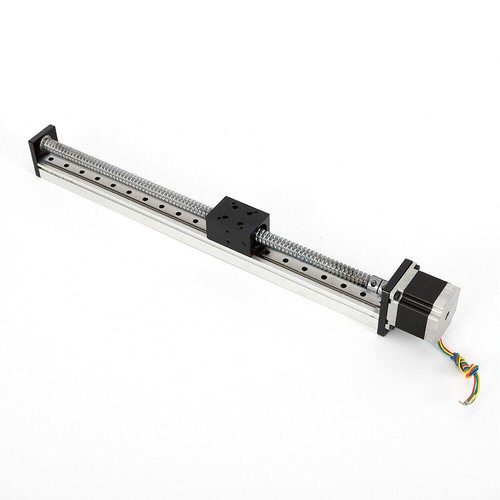

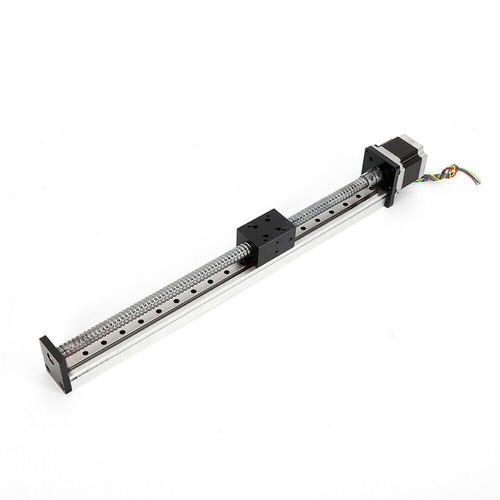

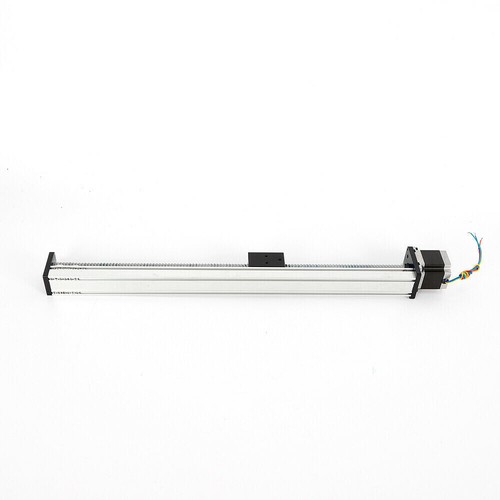

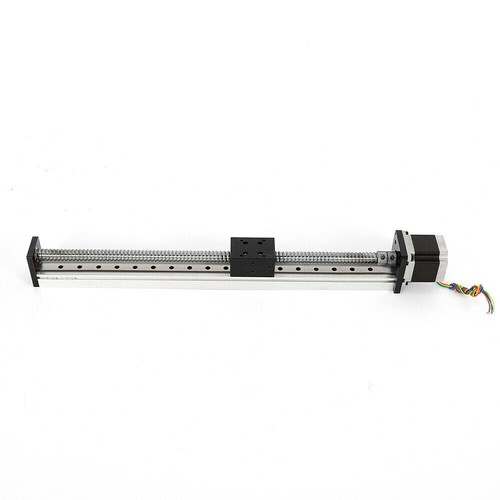

Cnc Linear Rail Guide Slide
Our Linear Rail Guide Slide Is Made of Good Performance Aluminum Alloy by Professional Process, Which Is Strong and Durable. the Product Has Thickened Bearing Brackets to Make the Slide Table More Stable in Use. This Slide Module Is Suitable for 1605-Type Ball Screws. This High-quality and Well-made Single-line Rail Ball Screw Linear Slide Set Is a Wise Choice for You.
Key Features
Low Friction: Low Frictional Resistance During the Contact Between Ball and Slider Avoids Machine Runout. Therefore This Rolling Contact Consumes less Energy and Lasts Longer.
High Precision: the Accuracy of This Ball Linear Guide Can Reach 0.03-0.05 Mm. It Works with High Precision and Is More Secure to Use.
Strong Load-bearing Capacity: the Profile of This Ball Linear Guide Is Made of Aluminum Alloy, with a Vertical Load of 15 Kg and a Horizontal Load of 20 Kg. Compared with Other Ball Linear Guides, This Product Has a Greater Load and Is More Durable.
High Impact Resistance: the Coupling of This Ball Linear Guide Has Been Upgraded. Compared with the Common Coupling, the Coupling of This Product Locks Tighter, Is Rigid, and Has Greater Impact Resistance.
High Stability: the Ball Linear Guide Adopts High-quality and Durable Ball Bearings, Which Can Control the Precision and Speed of Moving Parts of Mechanical Equipment More Stably.
Easy to Carry: the Total Weight of This Ball Linear Guide Is 2.5kg. Compared with Other Similar Products in the Market, Our Ball Linear Guide Is Lighter and More Portable.
Easy Installation: It Is Easy to Install and Can Be Done Independently by Yourself. It Can Directly Replace the Old Guide Slides and Regain High Precision.
Excellent After-sales Service: We Aim to Provide Quality Products and Services. If You Have Any Problems, Please Feel Free to Contact Us, We Will Reply and Solve the Problem for You As Soon As Possible.
Details

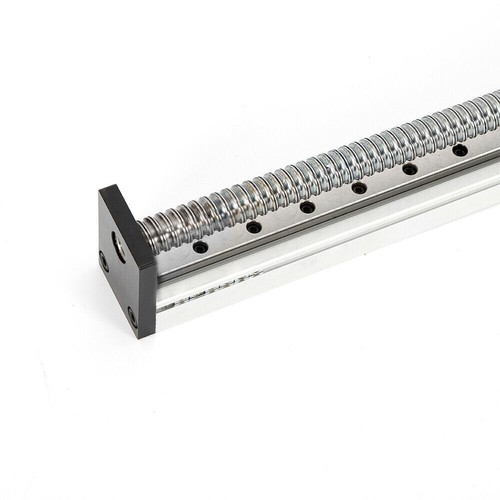

Ball Screw: the Roller Value Linear Guide's Screw Adopts Ball Type Screw. Compared with Linear Type Screw, Ball Screw Has Higher Stability and Accuracy.
Aluminum Alloy Material: This Ball Screw Rail Guide Slide Is Made of High-quality Aluminum Alloy, Which Has the Characteristics of Rust and Corrosion Resistance. the Material Is Treated by Thickening, so the Product Has High Strength and Long Life.
Application
The Ball Linear Guide Is Important Hardware Equipment That Constitutes Industrialized Machinery, and Can Accurately Control the Accuracy and Speed of the Moving Parts of Mechanical Equipment. the Product Is Widely Used in the Field of Industrial Automation Such As Cnc Machine Tools, Smd Equipment, Laser Cutting Equipment, Spraying Equipment, Medical Equipment, Battery Equipment, Etc.
Specification
Materials: Aluminum Alloy
Slide Stroke: 60cm/23.6inch
Product Size: 72.7*4.2*6.5*Cm/28.62*1.65*2.55inch
Gross Weight: 2.5kg/5.5lbs
Horizontal Load: 20kg/44lbs
Vertical Load: 15kg/33lbs
Voltage: 24v
Motor Flange Sze：5.7cm/2.24inch
Motor: 57bygh56
Current: 3a
Speed: ≤80mm/S
Torque：0.9n.m
Slide Width: 4cm/1.57inch
Accuracy: 0.03mm-0.05mm
Step Angle: 1.8°
Package Included
1*Cnc Linear Rail Guide Slide
Notes
Please Allow the Slight Color Difference Caused by the Shooting Light and 1-3 Cm Error Due to Manual Measurement, and Make Sure You Do Not Mind Before Ordering.
