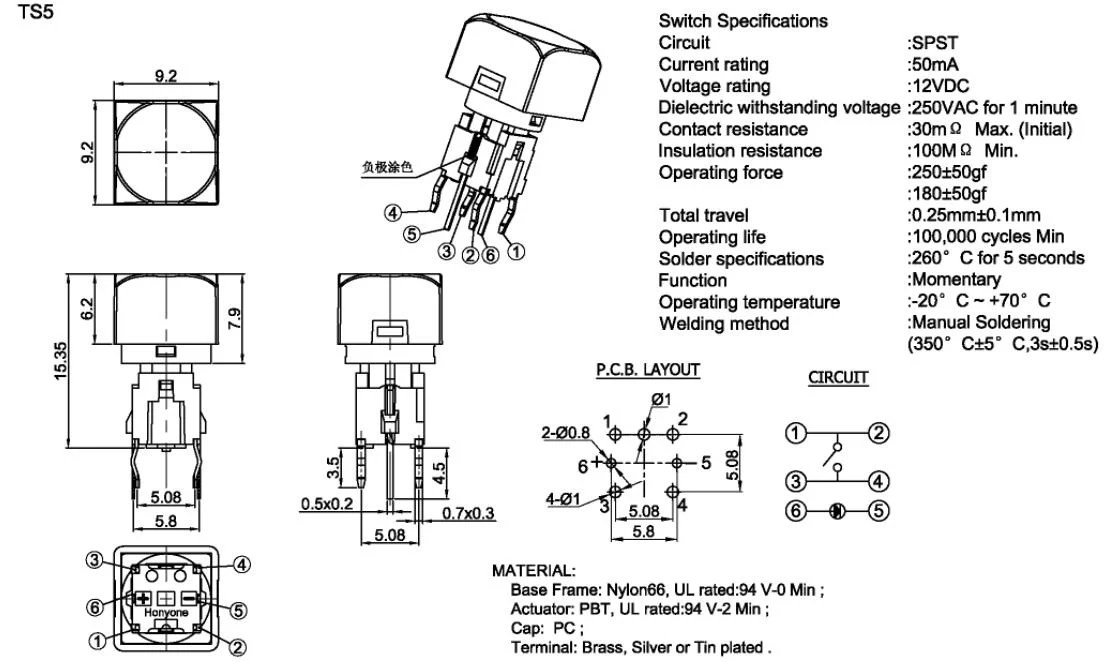

Model: TS5

Switch Action: Momentary

Circuit: SPST

Switch Rating: 50mA 12VDC

Function: OFF-MOM (Normally Open, Push ON, Release OFF)

LED Working Voltage (20mA Max)

Red:1.8-2.4V

Green:2.8-3.4V

Blue:2.8-3.4V

White:2.8-3.4V

Button Size(Lxw):9.2 x 9.2mm

Button Color: White + Transparent

Button Travel:0.25±0.1 mm (Click)

Operating Force:180±50gf

Solder Specifications:350℃ for 3 Seconds

Weight:0.8g

1 Lot = 5Pcs

(Please do not use the battery as the power supply directly to avoid damaging the LED)
