Feature:

【WIDE APPLICATION】: Adjustable solar panel mounting brackets for off-gird solar system, compatible with 100-400W solar panels. Great addition for use on boats, RV, roof, marine etc.

【HIGH EFFICIENCY】: Ideal for positioning solar panels at an angle on a roof. Gain up to 25% more efficiency by tilting your panels towards the sun instead of laying them flat. Maximum tilt angles depend on solar panel size.

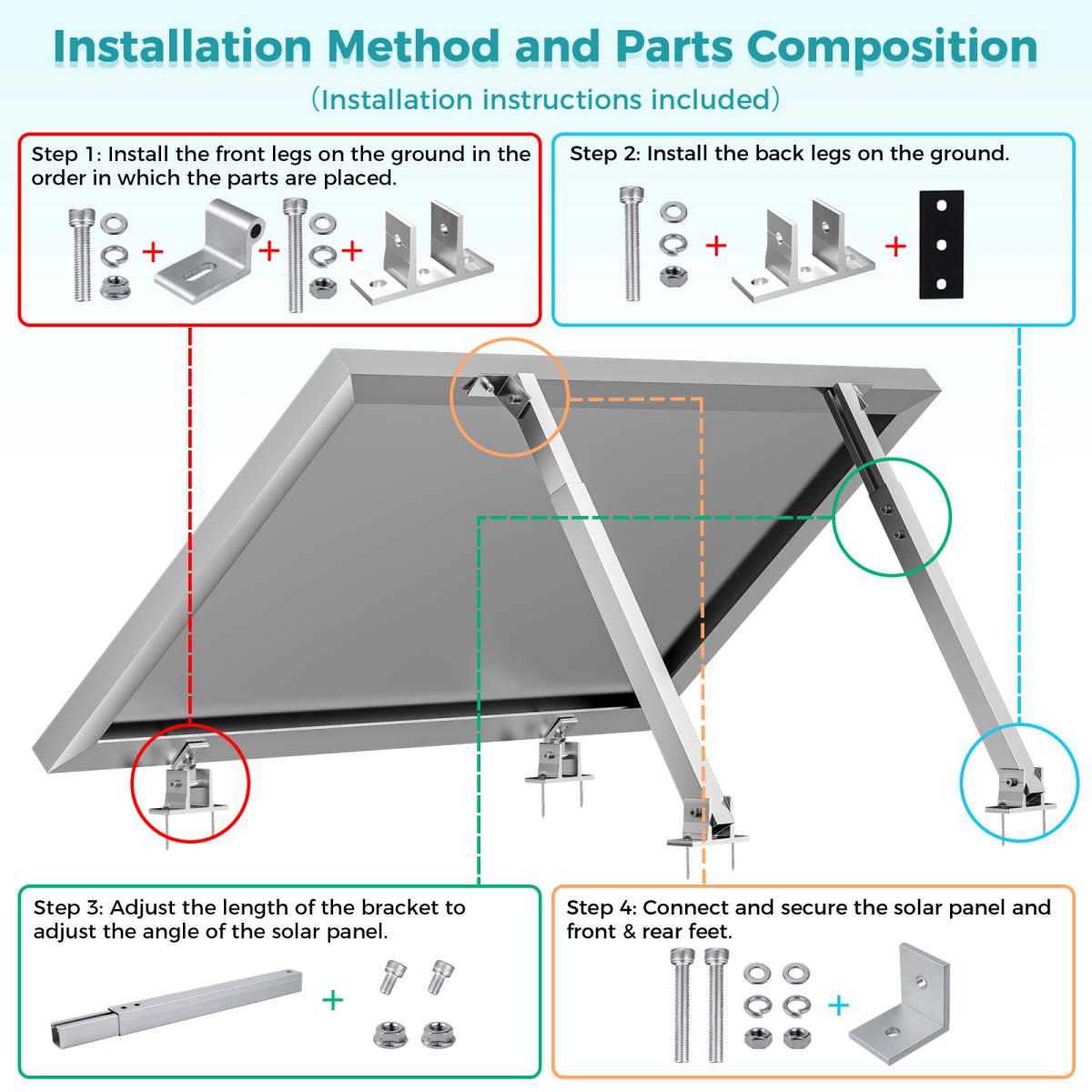

【EASY TO INSTALL & ADJUST】: Quick assembly with stainless steel fasteners and precise hole placement. The package includes the bracket between tilt and panel.

【LIGHT WEIGHT BUT STRONG】: Aluminum alloy material, with light weight, large bearing capacity and strong corrosion resistance, suitable for all environments and ideal for easy transportation and safe assembly.

【SAFETY AND RELIABILITY】: The structure takes into account the bearing capacity, wind resistance, earthquake resistance and other factors, and through rigorous calculation and testing to ensure safety and reliability. Lifespan: more than 10 years.

Solar module stand for roof and wall mounting, individually adjustable

The solar module stand is suitable for all solar modules of all sizes. Since no large connecting rails are required to attach the stands to the solar modules, the stands can be attached to all the most popular solar modules with aluminum frames. To attach the stands, use the screws and nuts provided, with which you can easily and securely screw the stands to the solar module using the existing mounting holes.

SPECIFICATIONS:

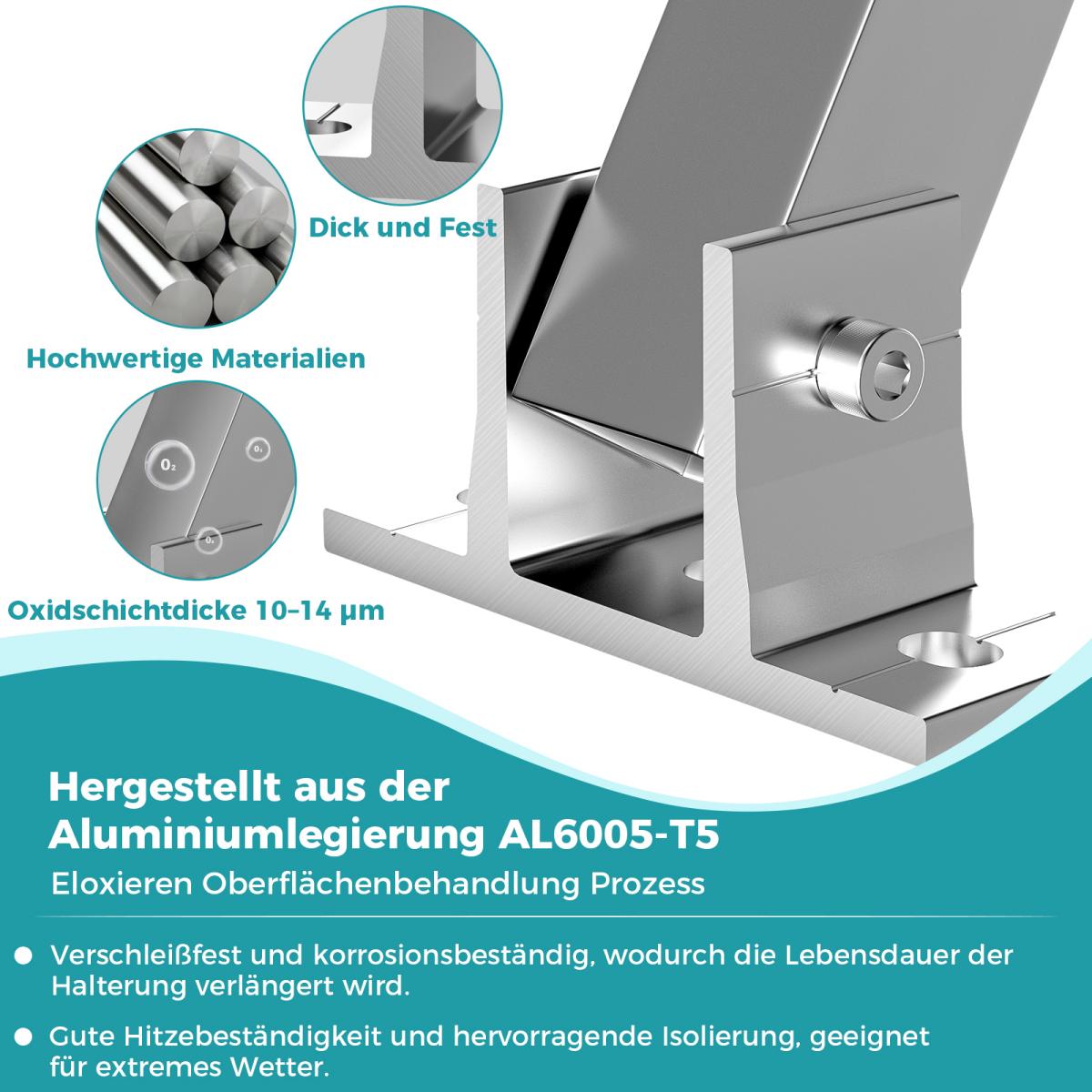

Material: aluminum alloy AL6005-T5

Hardness: 13HW

Bracket angle: 0-30 degrees

Oxide layer thickness: 12μ and above

Applicable range: 50W - 400W

Product weight: 1708 g

Package Size: 55*15*6cm

Long Bracket Length: 36cm - 68cm

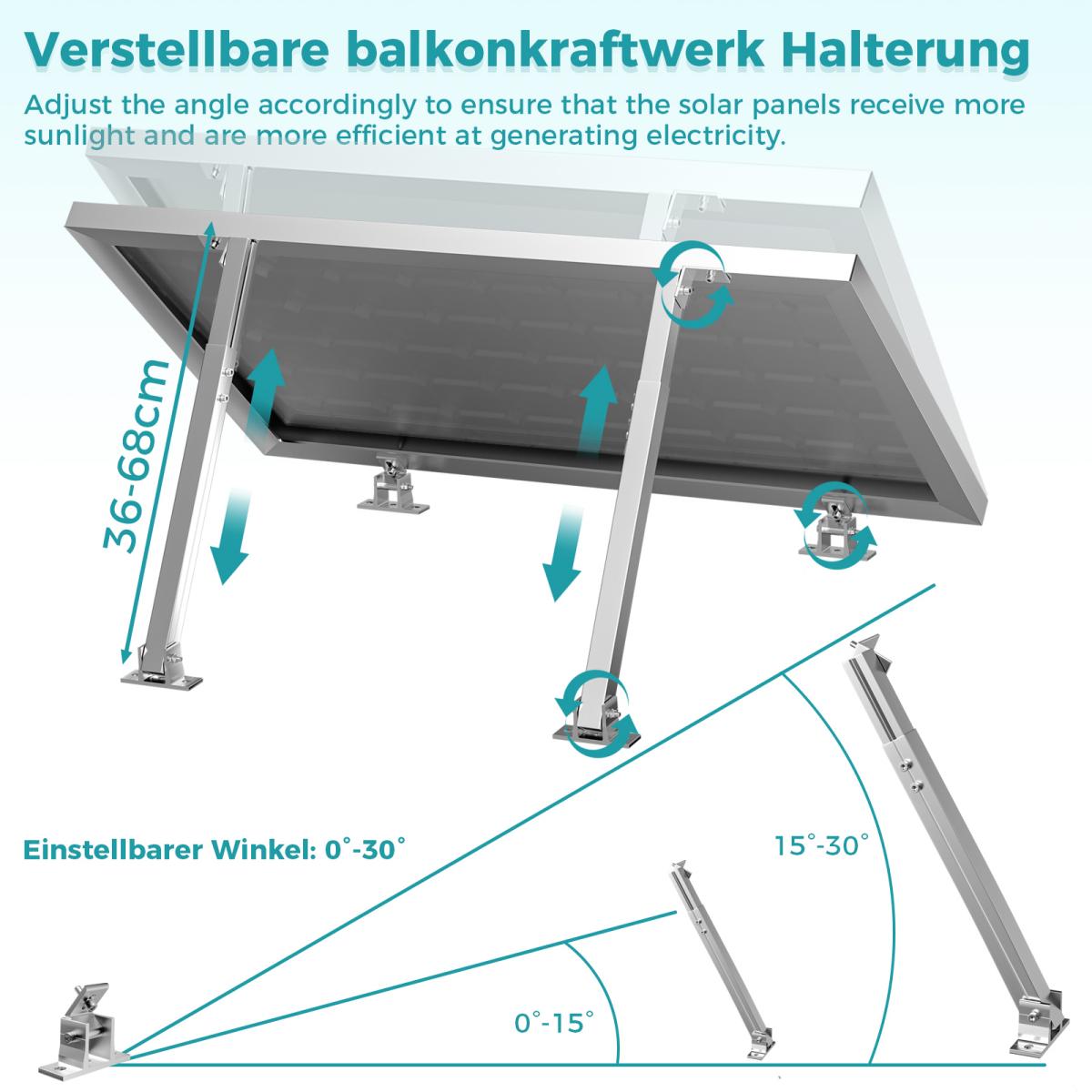

Another big advantage of the solar module stands are the four individual attachments, two of which can be adjusted in length. This gives you the opportunity to position the solar modules flexibly and also to adjust the angle of attack. This allows you to adjust the angle to the sun perfectly and individually in every season.

The stands are best suited for mounting solar modules on facades or flat roofs. However, these can also be mounted on any solid surface.

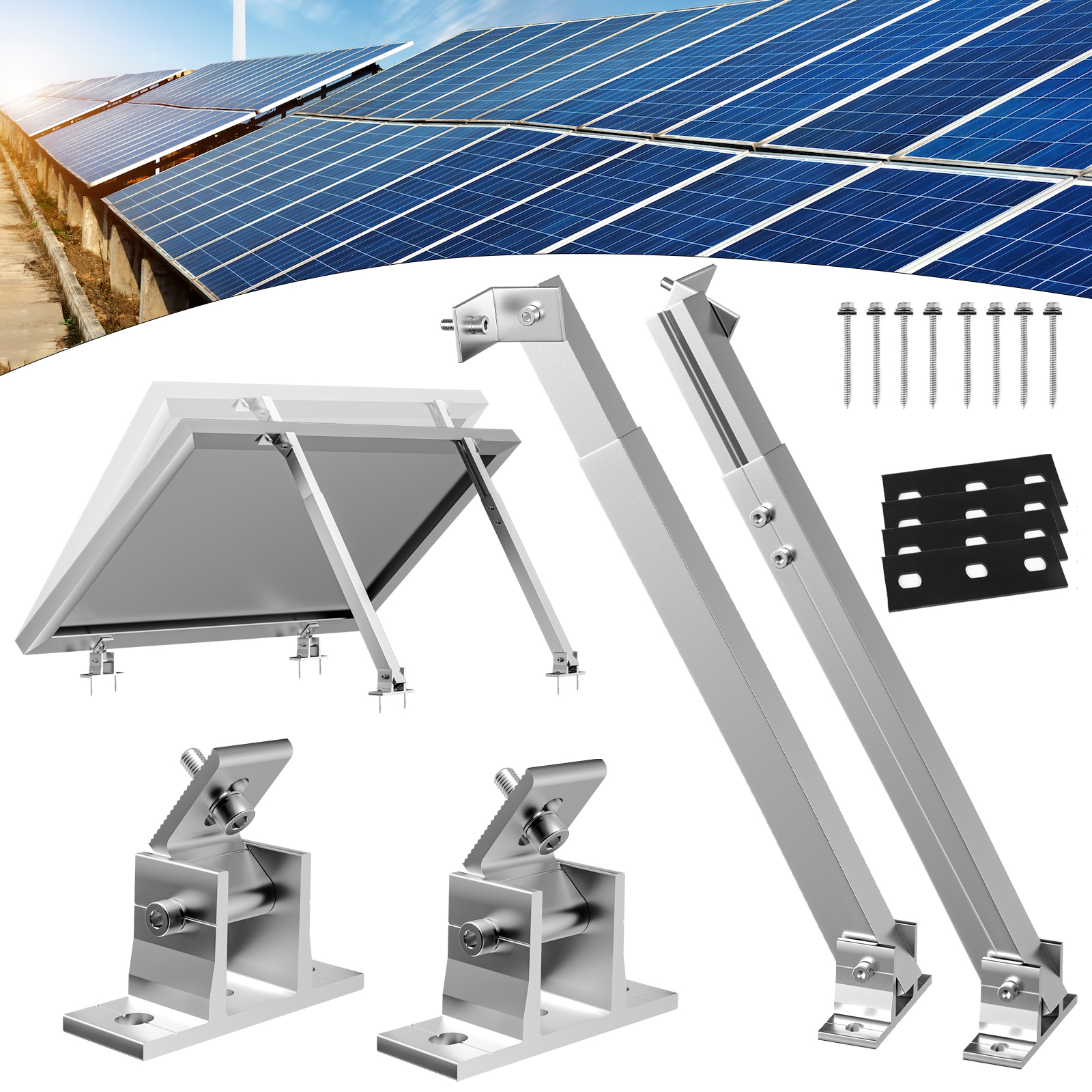

The set consists of two stands including the required assembly material.

Package included: (option)---The Bracket is already assembled.

1 SET

2 x short supports

2 x long supports

4 * Rubber Pads

8 * Screws

or

2 SET

4 x short supports

4 x long supports

8 * Rubber Pads

16 * Screws
