Note:
Before installing the air conditioning compressor, the pipes must be thoroughly cleaned to ensure they are completely free of contaminants and check whether the expansion valve, evaporator, and condenser are worn out and need replacing.
The compressor is pre installed with refrigerant oil and does not require additional addition, which may cause it to malfunction.
Features:
Built to strict quality control standards 100% factory tested.
100% Compatible with OEM Parts, meets Original Equipment Manufacturer (OEM) Standards.
This powerful auto AC compressor can provide intense pressure to achieve strong cooling effect, and it also manifests excellent performance in dissipating heat and ventilation.Longer life of the alternator through the use of premium brushes and other critical components that resist failure or poor performance.
Our AC compressor kit works efficiently under low noise and tiny vibration to provide you a super cool trip. Driving at a stable speed will help reduce fuel consumption.
The compressor is mainly made of high-strength aluminum alloy, therefore, it is not only durable but also ensures stability and a real long service life.

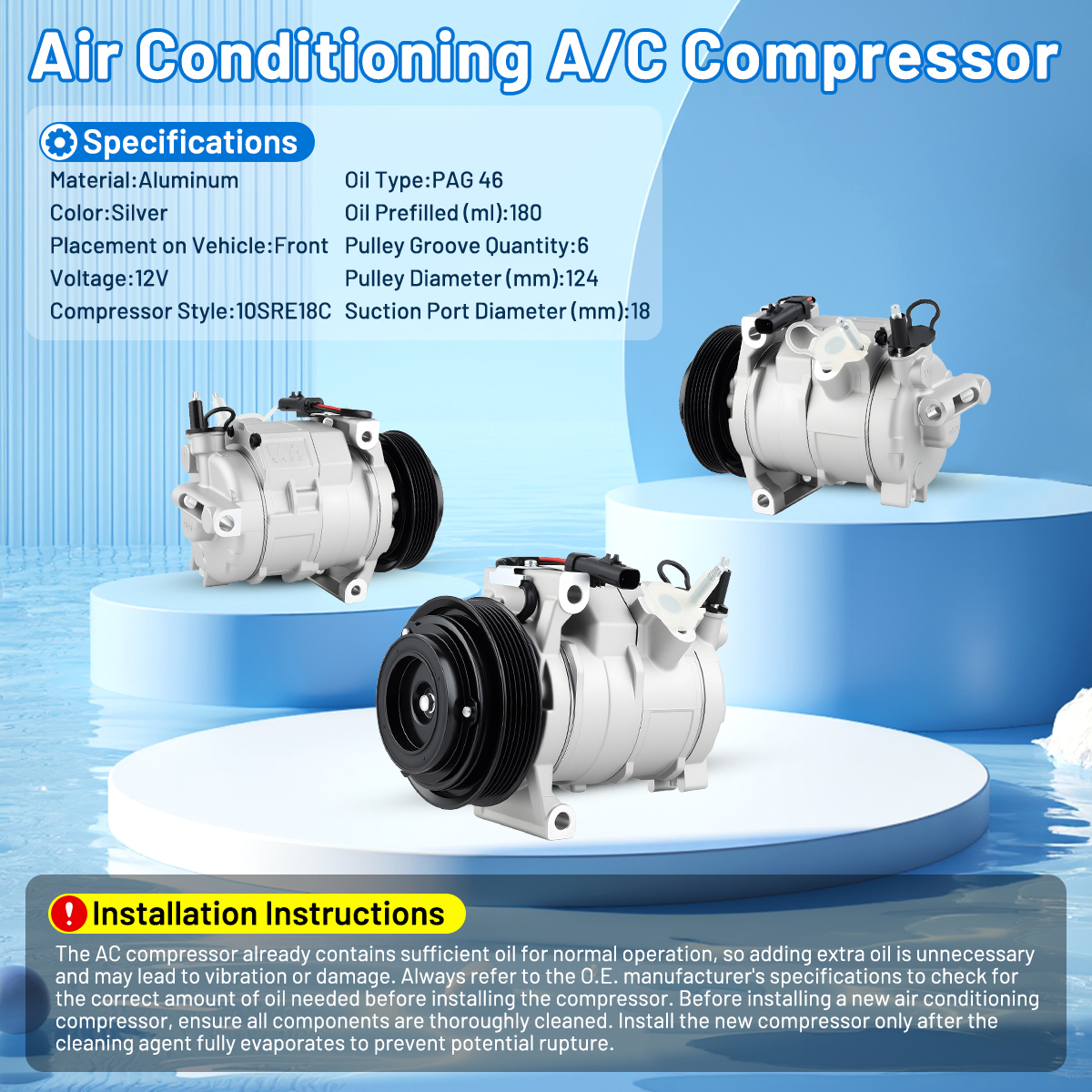

Specifications:
Material:Aluminum
Color:Silver
Placement on Vehicle:Front
Voltage:12V
Compressor Style:10SRE18C
Oil Type:PAG 46
Oil Prefilled (ml):180

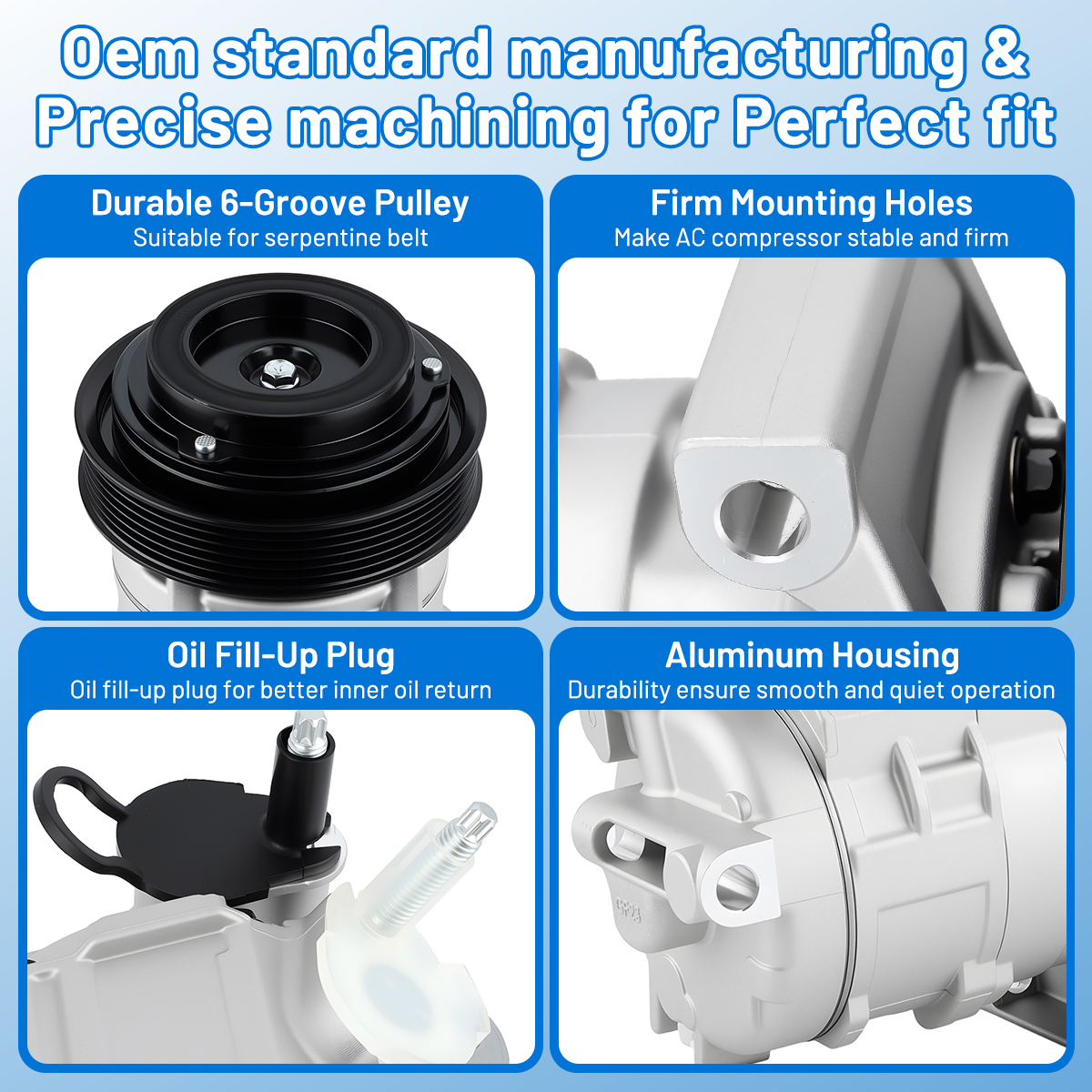

Pulley Groove Quantity:6
Pulley Diameter (mm):124
Suction Port Diameter (mm):18
Part Numbers:
05140461AB, 5140461AA, 55111442AD, 55111442AG, 57009385AA, 68050637AA, 68050637AB, 68050637AC, 68454989AA, 68454989AB, R5111442AD, RL111442AD, 3003858, 158377, 157377, CO 30012C
Fitment:
Dodge Ram 1500 2009-2010 V8 5.7L
Dodge Ram 2500 2009-2010 V8 5.7L
Dodge Ram 3500 2009 V8 5.7L
Dodge Ram 4000 2010 V8 5.7L
Ram 1500 2011-2013 V8 5.7L
Ram 2500 2011-2019 V8 5.7L
Ram 2500 2014-2024 V8 6.4L
Ram 3500 2011-2018 V8 5.7L
Ram 3500 2014-2024 V8 6.4L
Ram 4000 2011-2018 V8 5.7L
Ram 4000 2019-2020 V8 6.4L
Ram 4500 2014-2024 V8 6.4L
Ram 5500 2014-2024 V8 6.4L
Package include:

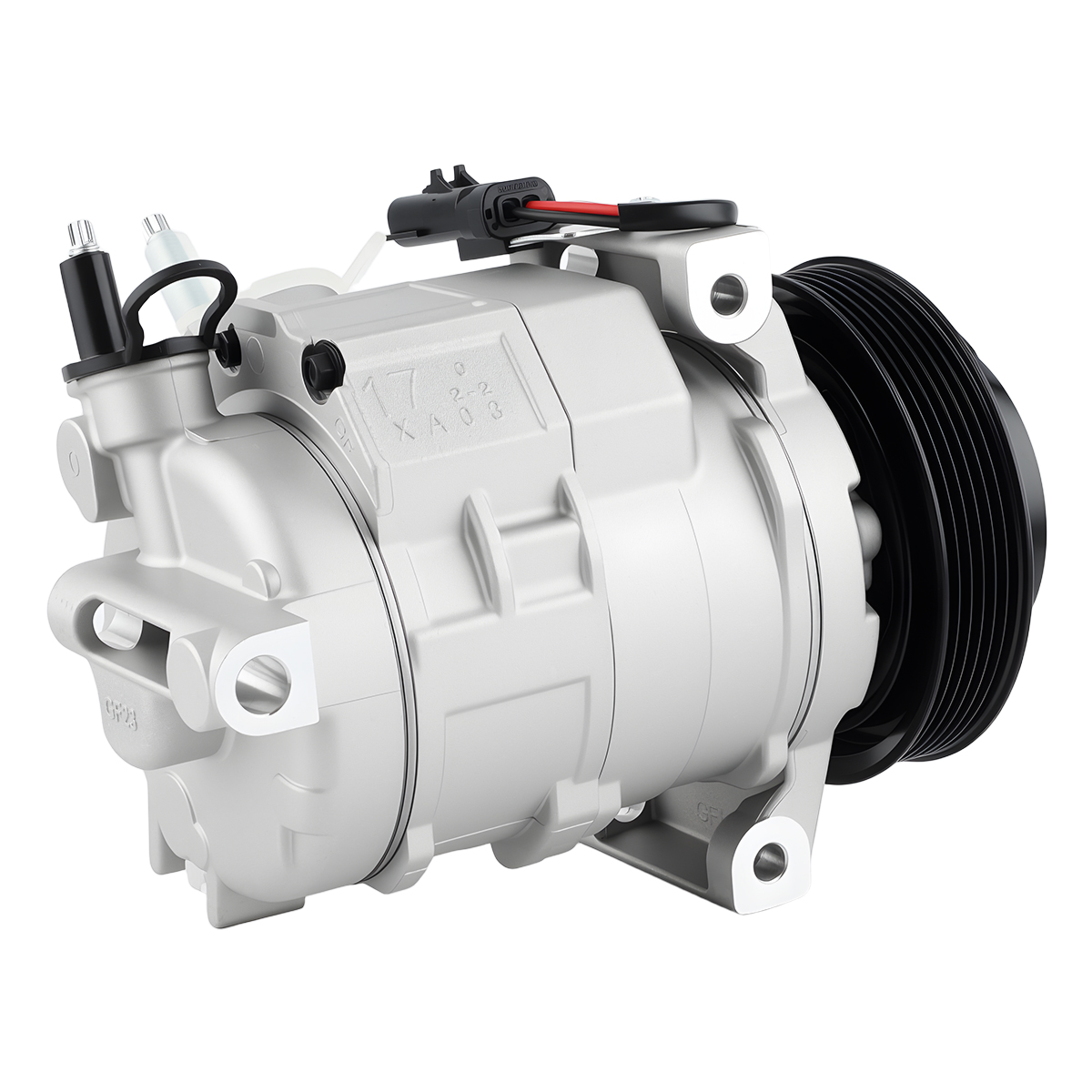

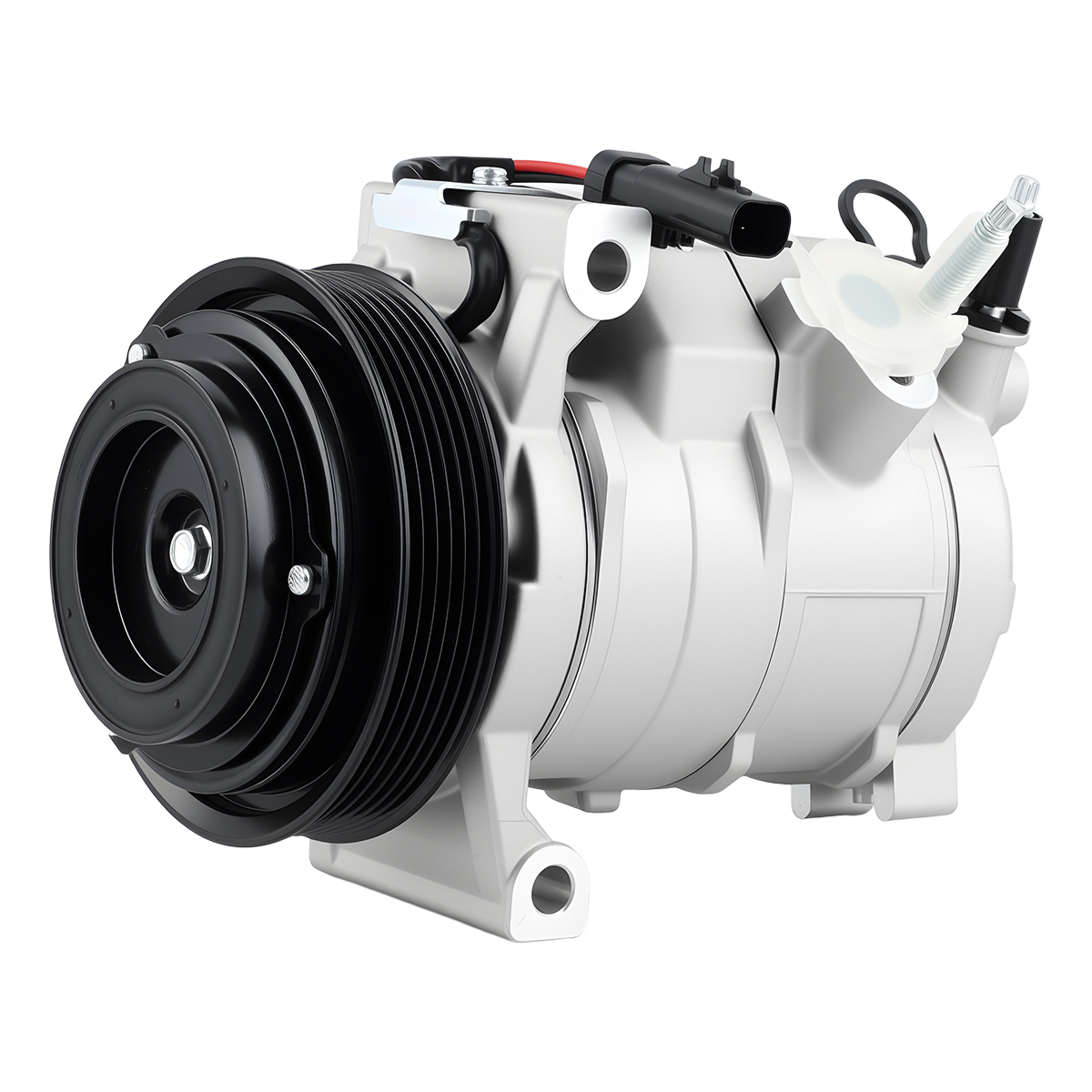

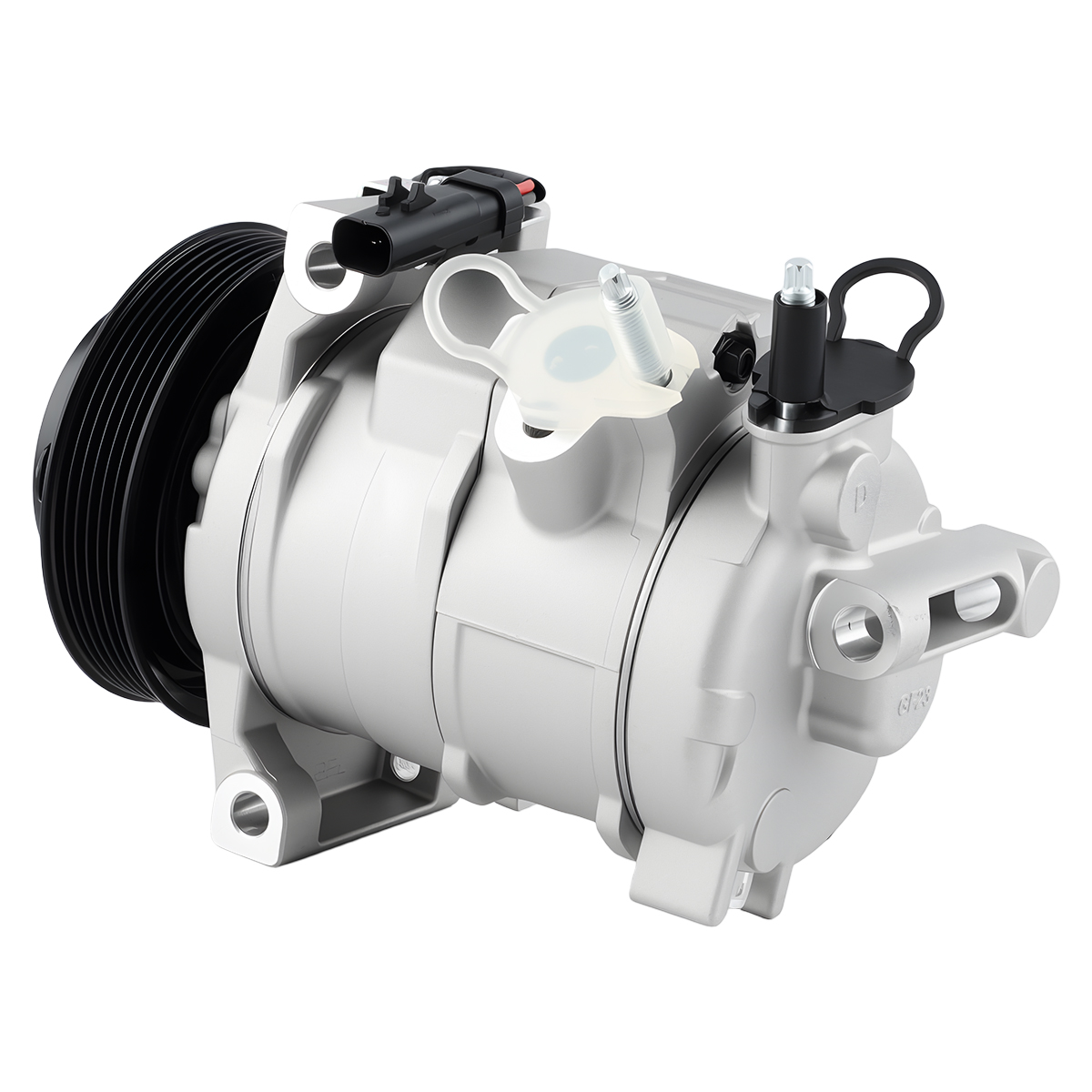

1 x A/C Compressor W/ Clutch

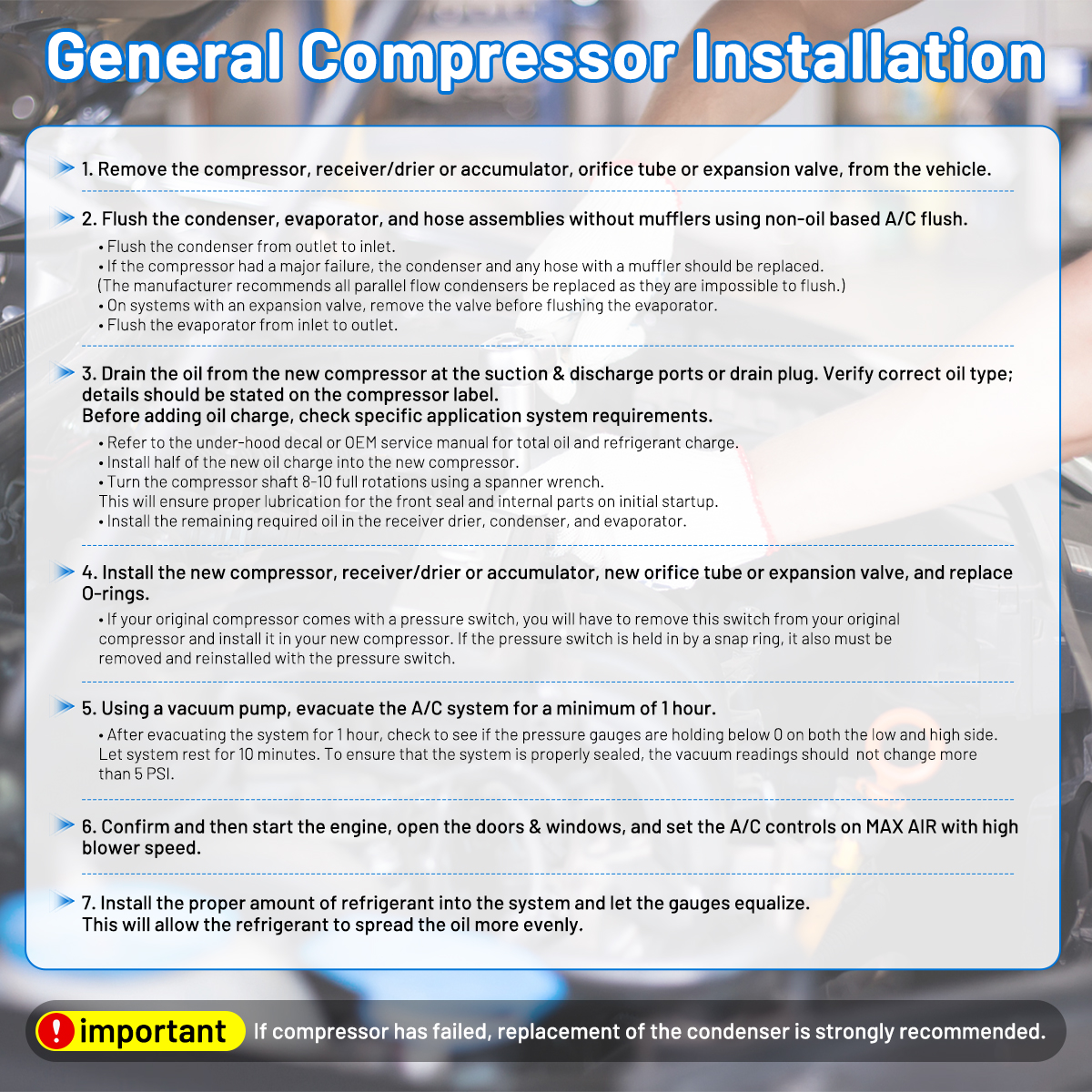

Attention:

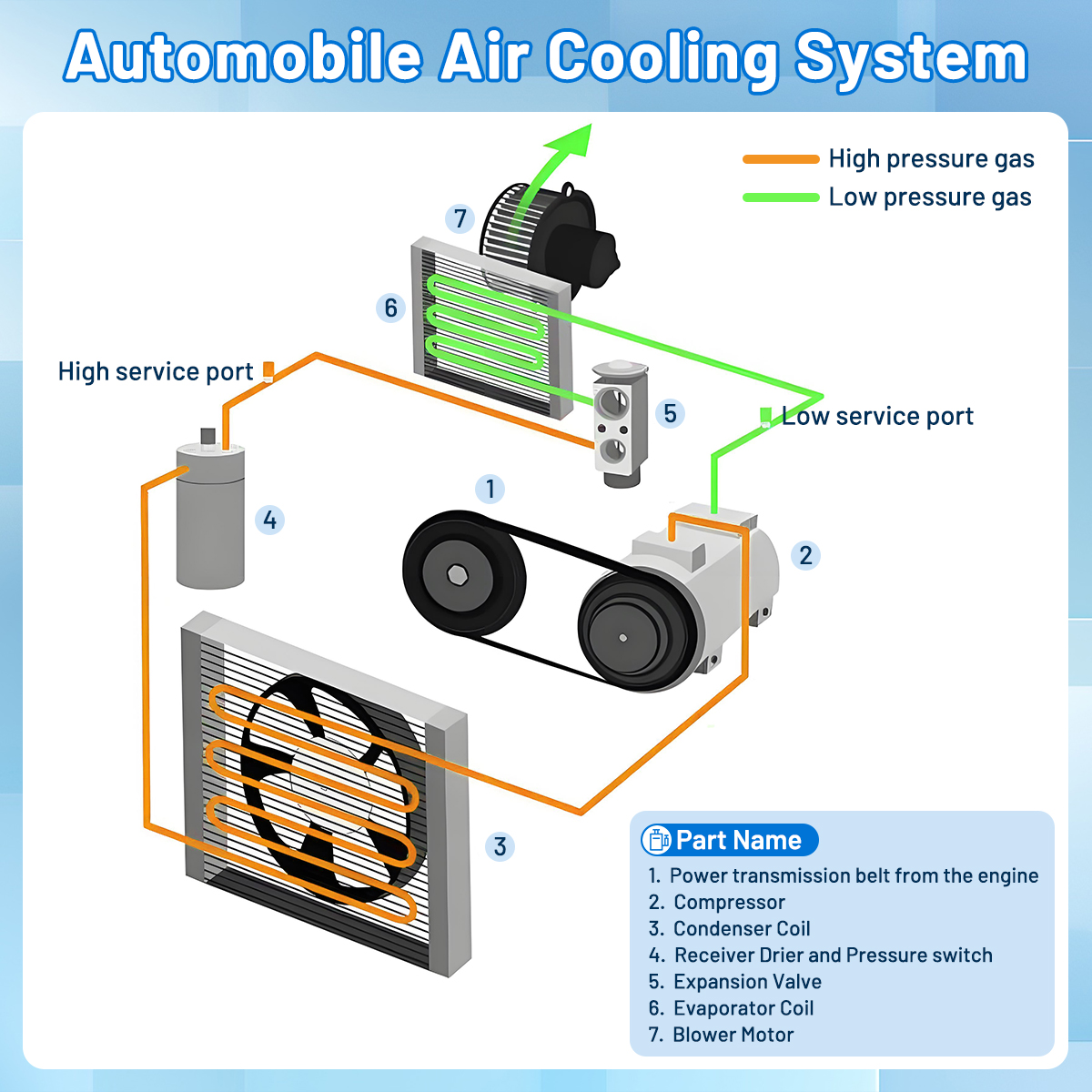

1.Remove compressor, receiver drier or accumulator, orifice tube or expansion valve.
2.Flush the condenser and evaporator using NON-OIL BASED A/C flush. On expansion valve systems. The valve must be removed before the evaporator can be flushed. Flushed condensers from outlet to inlet and evaporators from inlet to outlet.
3.Before installing the air conditioning compressor, the pipes must be thoroughly cleaned to ensure they are completely free of contaminants.
4.Install new receiver drier or accumulator and new orifice tube or expansion valve.
5.Evacuate the A/C system for a minimum of one hour.
6.After evacuation install half the refrigerant charge and let the system set for 1 minute. This will allow the refrigerant to pick up oil and spread more evenly throughout the system.
7.Add the remaining charge of refrigerant as called for by the manufacture.
8.Run the air conditioning system for a period of time and check whether the cooling performance is normal, while listening for any unusual noises from the compressor.
