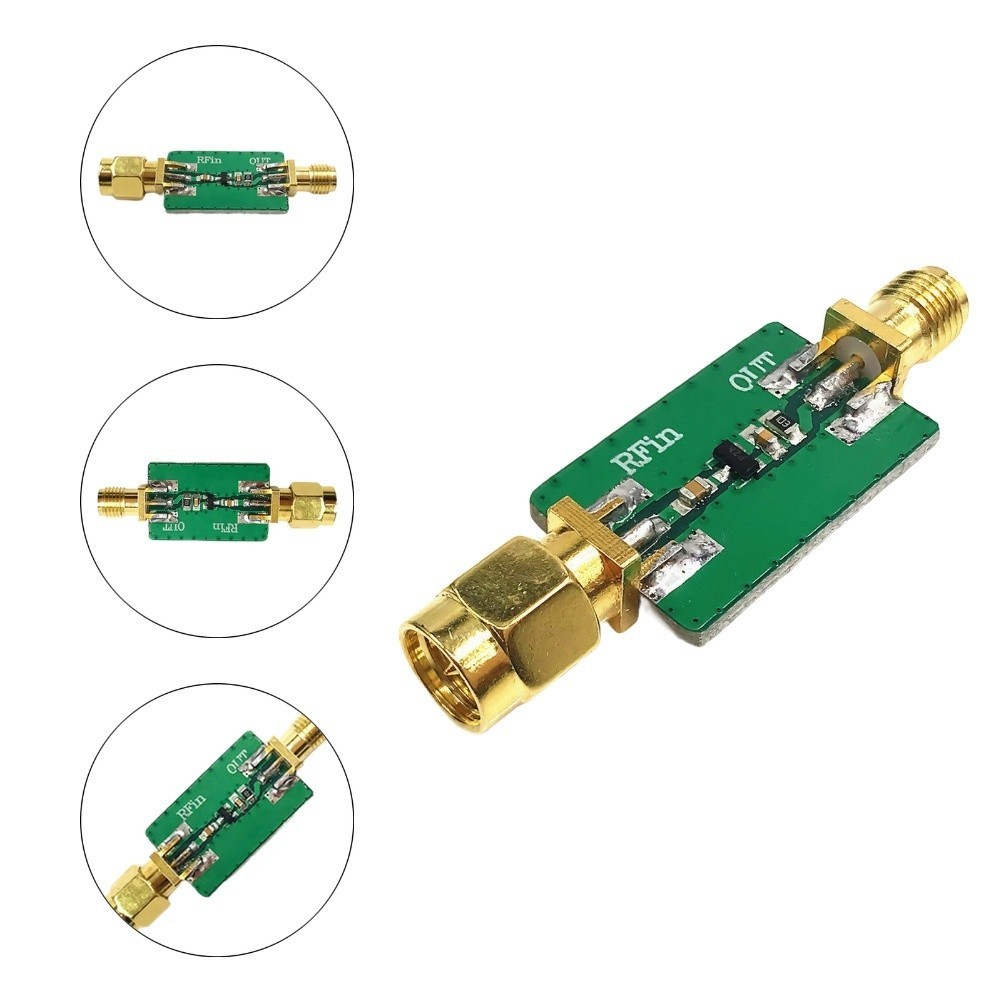

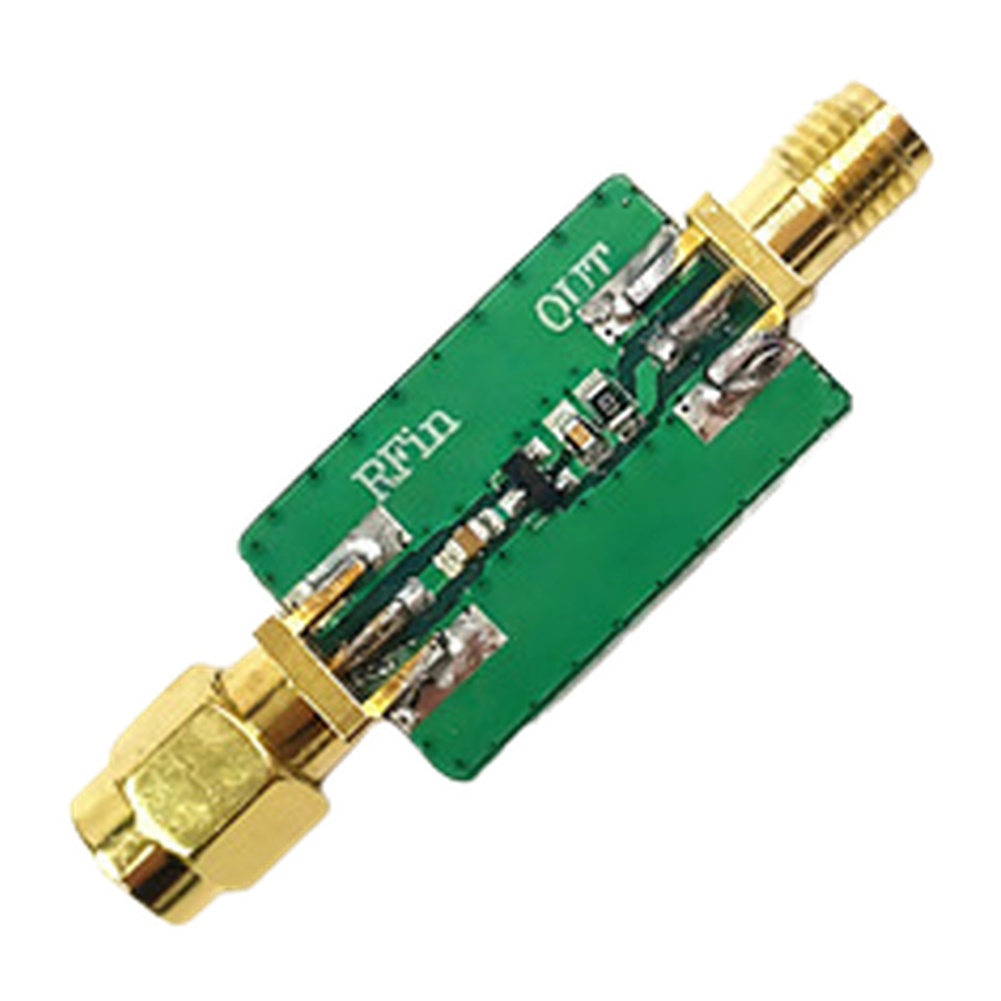

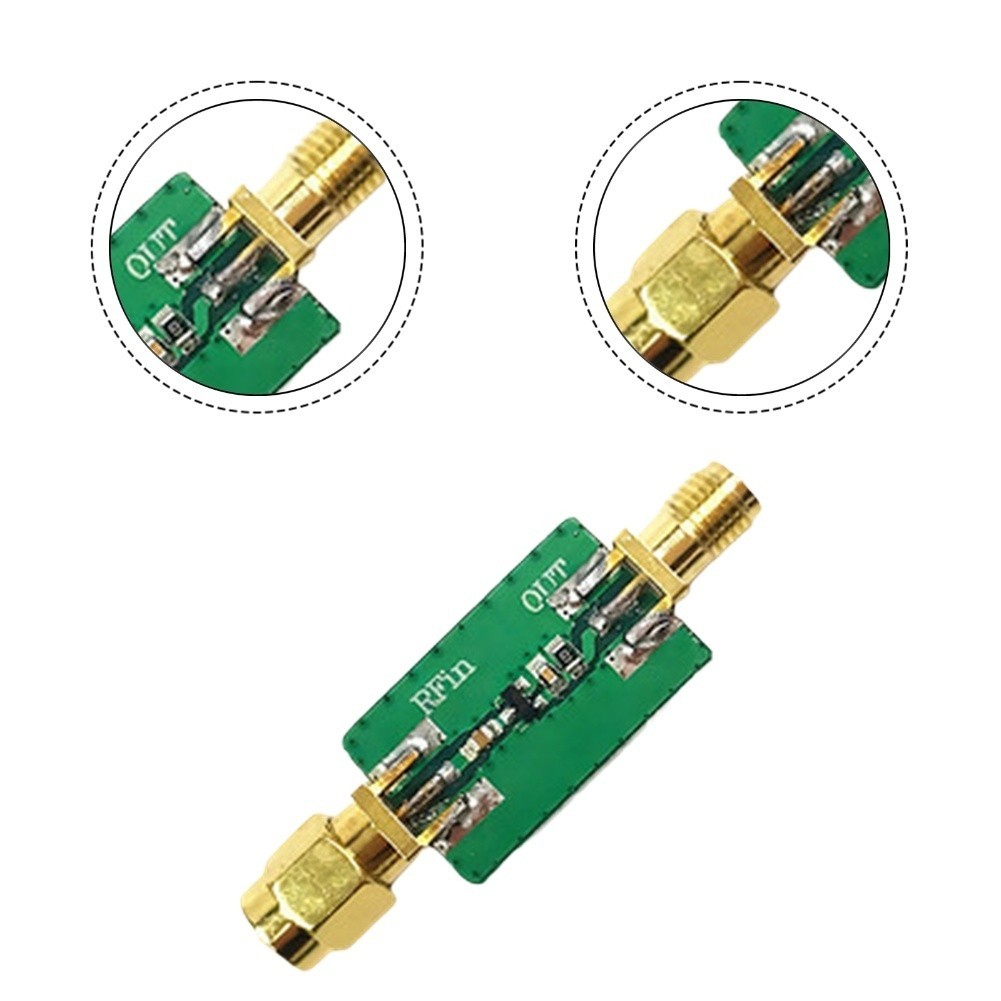

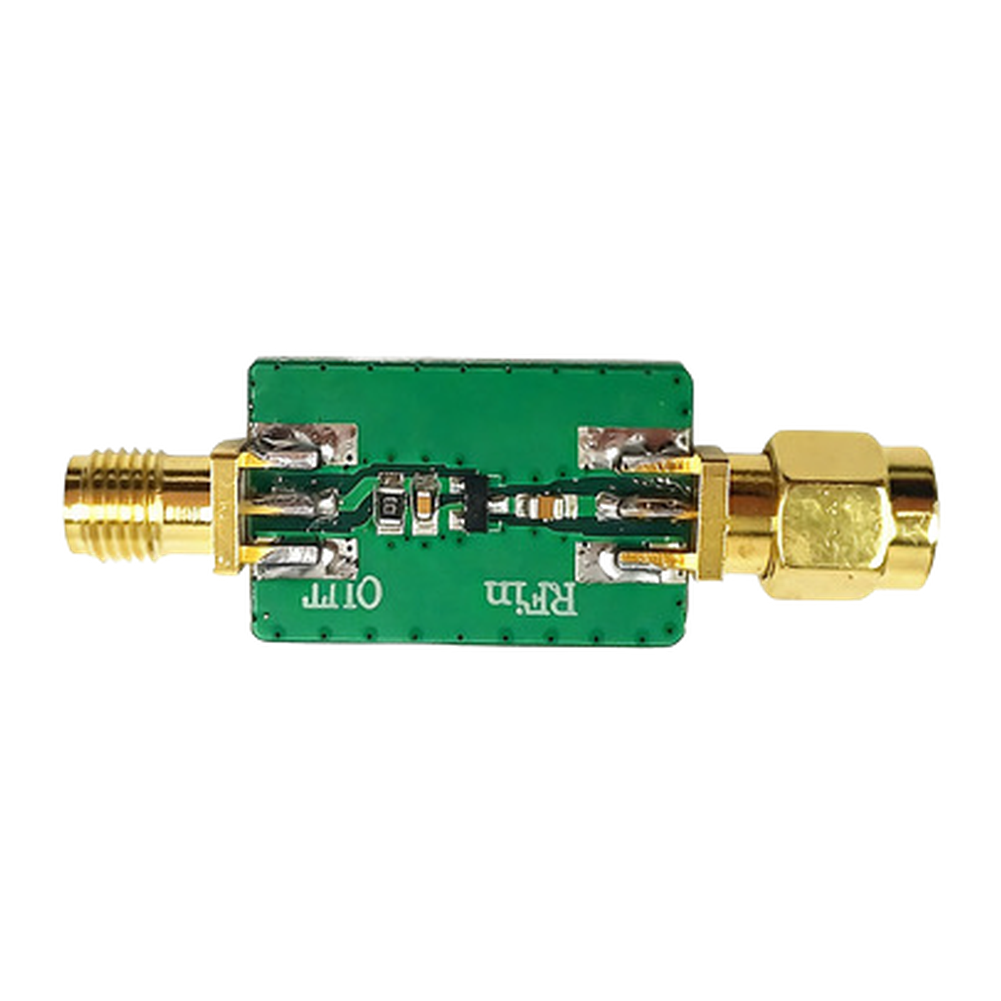

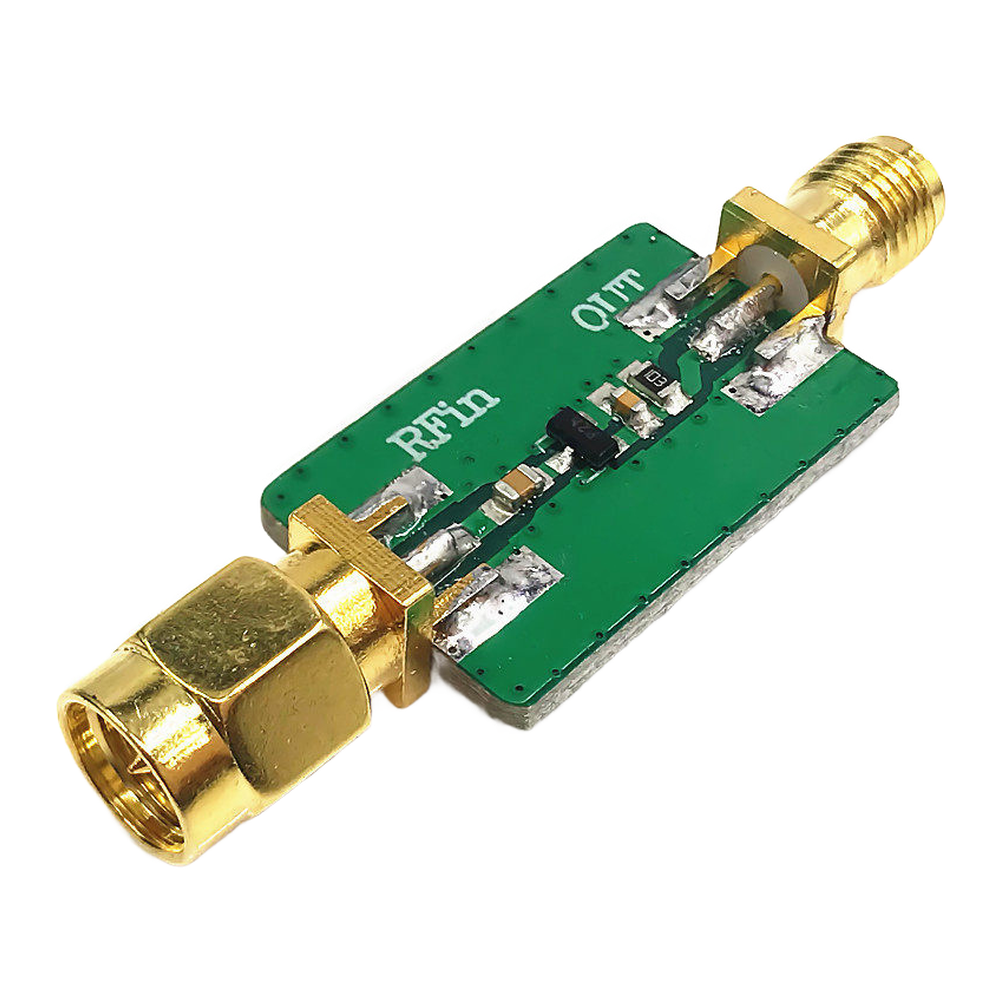

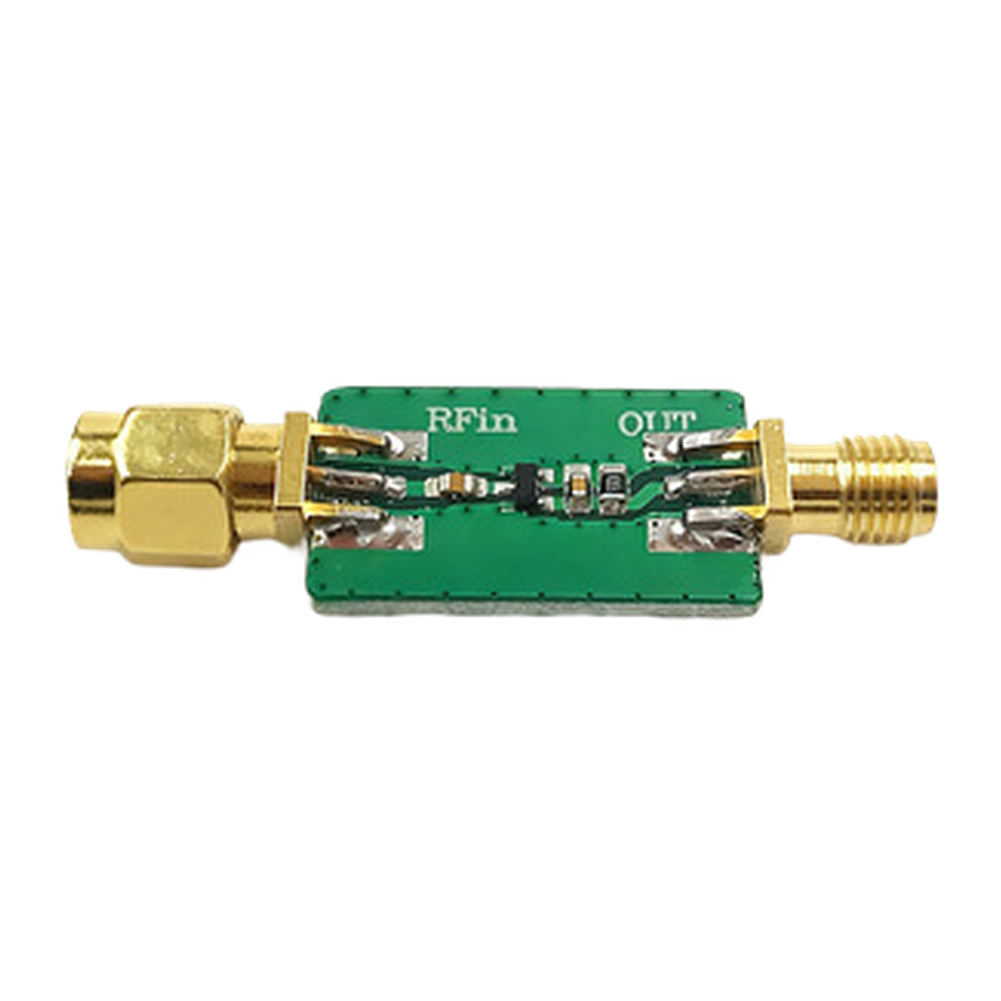

AM FM Signal RF Envelope Detector Dual Diode Design Radio Testing PCB Material
DESCRIPTION

Features:

*Wide Frequency Range: Covers 0.1-3200MHz for versatile signal detection for across various applications.

*High Sensitivity: Detects signals as low as -30dBm to -40dBm, for ideal for radio and AM signal detection.

*Fast Response Time: Offers PS-level speed for accurate pulse and discharge signal detection.

*Dual Diode Design: Utilizes advanced microwave diodes for improved sensitivity and performance.

*Adjustable Output: Features configurable RC filtering for customized frequency response and speed.


Specifications:

*Product Name: RF Envelope Detector

*Material: PCB

*Color: Green

*Size: Standard

*Maximum Input: 20dBm (burnout power) Linear Range <10dBm

*Detection Output: Default is positive (contact the seller for negative output)

*Operating Frequency: 0.1-3200MHz

*RC Filter: R=10K, C=1nF; (Two parallel components at the output port)



Package Content:

1* RF envelope detector


Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
