Product Description:

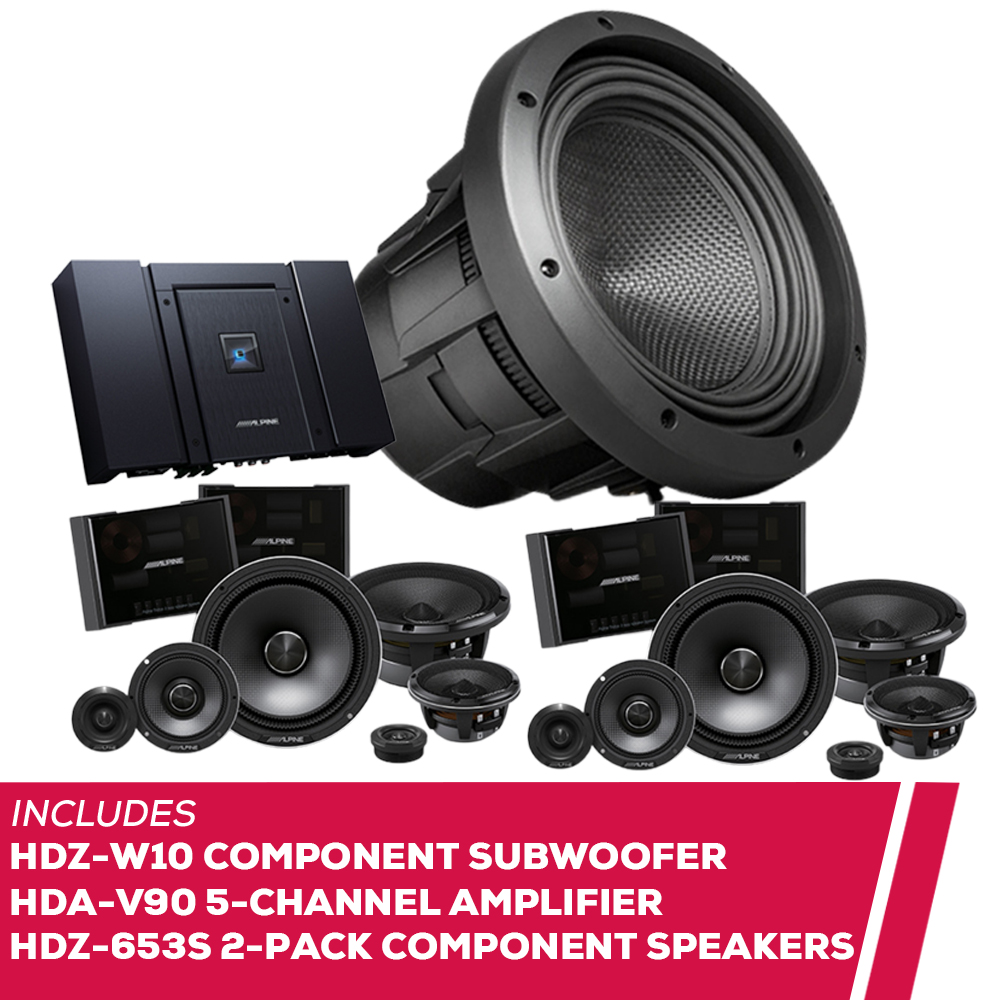

Alpine Status Series HDZ-W10 10" Component Subwoofer with HDA-V90 Amplifier and 2-Pack HDZ-653S 6.5" 3-Way Component Speakers

Upgrade your vehicle’s audio system with this premium Alpine package, which includes the powerful Status Series HDZ-W10 10" component subwoofer, the high-performance HDA-V90 amplifier, and a 2-pack of HDZ-653S 6.5" 3-way component speakers for rich, clear sound and deep, dynamic bass. Perfect for car audio enthusiasts seeking an immersive listening experience on every drive.

Alpine HDZ-W10 Component Subwoofer:

  • Condition: New
  • 10" Subwoofer
  • Carbon fiber dust cap with pulp-mica cone
  • Triple-stacked strontium ferrite magnets
  • HAMR surround for powerful bass
  • Dual progressive spiders with tinsel leads
  • Cast aluminum frame with trim ring
  • Extended pole geometry design
  • 20mm linear excursion
  • Frequency response: 24Hz–200Hz
  • Power: 800W RMS / 2400W peak
  • 2.6" (65.5mm) voice coil
  • Magnet weight: 174 oz (x3)
  • Mounting depth: 7-7/16"

Alpine HDA-V90 Amplifier:

  • Condition: New
  • Hi-Res audio playback (192kHz/24Bit)
  • 5-channel amplifier
  • High-efficiency digital circuit
  • Dual negative feedback control
  • Premium Class D design
  • Copper-plated chassis with black circuit board
  • One-sided terminal layout
  • Top panel sound controls
  • Quick connect power & speaker terminals
  • Power rating: 75W x 4 + 300W x 1 @ 4Ω, 100W x 4 + 500W x 1 @ 2Ω
  • Bridged output: 200W x 2 @ 4Ω (ch1/2, ch3/4)
  • THD+N: 0.02% (10W into 4Ω)
  • S/N ratio: 87dB (1W into 4Ω)
  • Frequency response: 8–60kHz (-3dB)
  • Damping factor: 500 (channels 1–4), 1000 (subwoofer)
  • Selectable input level (HI/LO)
  • Selectable 2/4/6-channel input
  • Variable high-pass/low-pass crossover
  • Variable subsonic filter (subwoofer)
  • Bass EQ: 0 to +12dB

Alpine HDZ-653S Component Speakers:

  • Condition: New
  • 3-Way speakers
  • Hi-res audio playback (192kHz/24Bit)
  • Carbon composite diaphragm material
  • Proprietary double-gathered edge surround
  • 6.5" mid-bass driver (16.5cm)
  • 3.5" midrange driver (8.5cm)
  • 1" high-range driver (2.5cm)
  • Power: 100W RMS / 300W peak
  • Frequency response: 55Hz–40kHz
  • Sensitivity: 88dB

We are Authorized Dealers and unit will come with full manufacture warranty
