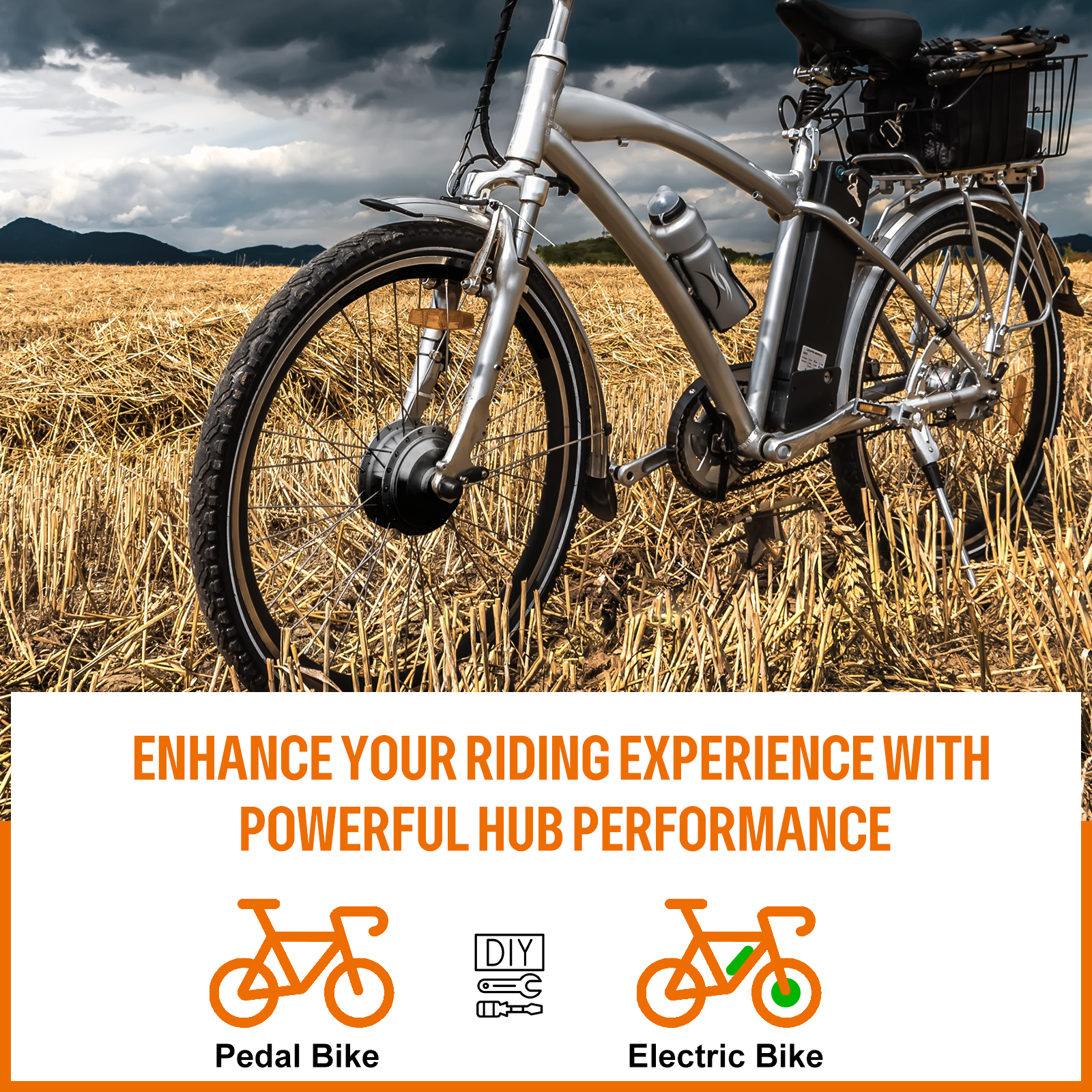

High-Performance Electric Bike: Experience the power of the Bafang G020 48V 500W electric bike, featuring a front-drive V-brake system for superior control and stability on various terrains.



High Efficiency ≥ 75%: Enjoy an energy-efficient ride with an efficiency rate of 75% or higher, ensuring longer battery life and reduced energy consumption.



Versatile Wheel Options: Choose between 26" and 700C wheel sizes for a customized riding experience that suits your preferences and riding conditions



Advanced V-Brake System: The reliable V-brake system ensures quick and safe stopping power, enhancing your control and safety on the road.



48V500W Front Hub Motor V brake & Disc brakes Specification:
Motor Model: FM G020.500.D Type
Brake Mode: V brake & Disc brakes
Wheel Size (Inch): 26'' /700C
Rated Voltage (DCV): 48V
Rated Power (W): 500W
Controller Current: 18A
Max Speed: 40KM/H (26"")
Max Torque: 65 N.m
Efficiency (%)≥ 75
Noise Grade (dB)< 55
Operating Temperature: -20℃-45℃
Waterproof rating: IPX5



PACKING LIST
1 * 48V500W Front hub motor wheel (Optional)
1 * Display (Optional)

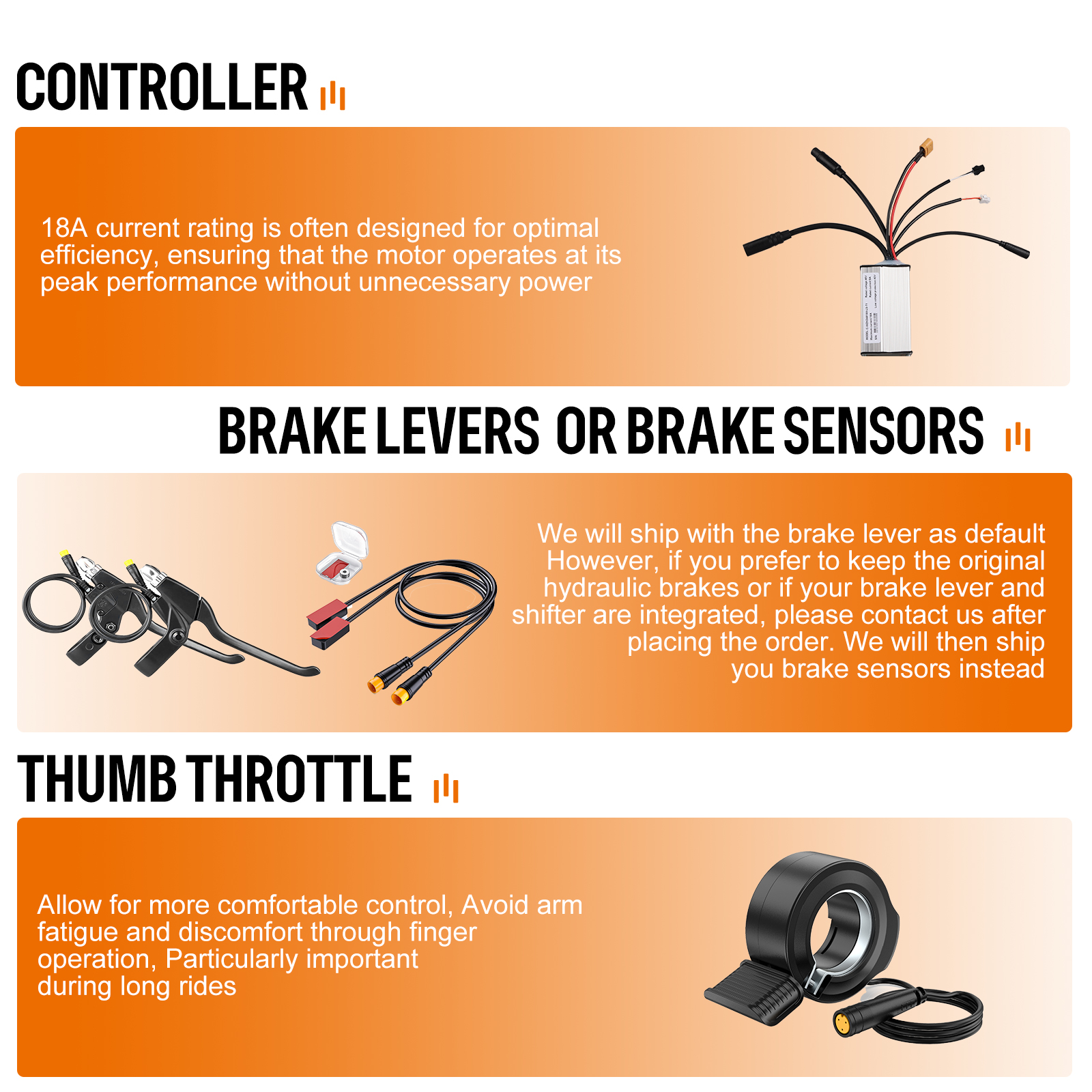

1 * Brake levers (Email us if you want brake sensors)
1 * Thumb throttle
1 * Controller box
1 * Controller

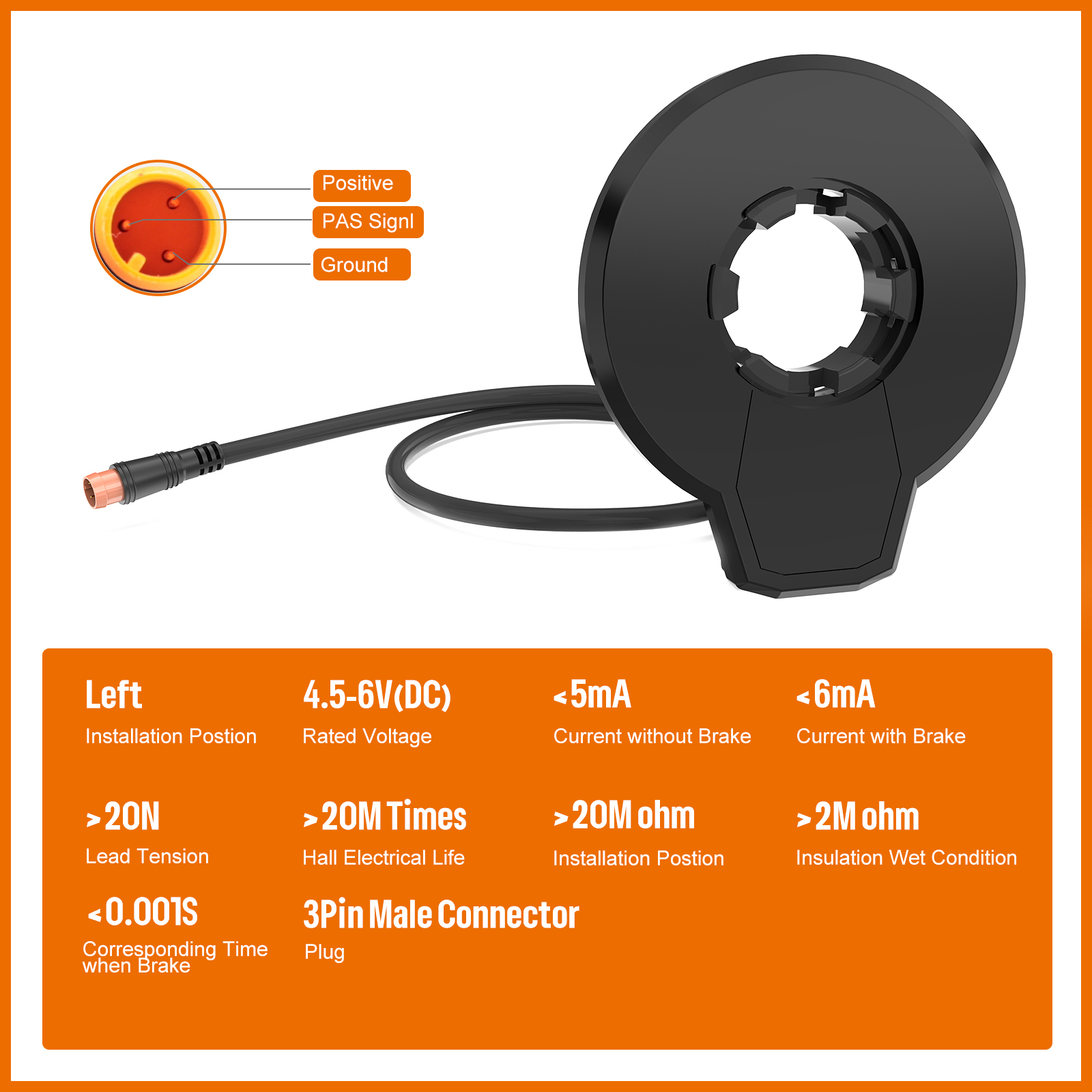

1 * Left side PAS sensor
1 * 1T4 cable
1 * Plastic Straps
1 * Headlight



Battery Inclusion Details:
Select the battery option to receive a charger included with your purchase.
Opting for the 'no battery' choice means the motor kit will be shipped without a battery. Your understanding is appreciated.





Choosing Brake Levers or Sensors:
We send the brake levers default.
The kit is compatible with or without brake sensors. For standard cable actuated brakes, select brake levers. For adapting existing brakes, especially hydraulic ones, magnet sensors are available.



Warranty Information:
Motors and Batteries: One-year warranty against defects and damage during transportation (excluding physical damage and misuse).

Accessories: One-month warranty.
Warranty Service: Free repair within one year from purchase date, with the buyer covering return postage and the seller covering resend postage.



Payment Details:
Additional costs may apply for remote area deliveries.



Return & Refund Policy:
Returns must be initiated within 14 days of receiving the item.
The buyer is responsible for return postage, and items must be in their original, unused condition.
Local return addresses will be provided for convenience.



Feedback:
Your satisfaction is our priority. We appreciate your 5-star feedback and are here to assist you with any issues.
