For sale is one (1) Sabine Dual Feedback Exterminator, model FBX2410.
The Power of FBX
FBX Feedback Exterminators set themselves apart for their
ability to control feedback during the program, not just at
setup time. If feedback occurs during that crucial moment of
the show, in the middle of the big solo, the FBX places a filter that
only kills the feedback, not the sound and power you work
so hard to achieve.
Features:
- Super-fast Automatic Feedback Control
- Quick and Quiet Setup
- Increased headroom and reduced noise floor
- Accurately distinguishes music from feedback
- Places filters with 1 Hz resolution
- Transparent – leaves your sound clear and untouched
- Provides more gain before feedback (6 to 9dB typical)
- 24-bit Digital Resolution
- Three-color LED filter display
- 12 Filters per channel
- Flexible Filter Controls
- Dynamic Filter Reset
- XLR & ¼”TRS inputs/outputs*

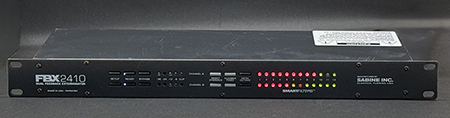

These units are in previously owned condition, removed from a previous install when upgrades were made. We have multiple units in inventory, the images to the left are an representative for condition of units. Some scuffs and scratches or spots where labels/Velcro have been removed can be expected. Some of the clear plastic above the colored indicator lights may be pushed in a bit making it more difficult to see the lights, but they still work. All units have been tested to power on, no further testing was done. Uses standard grounded power cable (not included).
| Manufacture |
Sabine |
| P/N |
FBX2410 |
| Engineering Specifications |
FILTERS
- 12 independent digital notch filters per channel, controlled automatically from 40 Hz to 20 KHz.
- Filter width: user-controllable – either 1/10 or 1/5 octave, constant “Q”
- Resolution: 1 Hz
- Time required to find and eliminate feedback: 0.4 seconds, typical
@ 1 KHz
- Number of Dynamic vs. Fixed filters per channel: user selectable.
Last configuration stored in memory.
INPUT/OUTPUT
- Input/Output Maximum Signal Levels: Balanced +18dBV peak,
unbalanced +12 dBV peak
- Output Drive: Unit will perform as specified driving a load >600 Ohms
- Input Impedance: Balanced or unbalanced >40K Ohms, PIN 2 high
- Output Impedance: Balanced or unbalanced 150 Ohms nominal,
PIN 2 high
- Bypass: True power off bypass
- Headroom: +14 dB peak @ 4 dBV nominal input, balanced
- I/O Connectors: XLR-3 and 1/4” TRS
PERFORMANCE
- Frequency response: 20 Hz - 20 KHz +/- 0.3 dB
- Gain matching: +/- 0.2 dB
- Spectral Variation: + 0.25 dB, 20 Hz to 20 KHz
- SNR - Dynamic Range: >108 dB
- THD: .005% at 1 KHz. < 0.01% 20 Hz - 10 KHz, < 0.025% 10 KHz
- 20 KHz
POWER INPUT
- 115 VAC: 100 - 130 VAC 50/60 Hz
- 230 VAC: 200 - 240 VAC 50/60 Hz
|
| Dimensions |
1U Rack Enclosure w/Mounting Brackets |
| Included Item |
Dual Feedback Exterminator |
| Condition |
Previously owned |
Removed from working A/V setup. Power on tested appears to be in working condition with no issues when removed from previous install.*All information correct to the best of sellers knowledge. Information taken from actual Sabine tech sheet and close hands on inspection of item. |
Images to the left are representative of item for sale. Click on the small images above to view larger. Please feel free to ask any questions you may have before buying. |
