Features:
Built to strict quality control standards 100% factory tested.
Rugged and stable car alternator, matched against OE originals for performance.
This alternators Key components are greased for noise, vibration, exposure and voltage stability to help with long term reliability and durability in harsh conditions.
Longer life of the alternator through the use of premium brushes and other critical components that resist failure or poor performance.
This automotive alternator provides high efficiency and reliability, ensuring stable power supply for your vehicle. It utilizes modern design and manufacturing technologies to deliver excellent performance and provide reliable power for various electrical equipment and charging systems.

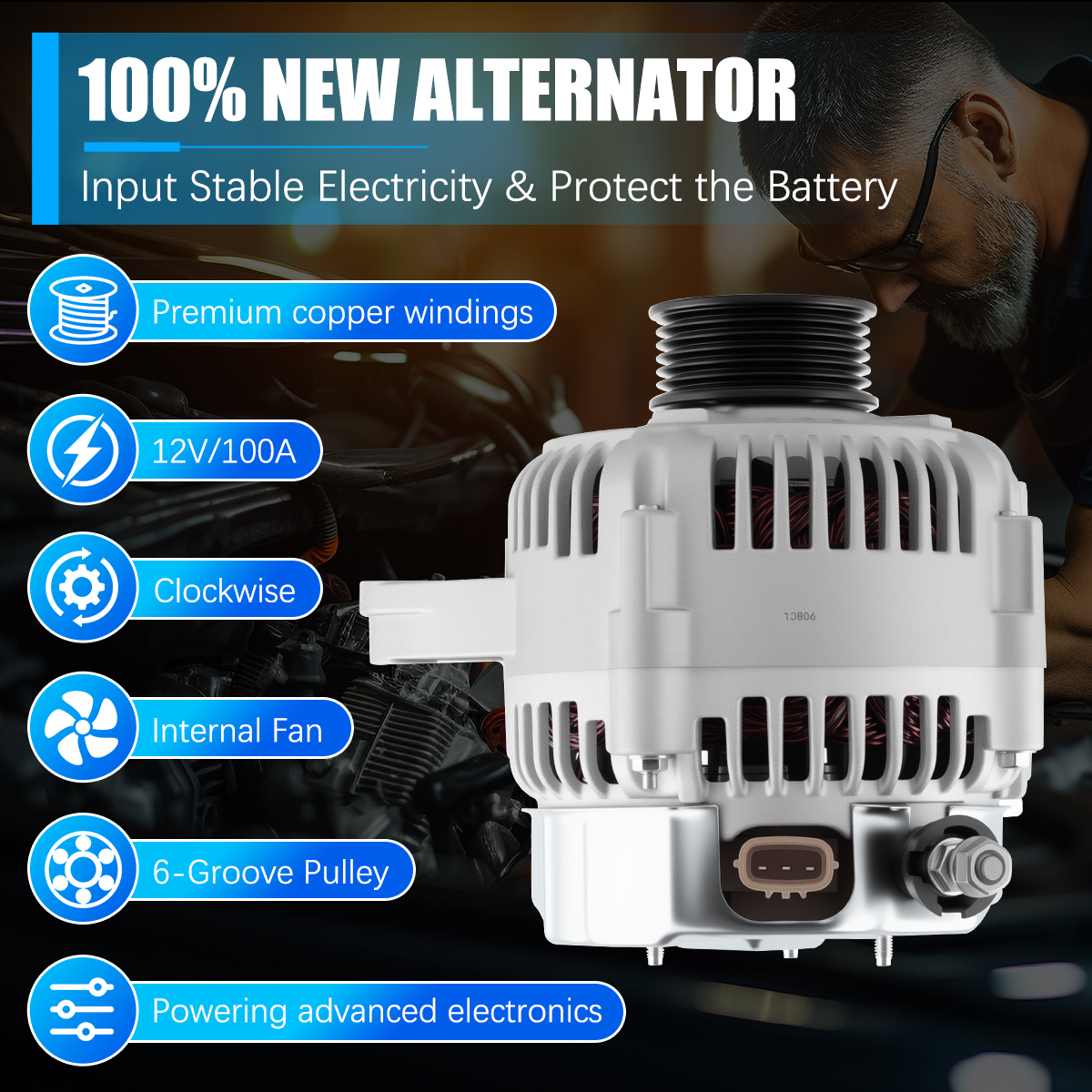

Specifications:
Material:Aluminum
Color:Silver
Placement on Vehicle:Front
Voltage:12V
Rotation:CW
Amperage:100
Pulley Groove Quantity:6
Regulator:IR
Fan Type:IF
Part Numbers:
Toyota: 27060-0A040, 27060-0A040-84, 27060-20090, 27060-20090-84
Denso: 101211-7670, 101211-7750
Lester: 13806
Arrowhead: AND0181
J & N Automotive: 400-52051
AC-Delco: 334-1350
TYC: 2-13806
Remy Remanufactured: 12008, 12224
Rayloc: 13-9043, 139043, 139425
NAPA: 213-9043, 213-9425
MPA: 13806
NAPA Pro Series: 13706
BBB Ind: 13806
Wilson: 90-29-5596
Carquest: 13806A
Bosch Remanufactured: AL3298X
Delphi: RM4145
Wilson New: 90-29-5596N
Hollander: 58762
LTD New: N13806
BBB New: N13806
Rayloc New: 1N9043
Carquest New: 13806AN
Denso First Time Fit: 210-0438, 210-0402
Denso Remanufactured: 9661219-767, 9661219-775
Romaine Electric: 13706N
Dixie Electric: A-8676
Fitment:
Toyota Sienna 1998-2003 V6 3.0L
Package include:
1 x Alternator
Attention:
HOW TO REPLACE AN ALTERNATOR?
1. Disconnect the negative battery cable
2. Take off the intake hose, mass airflow sensor, and air filter.
3. Loosen the belt tensioner.
4. Remove the belt from the pulley.
5. Loosen and remove the alternator.
6. Remove dust and oil from the installation position.
7. Install the new alternator.
8. Replace the bolts, and reattach all connections.
9. Reinstall the belt.
10. Connect the intake hose and reinstall the mass airflow sensor
11. Reconnect the negative battery cable
Note:
When The Alternator Makes A Noise, You Need to Operate:
If the noise of the alternator is mainly concentrated in the speed change stage of the automobile alternator, check the alternator belt first, and adjust or replace it.
If the noise mainly occurs in the front and rear parts of the automobile alternator, it may be that the bearing lubrication of the alternator has a problem.
If the noise mainly appears in the middle of the automobile alternator and obvious vibration sense can be observed,there is friction between the stator and rotor of the automobile alternator.The alternator can be disassembled for adjustment or component replacement.
