WENGLOR

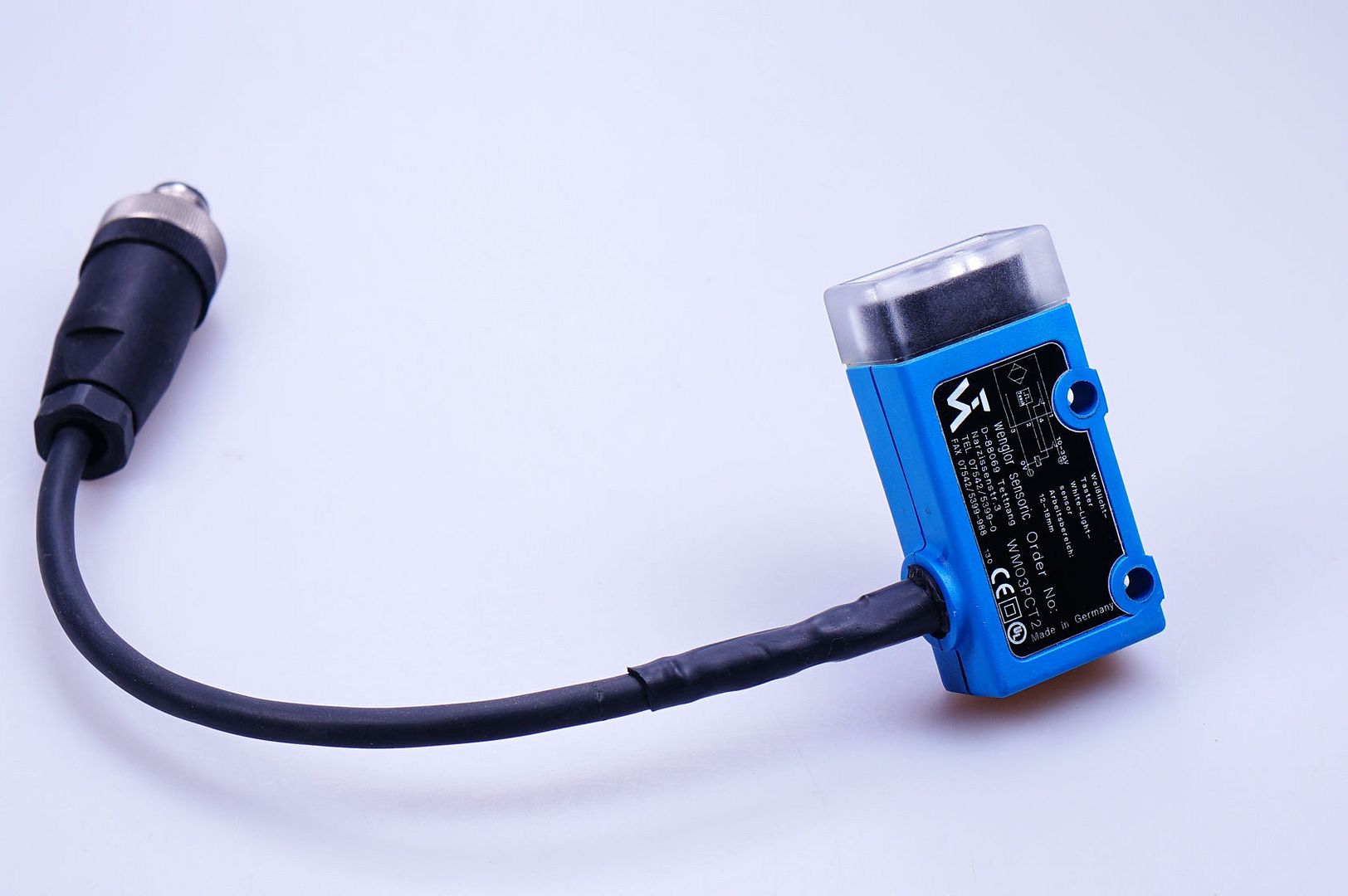

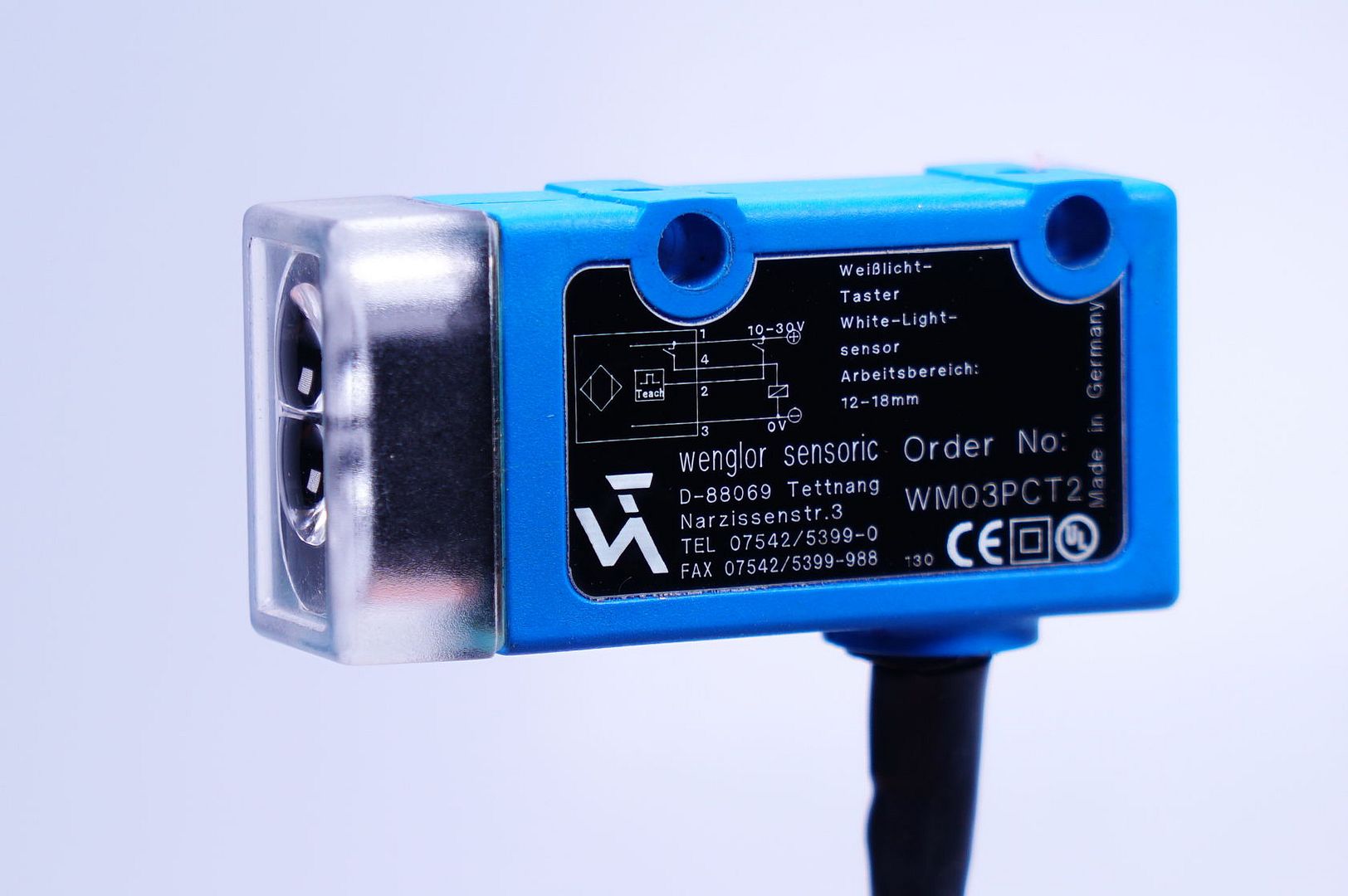

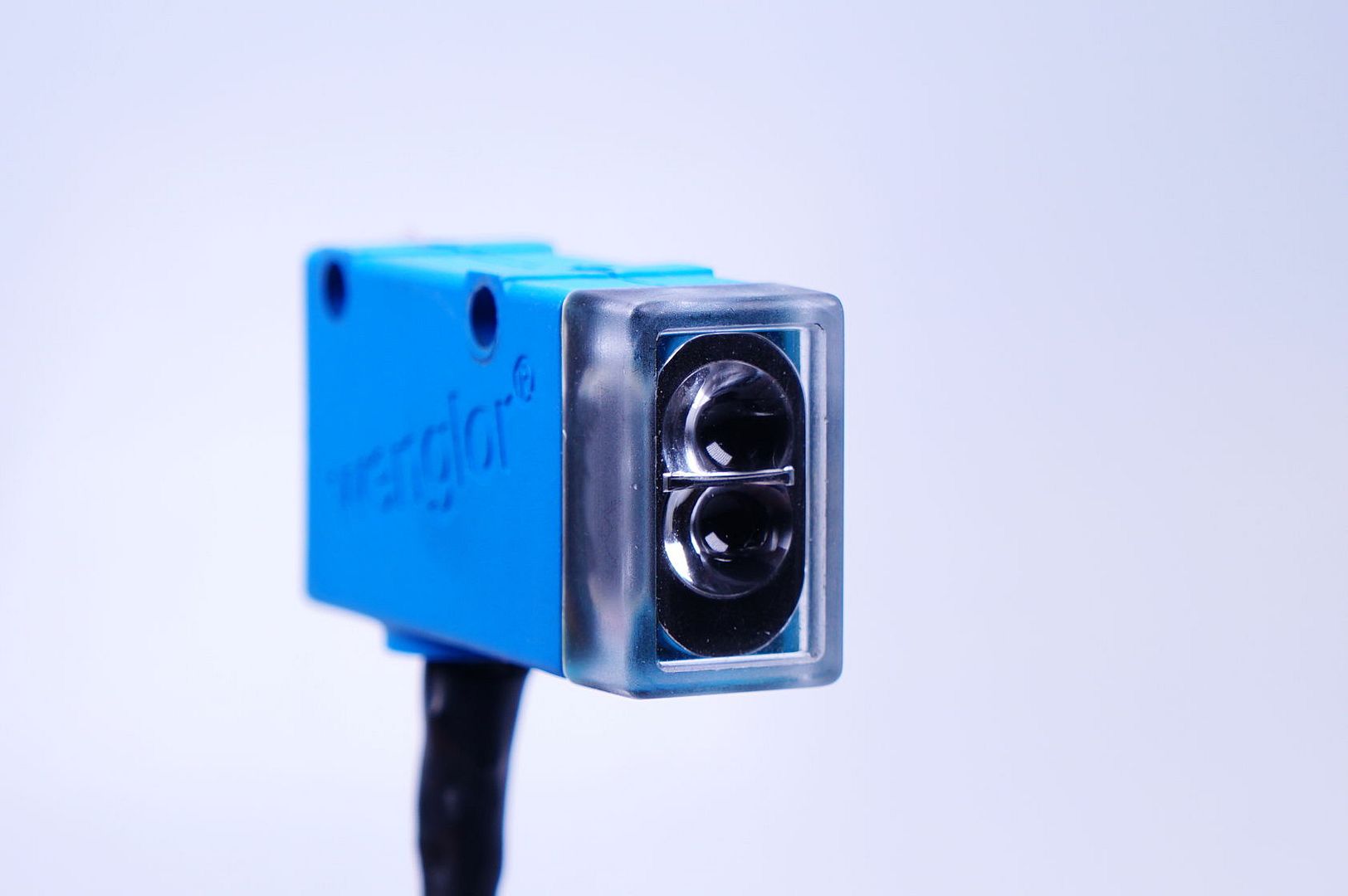

White light scanner / print mark reader
Type WM03PCT2

Used, from a warehouse clearance

optical data
Working range 12...18 mm
Working distance 15 mm
Resolution 20 shades of gray
Switching hysteresis < 2%
Light type white light
Wavelength 400...700 nm
Lifetime (Tu = +25 °C) 100000 h
Max. allowed Extraneous light 10000 lux
Light spot diameter 1.5 × 2.5 mm
electrical data
Supply voltage 10...30 V DC
Current consumption (Ub = 24 V) < 30 mA
Switching frequency 5 kHz
Response time 100 µs
Release time delay 20 ms
Release time delay (RS-232) 0...2 s
Temperature drift < 2%
Temperature range -25...60 °C
Voltage drop switching output < 2.5 V
Switching current PNP switching output 200 mA
Short-circuit proof yes
Reverse polarity yes
Overload safe yes
Lockable yes
Teach-in mode ZT, FT
Protection class III
mechanical data
Teach-in setting type
Material housing plastic
Full encapsulation yes
Degree of protection IP67
Connection type M12 × 1; 4 pin
Safety Data
MTTFd (EN ISO 13849-1) 2164.07 a
output function
PNP opener/closer switchable yes
RS-232 with adapter box yes
