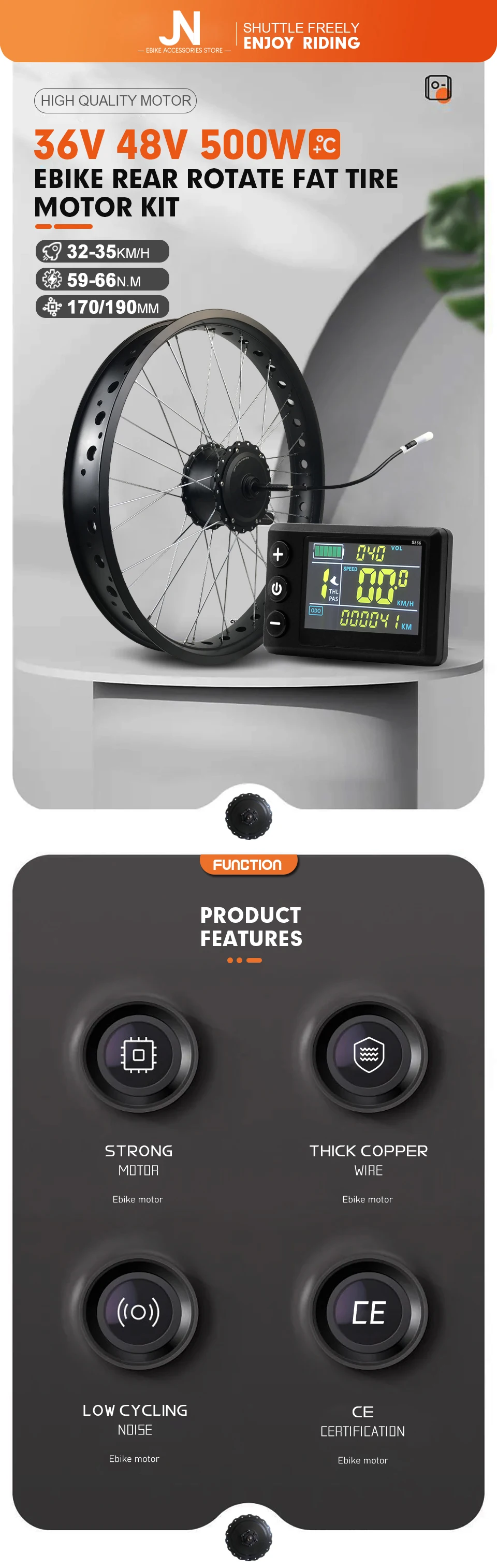

500W Rear Motor Wheel:

1. Full Speed:

   500W about 32-35km/h,

    (different wheel size, road&weather condition and rider's weight will have different speed)

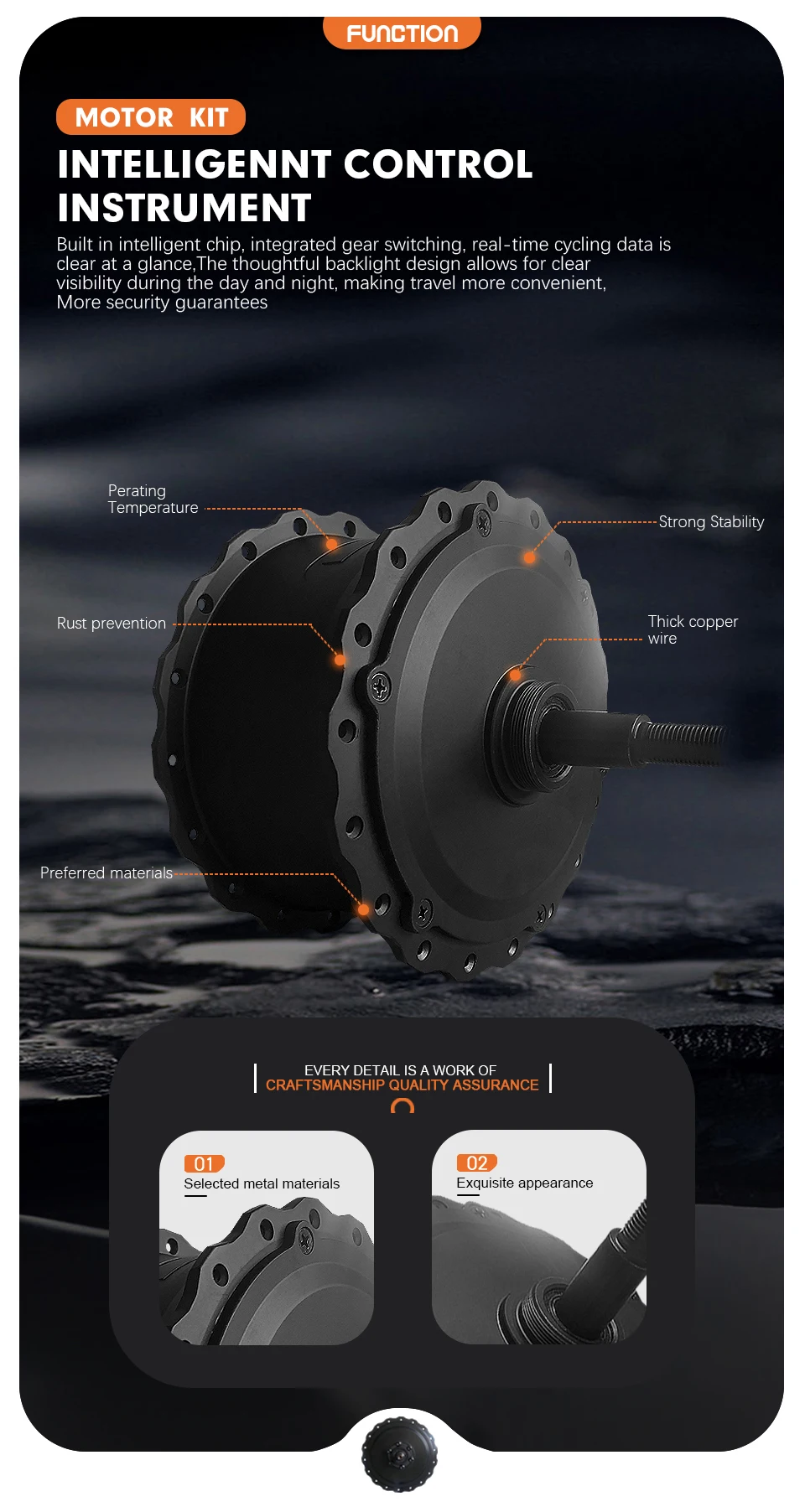

2. Hub Motor:

    Brushless Gear Hub Motor

3. Rim:Double-wall Aluminium Alloy Rim

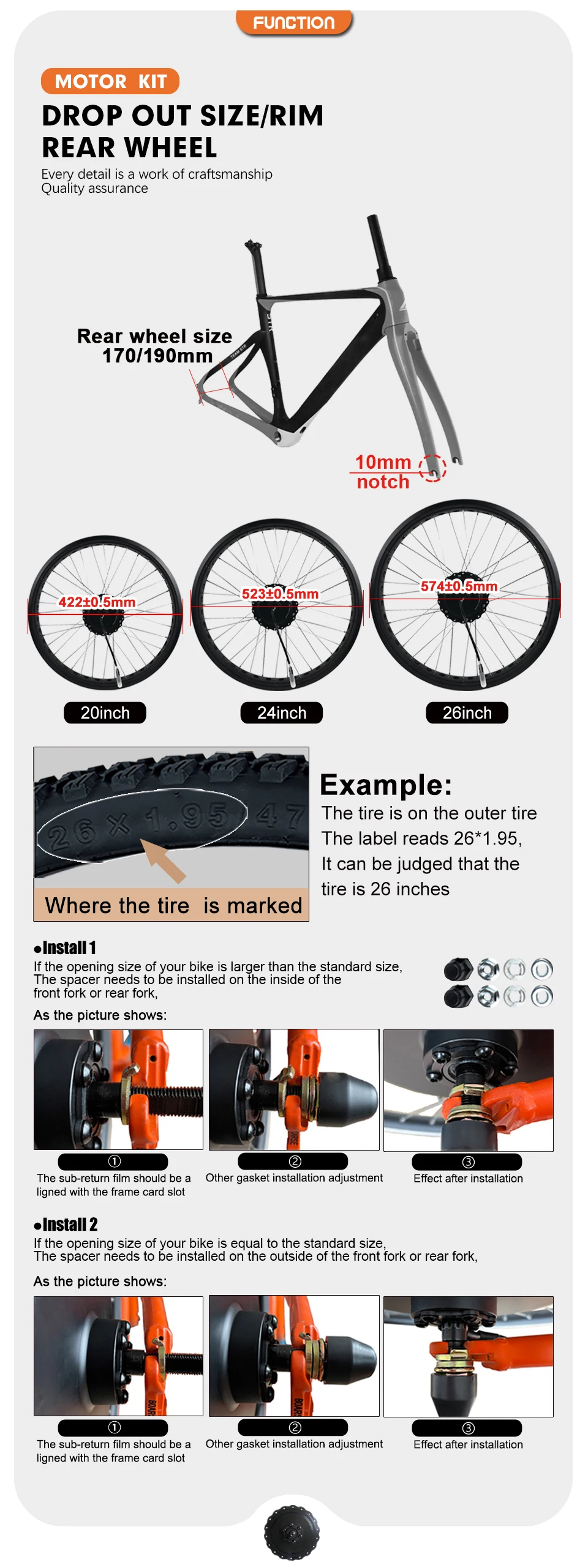

4. Wheel Bottom bracket:Rear 170/190mm

5. Torque:59-66NM

6. RPM:289-346Rpm

7. Magnet height:25H

8.Operating Temperature: -20-45℃

9.Installation:Rear

10.Certification: CE

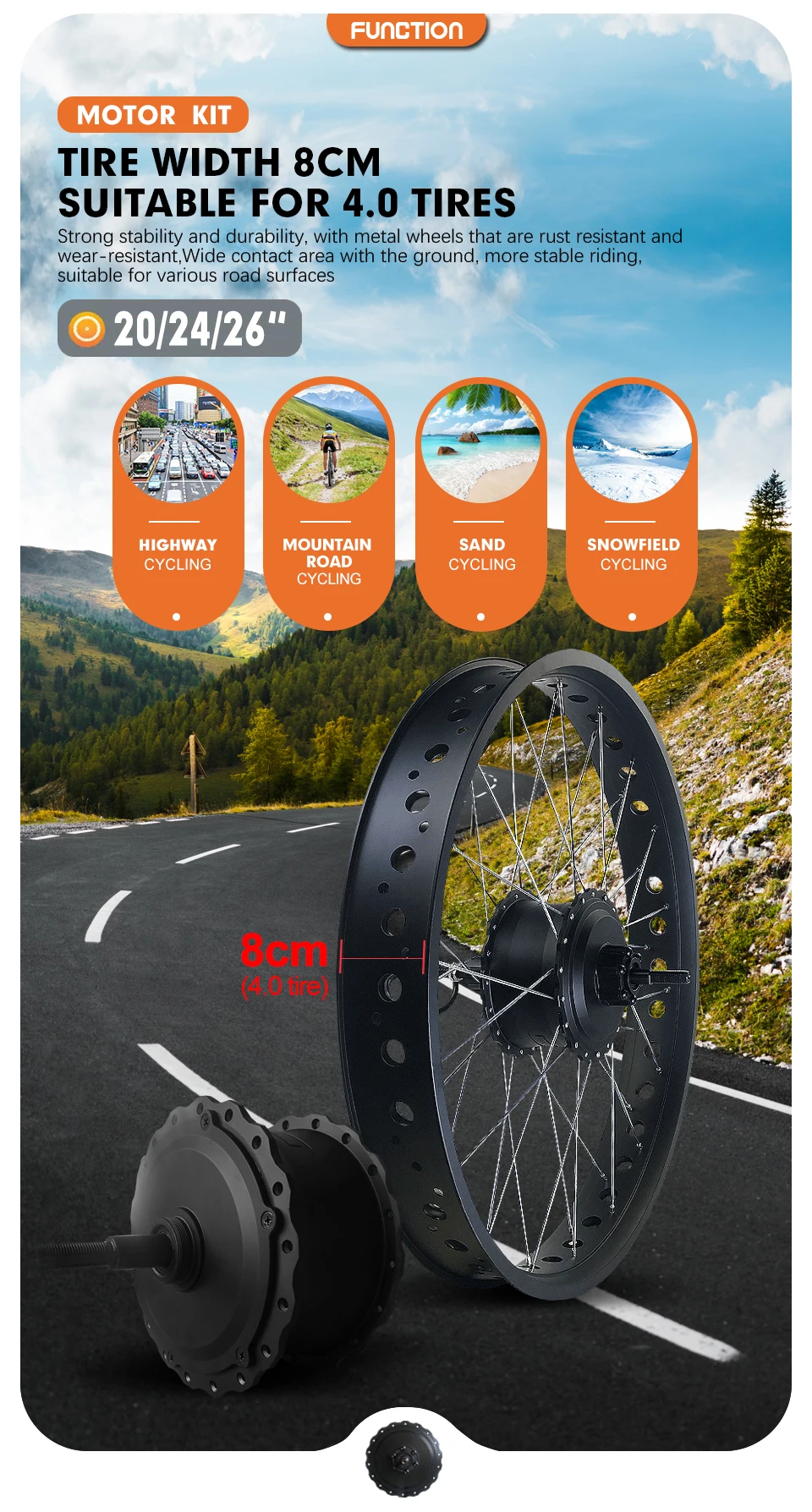

11.Wheel Diameter (Inch): 20/24/26inch---Optional


  26A Controller

●Dimension :124*62*38 mm

●Maximum current :26±1A

●Rated current :13A

●Mosfets :9 mosfets

●Weight :349g

●Rated voltage :DC36V/48V

●Speed set :1-42V

●Brake input :Low-Level

●Low voltage protection :DC30/40±0.5V

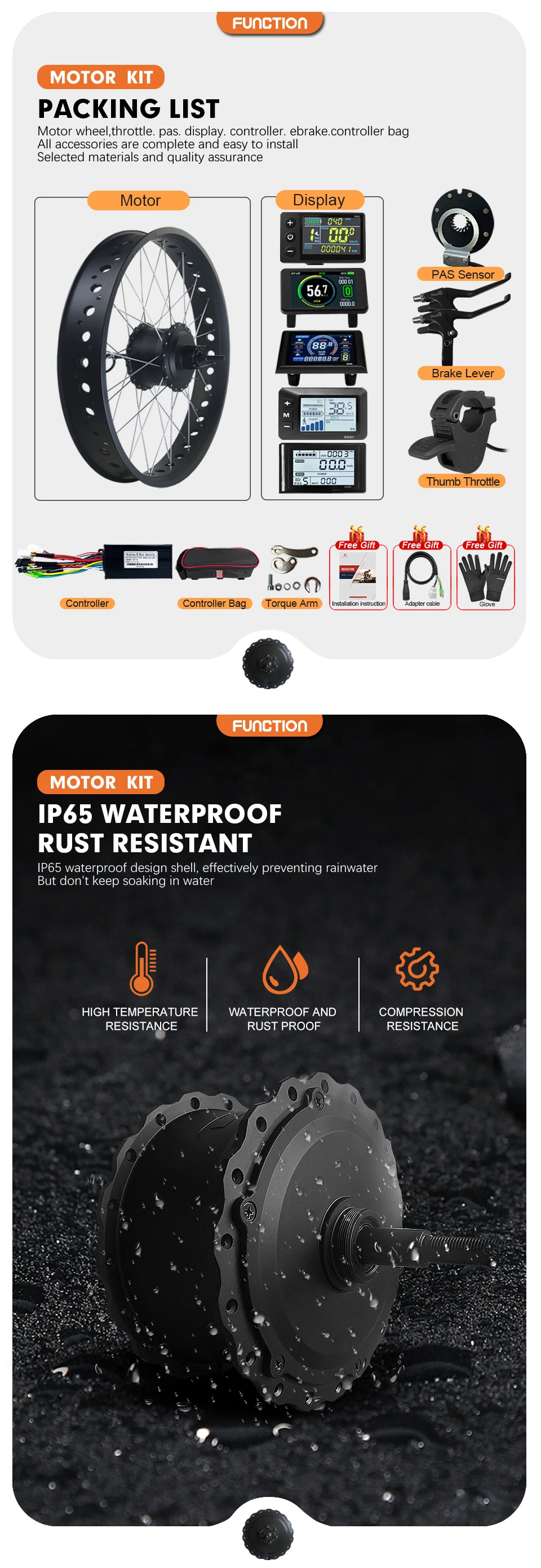

  Packing List

Noted:Conversion Kit not include Battery, tire, freewheel, disc brake.( If you need a Battery, tire, freewheel, disc brake, Please contact us for an additional fee )

1 * Motor wheel

1 * Controller

1 * Controller Bag

1 pair * Power cut-off Brake lever

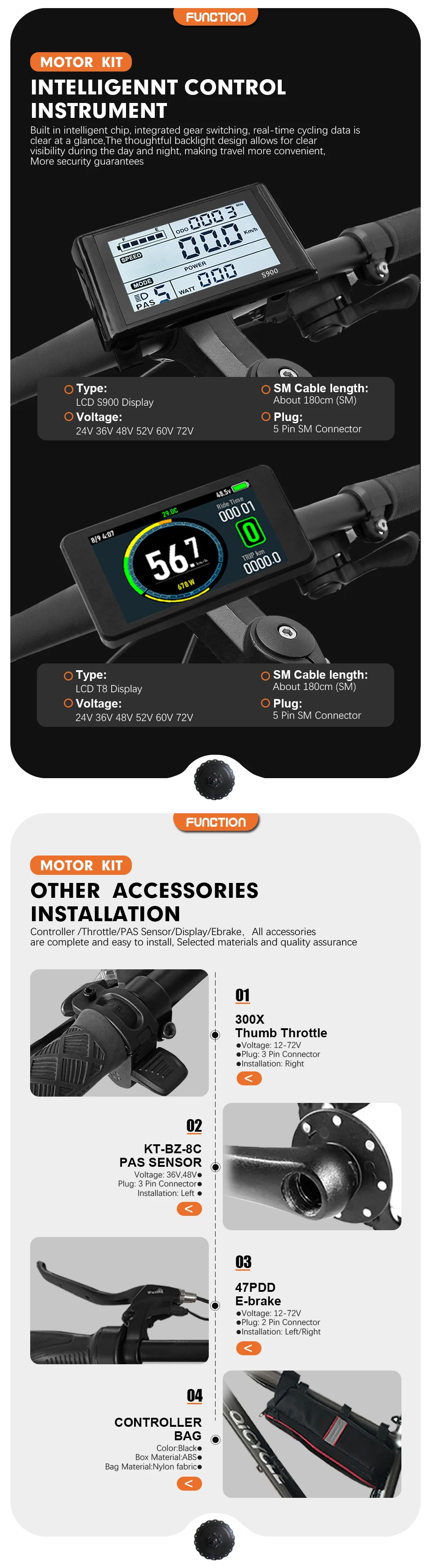

1 * Display (Option)

1 * 8 Magnet Pedal Assistant Sensor

1 * Thumb Throttle (default)
