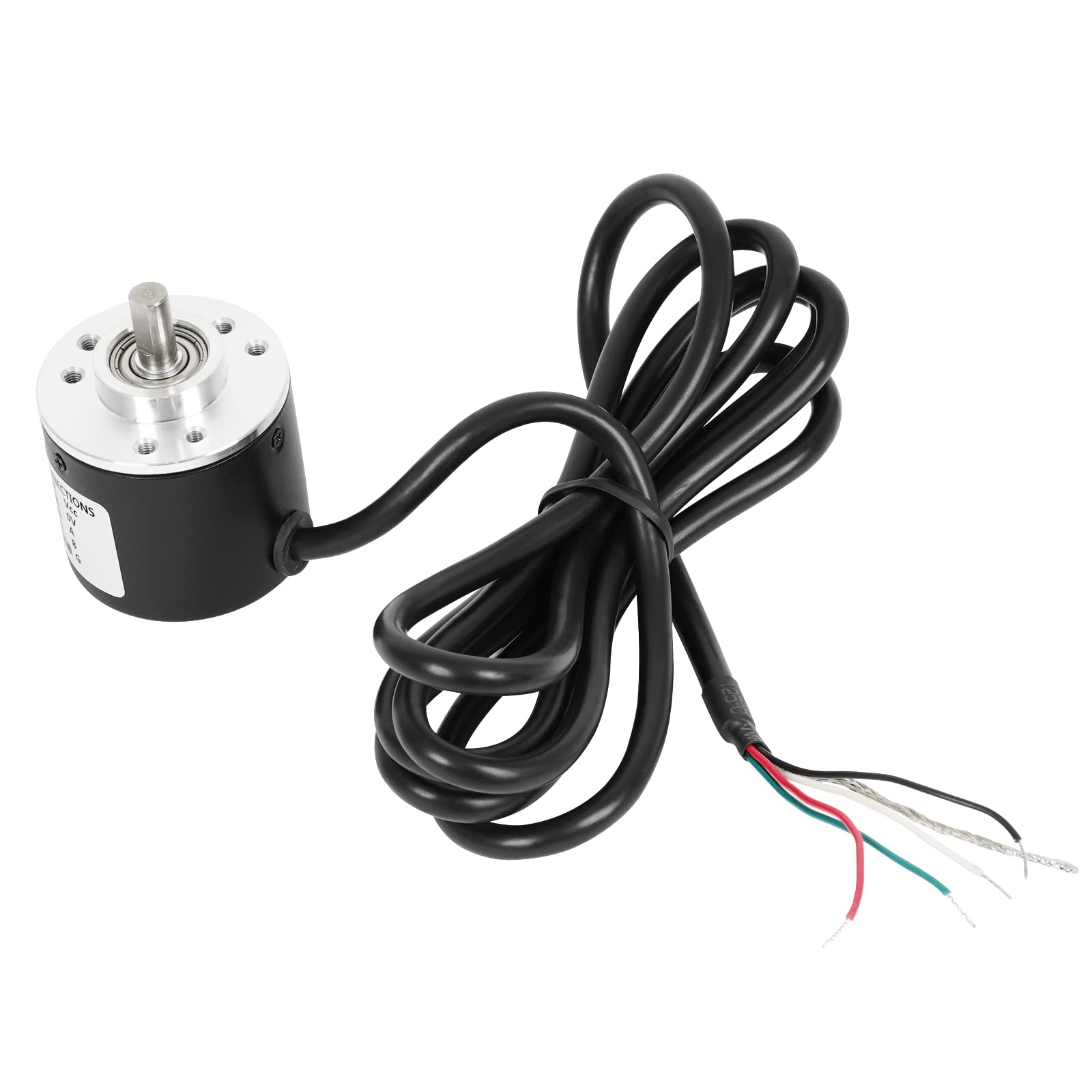

Signswise Incremental Optical Rotary Encoder for Arduino 360P/R 360P/R, Black

Product Details

• Model: incremental rotary encoders, AB two phases.
• Light weight and small size. Easy installation. Cost-effective features.
• 360P/R-360 pulses per revolution. By rotating the grating disk and optocoupler direction, this incremental optical rotary encoder generate counting pulses.
• Suitable for a variety of intelligent control of automatic guillotine paper machine, civilian measured height human scale, students racing robots and steel cut length control etc.
• 12-MONTH Worry-Free Return And Refund Policy, Buy with Confidence!

Functions√ This incremental optical rotary encoder can be used to measure the rotational speed, angle and acceleration of the object and the length measurement.√ This shaft encoder is suitable for a variety of intelligent control displacement measurement, automatic fixed- length automatic guillotine paper machine, steel cut length control, civilian measured height human scale, students racing robots.Connection:Yellow = A phase, Blue = B phase, Red =Vcc power +, Black = V0Notice: AB 2phase output must not be directly connected with VCC, otherwise, it will burn the output triode.Specification360 p/r (Single-phase 360 pulses/R,Two phase 4 frequency doubling to 1440 pulses).-Encoder size: 38 x 35.5mm/1.49" x 1.39"-Shaft: 6 x 13mm/0.23" x 0.51"-Axis stopper platform: High 5mm, 20mm-Power source: DC 5-24V-Maximum mechanical speed: 5000 R / min-Response frequency: 0-20KHzOutput: AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output typePackage content1 x 360P/R Incremental Rotary Encoder
