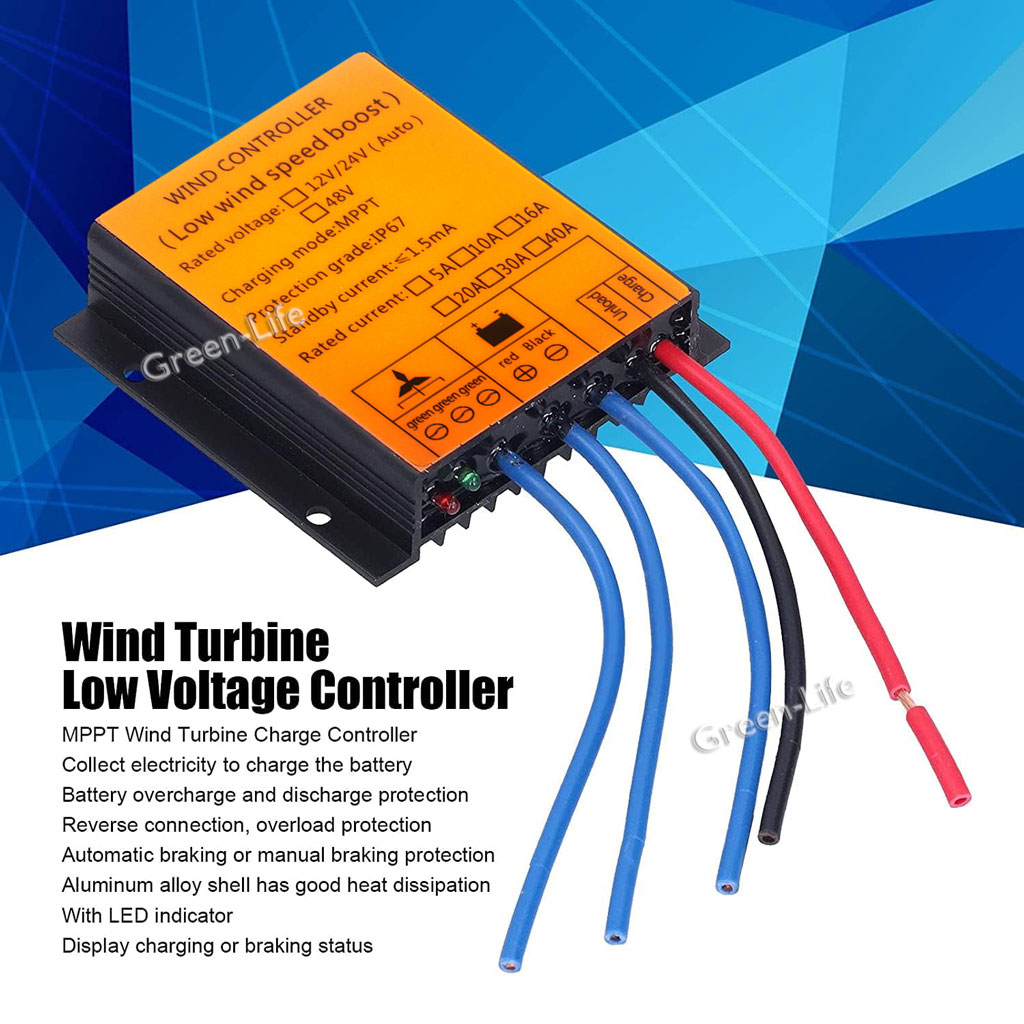

12/24V Wind Turbine Boost Controller Waterproof Battery MPPT Charge Controller

Product Description


Product sellpoints:

Advanced Protection Features: Incorporates overcharge, over discharge, and short-circuit protection for safe and secure operation.

2 Charge Controller 1 Battery Bank|High Efficiency MPPT Charging: Achieve peak power point tracking for efficient wind energy conversion with MPPT charging, ensuring optimal battery charging.

Wide Voltage Compatibility: Supports 12V, 24V systems, making it adaptable for various wind turbine generator setups.

Versatile Battery Support: Handles 10A to 40A loads, catering to a range of battery banks and power requirements.

Robust Water Resistance: IP67-rated waterproof design withstands harsh conditions, ensuring reliable operation in wet environments.


PLEASE READ THESE INSTRUCTIONS CAREFULLY PRIOR TO INSTALLATION OR OPERATION OF THIS PRODUCT:

1. Installation


1.1 Please make sure the output voltage of wind generator is consistent with rated battery voltage.

1.2 Please connect the cables of plus-n-minus of battery firstly and then connect the three cables of wind generator.

1.3 Please make sure you connect battery and wind generator with controller according to this instruction, opposite polarity or wrong position connection will result in abnormal operation of system or damage of system components.

1.4 The controller chooses its working voltage model 12V or 24V by detecting the battery voltage. if the battery is 12V, the controller will work at 12V model; if the battery is 24 V, the controller will work at 24V model.

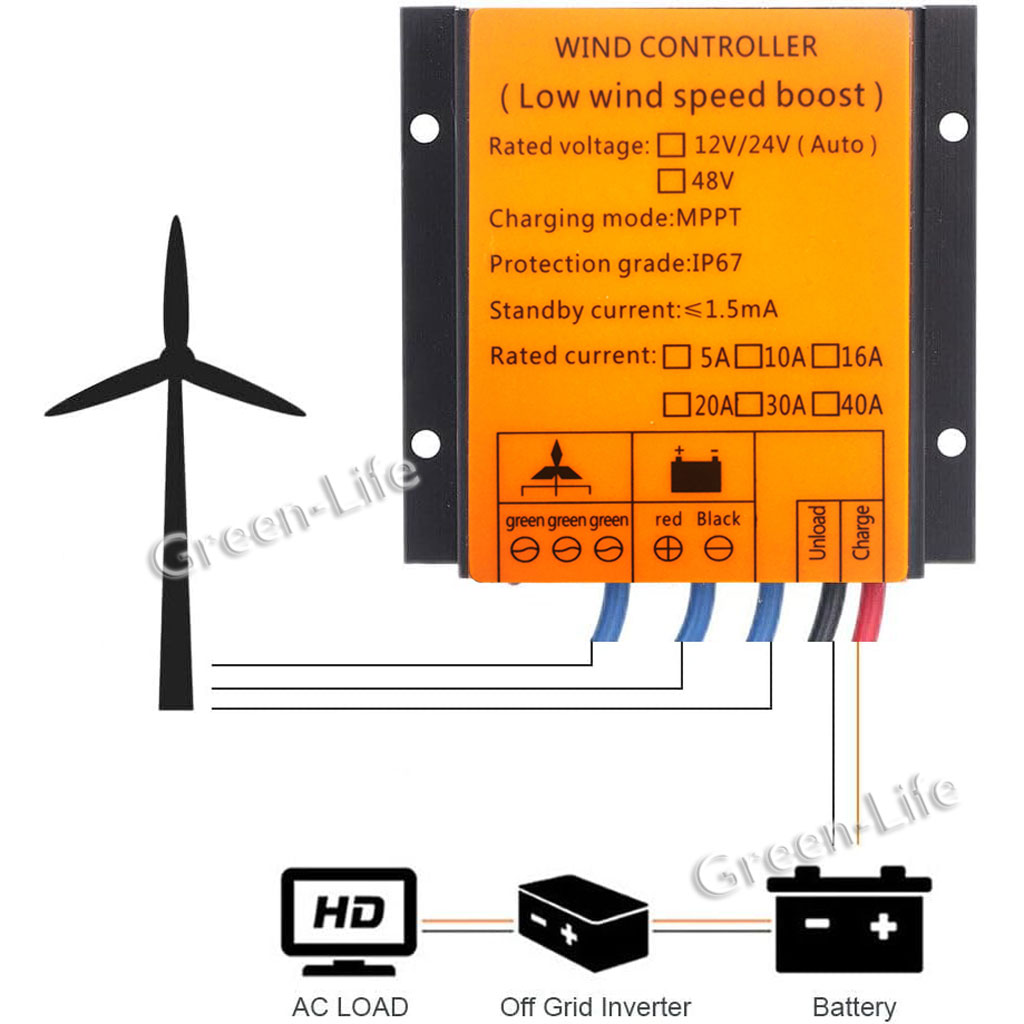

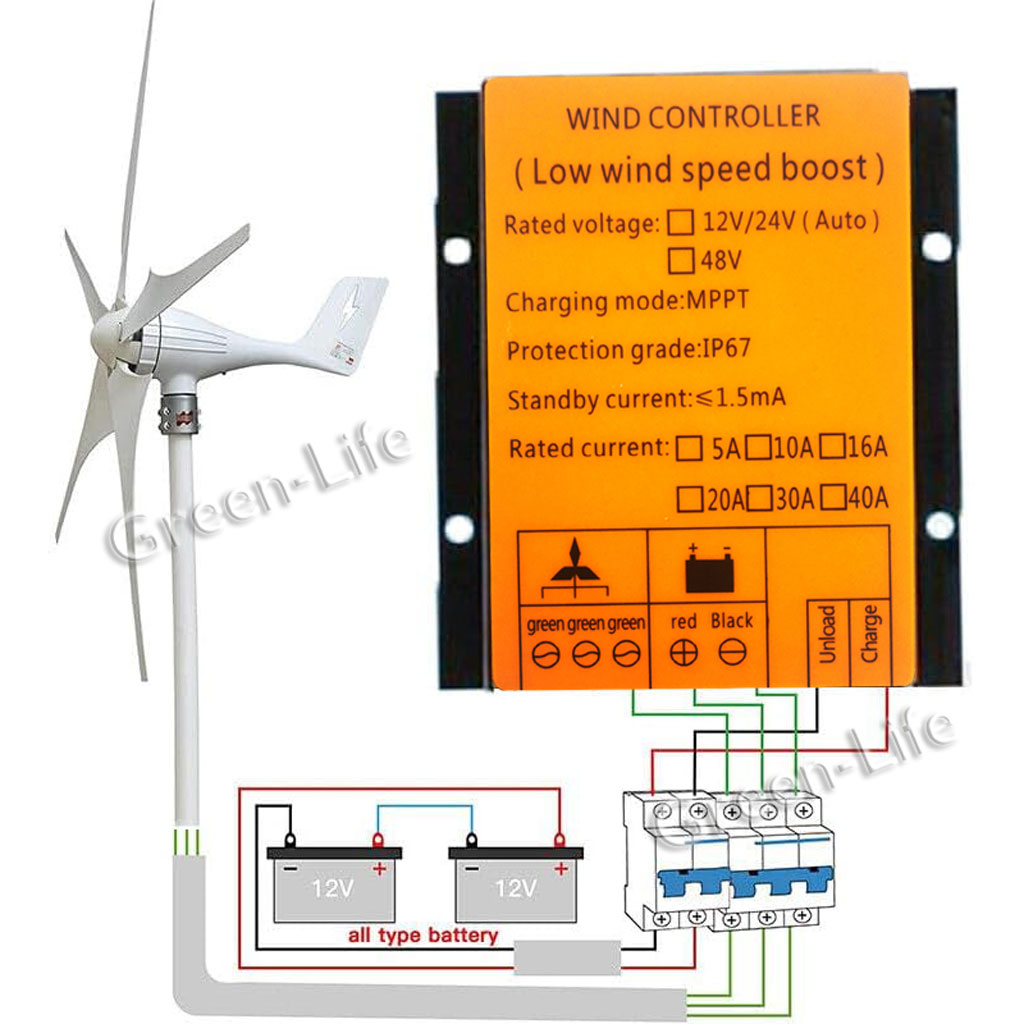

2. Wiring


2.1 Connect the “+” and “-“of battery with red and black input wires of controller.

2.2 Connect the three cables of wind generator with three blue wires of controller.

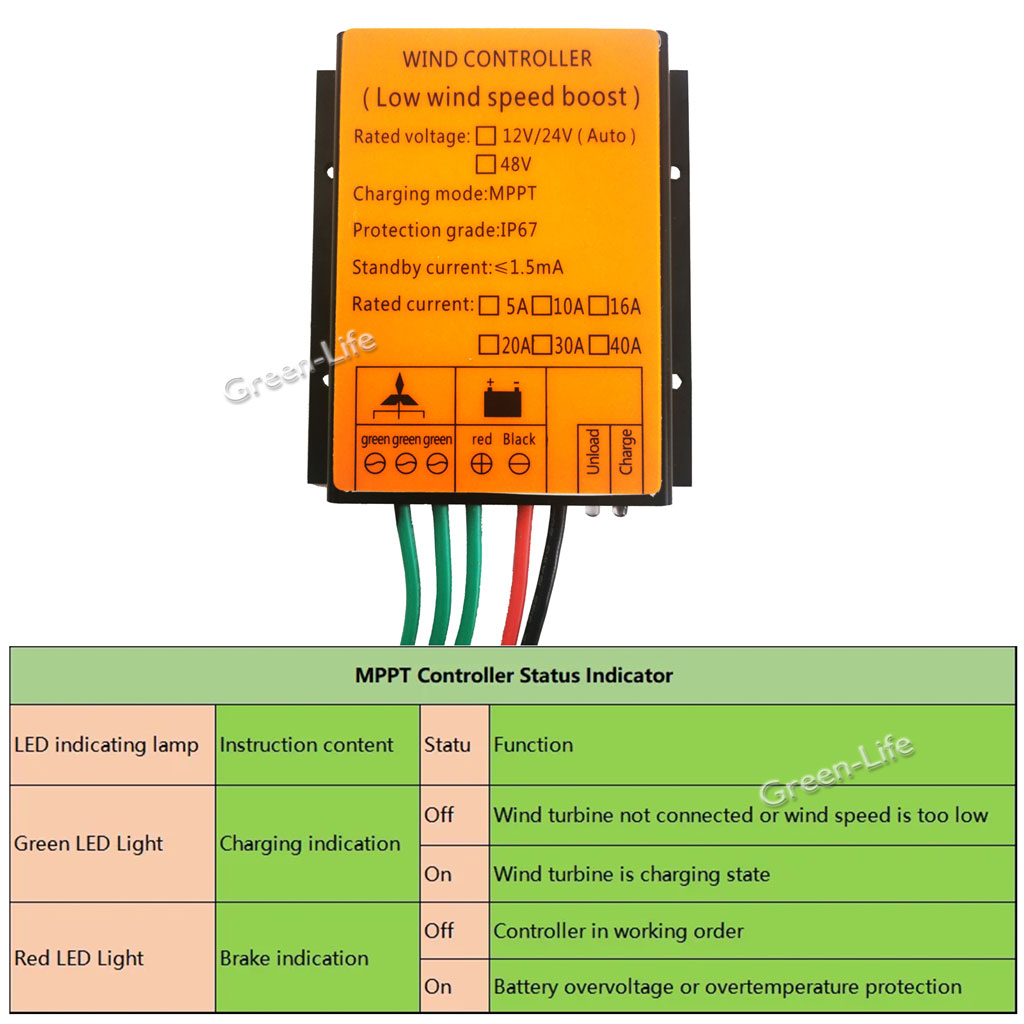

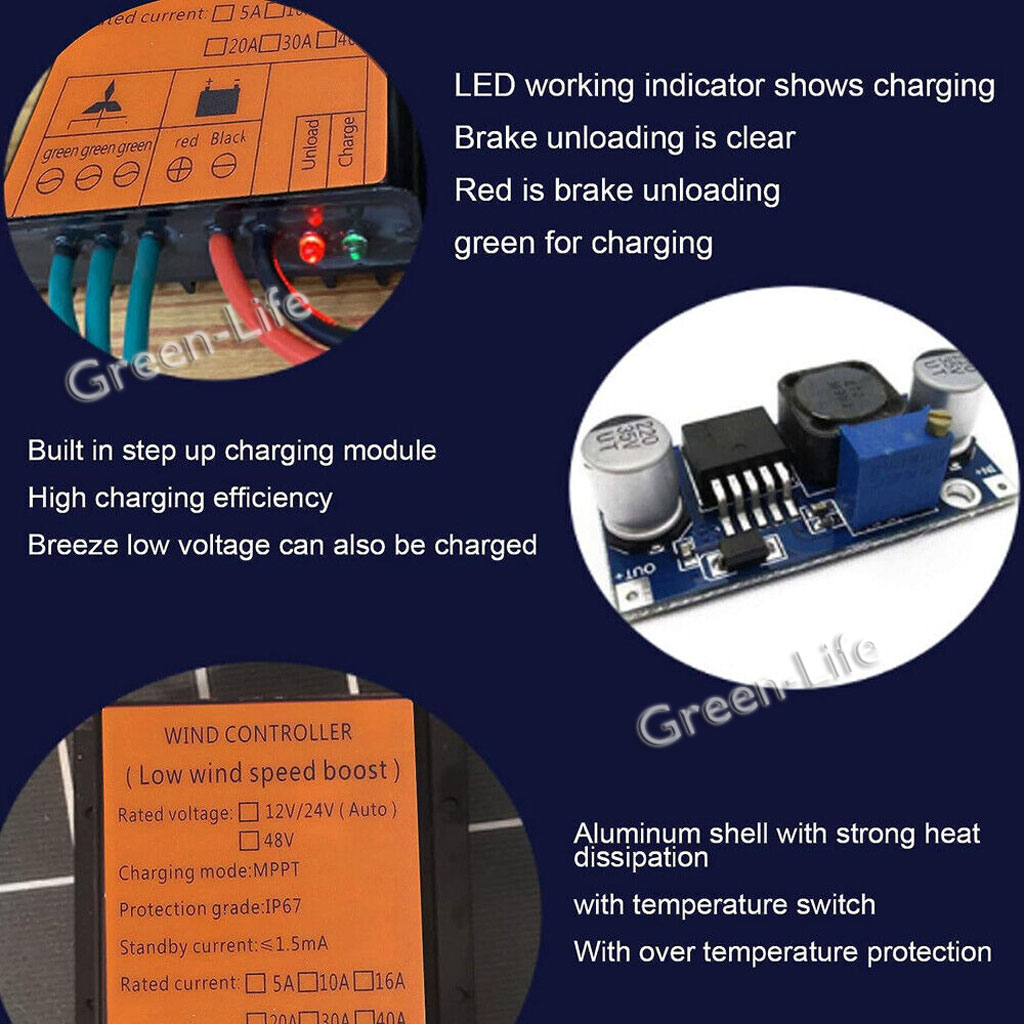

3. Lights


3.1When wind generator light (green) is on, it indicates wind generator connection is normal and it shows the rotation speed of wind generator by twinkle speed.

3.2 When brake light (red) is on, it indicates controller is braking automatically due to battery full charged or over-current protection function operation of controller.


Feature:

1. High quality technical components guarantee its stability and reliability;

2. Voltage/current control charging make sure storage batteries are always at the best state of charge;

3. MPPT charging effectively collect power from generator to charge storage batteries;

4. Aluminium alloy shell makes it light and good heat dissipation;

5. Full protections: overcharge, over discharge, reverse connection of batteries, overloading, lighting, current control, automatic braking or manual braking of wind generator.


Specification:

Rated battery voltage: 12V/24V Auto

Wind generator braking voltage: 60V

Maximum wind-generator power: 500W/1000W/2000W/3000W/

IP Waterproof: IP67

for ION: Battery overvoltage, wind-generator current limit, wind-generator brake, speed for ION

Indicator: LED

Capability: Mode charge

Unloading way: MPPT electrodeless and noiseless unloading

Working temperature: -35℃ +75℃/85%RH (no condensing)

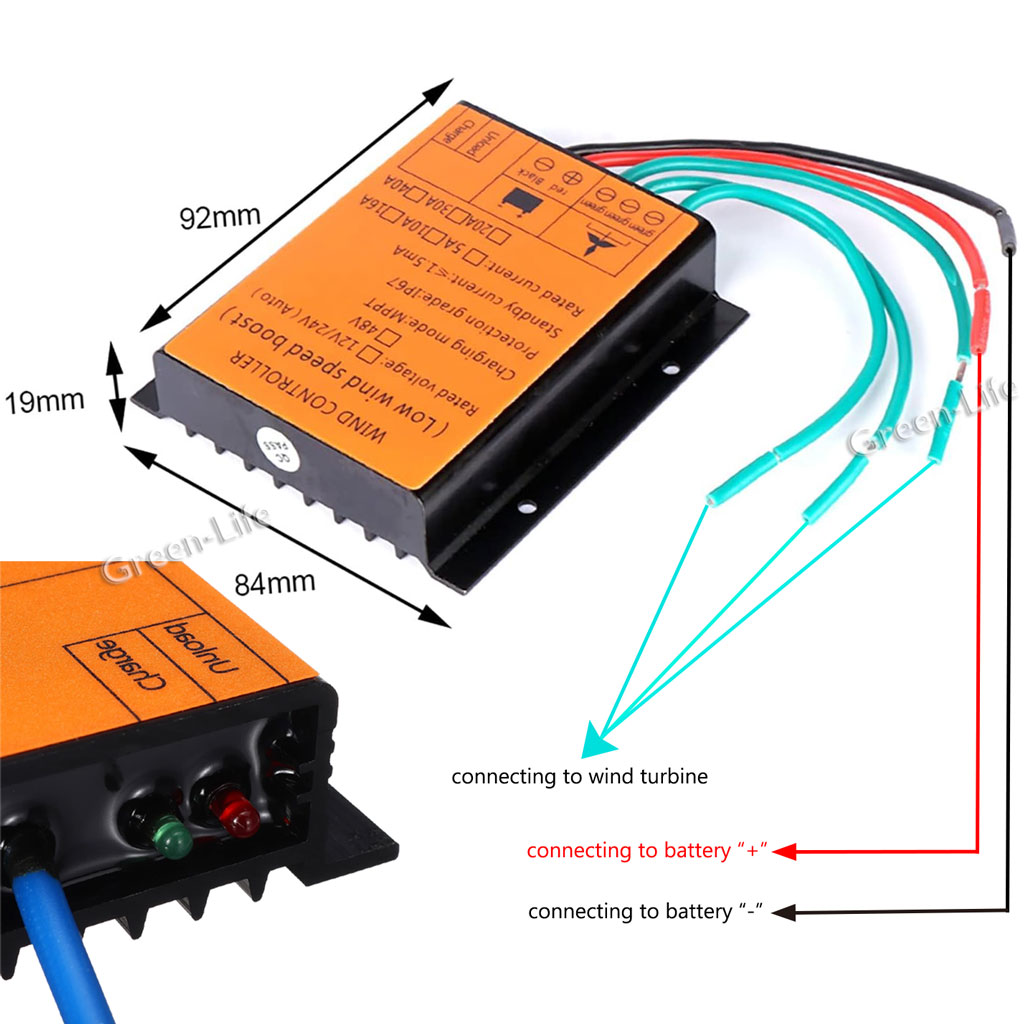

Size: 95 x 65x 20mm


Packing List:

1 x MPPT Wind Generator Controller 12/24V
