HOBBYWING Seaking Brushless ESC Boat Sensorless ESC 30A 60A 90A 120A 160A V4 Series IP67 Waterpoof Built-in BEC For RC Model Boats
Features:

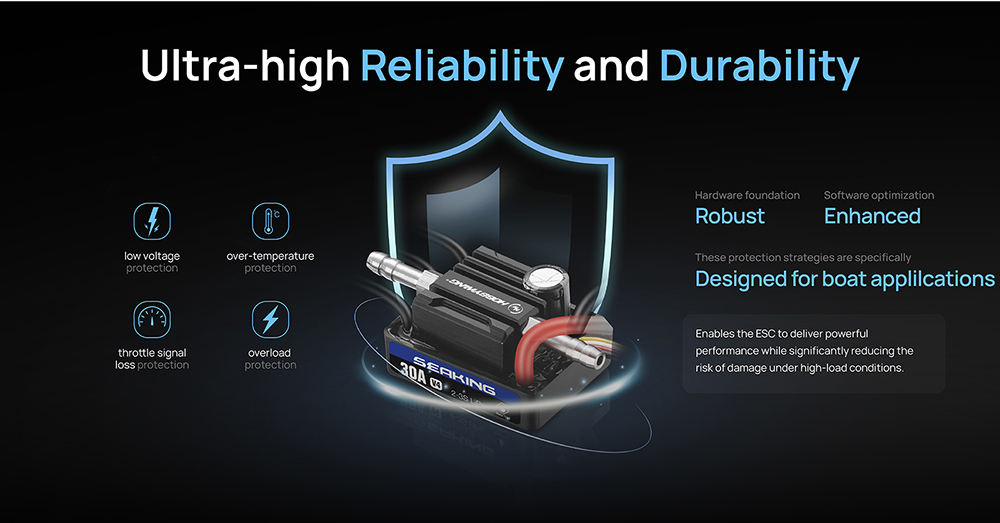

1. Ultra-high Reliability and Durability.

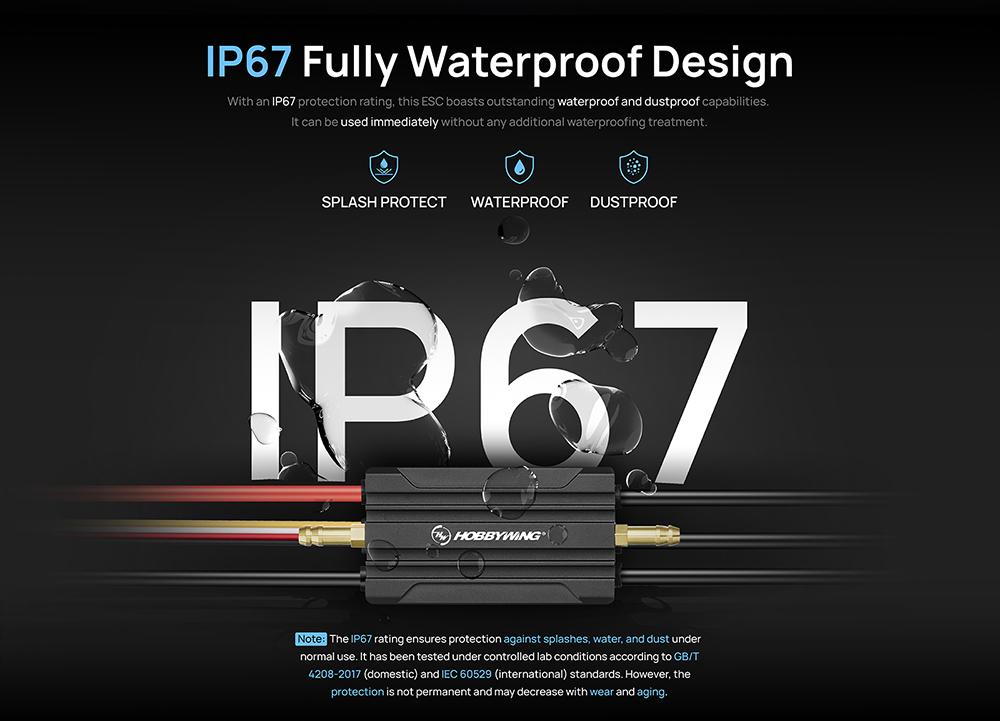

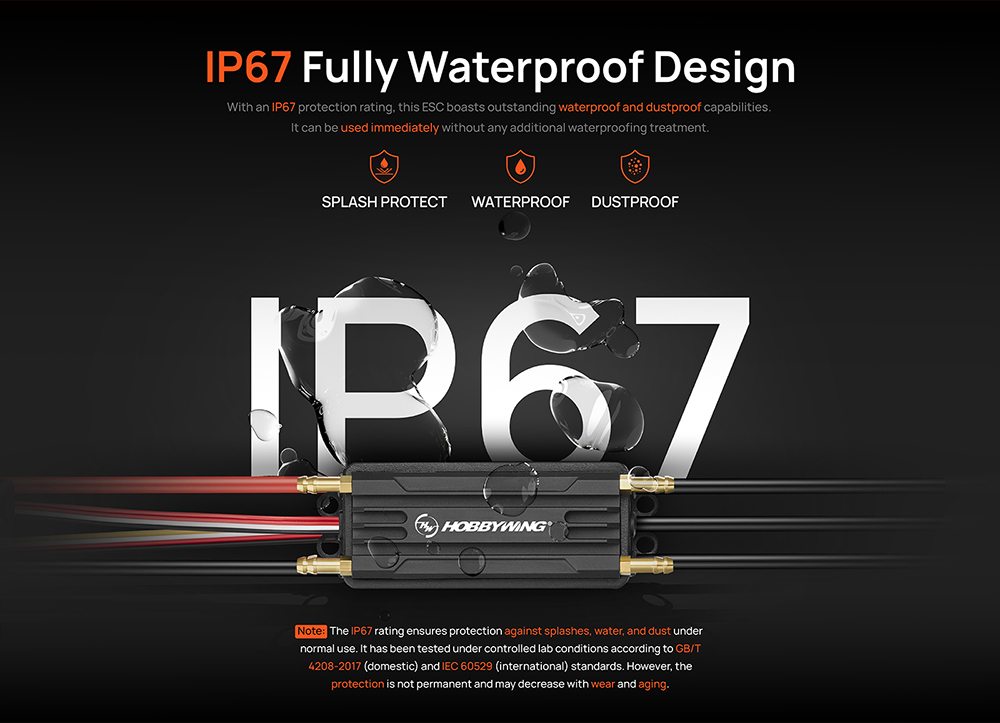

2. lP67 protection rating, this Esc boasts outstanding waterproof and dustproof capabilities.

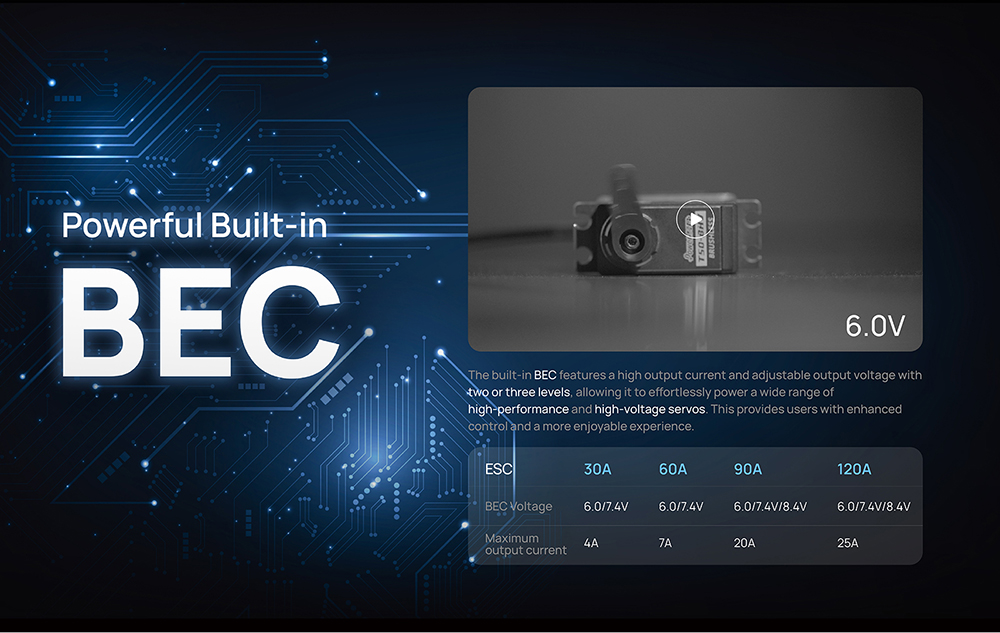

3. The built-in BEC features a high output current and adjustable output voltage withtwo or three levels,

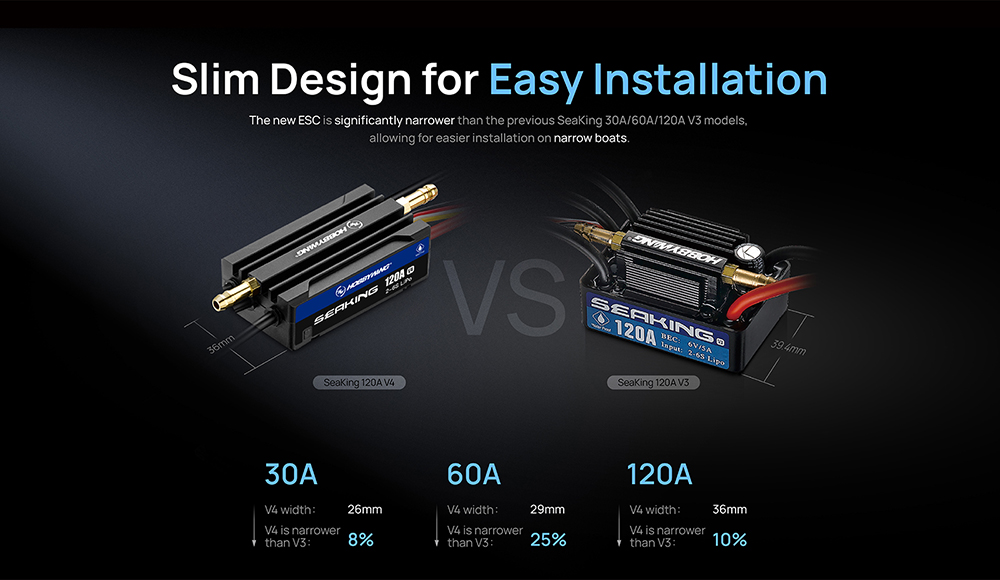

4. Slim Design,allowing for easier installation on narrow boats.

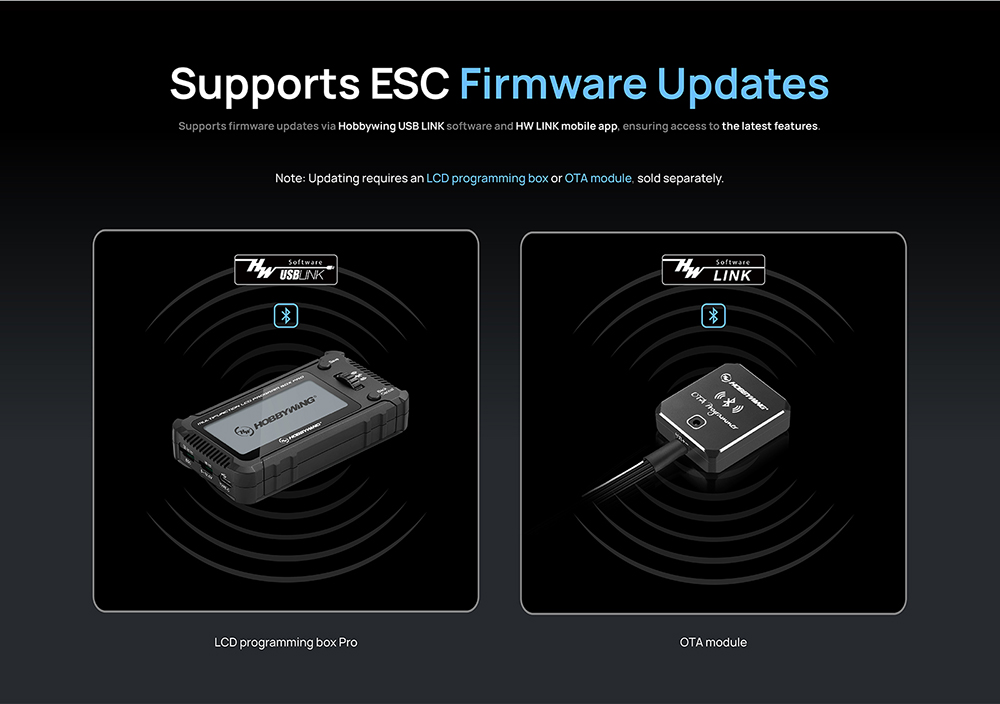

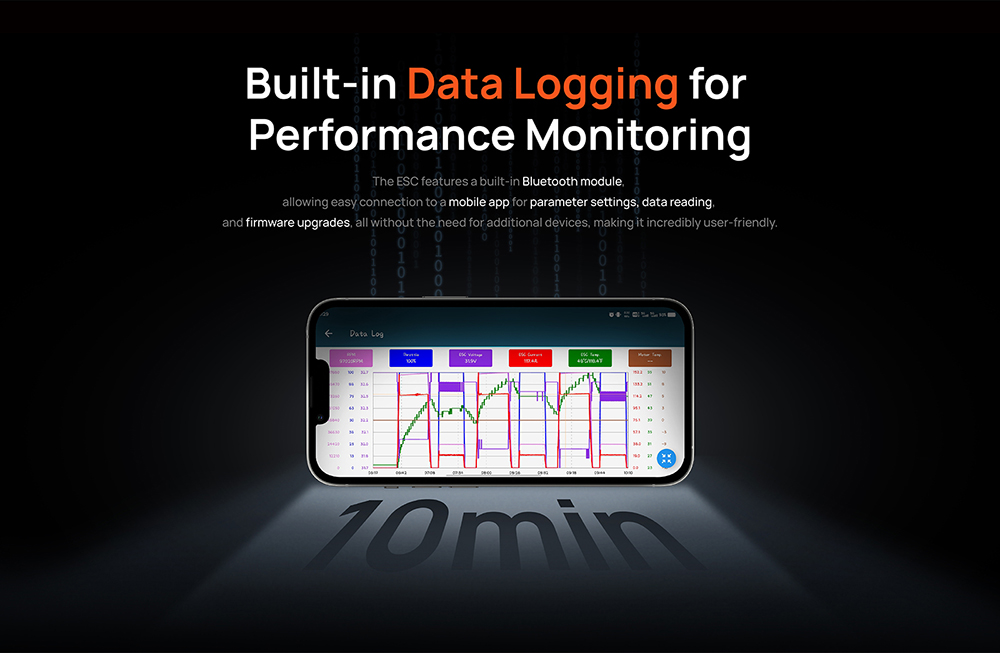

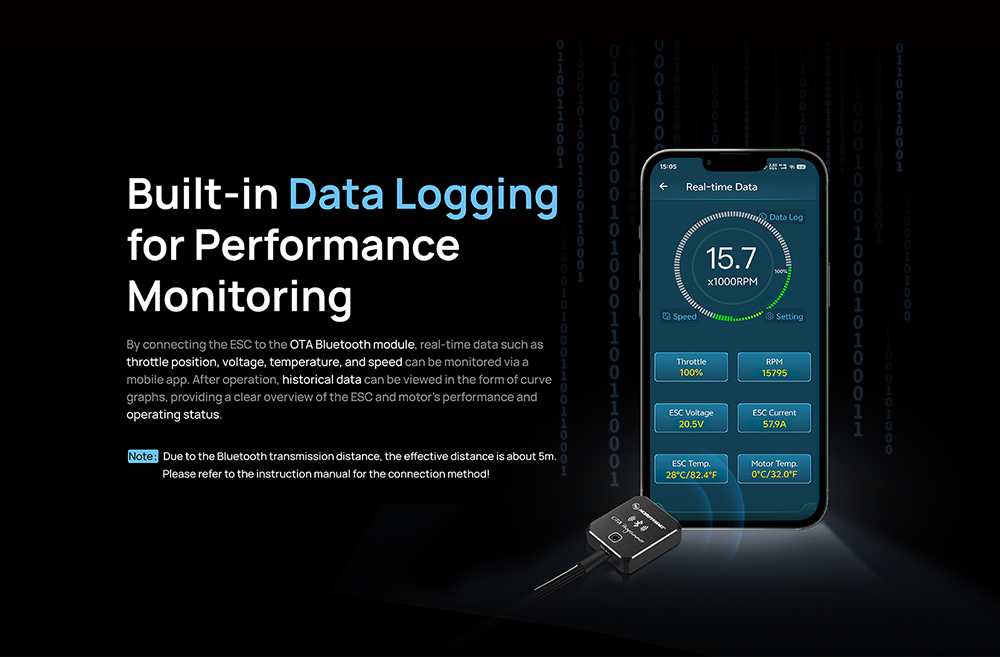

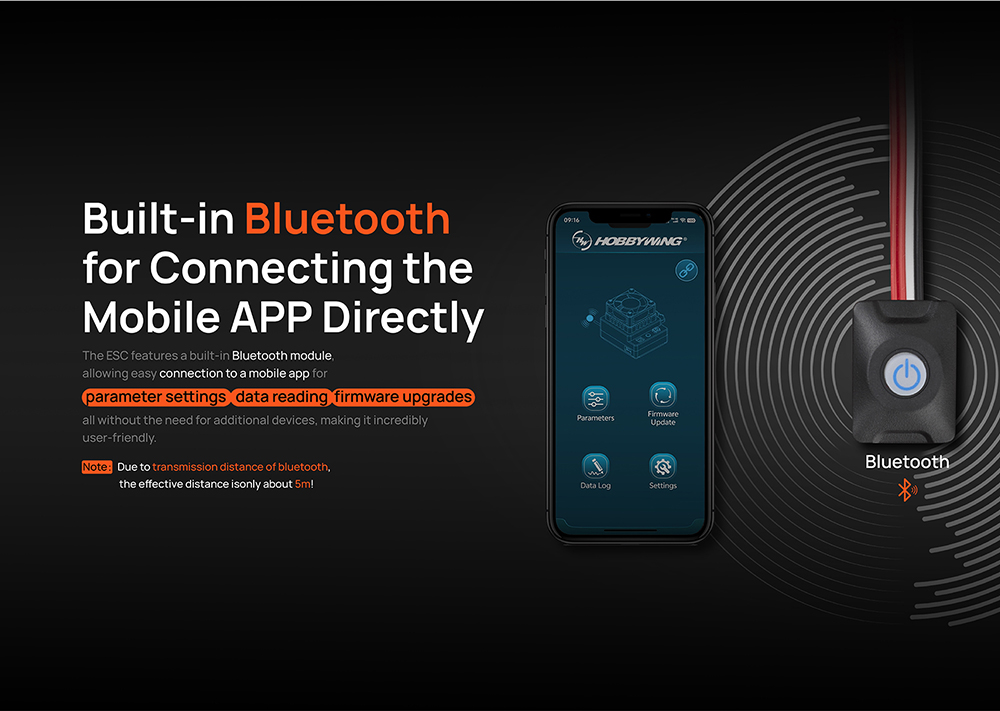

5. By connecting the ESC to the OTA Bluetooth module,Built-in Data Logging for Performance Monitoring.

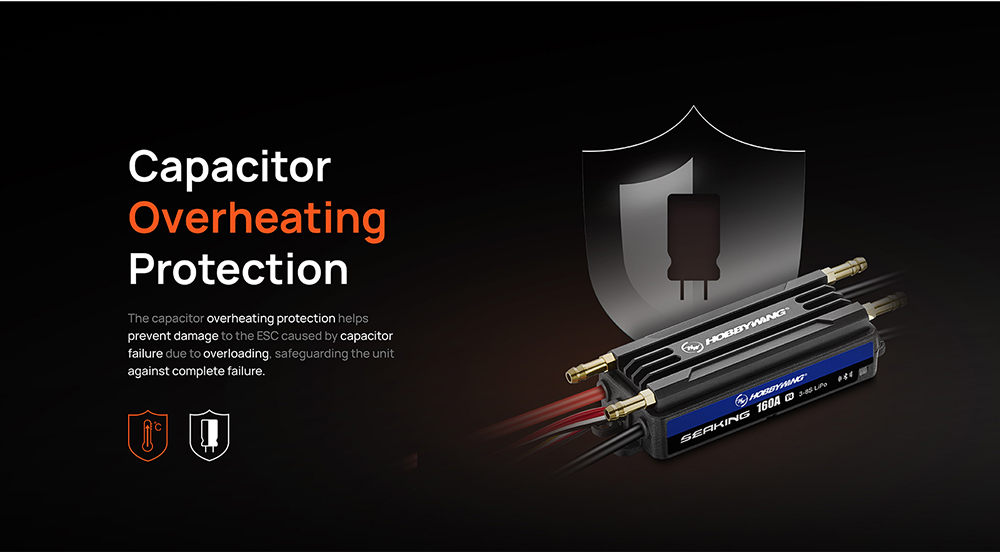

6. The capacitor overheating protection helpsprevent damage to the ESC caused by capacitor failure due to overloading
Description:

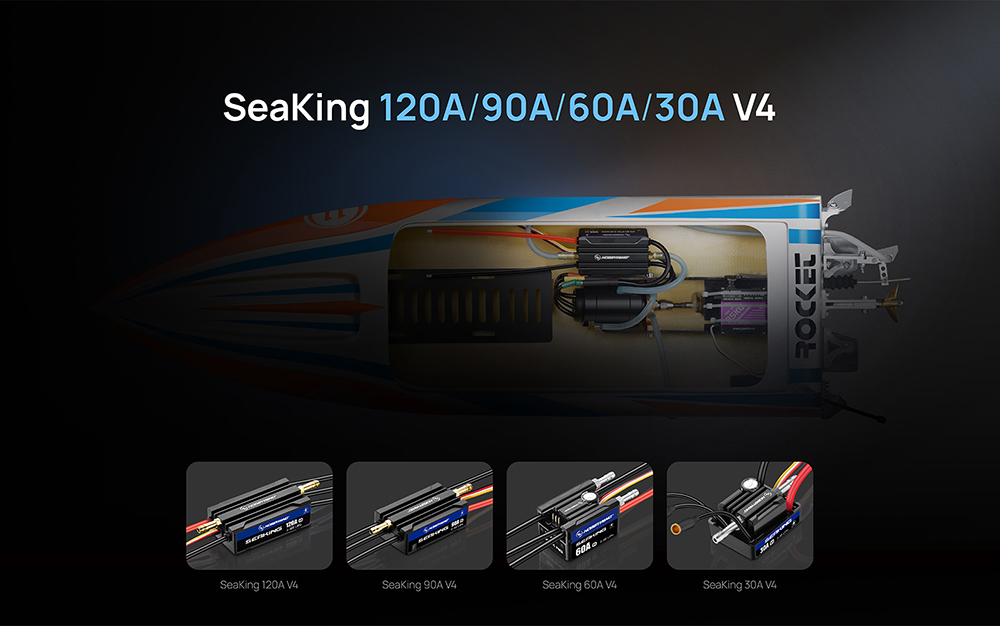

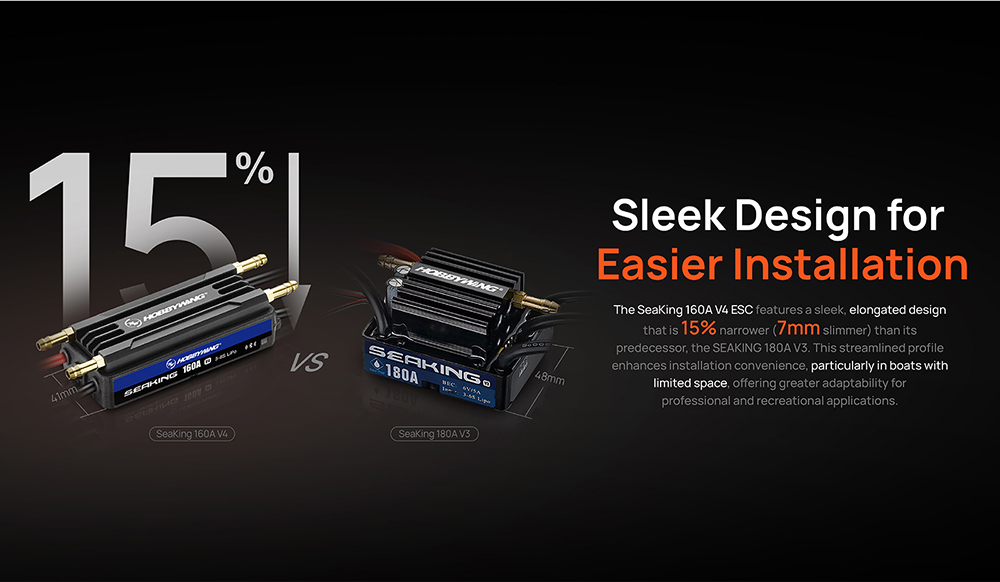

Seaking 160A/120A/90A/60A/30A V4 Brushless ESC,The built-in BEC features a high output current and adjustable output voltage with two or three levels, significantly narrower than the previous SeaKing 30A/60A/120A V3 models,allowing for easier installation on narrow boats.

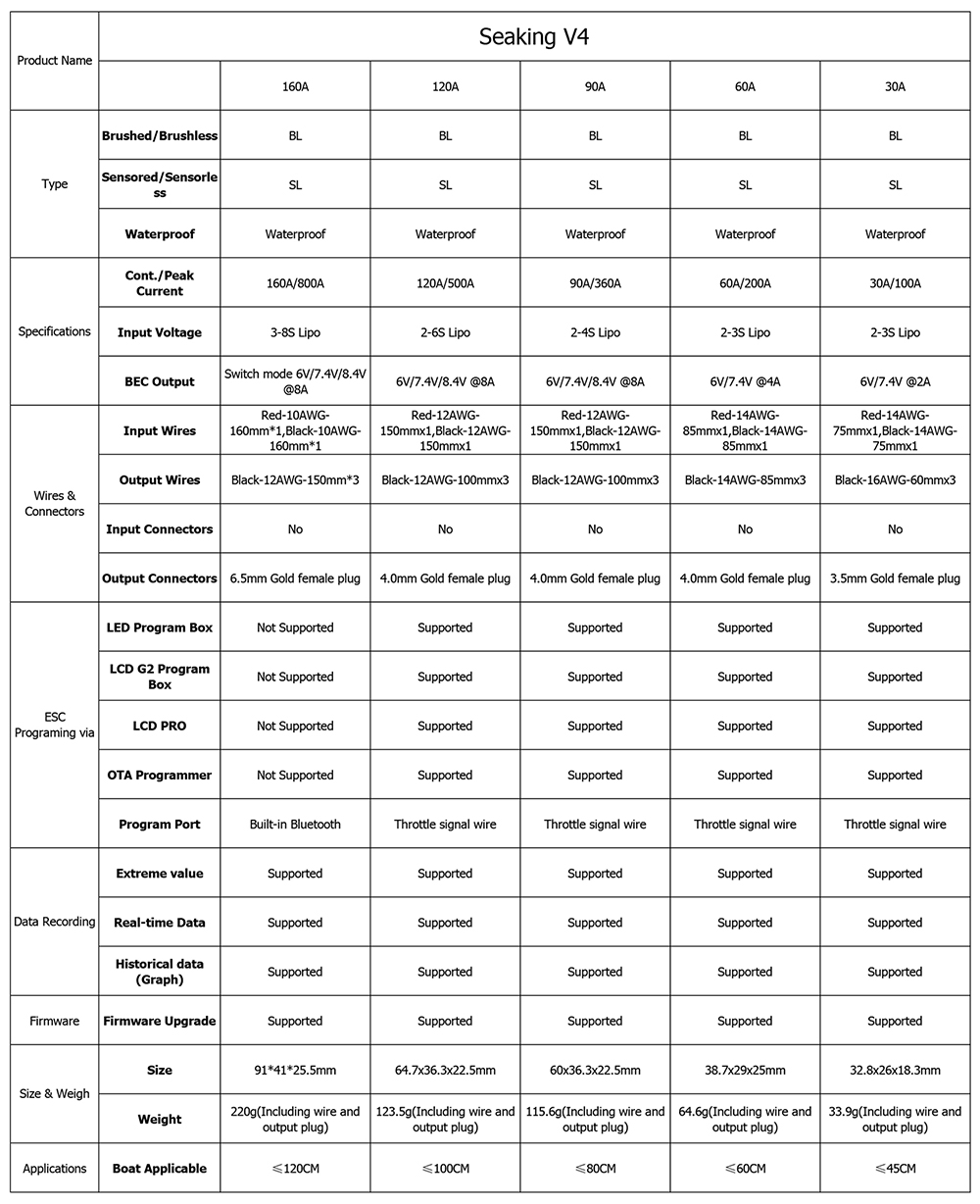

160A ESC Specifications:

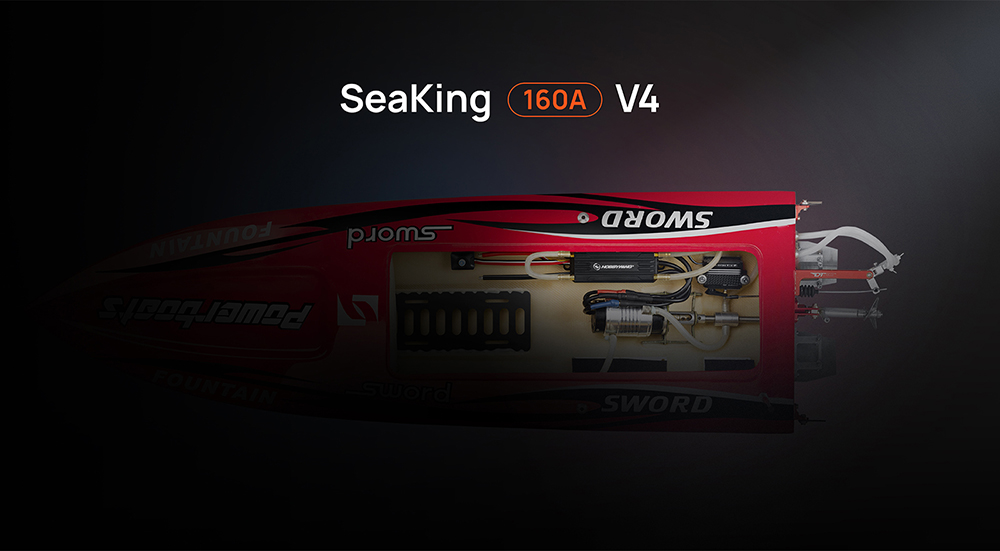

Item: 160A Brushless Sensorless ESC
Waterproof: IP67
Cont./Peak Current: 160A/800A
Input Voltage: 3-8S Lipo
BEC Output: Switch mode 6V/7.4V/8.4V @8A
Output Connectors: 6.5mm Gold female plug
Size: 91*41*25.5mm
Weigh: 220g(Including wire and output plug)
Boat Applicable: ≤120CM
120A ESC Specifications:
Item: 120A Brushless Sensorless ESC
Waterproof: IP67
Cont./Peak Current: 120A/500A
Input Voltage: 2-6S Lipo
BEC Output: 6V/7.4V/8.4V @8A
Output Connectors: 4.0mm Gold female plug
Size: 64.7x36.3x22.5mm
Weigh: 123.5g(Including wire and output plug)
Boat Applicable: ≤100CM
90A ESC Specifications:
Item: 90A Brushless Sensorless ESC
Waterproof: IP67
Cont./Peak Current: 90A/360A
Input Voltage: 2-4S Lipo
BEC Output: 6V/7.4V/8.4V @8A
Output Connectors: 4.0mm Gold female plug
Size: 60x36.3x22.5mm
Weigh: 115.6g(Including wire and output plug)
Boat Applicable: ≤80CM
60A ESC Specifications:
Item: 60A Brushless Sensorless ESC
Waterproof: IP67
Cont./Peak Current: 60A/200A
Input Voltage: 2-3S Lipo
BEC Output: 6V/7.4V @4A
Output Connectors: 4.0mm Gold female plug
Size: 38.7x29x25mm
Weigh: 64.6g(Including wire and output plug)
Boat Applicable: ≤60CM
30A ESC Specifications:
Item: 30A Brushless Sensorless ESC
Waterproof: IP67
Cont./Peak Current: 30A/100A
Input Voltage: 2-3S Lipo
BEC Output: 6V/7.4V @2A
Output Connectors: 3.5mm Gold female plug
Size: 32.8x26x18.3mm
Weigh: 33.9g(Including wire and output plug)
Boat Applicable: ≤45CM
Package contents:
1* 30A/60A/90A/120A/160A V4 ESC
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
Before purchase:
1.All the goods are ready stock, we will arrange the shipment at once if we receive the order.
2.Please read the item description, if you have any question, do not hesitate to contact us.
3.No warranty,if you receive a defect item,please contact us at once with item picture.
4.Use the vouchers for more saving.
After purchase:
1.If you are satisfied,please express your use feeling.
2.Please contact us before you are going to give us bad review. We are helpful and will solve the problems. If you receive a defect item,please contact us at once with item picture or video.
