Voltage: DC 12V
No-load Speed: 15 rpm
Rated Speed : 12 rpm
Rated Current : 0.59 A
Stroke: 20mm Stroke will be fulfilled by default, Other Stroke(12mm,16mm) can be adjusted by yourself.(PS: We will give away the Stroke adjusted spanner)
Widely use for Shale shaker, Vibrating screen, Incense machine Squirt machine, Spraying Machine, Pellet machine, Particle-making Experiment, Lifespan lab testing and so on.
Features:

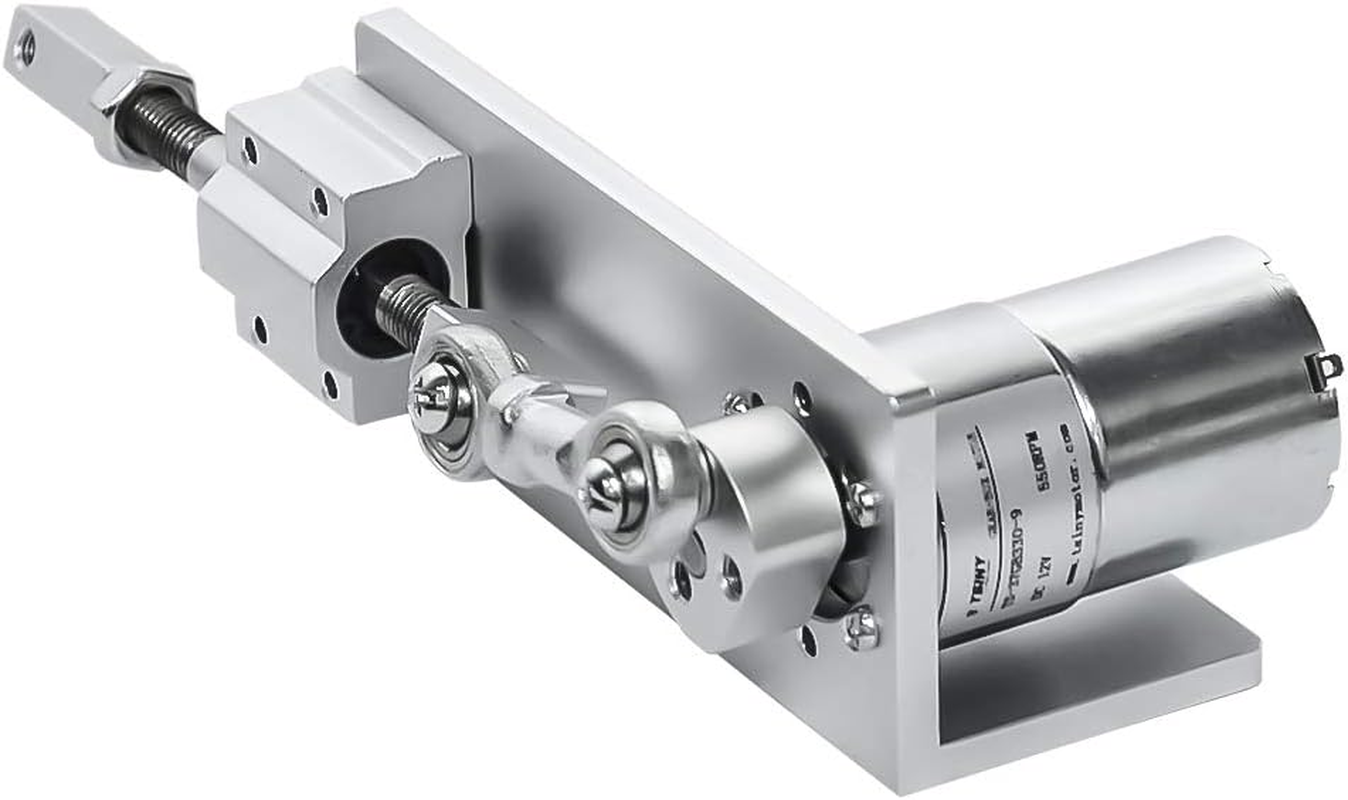

This Linkage Mechanism is an automatic constantly reciprocating linear actuator motor, which frequency is Variable.
This machine output in an axle, the run speed on axis is Non-uniform. If require speed uniform please don't bid.
This machine is Non-standard manual production, the surface is rough. If require surface precise please don't bid.
The speed faster, the noise louder. If require quietly, please be careful before bid.
Linear motion part is consist of sliding linear ball bearing and steel axle. Axle need adds lubricating oil at regular intervals, in order to limited axle temperature less than 90 degrees, and oil wetness.
Due to rotating lump is affected by gravity, the machine go and back speed is different.
If you want to control speed, you can add a PWM DC motor speed controller for this.
Warning: Speed higher than 100rpm has very small force, the load larger then maximum force will break gearbox. Clear all barriers before operating the motor, even use your hand holding the shaft may break the motor. Please do accord to our advices for avoid unnecessary trouble!!!! Many customers have already broken the gears inside without proper operation, it causes much trouble.
