Overview

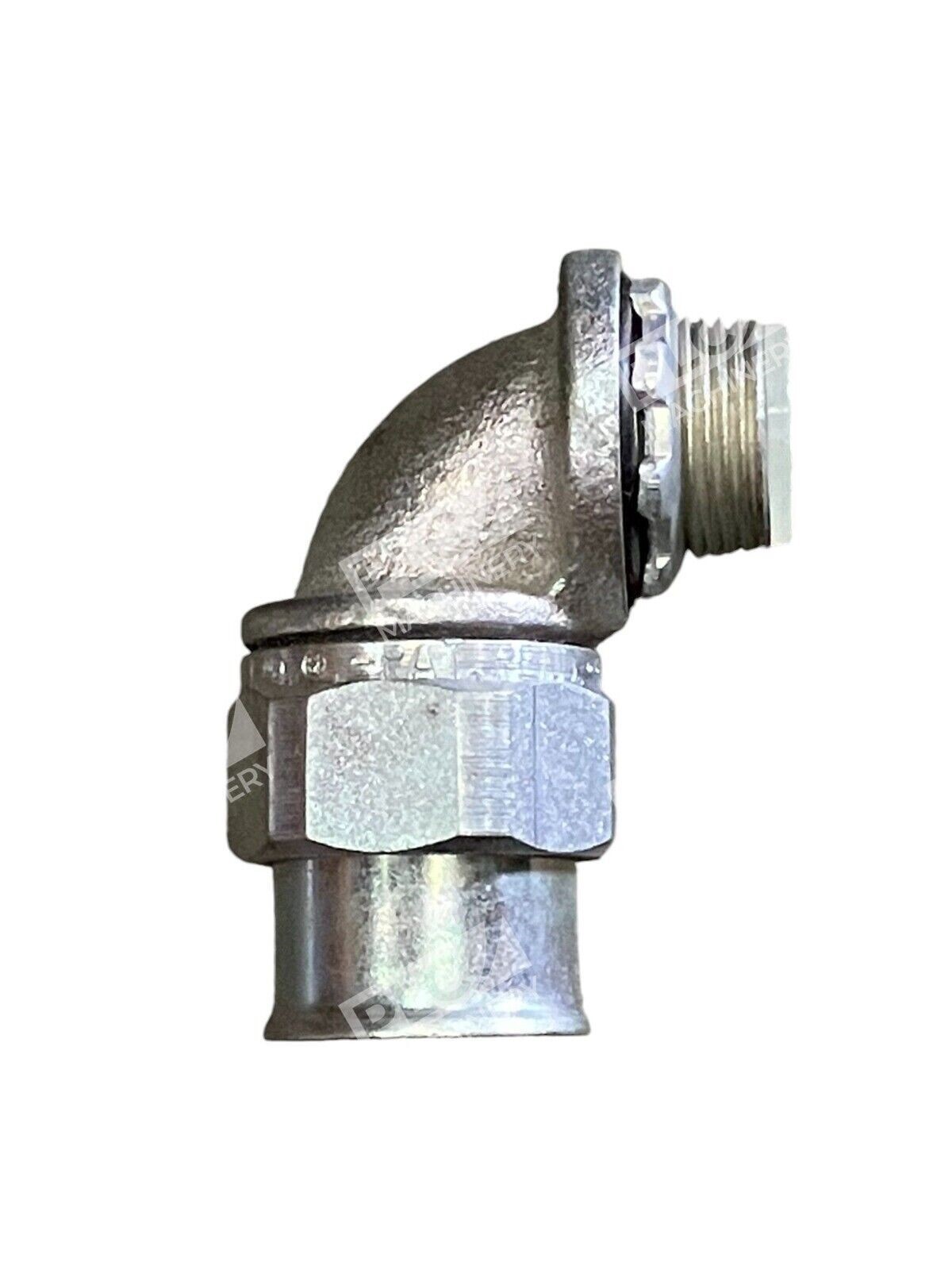

The Appleton STNM 90 degree liquidtight connector is a three-piece industrial fitting designed for dependable connections to nonmetallic flexible conduit. With floating sleeve technology, this connector reduces installation time while ensuring a pull-proof seal against oil, water, dirt, and chemicals—ideal for wet locations, Class I Division 2 hazardous areas, and demanding industrial environments.

Key Features

• Floating Sleeve Design: Exclusive "floating sleeve" reduces installation time when connecting to nonmetallic flexible conduit.
• Deep-Threaded Ferrule: Positive, pull out proof seal formed by the deep-threaded ferrule that bites into the inner wall of the conduit.
• Self-Aligning Compression Nut: Sleeve is held captive within a compression nut that allows it to move freely and self-align with the conduit; the nut rides only on the sleeve and not on the conduit.
• Three-Piece Assembly: Fast disassembly permits harness preparation in advance for quick field connections.
• UL & CSA Certified: Approved for liquid-tight, rain-tight, and oil-tight applications.

Technical Specifications

Material: Insulated, malleable iron
Angle: 90 Degree
Conduit Type: Liquidtight Flexible Non-Metallic Conduit
Trade Size: 1-3/4 Inch
Design: Three-piece (body, nut, ferrule)
Thread Type: Tapered threaded male hub (NPT)
Finish: Malleable iron with standard coating
Certifications: UL 514B, CSA C22.2
Installation: Screw-on type; no disassembly required for standard installation

Typical Applications

Ideal for wet, challenging locations and suitable for use in Class I, Division 2 and other hazardous locations; with multiple sizes and options, they're ideally suited for OEM applications, including petroleum machinery, machine shop equipment, conveyors, packaging and more.

• Motor and transformer terminations
• Robotics assembly installations
• Air conditioning equipment wiring
• Wet location conduit connections
• Hazardous (classified) area wiring

Compatibility & Replacements

Compatible With

• Liquidtight flexible nonmetallic conduit
• Conduit systems in industrial and commercial electrical installations
• Class I, Division 2 hazardous location wiring
• Wet location and oily environment applications

Replaces / Drop-In Replacement For

Verify compatibility with your system integrator or consult the original equipment specification sheet before ordering replacement units. The Appleton STNM series is the standard connector line for nonmetallic flexible conduit in the specified trade size.

Works With

• UL 514B–approved conduit systems
• CSA C22.2–compliant wiring installations
• NPT-threaded conduit hubs and outlets
• Flexible nonmetallic and metallic liquidtight conduit assemblies
