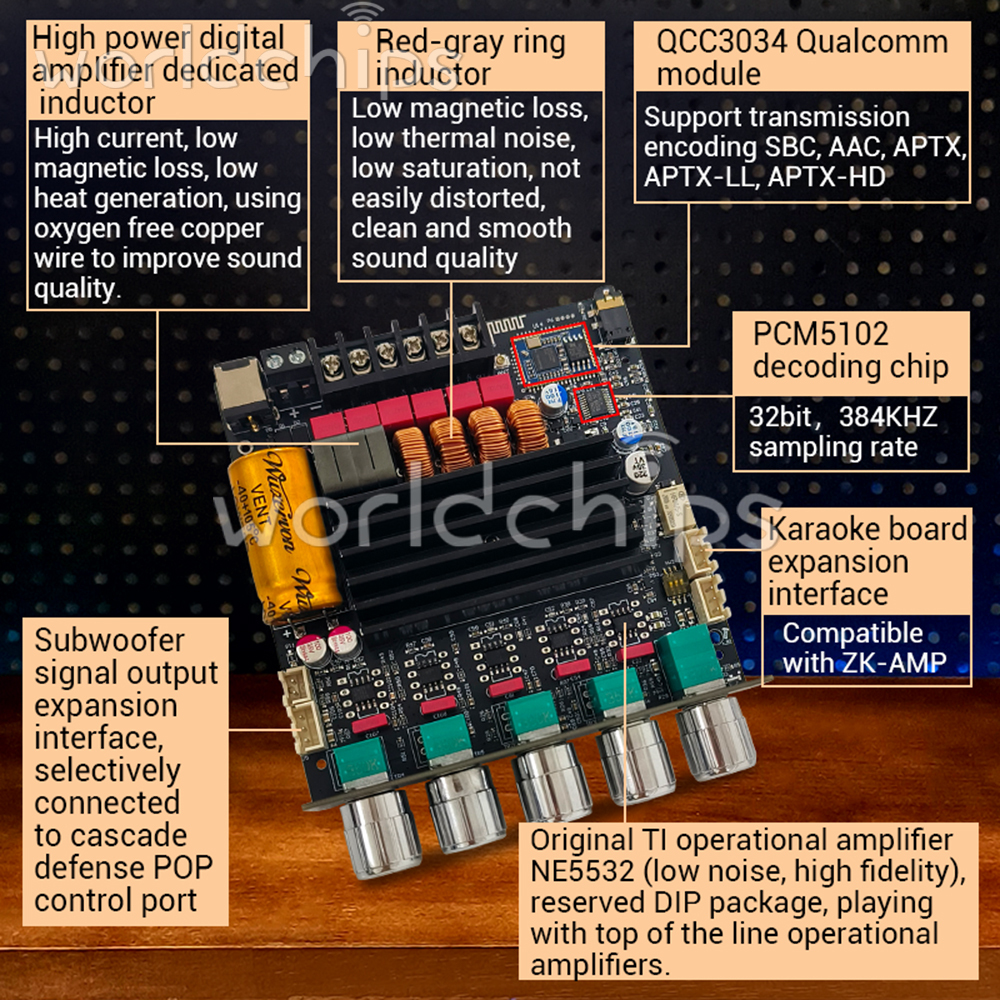

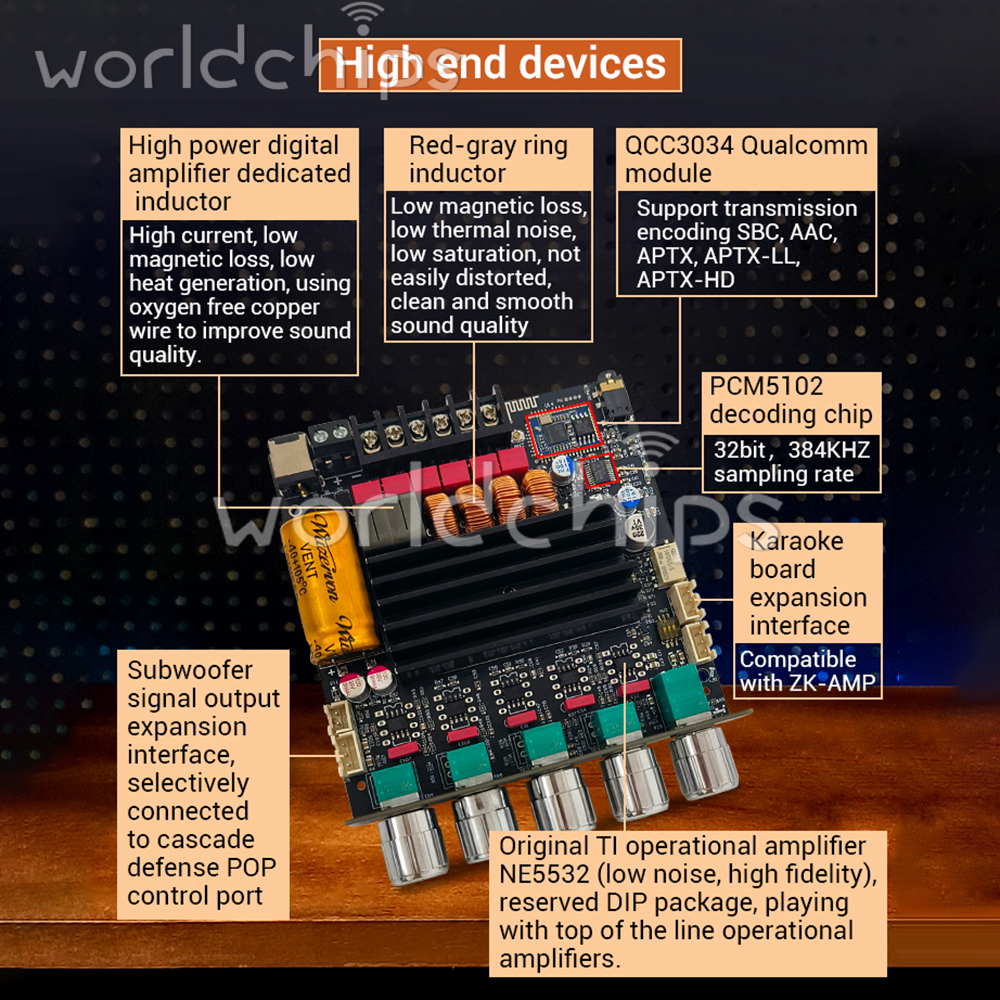

Product Features:

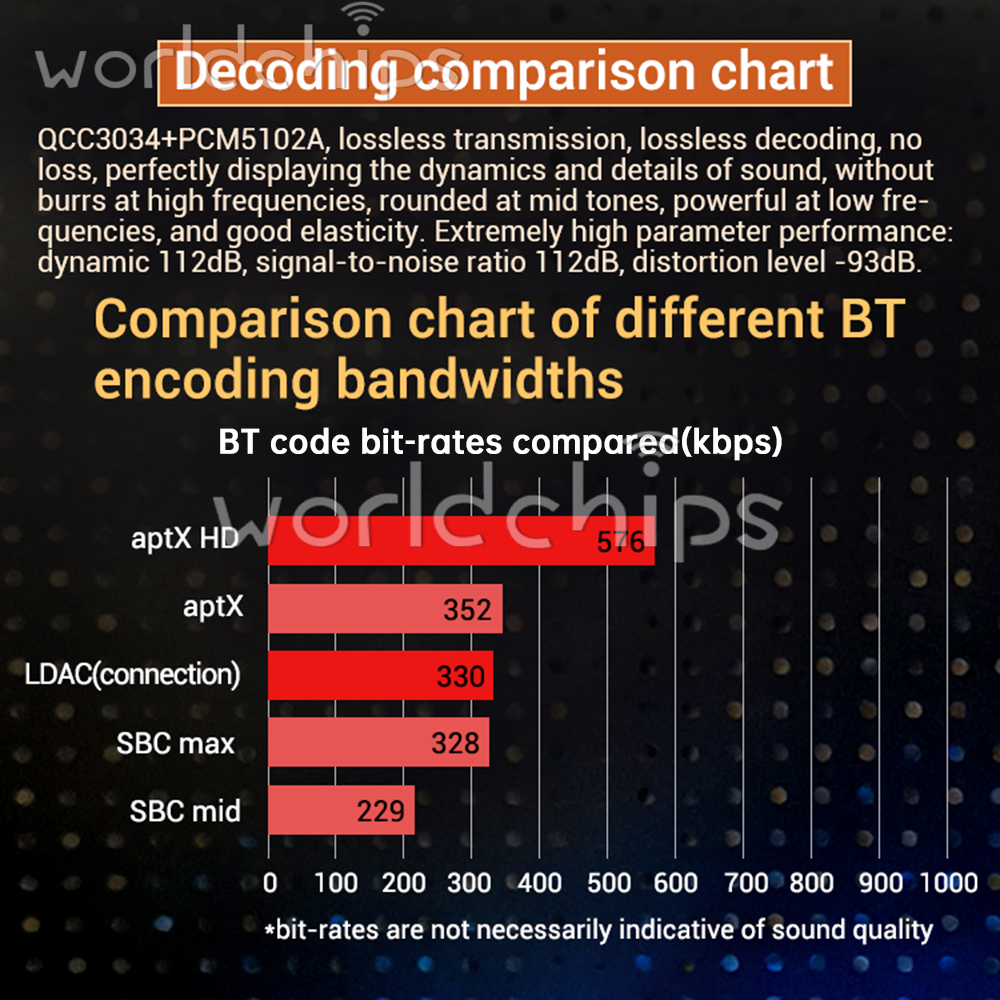

1. Supports APTX lossless decoding with 24-bit DAC for exquisite sound quality.
2. Audiophile-grade inductive LC filtering enhances audio purity.
3. Oversized heat sink design effectively reduces operating temperature.
4. Original TI op-amp NE5532 delivers superior dynamic response.

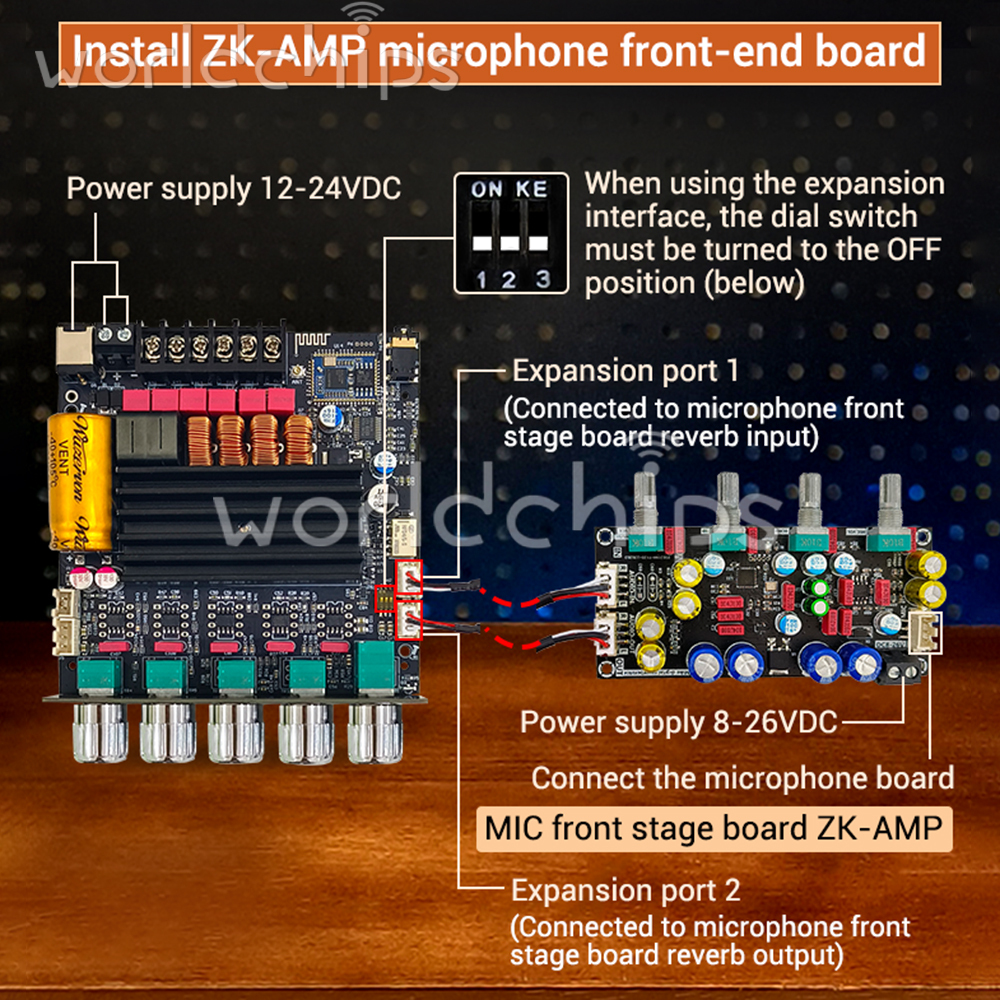

5. Dual-package compatibility allows free replacement of audiophile op-amps. Features subwoofer expansion port with anti-POP control technology.
1. Supports APTX lossless decoding with 24-bit DAC for exquisite sound quality.
2. Audiophile-grade inductive LC filtering enhances audio purity.
3. Oversized heat sink design effectively reduces operating temperature.
4. Original TI op-amp NE5532 delivers superior dynamic response.
5. Dual-package compatibility allows free replacement of audiophile op-amps. Features subwoofer expansion port with anti-POP control technology.
Product Specifications

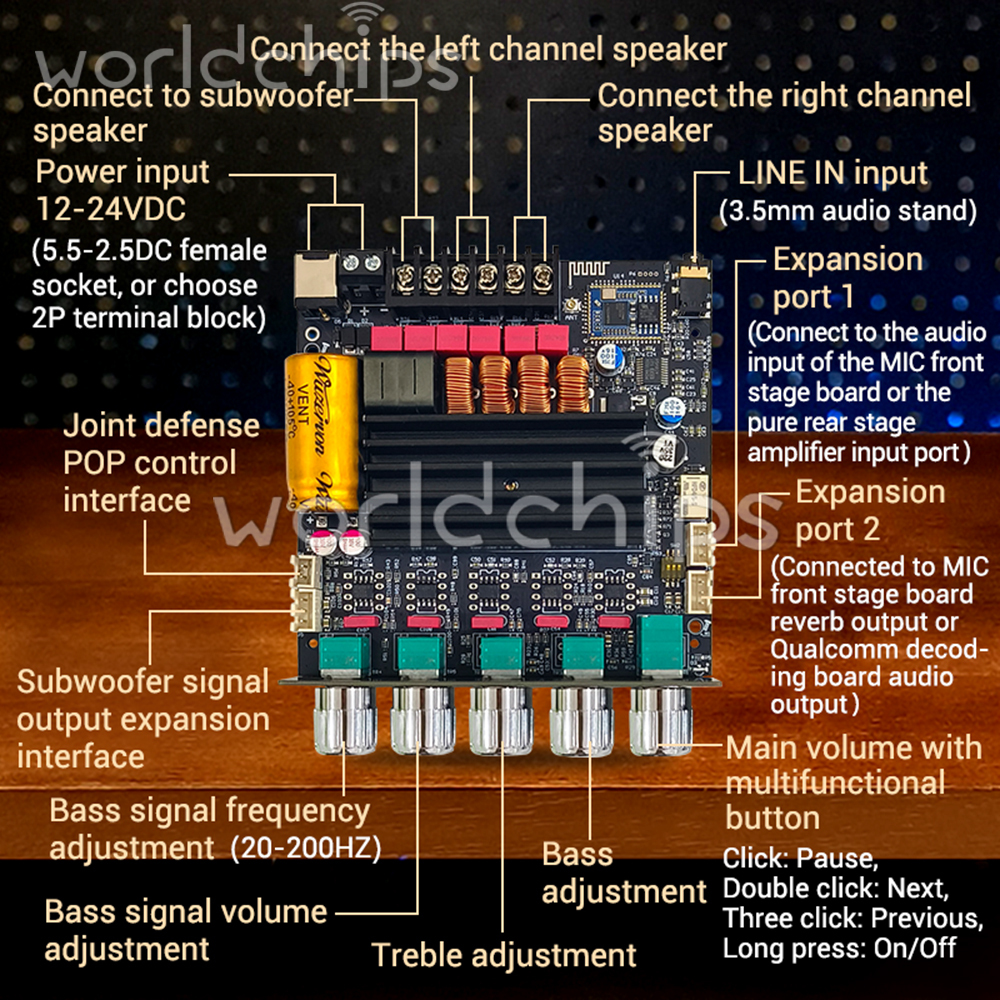

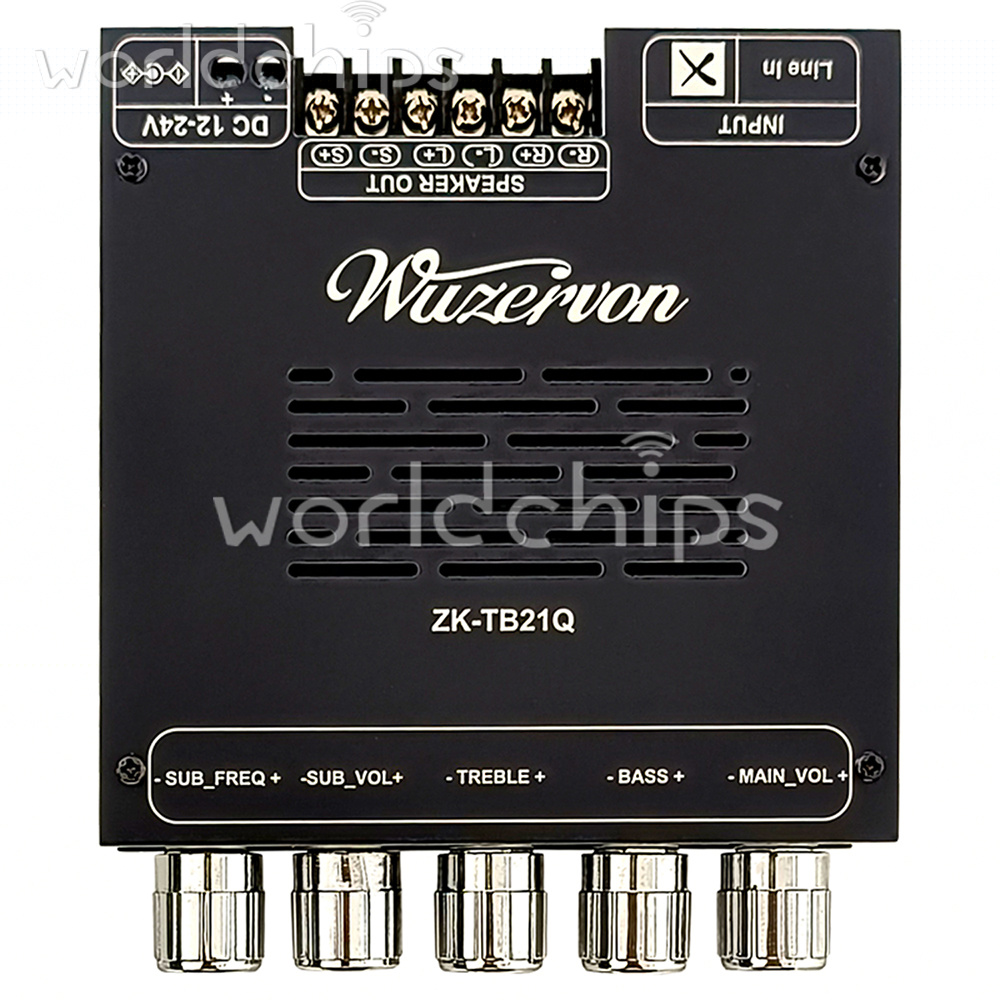

Product Name: 2.1-Channel High-Pass Bluetooth Amplifier Board 50W+50W+100W
Model Number: ZK-TB21Q
Power Supply Compatibility: Operating voltage range 12-24VDC. Recommended voltage: 24V. Current: 8A or higher DC power supply. Do not use 24V batteries; overvoltage occurs when fully charged. Must use DC power supply; AC power is NOT supported!!! If using a DC/DC boost module, adjust to 80% of the rated voltage to prevent module damage from overshoot or ripple overvoltage!!! Maximum Power: Left/Right Channels ≤50W, Subwoofer ≤100W
Compatible Speakers: 20-100W, 4-8Ω
Bluetooth Chip: QCC3034, transmission range 15 meters.

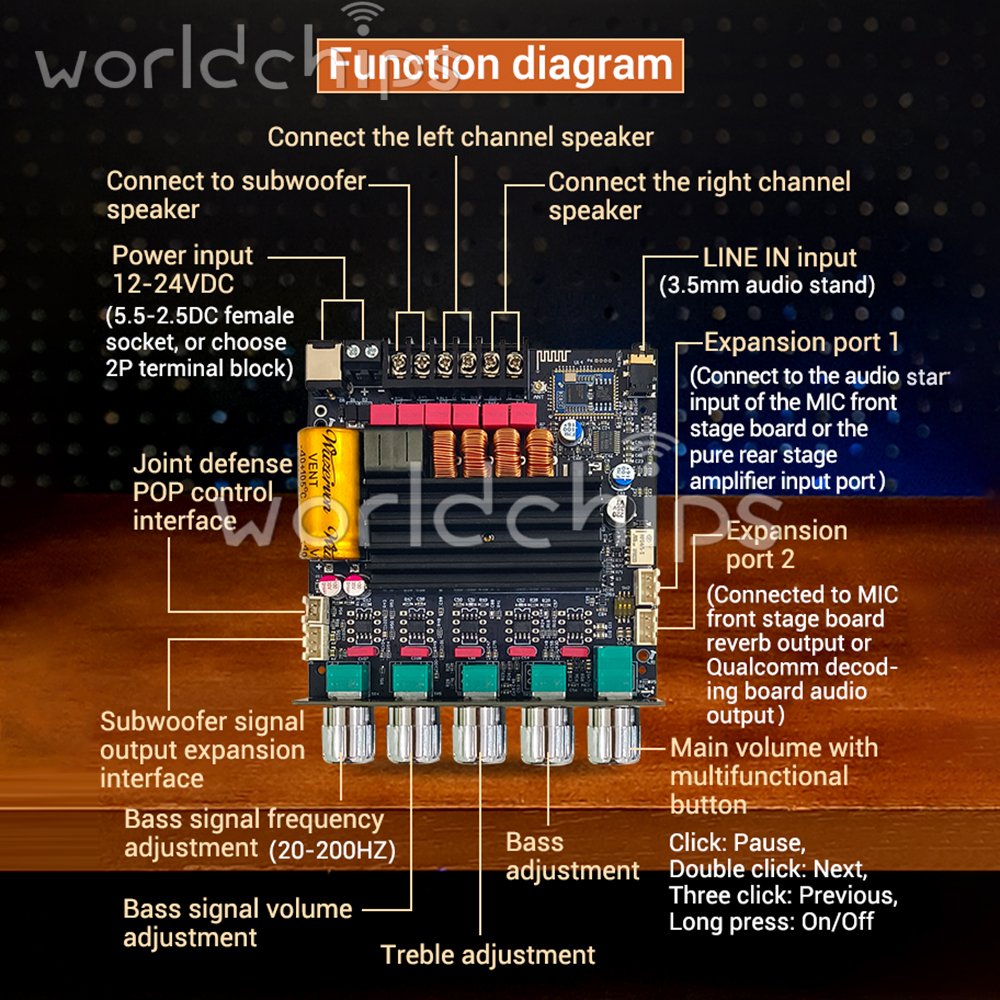

Input Methods: Bluetooth + AUX, Bluetooth priority. Disconnect Bluetooth when using audio cable input.
Number of Channels: 2.1 (Left/Right + Subwoofer)
Amplifier Chips: Two genuine TI TPA3116D2
Protection Mechanisms: Input under-voltage, overheating, overcurrent, short-circuit protection; includes input reverse polarity protection.
Product Name: 2.1-Channel High-Pass Bluetooth Amplifier Board 50W+50W+100W
Model Number: ZK-TB21Q
Power Supply Compatibility: Operating voltage range 12-24VDC. Recommended voltage: 24V. Current: 8A or higher DC power supply. Do not use 24V batteries; overvoltage occurs when fully charged. Must use DC power supply; AC power is NOT supported!!! If using a DC/DC boost module, adjust to 80% of the rated voltage to prevent module damage from overshoot or ripple overvoltage!!! Maximum Power: Left/Right Channels ≤50W, Subwoofer ≤100W
Compatible Speakers: 20-100W, 4-8Ω
Bluetooth Chip: QCC3034, transmission range 15 meters.
Input Methods: Bluetooth + AUX, Bluetooth priority. Disconnect Bluetooth when using audio cable input.
Number of Channels: 2.1 (Left/Right + Subwoofer)
Amplifier Chips: Two genuine TI TPA3116D2
Protection Mechanisms: Input under-voltage, overheating, overcurrent, short-circuit protection; includes input reverse polarity protection.
Product Dimensions:

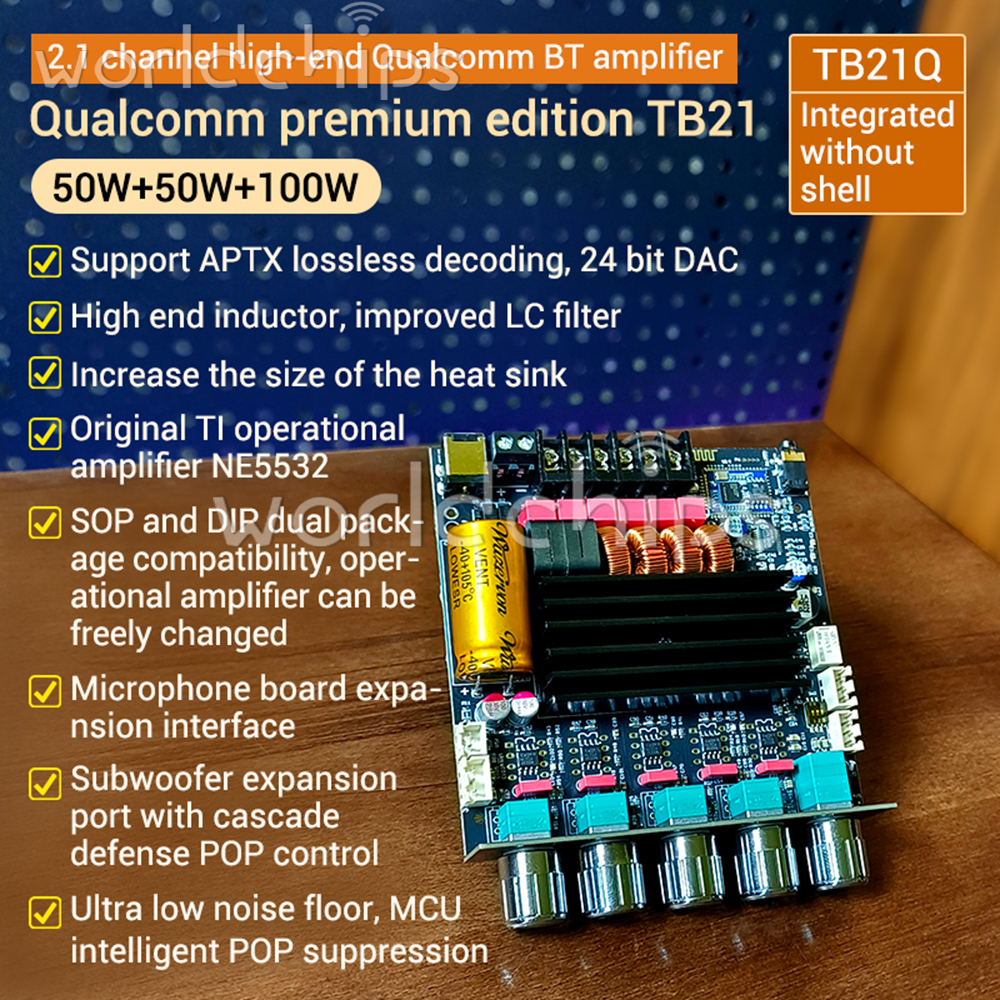

Integrated Potentiometer (Shell-less): 118x100x21mm
Integrated Potentiometer (Shell-included): 118x100x26mm

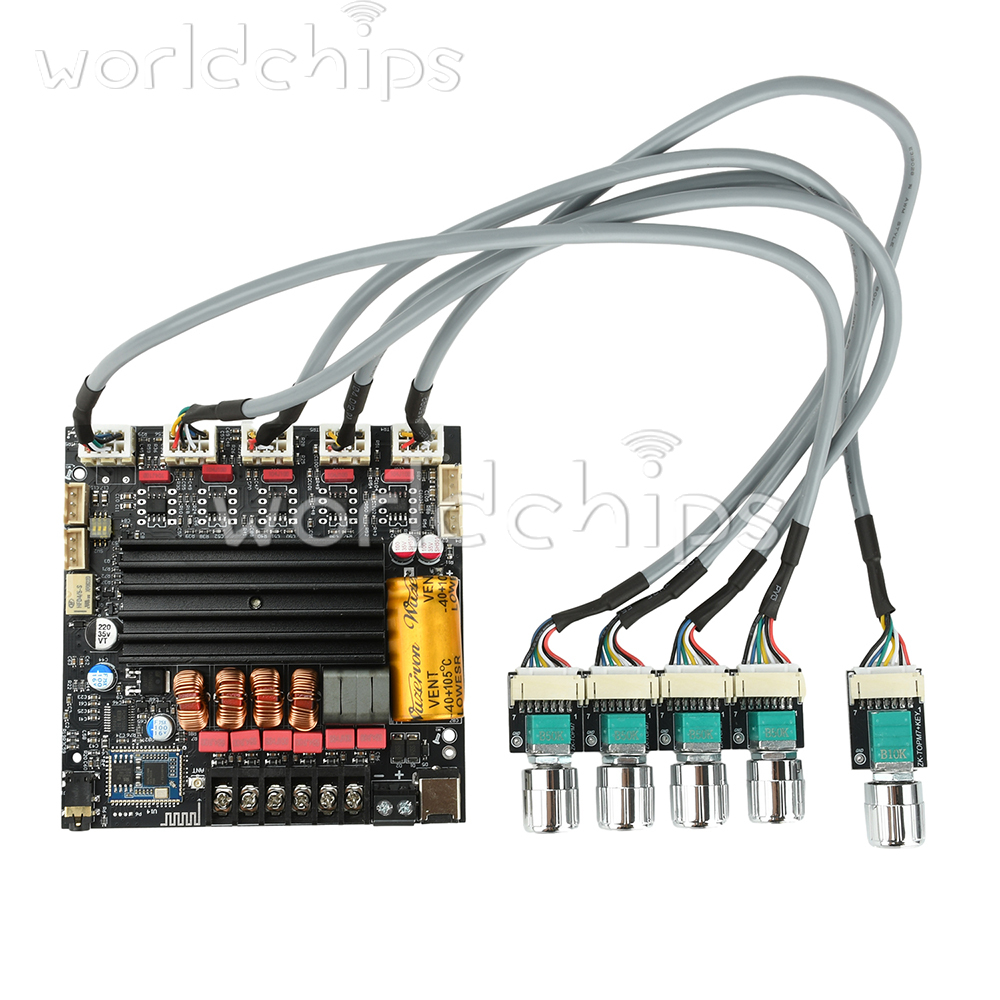

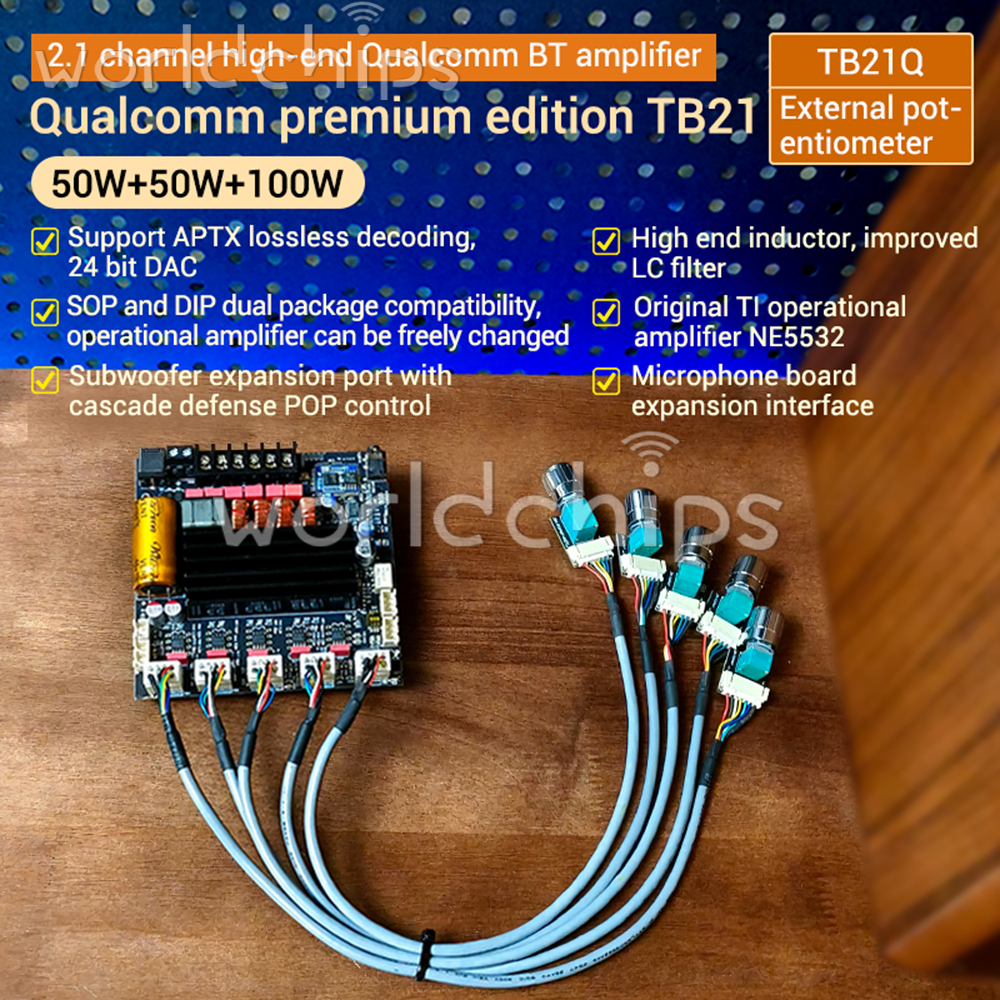

External Potentiometer: 100x100x21mm
Note: Sufficient output power is only achievable with adequate audio input and sufficient power supply voltage/current!!! Higher power supply voltage yields greater output power; lower speaker impedance yields greater output power!!! Ensure the power supply capacity exceeds the amplifier's actual operating power!!!
Product List:

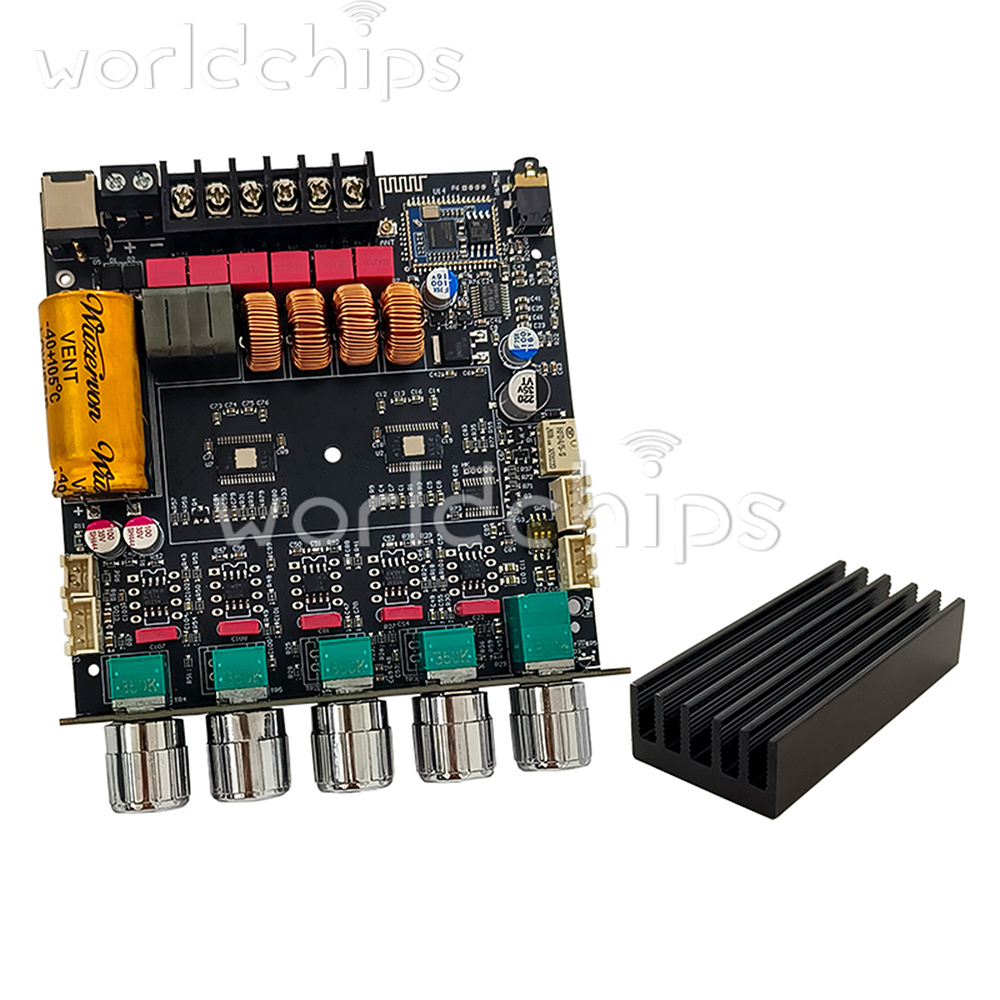

1X Amplifier Board
1X Accessory Kit
1X Amplifier Board
1X Accessory Kit
-
